Artikelnr: F032111003

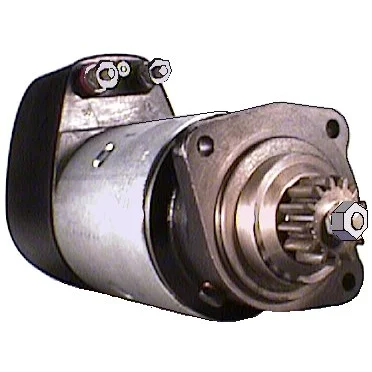

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 5.4, No./teeth: 13, Rotation: CW

Beskrivning

Voltage: 24
kW: 5.4
Mount. flange: 89.00
Drive dist.: 47.50
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 327.00
Dist./front: 62.50
No./teeth: 13
B+: M10
Position/50: 60
Terminal 50: M6
Gear type: DD
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 126.50
Rotation: CW
Position/b-: 58
B-: M10
Total length mm: 387.50
Drive type: Steel
Prod. info: BN
Waterproof: Yes
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 13
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Position/b- 58
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 327.00
Dist./front 62.50
Drive dist. 47.50
Drive type Steel
Gear type DD
kW 5.4
Terminal 50 M6
Voltage 24
Total length 387.50 mm
Waterproof Yes
Dist. 126.50 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    cs805, D1R24X6H7622, F032111003, 504, 253307, 01170389, 1170389, 0001410052, 0001410094, 0001415007, 0001416004, 1516813R, 2871840M91, 2871840M92, 02917538, 2917538, 3095297M91, 19024012, 194939707

  • Konkurrentreferens
    CST10715, drs3324, IS9061, LRS01859, LRS01953, MS511, S0134, 8ea732892-001, 45-1300, 45-3198, 600.059.134, 600.069.134, 601.201.133, 625.033.134, 4139, 10805, 104012, 220320, 220320A, 11090168

  • Normaliserat artikelnummer
    cs805, cst10715, d1r24x6h7622, drs3324, f032111003, is9061, lrs01859, lrs01953, ms511, s0134, 8ea732892001, 504, 4139, 10805, 104012, 220320, 220320a, 253307, 451300, 453198, 01170389, 1170389, 0001410052, 0001410094, 0001415007, 0001416004, 1516813r, 2871840m91, 2871840m92, 02917538, 2917538, 3095297m91, 11090168, 19024012, 194939707, 600059134, 600069134, 601201133, 625033134

  • Passar modeller
    Hanomag Model: 40 Series Model series: 44 C Size of motor: 7.2 Brand of engine: D943.. From date: 01-02-1980 To date: 01-07-1992 Fuel: Diesel Approved: Yes
    Hanomag Model: 50 Series Model series: 55C Size of motor: 10.8 Brand of engine: D963B From date: 01-01-1981 To date: 01-03-1996 Fuel: Diesel Approved: Yes
    Hanomag Model: 50 Series Model series: 55C Size of motor: 9.5 Brand of engine: D962B From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
    Hanomag Model: 60 Series Model series: 66 C Size of motor: 10.8 Brand of engine: D963A.. From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
    Hanomag Model: 600 Series Model series: 600 D Size of motor: 9.5 Brand of engine: D962K From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
    Hanomag Model: 70 Series Model series: 77 C Size of motor: 10.8 Brand of engine: D963A.. From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
    Hanomag Model: 700 Series Model series: 700 D Size of motor: 10.8 Brand of engine: D963A.. From date: 01-04-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 24
    kW: 5.4
    Mount. flange: 89.00
    Drive dist.: 47.50
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 327.00
    Dist./front: 62.50
    No./teeth: 13
    B+: M10
    Position/50: 60
    Terminal 50: M6
    Gear type: DD
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 126.50
    Rotation: CW
    Position/b-: 58
    B-: M10
    Total length mm: 387.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: Yes
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M10
    No./teeth 13
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 60
    Position/b- 58
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 327.00
    Dist./front 62.50
    Drive dist. 47.50
    Drive type Steel
    Gear type DD
    kW 5.4
    Terminal 50 M6
    Voltage 24
    Total length 387.50 mm
    Waterproof Yes
    Dist. 126.50 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      cs805, D1R24X6H7622, F032111003, 504, 253307, 01170389, 1170389, 0001410052, 0001410094, 0001415007, 0001416004, 1516813R, 2871840M91, 2871840M92, 02917538, 2917538, 3095297M91, 19024012, 194939707

    • Konkurrentreferens
      CST10715, drs3324, IS9061, LRS01859, LRS01953, MS511, S0134, 8ea732892-001, 45-1300, 45-3198, 600.059.134, 600.069.134, 601.201.133, 625.033.134, 4139, 10805, 104012, 220320, 220320A, 11090168

    • Normaliserat artikelnummer
      cs805, cst10715, d1r24x6h7622, drs3324, f032111003, is9061, lrs01859, lrs01953, ms511, s0134, 8ea732892001, 504, 4139, 10805, 104012, 220320, 220320a, 253307, 451300, 453198, 01170389, 1170389, 0001410052, 0001410094, 0001415007, 0001416004, 1516813r, 2871840m91, 2871840m92, 02917538, 2917538, 3095297m91, 11090168, 19024012, 194939707, 600059134, 600069134, 601201133, 625033134

    • Passar modeller
      Hanomag Model: 40 Series Model series: 44 C Size of motor: 7.2 Brand of engine: D943.. From date: 01-02-1980 To date: 01-07-1992 Fuel: Diesel Approved: Yes
      Hanomag Model: 50 Series Model series: 55C Size of motor: 10.8 Brand of engine: D963B From date: 01-01-1981 To date: 01-03-1996 Fuel: Diesel Approved: Yes
      Hanomag Model: 50 Series Model series: 55C Size of motor: 9.5 Brand of engine: D962B From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
      Hanomag Model: 60 Series Model series: 66 C Size of motor: 10.8 Brand of engine: D963A.. From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
      Hanomag Model: 600 Series Model series: 600 D Size of motor: 9.5 Brand of engine: D962K From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
      Hanomag Model: 70 Series Model series: 77 C Size of motor: 10.8 Brand of engine: D963A.. From date: 01-02-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
      Hanomag Model: 700 Series Model series: 700 D Size of motor: 10.8 Brand of engine: D963A.. From date: 01-04-1980 To date: 01-03-1996 Fuel: Diesel Approved: Yes
      1 / 2
