- Startmotor
-
HC-Cargo Startmotor
- Startmotor
-
HC-Cargo Startmotor
Artikelnr: F032111000

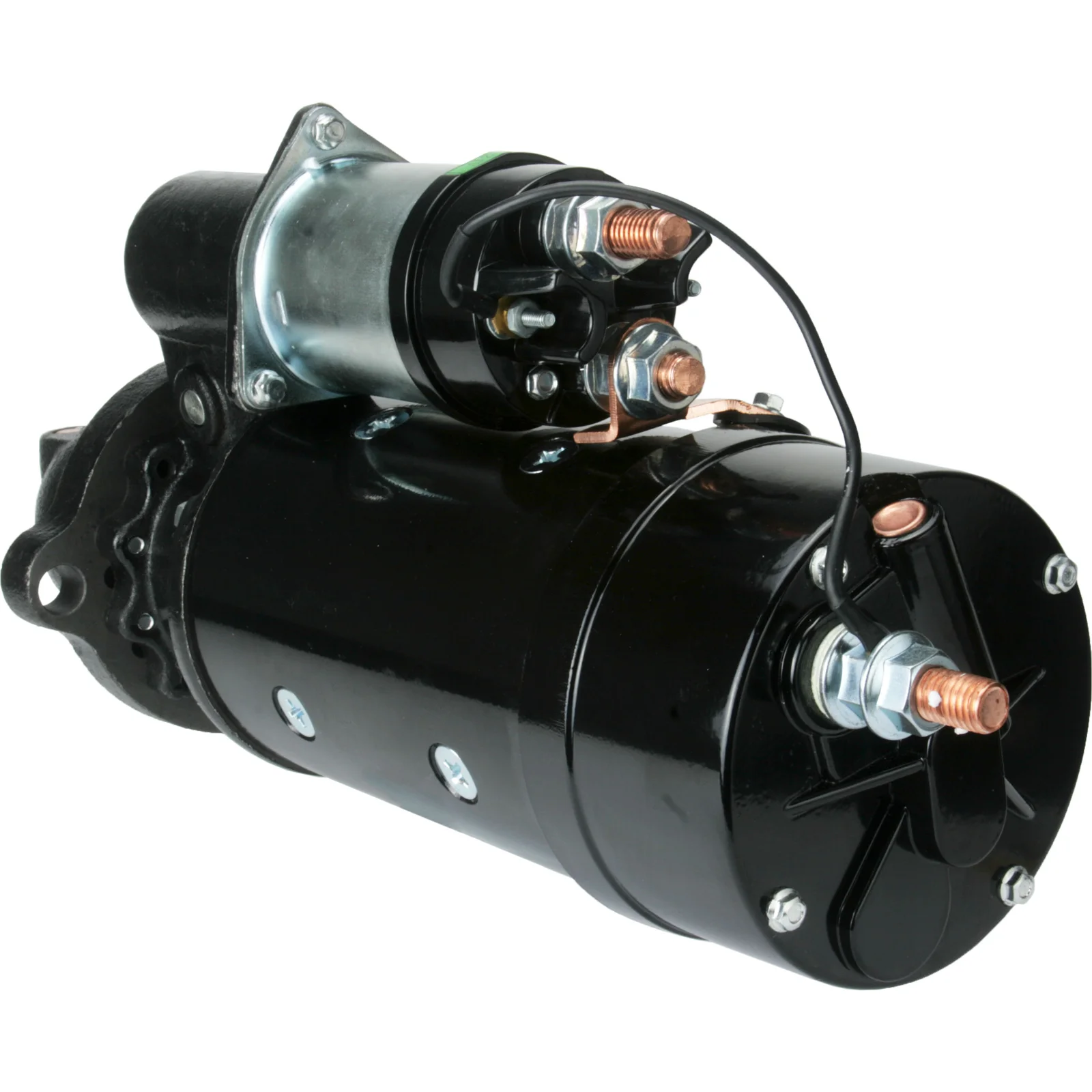

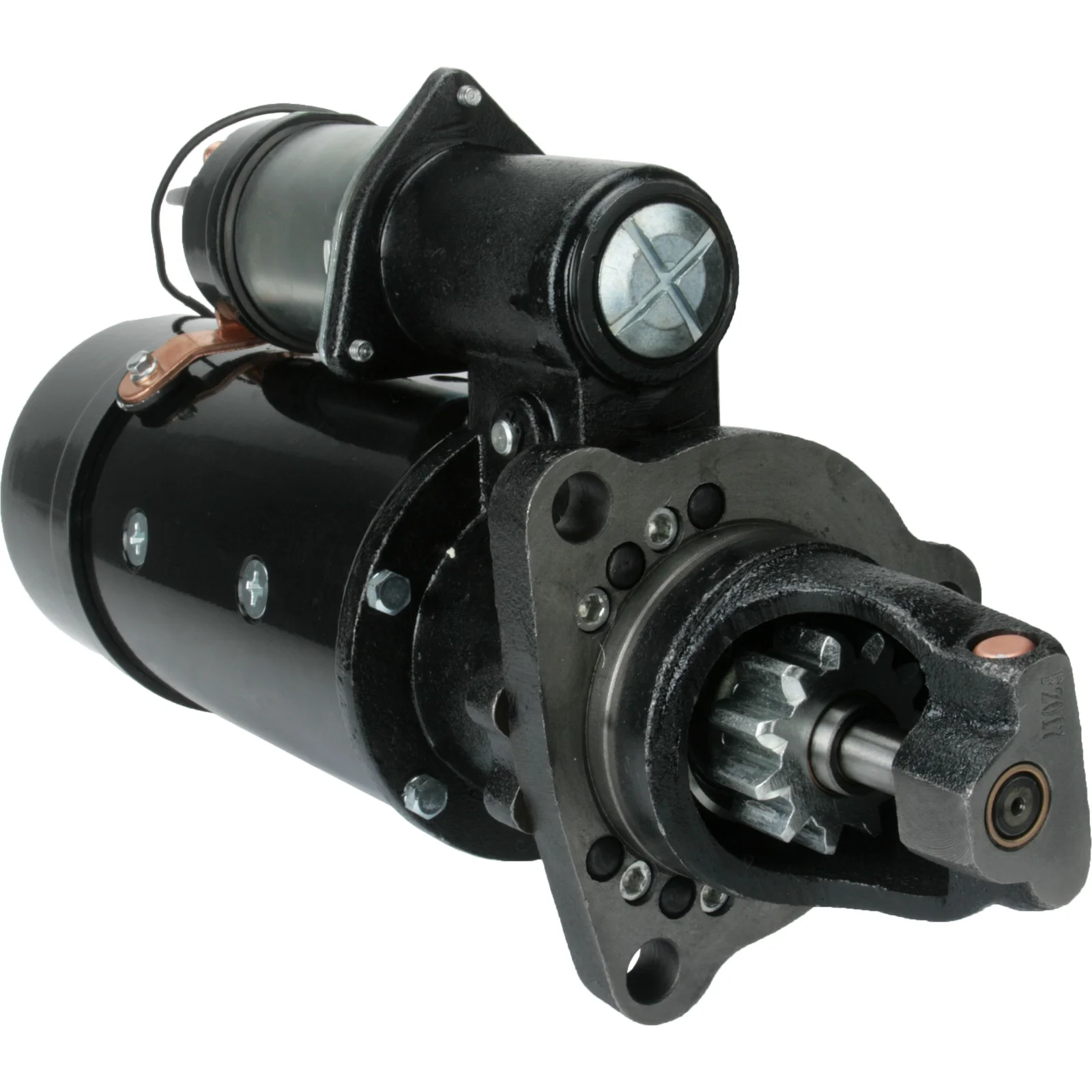

HC-Cargo Startmotor
Voltage: 24, kW: 6.5, No./teeth: 11, Rotation: CW
Beskrivning
Caterpillar Startm. 24V, 42MT 24V, 11k, 42MT, 8 kW, 27.3kg. Delco Remy 40MT typ som passar = ST-3745, Delco Remy 50MT typ som passar = ST-4930 Alternativ : ST-6819 8.2kW. För Yourex produkt order ST-6370.
Voltage: 24
kW: 6.5
Insulated return: Yes
Mount. flange: 92.00
Drive dist.: 46.00
Mount. hole 3 mm: 16.80
Mount. hole 2 mm: 16.80
Mount. hole 1 mm: 16.80
Dist./back: 350.00
Dist./front: 103.00
No./teeth: 11
B+: 1/2" UNC
Position/B+: 60
Position/50: 15
Terminal 50: 3/16" UNF
Gear type: DD
Dist. 2: 126.00
Dist. 3: 126.00
Dist. mm: 126.00
Rotation: CW
B-: 1/2" UNC
Total length mm: 497.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
Info: w/ rotating D.E. Bracket.
Remarks: Replacing: 42MT.
No./mount. holes: 3 (0)
Voltage: 24
kW: 6.5
Insulated return: Yes
Mount. flange: 92.00
Drive dist.: 46.00
Mount. hole 3 mm: 16.80
Mount. hole 2 mm: 16.80
Mount. hole 1 mm: 16.80
Dist./back: 350.00
Dist./front: 103.00
No./teeth: 11
B+: 1/2" UNC
Position/B+: 60
Position/50: 15
Terminal 50: 3/16" UNF
Gear type: DD
Dist. 2: 126.00
Dist. 3: 126.00
Dist. mm: 126.00
Rotation: CW
B-: 1/2" UNC
Total length mm: 497.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
Info: w/ rotating D.E. Bracket.
Remarks: Replacing: 42MT.
No./mount. holes: 3 (0)
Filer
Specifikation
| B+ | 1/2" UNC |
|---|---|
| B- | 1/2" UNC |
| No./teeth | 11 |
| Mount. flange | 92.00 |
| Oil sealed | Yes |
| No./mount. holes | 3 (0) |
| Position/50 | 15 |
| Position/B+ | 60 |
| Prod. info | BN |
| Dist. 2 | 126.00 |
| Remarks | Replacing: 42MT. |
| Dist. 3 | 126.00 |
| Rotation | CW |
| Dist./back | 350.00 |
| Dist./front | 103.00 |
| Drive dist. | 46.00 |
| Drive type | Steel |
| Gear type | DD |
| Info | w/ rotating D.E. Bracket. |
| Insulated return | Yes |
| kW | 6.5 |
| Terminal 50 | 3/16" UNF |
| Voltage | 24 |
| Total length | 497.50 mm |
| Waterproof | No |
| Dist. | 126.00 mm |
| Mount. hole 3 | 16.80 mm |
| Mount. hole 2 | 16.80 mm |
| Mount. hole 1 | 16.80 mm |
-
OEM
0r2187, 0r2190, 0R4259, 0r5209, F032111000, M004T95481, M009T62572, M105R3502, m4t95481, MS1-101, MS1-103, MS1-124, MS1-401, MS1-401A, ms1-401c, MS1-403A, ms1/401a, MS1/411AZ, ms1a/20, ms1a/25, OR2187, OR2697, OR4259, OR4267, OR5209, SL8207, ST-6370, STR1015, T 0R 2187, T 0R 2190, T 4N 0957, T 8C 3645, us864, 1l8174, 1M6132, 1N9412, 3t2646, 3t2649, 3t2650, 3T2651, 3T2653, 3t2654, 3T2784, 3t3152, 3t3153, 3T5831, 3T8952, 4n0957, 4N1062, 4N5471, 4n8118, 4n957, 5l2537, 5l2637, 5L4171, 5L4431, 5L4513, 5l537, 5l637, 6n1889, 6n3122, 6n3160, 6T0643, 6V5539, 6V5540, 7l8797, 7t0794, 7T0796, 7t0800, 7t0801, 7t0806, 7T9162, 8c3644, 8c3645, 8c3649, 8h1813, 8H1913, 8L8207, 9g5584, 9g5585, 9G6096, 9G6097, 9l6691, 9n0435, 9n0453, 10R0400, 104-7041, 106-8554, 207-1548, 207-1556, 207-1564, 12807, 41897, 41947, 42584, 42585, 42586, 42587, 43491, 43922, 44043, 107173, 111000, 121555C91, 126405, 131304, 135160, 135161, 135162, 135163, 147923, 163976, 167072, 173006, 173007, 176576, 179753, 199903, 201741, 260493C91, 323790, 555241, 555388, 704007, 705620, 706621, 706622, 706623, 707860, 708913, 708914, 708915, 708916, 851078, 851122, 851339, 855689, 855694, 858442, 858444, 858506, 858979, 860334, 1047042, 1068551, 1108857, 1109702, 1109704, 1109723, 1109745, 1109760, 1109762, 1109765, 1109861, 1113706, 1113707, 1113708, 1113709, 1113710, 1113713, 1113717, 1113726, 1113738, 1113739, 1113741, 1113745, 1113748, 1113749, 1113778, 1113781, 1113783, 1113792, 1113800, 1113809, 1113813, 1113814, 1113815, 1113818, 1113820, 1113823, 1113824, 1113825, 1113828, 1113831, 1113834, 1113835, 1113836, 1113842, 1113844, 1113845, 1113846, 1113847, 1113849, 1113850, 1113851, 1113855, 1113858, 1113859, 1113860, 1113861, 1113862, 1113866, 1113868, 1113872, 1113876, 1113877, 1113878, 1113880, 1113883, 1113884, 1113885, 1113887, 1113890, 1113892, 1113893, 1113894, 1113895, 1113898, 1113899, 1113900, 1113902, 1113903, 1113905, 1113906, 1113908, 1113911, 1113912, 1113913, 1113914, 1113915, 1113916, 1113920, 1113924, 1113925, 1113926, 1113929, 1113935, 1113941, 1113944, 1113948, 1113951, 1113952, 1113955, 1113956, 1113957, 1113958, 1113965, 1113966, 1113968, 1113970, 1113971, 1113972, 1113973, 1113975, 1113976, 1113977, 1113978, 1113980, 1113981, 1113983, 1113989, 1113991, 1113994, 1113995, 1113997, 1113999, 1114710, 1114715, 1114727, 1114728, 1114730, 1114737, 1114738, 1114755, 1114756, 1114760, 1114762, 1114776, 1114781, 1114790, 1114842, 1114844, 1114846, 1114847, 1114848, 1114849, 1114850, 1114851, 1114852, 1114853, 1114854, 1114855, 1114873, 1114874, 1114875, 1114878, 1114879, 1114880, 1114901, 1114903, 1114909, 1114915, 1114916, 1114923, 1114935, 1114947, 1114950, 1114951, 1114958, 1114963, 1114964, 1114970, 1114979, 1114987, 1219522H92, 1219523H91, 1219524H91, 1219525H92, 1219659H92, 1222960H91, 1251635H92, 0001371018, 0001420007, 1443674, 1990202, 1990279, 1990282, 1990344, 1990361, 1990367, 1990368, 1990378, 1990382, 1990383, 1990384, 1990388, 1990390, 1990409, 1990410, 1990411, 1990412, 1990416, 1990418, 1990422, 1990437, 1990456, 1990460, 1990485, 1990491, 1990493, 1990838, 1993700, 1993802, 1993805, 1993810, 1993842, 1993924, 2871253, 2998150, 3021036, 3103952, 3201036, 3328552, 3603862, 3603862rx, 3604321rx, 3604658RX, 8200357, 10461024, 10461030, 10461043, 10461047, 10461054, 10461068, 10461128, 10461179, 10461184, 10461259, 10461277, 10461278, 10478861, 10478943, 10478946, 10478980, 10478986, 10478998, 10479111, 10479252 -
Konkurrentreferens
BSO7188, BSO7192, CST60604, DRS0096, drz5104, drz5105, drz5115, drz5167, GA21367, lrs00794, MS77, S0260, S1001, S1049, S1118, S1128, S1132, S1232S, S5082, SR950X, SR957X, STR20004, STR20013, STR32003, STR32007, STR4302, 8ea726543-001, 8ea732856-001, 45-1027, 45-2345, 45-2397, 50-104, 50-104-1, 50-104-2, 50-151, 50-151-1, 50-151-2, 50-151-3, 88-15.680, 91-01-3700n, 301.503.103, 600.013.114, 600.064.114, 600.203.114, 621.502.113, 672.013.114, 672.014.114, 3059, 3063, 3074, 3745, 3745N-Z, 3757, 3757N, 3823, 3824, 3945N, 3974N, 3974R, 4356, 4403, 4791, 5320, 6208, 6230, 6260, 6370, 6370N, 6370R, 6508, 6552R, 6553N, 6819N, 6819R, 6837N-P, 6853N, 18006, 19153N, 33385, 33386, 33515, 60811, 60864, 103775, 104126, 11090085, 42992823, 943251568, 0986015680 -
Bilmärken
Caterpillar, Fiat - Hitachi -
Normaliserat artikelnummer
0r2187, 0r2190, 0r4259, 0r5209, bso7188, bso7192, cst60604, drs0096, drz5104, drz5105, drz5115, drz5167, f032111000, ga21367, lrs00794, m004t95481, m009t62572, m105r3502, m4t95481, ms1101, ms1103, ms1124, ms1401, ms1401a, ms1401c, ms1403a, ms1411az, ms1a20, ms1a25, ms77, or2187, or2697, or4259, or4267, or5209, s0260, s1001, s1049, s1118, s1128, s1132, s1232s, s5082, sl8207, sr950x, sr957x, st6370, str1015, str20004, str20013, str32003, str32007, str4302, t0r2187, t0r2190, t4n0957, t8c3645, us864, 1l8174, 1m6132, 1n9412, 3t2646, 3t2649, 3t2650, 3t2651, 3t2653, 3t2654, 3t2784, 3t3152, 3t3153, 3t5831, 3t8952, 4n0957, 4n1062, 4n5471, 4n8118, 4n957, 5l2537, 5l2637, 5l4171, 5l4431, 5l4513, 5l537, 5l637, 6n1889, 6n3122, 6n3160, 6t0643, 6v5539, 6v5540, 7l8797, 7t0794, 7t0796, 7t0800, 7t0801, 7t0806, 7t9162, 8c3644, 8c3645, 8c3649, 8ea726543001, 8ea732856001, 8h1813, 8h1913, 8l8207, 9g5584, 9g5585, 9g6096, 9g6097, 9l6691, 9n0435, 9n0453, 10r0400, 3059, 3063, 3074, 3745, 3745nz, 3757, 3757n, 3823, 3824, 3945n, 3974n, 3974r, 4356, 4403, 4791, 5320, 6208, 6230, 6260, 6370, 6370n, 6370r, 6508, 6552r, 6553n, 6819n, 6819r, 6837np, 6853n, 12807, 18006, 19153n, 33385, 33386, 33515, 41897, 41947, 42584, 42585, 42586, 42587, 43491, 43922, 44043, 50104, 50151, 60811, 60864, 103775, 104126, 107173, 111000, 121555c91, 126405, 131304, 135160, 135161, 135162, 135163, 147923, 163976, 167072, 173006, 173007, 176576, 179753, 199903, 201741, 260493c91, 323790, 451027, 452345, 452397, 501041, 501042, 501511, 501512, 501513, 555241, 555388, 704007, 705620, 706621, 706622, 706623, 707860, 708913, 708914, 708915, 708916, 851078, 851122, 851339, 855689, 855694, 858442, 858444, 858506, 858979, 860334, 1047041, 1047042, 1068551, 1068554, 1108857, 1109702, 1109704, 1109723, 1109745, 1109760, 1109762, 1109765, 1109861, 1113706, 1113707, 1113708, 1113709, 1113710, 1113713, 1113717, 1113726, 1113738, 1113739, 1113741, 1113745, 1113748, 1113749, 1113778, 1113781, 1113783, 1113792, 1113800, 1113809, 1113813, 1113814, 1113815, 1113818, 1113820, 1113823, 1113824, 1113825, 1113828, 1113831, 1113834, 1113835, 1113836, 1113842, 1113844, 1113845, 1113846, 1113847, 1113849, 1113850, 1113851, 1113855, 1113858, 1113859, 1113860, 1113861, 1113862, 1113866, 1113868, 1113872, 1113876, 1113877, 1113878, 1113880, 1113883, 1113884, 1113885, 1113887, 1113890, 1113892, 1113893, 1113894, 1113895, 1113898, 1113899, 1113900, 1113902, 1113903, 1113905, 1113906, 1113908, 1113911, 1113912, 1113913, 1113914, 1113915, 1113916, 1113920, 1113924, 1113925, 1113926, 1113929, 1113935, 1113941, 1113944, 1113948, 1113951, 1113952, 1113955, 1113956, 1113957, 1113958, 1113965, 1113966, 1113968, 1113970, 1113971, 1113972, 1113973, 1113975, 1113976, 1113977, 1113978, 1113980, 1113981, 1113983, 1113989, 1113991, 1113994, 1113995, 1113997, 1113999, 1114710, 1114715, 1114727, 1114728, 1114730, 1114737, 1114738, 1114755, 1114756, 1114760, 1114762, 1114776, 1114781, 1114790, 1114842, 1114844, 1114846, 1114847, 1114848, 1114849, 1114850, 1114851, 1114852, 1114853, 1114854, 1114855, 1114873, 1114874, 1114875, 1114878, 1114879, 1114880, 1114901, 1114903, 1114909, 1114915, 1114916, 1114923, 1114935, 1114947, 1114950, 1114951, 1114958, 1114963, 1114964, 1114970, 1114979, 1114987, 1219522h92, 1219523h91, 1219524h91, 1219525h92, 1219659h92, 1222960h91, 1251635h92, 0001371018, 0001420007, 1443674, 1990202, 1990279, 1990282, 1990344, 1990361, 1990367, 1990368, 1990378, 1990382, 1990383, 1990384, 1990388, 1990390, 1990409, 1990410, 1990411, 1990412, 1990416, 1990418, 1990422, 1990437, 1990456, 1990460, 1990485, 1990491, 1990493, 1990838, 1993700, 1993802, 1993805, 1993810, 1993842, 1993924, 2071548, 2071556, 2071564, 2871253, 2998150, 3021036, 3103952, 3201036, 3328552, 3603862, 3603862rx, 3604321rx, 3604658rx, 8200357, 8815680, 10461024, 10461030, 10461043, 10461047, 10461054, 10461068, 10461128, 10461179, 10461184, 10461259, 10461277, 10461278, 10478861, 10478943, 10478946, 10478980, 10478986, 10478998, 10479111, 10479252, 11090085, 42992823, 91013700n, 301503103, 600013114, 600064114, 600203114, 621502113, 672013114, 672014114, 943251568, 0986015680 -
Passar modeller
Caterpillar Model: 3508B 913-1115 Model series: 3508B 913-1115 Model type: 3508B 913-1115 Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 3508B-1200 Model series: 3508B-1200 Model type: 3508B-1200 Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 3508B-1300 Model series: 3508B-1300 Model type: 3508B-1300 Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 3508B-1400 Model series: 3508B-1400 Model type: 3508B-1400 Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 3508B-1500 Model series: 3508B-1500 Model type: 3508B-1500 Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 5130 Model series: 5130 Model type: Excavators Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 776D Model series: 776D Model type: Off-Highway Tractors Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 777D Model series: 777D Model type: Off-Highway Trucks Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 777D Model series: 777D Model type: Off-Highway Trucks Brand of engine: 3508TAE3 Approved: Yes Caterpillar Model: 777E Model series: 777E Model type: Off-Highway Trucks Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 777F Model series: 777F Model type: Off-Highway Trucks Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 777G Model series: 777G Model type: Off-Highway Trucks Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 854K LARGE DOZER Model series: 854K LARGE DOZER Model type: Wheel Loaders and Dozers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 992 H Model series: 992 H Model type: Wheel Loaders and Dozers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 992K LARGE LOADER Model series: 992K LARGE LOADER Model type: Wheel Loaders and Dozers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 992K Model series: 992K Model type: Wheel Loaders and Dozers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 993K LARGE LOADER Model series: 993K LARGE LOADER Model type: Wheel Loaders and Dozers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 993K Model series: 993K Model type: Wheel Loaders and Dozers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: D11 Model series: D11 Model type: Crawlers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: D11R & D11R CD Model series: D11R & D11R CD Model type: Crawlers Brand of engine: 3508TAE Approved: Yes Caterpillar Model: D11R/R CD Model series: D11R/R CD Model type: Crawlers Brand of engine: 3508TAE Approved: Yes Caterpillar Model: D11T/D11T CD Model series: D11T/D11T CD Model type: Crawlers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: D3 Model series: D3B Model type: Track Tracktor Brand of engine: 3204 Approved: Yes Caterpillar Model: Excavator Model series: Various Models From date: 01-01-1983 Approved: Yes Caterpillar Model: MD6420C Model series: MD6420C Model type: Bore/Drill Rigs Brand of engine: C32TA ACERT Approved: Yes Caterpillar Series: Excavators Model: 235 B, BME Year: 00.85-00.91 Caterpillar Series: Excavators Model: 245, ME Engine type: 3406 Year: 00.86-00.91 Caterpillar Series: Graders Model: 16G Engine type: 3406 Year: 00.85-00.91 Caterpillar Series: Loaders Model: 980C Caterpillar Series: Loaders Model: 980F Engine type: 3406 Year: 01.91-12.96 Caterpillar Series: Loaders Model: 980F II Caterpillar Series: Loaders Model: 980G Engine type: 3406 Year: 01.96-12.98 Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes Fiat - Allis Series: 645 B, 745 B, 945 B Fiat - Hitachi Series: Grävmaskin Model: FH 400 Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes Ingersoll-Rand Model: DM/M3 Model series: DM/M3 Model type: Bore/Drill Rigs Brand of engine: C32TA ACERT Approved: Yes Ingersoll-Rand Model: PIT VIPER 271 Model series: PIT VIPER 271 Model type: Bore/Drill Rigs Brand of engine: C32TA ACERT Approved: Yes Ingersoll-Rand Model: PIT VIPER 275 Model series: PIT VIPER 275 Model type: Bore/Drill Rigs Brand of engine: C32TA ACERT Approved: Yes Ingersoll-Rand Model: PIT VIPER 316 Model series: PIT VIPER 316 Model type: Bore/Drill Rigs Brand of engine: C32TA ACERT Approved: Yes 1 / 9
-
Beskrivning
Caterpillar Startm. 24V, 42MT 24V, 11k, 42MT, 8 kW, 27.3kg. Delco Remy 40MT typ som passar = ST-3745, Delco Remy 50MT typ som passar = ST-4930 Alternativ : ST-6819 8.2kW. För Yourex produkt order ST-6370.
Voltage: 24
kW: 6.5
Insulated return: Yes
Mount. flange: 92.00
Drive dist.: 46.00
Mount. hole 3 mm: 16.80
Mount. hole 2 mm: 16.80
Mount. hole 1 mm: 16.80
Dist./back: 350.00
Dist./front: 103.00
No./teeth: 11
B+: 1/2" UNC
Position/B+: 60
Position/50: 15
Terminal 50: 3/16" UNF
Gear type: DD
Dist. 2: 126.00
Dist. 3: 126.00
Dist. mm: 126.00
Rotation: CW
B-: 1/2" UNC
Total length mm: 497.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
Info: w/ rotating D.E. Bracket.
Remarks: Replacing: 42MT.
No./mount. holes: 3 (0)Filer
-
Specifikation
B+ 1/2" UNC B- 1/2" UNC No./teeth 11 Mount. flange 92.00 Oil sealed Yes No./mount. holes 3 (0) Position/50 15 Position/B+ 60 Prod. info BN Dist. 2 126.00 Remarks Replacing: 42MT. Dist. 3 126.00 Rotation CW Dist./back 350.00 Dist./front 103.00 Drive dist. 46.00 Drive type Steel Gear type DD Info w/ rotating D.E. Bracket. Insulated return Yes kW 6.5 Terminal 50 3/16" UNF Voltage 24 Total length 497.50 mm Waterproof No Dist. 126.00 mm Mount. hole 3 16.80 mm Mount. hole 2 16.80 mm Mount. hole 1 16.80 mm -
Fordonsmatchning
-
OEM
0r2187, 0r2190, 0R4259, 0r5209, F032111000, M004T95481, M009T62572, M105R3502, m4t95481, MS1-101, MS1-103, MS1-124, MS1-401, MS1-401A, ms1-401c, MS1-403A, ms1/401a, MS1/411AZ, ms1a/20, ms1a/25, OR2187, OR2697, OR4259, OR4267, OR5209, SL8207, ST-6370, STR1015, T 0R 2187, T 0R 2190, T 4N 0957, T 8C 3645, us864, 1l8174, 1M6132, 1N9412, 3t2646, 3t2649, 3t2650, 3T2651, 3T2653, 3t2654, 3T2784, 3t3152, 3t3153, 3T5831, 3T8952, 4n0957, 4N1062, 4N5471, 4n8118, 4n957, 5l2537, 5l2637, 5L4171, 5L4431, 5L4513, 5l537, 5l637, 6n1889, 6n3122, 6n3160, 6T0643, 6V5539, 6V5540, 7l8797, 7t0794, 7T0796, 7t0800, 7t0801, 7t0806, 7T9162, 8c3644, 8c3645, 8c3649, 8h1813, 8H1913, 8L8207, 9g5584, 9g5585, 9G6096, 9G6097, 9l6691, 9n0435, 9n0453, 10R0400, 104-7041, 106-8554, 207-1548, 207-1556, 207-1564, 12807, 41897, 41947, 42584, 42585, 42586, 42587, 43491, 43922, 44043, 107173, 111000, 121555C91, 126405, 131304, 135160, 135161, 135162, 135163, 147923, 163976, 167072, 173006, 173007, 176576, 179753, 199903, 201741, 260493C91, 323790, 555241, 555388, 704007, 705620, 706621, 706622, 706623, 707860, 708913, 708914, 708915, 708916, 851078, 851122, 851339, 855689, 855694, 858442, 858444, 858506, 858979, 860334, 1047042, 1068551, 1108857, 1109702, 1109704, 1109723, 1109745, 1109760, 1109762, 1109765, 1109861, 1113706, 1113707, 1113708, 1113709, 1113710, 1113713, 1113717, 1113726, 1113738, 1113739, 1113741, 1113745, 1113748, 1113749, 1113778, 1113781, 1113783, 1113792, 1113800, 1113809, 1113813, 1113814, 1113815, 1113818, 1113820, 1113823, 1113824, 1113825, 1113828, 1113831, 1113834, 1113835, 1113836, 1113842, 1113844, 1113845, 1113846, 1113847, 1113849, 1113850, 1113851, 1113855, 1113858, 1113859, 1113860, 1113861, 1113862, 1113866, 1113868, 1113872, 1113876, 1113877, 1113878, 1113880, 1113883, 1113884, 1113885, 1113887, 1113890, 1113892, 1113893, 1113894, 1113895, 1113898, 1113899, 1113900, 1113902, 1113903, 1113905, 1113906, 1113908, 1113911, 1113912, 1113913, 1113914, 1113915, 1113916, 1113920, 1113924, 1113925, 1113926, 1113929, 1113935, 1113941, 1113944, 1113948, 1113951, 1113952, 1113955, 1113956, 1113957, 1113958, 1113965, 1113966, 1113968, 1113970, 1113971, 1113972, 1113973, 1113975, 1113976, 1113977, 1113978, 1113980, 1113981, 1113983, 1113989, 1113991, 1113994, 1113995, 1113997, 1113999, 1114710, 1114715, 1114727, 1114728, 1114730, 1114737, 1114738, 1114755, 1114756, 1114760, 1114762, 1114776, 1114781, 1114790, 1114842, 1114844, 1114846, 1114847, 1114848, 1114849, 1114850, 1114851, 1114852, 1114853, 1114854, 1114855, 1114873, 1114874, 1114875, 1114878, 1114879, 1114880, 1114901, 1114903, 1114909, 1114915, 1114916, 1114923, 1114935, 1114947, 1114950, 1114951, 1114958, 1114963, 1114964, 1114970, 1114979, 1114987, 1219522H92, 1219523H91, 1219524H91, 1219525H92, 1219659H92, 1222960H91, 1251635H92, 0001371018, 0001420007, 1443674, 1990202, 1990279, 1990282, 1990344, 1990361, 1990367, 1990368, 1990378, 1990382, 1990383, 1990384, 1990388, 1990390, 1990409, 1990410, 1990411, 1990412, 1990416, 1990418, 1990422, 1990437, 1990456, 1990460, 1990485, 1990491, 1990493, 1990838, 1993700, 1993802, 1993805, 1993810, 1993842, 1993924, 2871253, 2998150, 3021036, 3103952, 3201036, 3328552, 3603862, 3603862rx, 3604321rx, 3604658RX, 8200357, 10461024, 10461030, 10461043, 10461047, 10461054, 10461068, 10461128, 10461179, 10461184, 10461259, 10461277, 10461278, 10478861, 10478943, 10478946, 10478980, 10478986, 10478998, 10479111, 10479252 -
Konkurrentreferens
BSO7188, BSO7192, CST60604, DRS0096, drz5104, drz5105, drz5115, drz5167, GA21367, lrs00794, MS77, S0260, S1001, S1049, S1118, S1128, S1132, S1232S, S5082, SR950X, SR957X, STR20004, STR20013, STR32003, STR32007, STR4302, 8ea726543-001, 8ea732856-001, 45-1027, 45-2345, 45-2397, 50-104, 50-104-1, 50-104-2, 50-151, 50-151-1, 50-151-2, 50-151-3, 88-15.680, 91-01-3700n, 301.503.103, 600.013.114, 600.064.114, 600.203.114, 621.502.113, 672.013.114, 672.014.114, 3059, 3063, 3074, 3745, 3745N-Z, 3757, 3757N, 3823, 3824, 3945N, 3974N, 3974R, 4356, 4403, 4791, 5320, 6208, 6230, 6260, 6370, 6370N, 6370R, 6508, 6552R, 6553N, 6819N, 6819R, 6837N-P, 6853N, 18006, 19153N, 33385, 33386, 33515, 60811, 60864, 103775, 104126, 11090085, 42992823, 943251568, 0986015680 -
Bilmärken
Caterpillar, Fiat - Hitachi -
Normaliserat artikelnummer
0r2187, 0r2190, 0r4259, 0r5209, bso7188, bso7192, cst60604, drs0096, drz5104, drz5105, drz5115, drz5167, f032111000, ga21367, lrs00794, m004t95481, m009t62572, m105r3502, m4t95481, ms1101, ms1103, ms1124, ms1401, ms1401a, ms1401c, ms1403a, ms1411az, ms1a20, ms1a25, ms77, or2187, or2697, or4259, or4267, or5209, s0260, s1001, s1049, s1118, s1128, s1132, s1232s, s5082, sl8207, sr950x, sr957x, st6370, str1015, str20004, str20013, str32003, str32007, str4302, t0r2187, t0r2190, t4n0957, t8c3645, us864, 1l8174, 1m6132, 1n9412, 3t2646, 3t2649, 3t2650, 3t2651, 3t2653, 3t2654, 3t2784, 3t3152, 3t3153, 3t5831, 3t8952, 4n0957, 4n1062, 4n5471, 4n8118, 4n957, 5l2537, 5l2637, 5l4171, 5l4431, 5l4513, 5l537, 5l637, 6n1889, 6n3122, 6n3160, 6t0643, 6v5539, 6v5540, 7l8797, 7t0794, 7t0796, 7t0800, 7t0801, 7t0806, 7t9162, 8c3644, 8c3645, 8c3649, 8ea726543001, 8ea732856001, 8h1813, 8h1913, 8l8207, 9g5584, 9g5585, 9g6096, 9g6097, 9l6691, 9n0435, 9n0453, 10r0400, 3059, 3063, 3074, 3745, 3745nz, 3757, 3757n, 3823, 3824, 3945n, 3974n, 3974r, 4356, 4403, 4791, 5320, 6208, 6230, 6260, 6370, 6370n, 6370r, 6508, 6552r, 6553n, 6819n, 6819r, 6837np, 6853n, 12807, 18006, 19153n, 33385, 33386, 33515, 41897, 41947, 42584, 42585, 42586, 42587, 43491, 43922, 44043, 50104, 50151, 60811, 60864, 103775, 104126, 107173, 111000, 121555c91, 126405, 131304, 135160, 135161, 135162, 135163, 147923, 163976, 167072, 173006, 173007, 176576, 179753, 199903, 201741, 260493c91, 323790, 451027, 452345, 452397, 501041, 501042, 501511, 501512, 501513, 555241, 555388, 704007, 705620, 706621, 706622, 706623, 707860, 708913, 708914, 708915, 708916, 851078, 851122, 851339, 855689, 855694, 858442, 858444, 858506, 858979, 860334, 1047041, 1047042, 1068551, 1068554, 1108857, 1109702, 1109704, 1109723, 1109745, 1109760, 1109762, 1109765, 1109861, 1113706, 1113707, 1113708, 1113709, 1113710, 1113713, 1113717, 1113726, 1113738, 1113739, 1113741, 1113745, 1113748, 1113749, 1113778, 1113781, 1113783, 1113792, 1113800, 1113809, 1113813, 1113814, 1113815, 1113818, 1113820, 1113823, 1113824, 1113825, 1113828, 1113831, 1113834, 1113835, 1113836, 1113842, 1113844, 1113845, 1113846, 1113847, 1113849, 1113850, 1113851, 1113855, 1113858, 1113859, 1113860, 1113861, 1113862, 1113866, 1113868, 1113872, 1113876, 1113877, 1113878, 1113880, 1113883, 1113884, 1113885, 1113887, 1113890, 1113892, 1113893, 1113894, 1113895, 1113898, 1113899, 1113900, 1113902, 1113903, 1113905, 1113906, 1113908, 1113911, 1113912, 1113913, 1113914, 1113915, 1113916, 1113920, 1113924, 1113925, 1113926, 1113929, 1113935, 1113941, 1113944, 1113948, 1113951, 1113952, 1113955, 1113956, 1113957, 1113958, 1113965, 1113966, 1113968, 1113970, 1113971, 1113972, 1113973, 1113975, 1113976, 1113977, 1113978, 1113980, 1113981, 1113983, 1113989, 1113991, 1113994, 1113995, 1113997, 1113999, 1114710, 1114715, 1114727, 1114728, 1114730, 1114737, 1114738, 1114755, 1114756, 1114760, 1114762, 1114776, 1114781, 1114790, 1114842, 1114844, 1114846, 1114847, 1114848, 1114849, 1114850, 1114851, 1114852, 1114853, 1114854, 1114855, 1114873, 1114874, 1114875, 1114878, 1114879, 1114880, 1114901, 1114903, 1114909, 1114915, 1114916, 1114923, 1114935, 1114947, 1114950, 1114951, 1114958, 1114963, 1114964, 1114970, 1114979, 1114987, 1219522h92, 1219523h91, 1219524h91, 1219525h92, 1219659h92, 1222960h91, 1251635h92, 0001371018, 0001420007, 1443674, 1990202, 1990279, 1990282, 1990344, 1990361, 1990367, 1990368, 1990378, 1990382, 1990383, 1990384, 1990388, 1990390, 1990409, 1990410, 1990411, 1990412, 1990416, 1990418, 1990422, 1990437, 1990456, 1990460, 1990485, 1990491, 1990493, 1990838, 1993700, 1993802, 1993805, 1993810, 1993842, 1993924, 2071548, 2071556, 2071564, 2871253, 2998150, 3021036, 3103952, 3201036, 3328552, 3603862, 3603862rx, 3604321rx, 3604658rx, 8200357, 8815680, 10461024, 10461030, 10461043, 10461047, 10461054, 10461068, 10461128, 10461179, 10461184, 10461259, 10461277, 10461278, 10478861, 10478943, 10478946, 10478980, 10478986, 10478998, 10479111, 10479252, 11090085, 42992823, 91013700n, 301503103, 600013114, 600064114, 600203114, 621502113, 672013114, 672014114, 943251568, 0986015680 -
Passar modeller
Caterpillar Model: 3508B 913-1115 Model series: 3508B 913-1115 Model type: 3508B 913-1115 Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 3508B-1200 Model series: 3508B-1200 Model type: 3508B-1200 Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 3508B-1300 Model series: 3508B-1300 Model type: 3508B-1300 Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 3508B-1400 Model series: 3508B-1400 Model type: 3508B-1400 Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 3508B-1500 Model series: 3508B-1500 Model type: 3508B-1500 Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 5130 Model series: 5130 Model type: Excavators Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 776D Model series: 776D Model type: Off-Highway Tractors Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 777D Model series: 777D Model type: Off-Highway Trucks Brand of engine: 3508TAE Approved: Yes Caterpillar Model: 777D Model series: 777D Model type: Off-Highway Trucks Brand of engine: 3508TAE3 Approved: Yes Caterpillar Model: 777E Model series: 777E Model type: Off-Highway Trucks Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 777F Model series: 777F Model type: Off-Highway Trucks Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 777G Model series: 777G Model type: Off-Highway Trucks Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 854K LARGE DOZER Model series: 854K LARGE DOZER Model type: Wheel Loaders and Dozers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 992 H Model series: 992 H Model type: Wheel Loaders and Dozers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 992K LARGE LOADER Model series: 992K LARGE LOADER Model type: Wheel Loaders and Dozers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 992K Model series: 992K Model type: Wheel Loaders and Dozers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 993K LARGE LOADER Model series: 993K LARGE LOADER Model type: Wheel Loaders and Dozers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: 993K Model series: 993K Model type: Wheel Loaders and Dozers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: D11 Model series: D11 Model type: Crawlers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: D11R & D11R CD Model series: D11R & D11R CD Model type: Crawlers Brand of engine: 3508TAE Approved: Yes Caterpillar Model: D11R/R CD Model series: D11R/R CD Model type: Crawlers Brand of engine: 3508TAE Approved: Yes Caterpillar Model: D11T/D11T CD Model series: D11T/D11T CD Model type: Crawlers Brand of engine: C32TA ACERT Approved: Yes Caterpillar Model: D3 Model series: D3B Model type: Track Tracktor Brand of engine: 3204 Approved: Yes Caterpillar Model: Excavator Model series: Various Models From date: 01-01-1983 Approved: Yes Caterpillar Model: MD6420C Model series: MD6420C Model type: Bore/Drill Rigs Brand of engine: C32TA ACERT Approved: Yes Caterpillar Series: Excavators Model: 235 B, BME Year: 00.85-00.91 Caterpillar Series: Excavators Model: 245, ME Engine type: 3406 Year: 00.86-00.91 Caterpillar Series: Graders Model: 16G Engine type: 3406 Year: 00.85-00.91 Caterpillar Series: Loaders Model: 980C Caterpillar Series: Loaders Model: 980F Engine type: 3406 Year: 01.91-12.96 Caterpillar Series: Loaders Model: 980F II Caterpillar Series: Loaders Model: 980G Engine type: 3406 Year: 01.96-12.98 Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes Fiat - Allis Series: 645 B, 745 B, 945 B Fiat - Hitachi Series: Grävmaskin Model: FH 400 Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes Ingersoll-Rand Model: DM/M3 Model series: DM/M3 Model type: Bore/Drill Rigs Brand of engine: C32TA ACERT Approved: Yes Ingersoll-Rand Model: PIT VIPER 271 Model series: PIT VIPER 271 Model type: Bore/Drill Rigs Brand of engine: C32TA ACERT Approved: Yes Ingersoll-Rand Model: PIT VIPER 275 Model series: PIT VIPER 275 Model type: Bore/Drill Rigs Brand of engine: C32TA ACERT Approved: Yes Ingersoll-Rand Model: PIT VIPER 316 Model series: PIT VIPER 316 Model type: Bore/Drill Rigs Brand of engine: C32TA ACERT Approved: Yes 1 / 9
-
