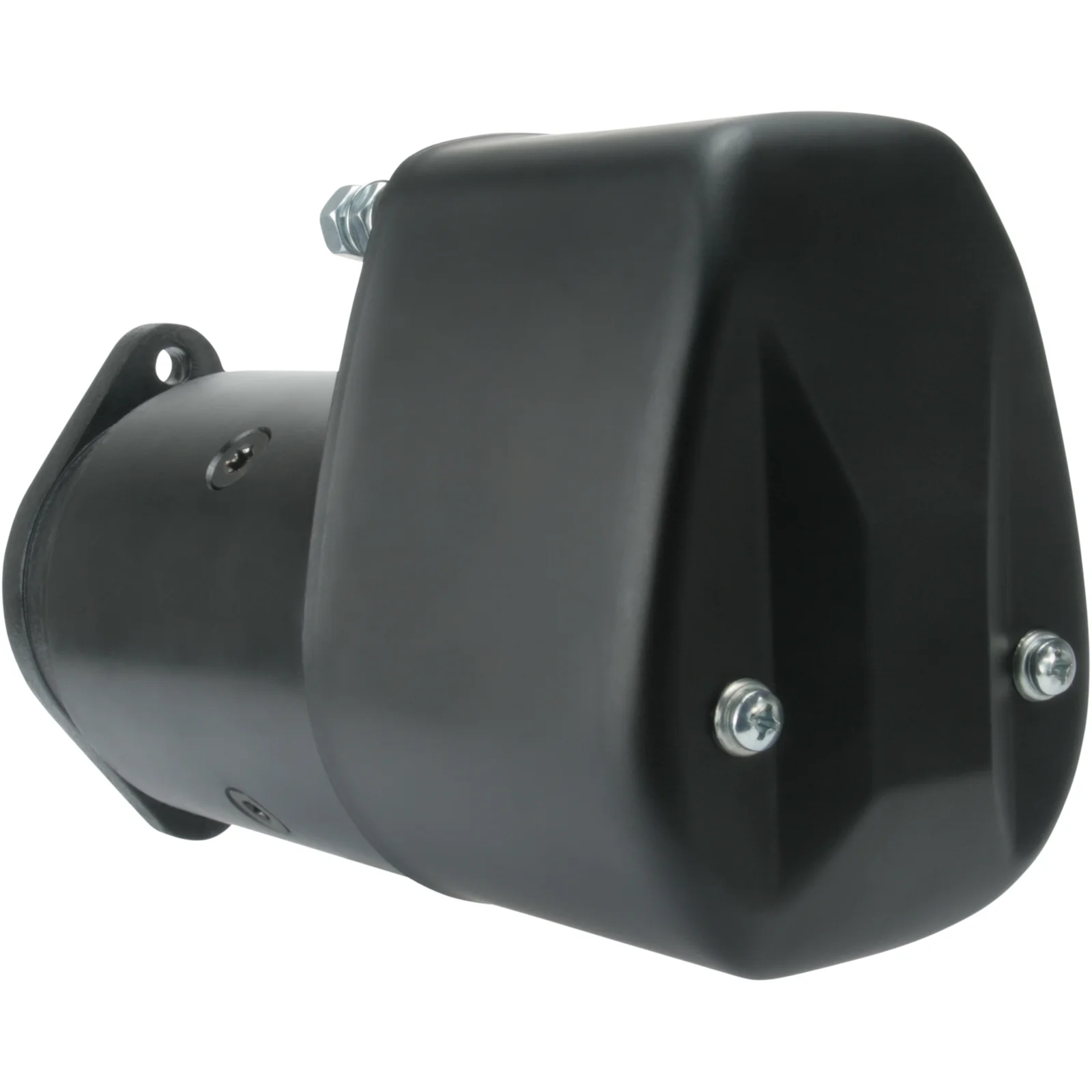

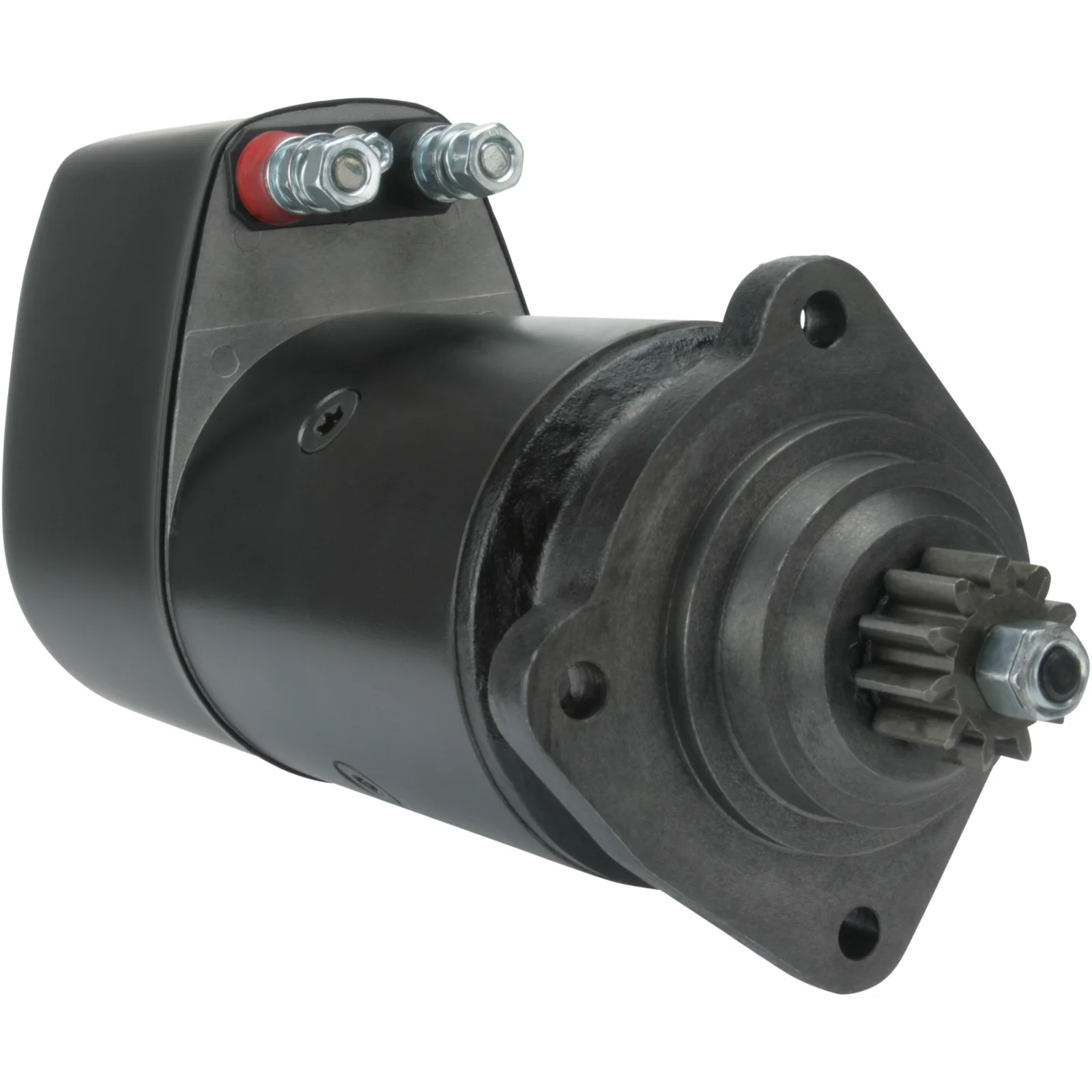

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032110535

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 5.4, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 5.4
Mount. flange: 89.00
Drive dist.: 47.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 324.50
Dist./front: 62.00
No./teeth: 11
B+: M10
Position/50: 60
Terminal 50: M6
Gear type: DD
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Position/b-: 60
B-: M10
Total length mm: 384.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 11
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Position/b- 60
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 324.50
Dist./front 62.00
Drive dist. 47.00
Drive type Steel
Gear type DD
kW 5.4
Terminal 50 M6
Voltage 24
Total length 384.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZK5173, C9JF11350A, cs384, D6PZ11350C, F032110535, R23.21, 11.139.013, 328, 536, 22620, 860115, 860655, 01171955, 1171955, 01174645, 1174645, 0001410111, 0001416036, 1516756R, 1701063, 03040680, 6210000, 9125400, 19024035, 42498250, 0000042522680, 42522680, 81466036, 2913103700, 2913121300

  • Konkurrentreferens
    CST10628, drs2730, F042002107, F042S02107, is0429, IS9013, lrs00960, LRS01862, MS566, MS701, S0011, STR-23804, STR22018, 8ea726132-001, 45-1370, 88-12.730, 688.008.114, 1572, 10384, 18379, 33631, 33633, 103473, 220318, 220318A, 220322, 220322A, 455616, 11012730, 943252220, 0986012730, 943252220010

  • Normaliserat artikelnummer
    azk5173, c9jf11350a, cs384, cst10628, d6pz11350c, drs2730, f032110535, f042002107, f042s02107, is0429, is9013, lrs00960, lrs01862, ms566, ms701, r2321, s0011, str22018, str23804, 8ea726132001, 328, 536, 1572, 10384, 18379, 22620, 33631, 33633, 103473, 220318, 220318a, 220322, 220322a, 451370, 455616, 860115, 860655, 01171955, 1171955, 01174645, 1174645, 0001410111, 0001416036, 1516756r, 1701063, 03040680, 6210000, 8812730, 9125400, 11012730, 11139013, 19024035, 42498250, 0000042522680, 42522680, 81466036, 688008114, 943252220, 0986012730, 2913103700, 2913121300, 943252220010

  • Passar modeller
    Fiat Model: Series 190 Model series: 190.29 Size of motor: 12.8 Brand of engine: BF8L413F Body: Platform / Chassis From date: 01-08-1976 To date: 01-12-1986 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-23 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-23 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-04-1988 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-25 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-25 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-03-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Platform / Chassis From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 170-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Platform / Chassis From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 180-23 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 180-25 Size of motor: 13.4 Brand of engine: F8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 180-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1993 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-01-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-07-1983 To date: 01-06-1986 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-07-1983 To date: 01-12-1986 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-07-1983 To date: 01-12-1987 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Platform / Chassis From date: 01-07-1983 To date: 01-06-1986 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Semi-Trailer From date: 01-07-1983 To date: 01-06-1986 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 190-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Semi-Trailer From date: 01-07-1986 To date: 01-12-1987 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-25 Size of motor: 12.8 Brand of engine: F8L413F Body: Dump Truck From date: 01-07-1983 To date: 01-06-1986 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-25 Size of motor: 13.4 Brand of engine: F8L513 Body: General Purpose Vehicle From date: 01-04-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-01-1991 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Platform / Chassis From date: 01-01-1991 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Platform / Chassis From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Semi-Trailer From date: 01-01-1991 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 260-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Semi-Trailer From date: 01-04-1989 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 330-30 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Iveco Model: P/PA Series Model series: P/PA 340-34 Size of motor: 12.8 Brand of engine: BF8L513 Body: Dump Truck From date: 01-03-1989 To date: 01-12-1992 Fuel: Diesel Approved: Yes
