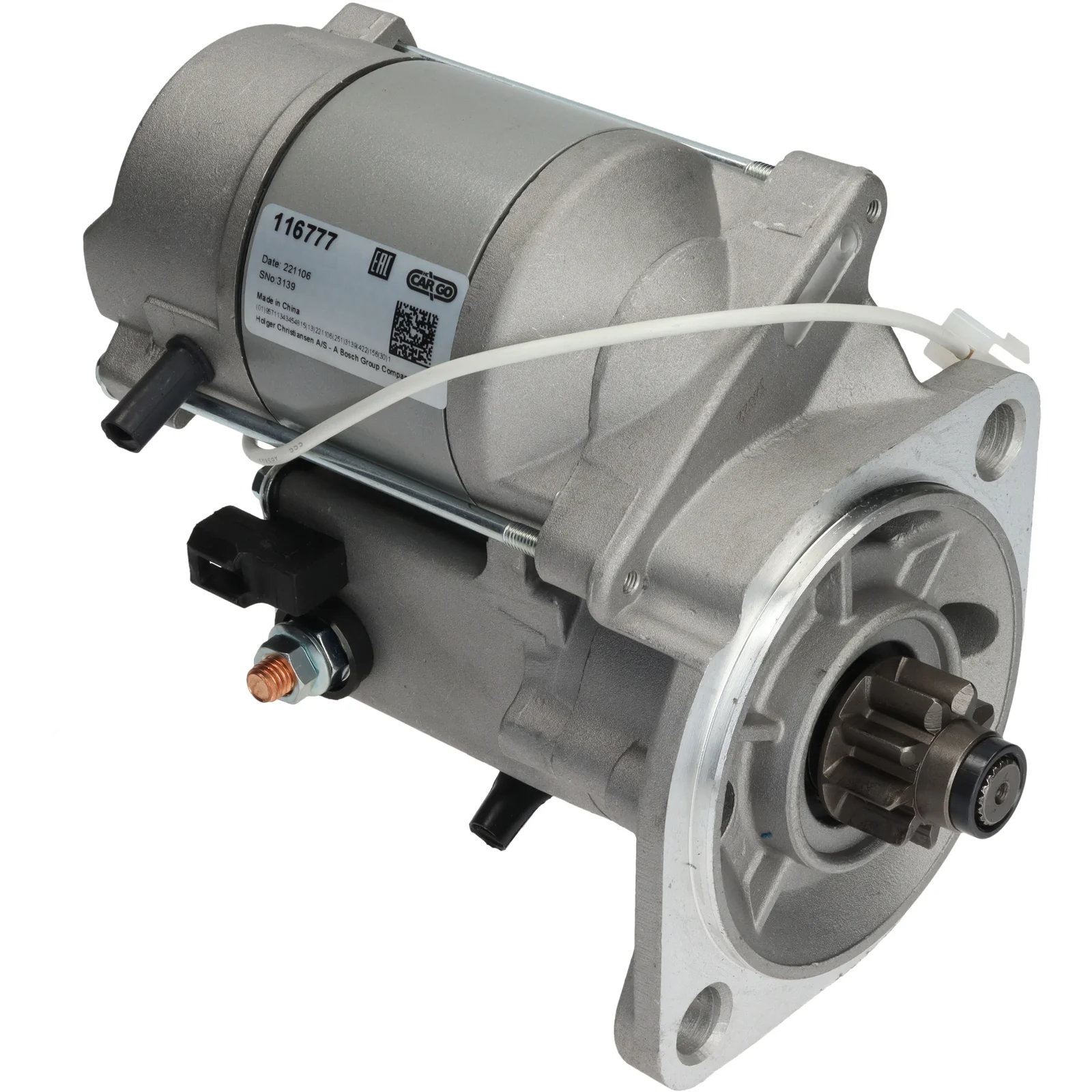

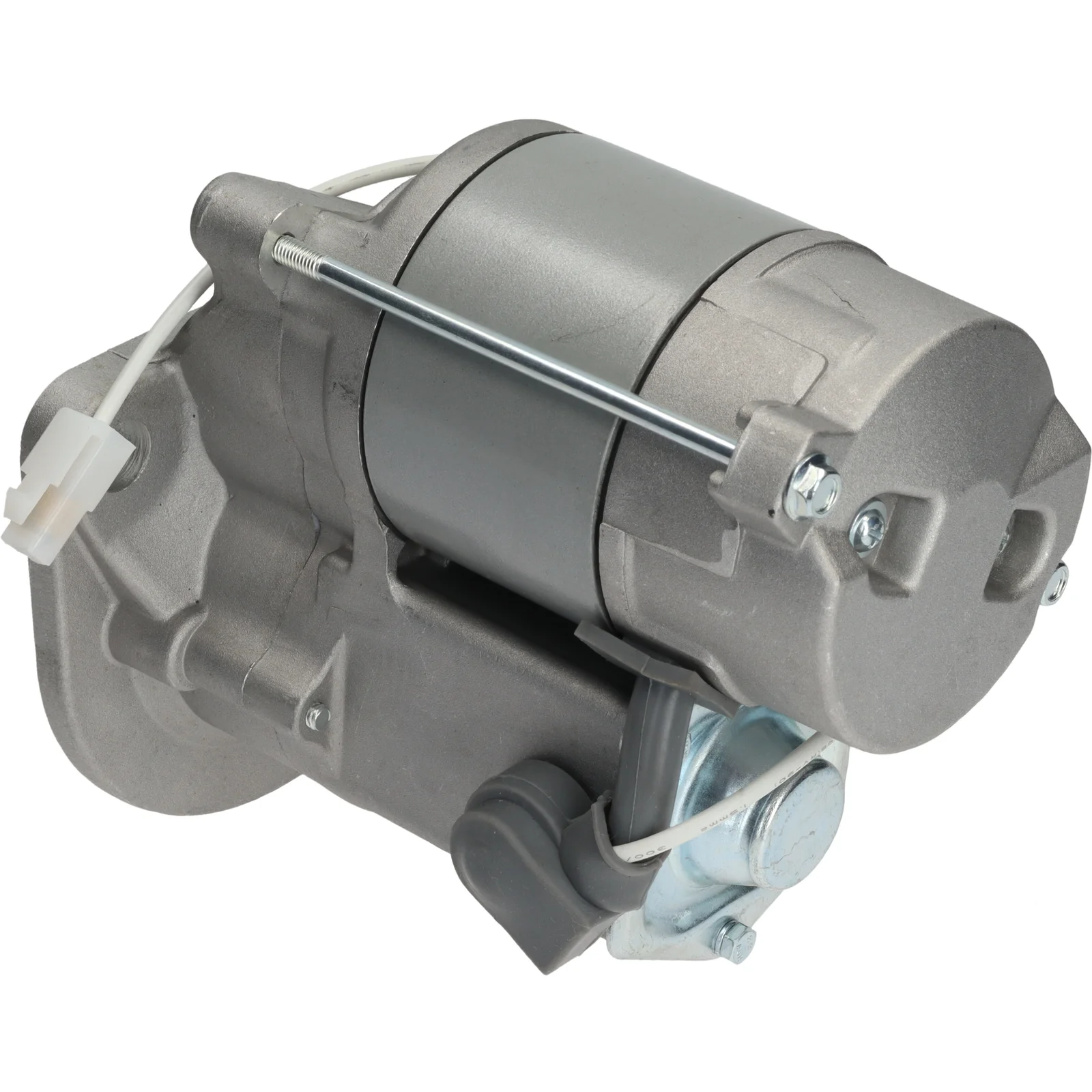

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116777

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 95.00
Drive dist.: 20.50
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 154.00
Dist./front: 32.50
No./teeth: 9
B+: M8
Position/B+: 15
Position/50: 10
Terminal 50: Plug
Gear type: GR
Dist. 2: 60.00
Dist. 3: 60.00
Rotation: CW
Total length mm: 186.50
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 95.00
No./mount. holes 2 (0)
Position/50 10
Position/B+ 15
Dist. 2 60.00
Dist. 3 60.00
Rotation CW
Dist./back 154.00
Dist./front 32.50
Drive dist. 20.50
Gear type GR
kW 1.4
Terminal 50 Plug
Voltage 12
Total length 186.50 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032116777, 8-97048965-1, 228000-1121, 228000-3920, 8970489651, 62811000021, 62811000022, 62811000111, 548970489660, 548970489672, 628110000971, 948970489660, 948970489672

  • Konkurrentreferens
    DSN2129, LRS02188, 25-3360

  • Normaliserat artikelnummer
    dsn2129, f032116777, lrs02188, 253360, 2280001121, 2280003920, 8970489651, 62811000021, 62811000022, 62811000111, 548970489660, 548970489672, 628110000971, 948970489660, 948970489672

  • Passar modeller
    Isuzu Model: Campo Model series: Campo Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: C223 Type description: KBD 27/47,KBD 42 Body: Pick Up From date: 01-01-1983 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Isuzu Model: Trooper Model series: Trooper Model type: 4WD Size of motor: 2.2 Brand of engine: C223 Type description: UBS Body: Convertible From date: 01-05-1984 To date: 01-07-1989 Fuel: Diesel Approved: Yes
    Isuzu Model: Trooper Model series: Trooper Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: C223 Type description: UBS From date: 01-05-1984 To date: 01-12-1989 Fuel: Diesel Approved: Yes
    Isuzu Model: Trooper Model series: Trooper Type of engine: TD Size of motor: 2.2 Brand of engine: C223T Type description: UBS52 Body: Convertible From date: 01-03-1984 To date: 01-12-1991 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 95.00
    Drive dist.: 20.50
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 154.00
    Dist./front: 32.50
    No./teeth: 9
    B+: M8
    Position/B+: 15
    Position/50: 10
    Terminal 50: Plug
    Gear type: GR
    Dist. 2: 60.00
    Dist. 3: 60.00
    Rotation: CW
    Total length mm: 186.50
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 95.00
    No./mount. holes 2 (0)
    Position/50 10
    Position/B+ 15
    Dist. 2 60.00
    Dist. 3 60.00
    Rotation CW
    Dist./back 154.00
    Dist./front 32.50
    Drive dist. 20.50
    Gear type GR
    kW 1.4
    Terminal 50 Plug
    Voltage 12
    Total length 186.50 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      F032116777, 8-97048965-1, 228000-1121, 228000-3920, 8970489651, 62811000021, 62811000022, 62811000111, 548970489660, 548970489672, 628110000971, 948970489660, 948970489672

    • Konkurrentreferens
      DSN2129, LRS02188, 25-3360

    • Normaliserat artikelnummer
      dsn2129, f032116777, lrs02188, 253360, 2280001121, 2280003920, 8970489651, 62811000021, 62811000022, 62811000111, 548970489660, 548970489672, 628110000971, 948970489660, 948970489672

    • Passar modeller
      Isuzu Model: Campo Model series: Campo Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: C223 Type description: KBD 27/47,KBD 42 Body: Pick Up From date: 01-01-1983 To date: 01-12-1990 Fuel: Diesel Approved: Yes
      Isuzu Model: Trooper Model series: Trooper Model type: 4WD Size of motor: 2.2 Brand of engine: C223 Type description: UBS Body: Convertible From date: 01-05-1984 To date: 01-07-1989 Fuel: Diesel Approved: Yes
      Isuzu Model: Trooper Model series: Trooper Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: C223 Type description: UBS From date: 01-05-1984 To date: 01-12-1989 Fuel: Diesel Approved: Yes
      Isuzu Model: Trooper Model series: Trooper Type of engine: TD Size of motor: 2.2 Brand of engine: C223T Type description: UBS52 Body: Convertible From date: 01-03-1984 To date: 01-12-1991 Fuel: Diesel Approved: Yes
