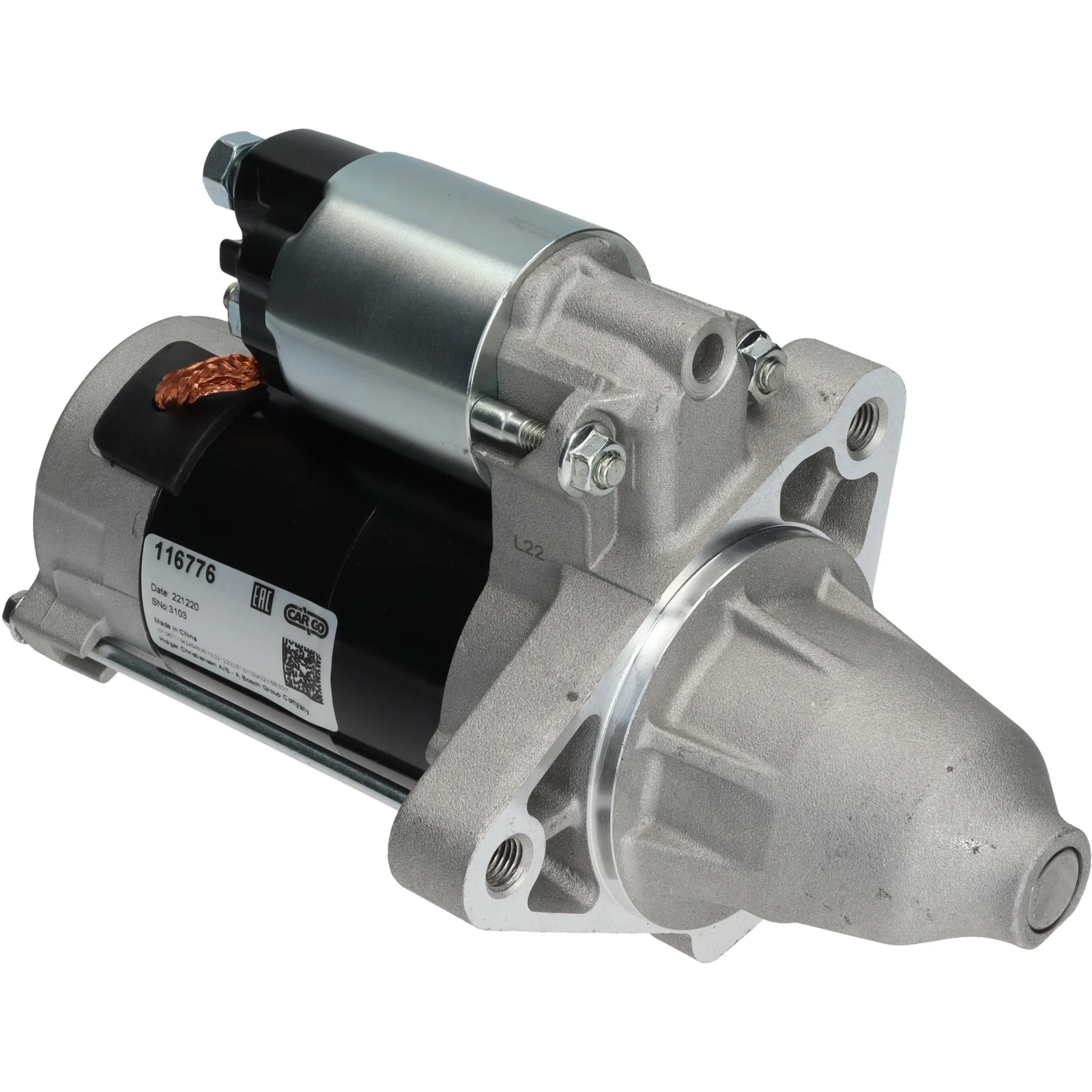

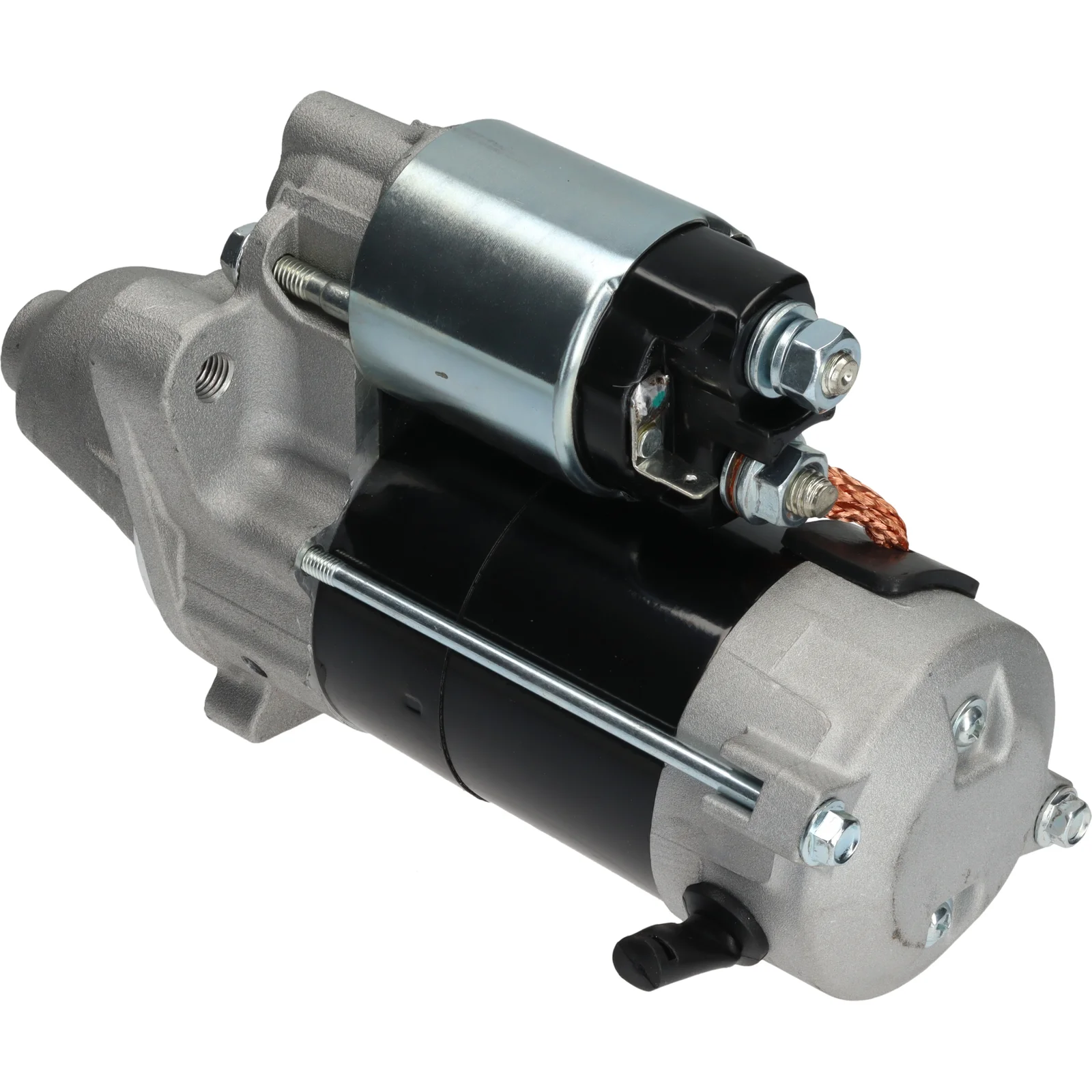

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116776

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.0
Mount. flange: 74.00
Drive dist.: 36.00
Mount. hole 2 mm: M10-1.25
Mount. hole 1 mm: M10-1.25
Dist./back: 153.50
Dist./front: 69.00
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 104.00
Rotation: CW
Total length mm: 222.50
Drive type: Steel
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 2 (2)
Position/50 45
Position/B+ 60
Rotation CW
Dist./back 153.50
Dist./front 69.00
Drive dist. 36.00
Drive type Steel
Gear type GR
kW 1.0
Terminal 50 6.30
Voltage 12
Total length 222.50 mm
Dist. 104.00 mm
Mount. hole 2 M10-1.25 mm
Mount. hole 1 M10-1.25 mm

  • OEM
    F032116776, 28100-B1020, 28100-B2110, 28100-B2120, 428000-2560

  • Konkurrentreferens
    25-4177, 317.033.092, 11040864

  • Normaliserat artikelnummer
    f032116776, 28100b1020, 28100b2110, 28100b2120, 254177, 11040864, 317033092, 4280002560

  • Passar modeller
    Daihatsu Model: Cuore Model series: Cuore Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-04-2007 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Sirion Model series: Sirion Size of motor: 1.0 Brand of engine: 1KR-FE Type description: M3_ Body: Hatchback From date: 01-01-2005 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    Subaru Model: Justy Model series: Justy Model type: BiFuel Type of engine: Bifuel Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-09-2007 To date: 01-03-2012 Fuel: Petrol/Electro Approved: Yes
    Subaru Model: Justy Model series: Justy Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-01-2007 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.0
    Mount. flange: 74.00
    Drive dist.: 36.00
    Mount. hole 2 mm: M10-1.25
    Mount. hole 1 mm: M10-1.25
    Dist./back: 153.50
    Dist./front: 69.00
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 104.00
    Rotation: CW
    Total length mm: 222.50
    Drive type: Steel
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 2 (2)
    Position/50 45
    Position/B+ 60
    Rotation CW
    Dist./back 153.50
    Dist./front 69.00
    Drive dist. 36.00
    Drive type Steel
    Gear type GR
    kW 1.0
    Terminal 50 6.30
    Voltage 12
    Total length 222.50 mm
    Dist. 104.00 mm
    Mount. hole 2 M10-1.25 mm
    Mount. hole 1 M10-1.25 mm
  • Fordonsmatchning

    • OEM
      F032116776, 28100-B1020, 28100-B2110, 28100-B2120, 428000-2560

    • Konkurrentreferens
      25-4177, 317.033.092, 11040864

    • Normaliserat artikelnummer
      f032116776, 28100b1020, 28100b2110, 28100b2120, 254177, 11040864, 317033092, 4280002560

    • Passar modeller
      Daihatsu Model: Cuore Model series: Cuore Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-04-2007 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Sirion Model series: Sirion Size of motor: 1.0 Brand of engine: 1KR-FE Type description: M3_ Body: Hatchback From date: 01-01-2005 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
      Subaru Model: Justy Model series: Justy Model type: BiFuel Type of engine: Bifuel Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-09-2007 To date: 01-03-2012 Fuel: Petrol/Electro Approved: Yes
      Subaru Model: Justy Model series: Justy Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-01-2007 Fuel: Gasoline Approved: Yes
