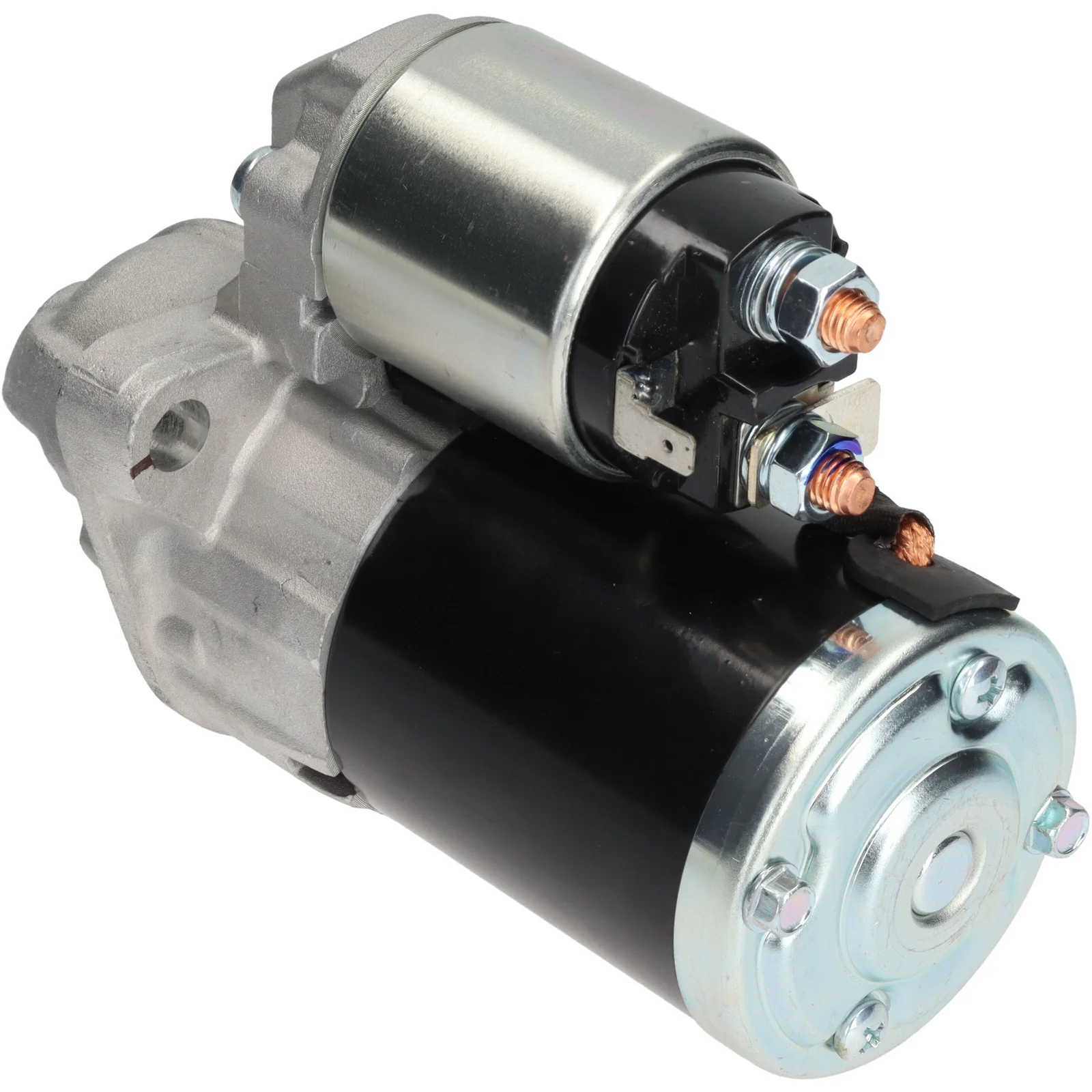

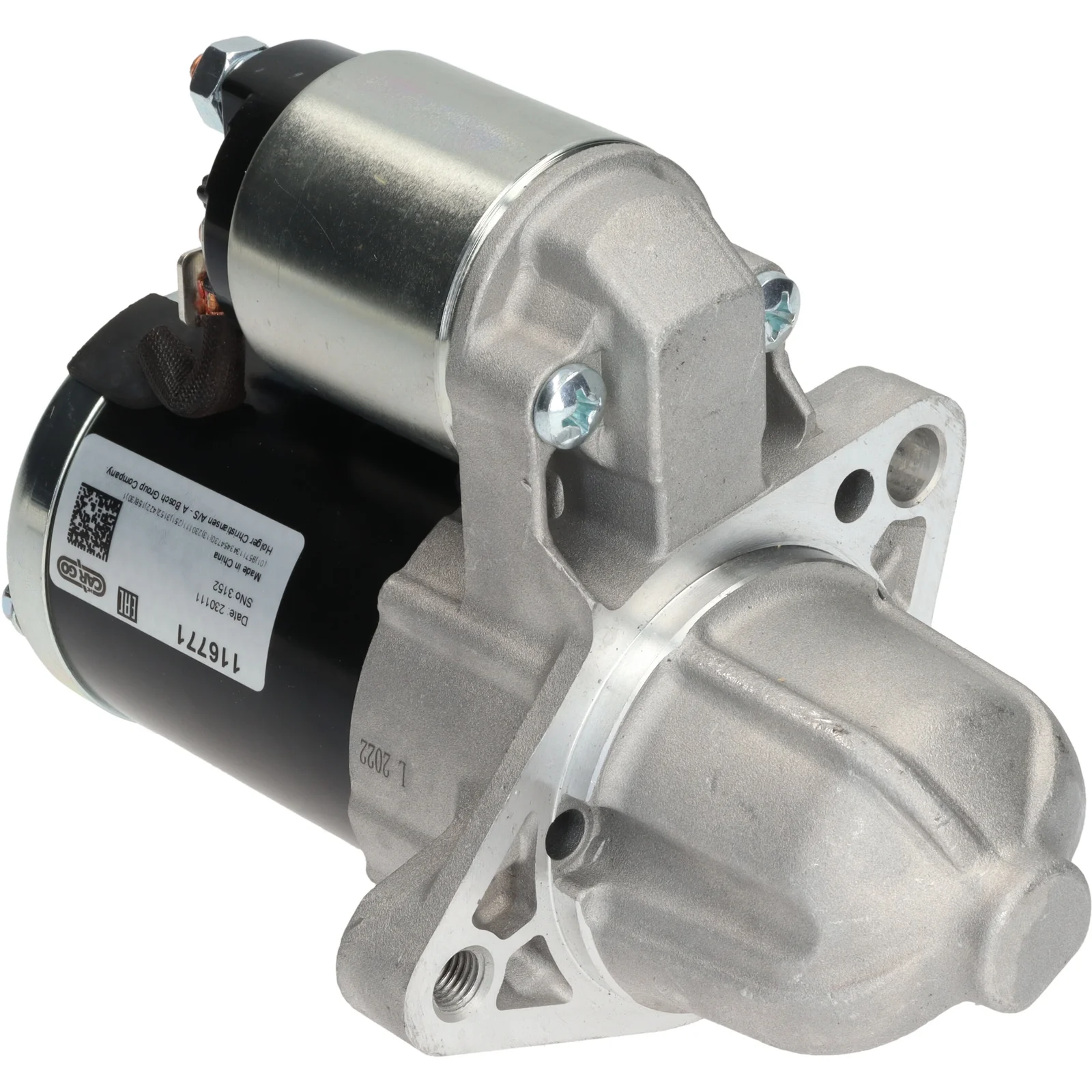

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116771

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 8, Mount. flange: 70.00

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 70.00
Drive dist.: 27.50
Mount. hole 2 mm: M10-1.25
Mount. hole 1 mm: 11.30
Dist./back: 129.00
Dist./front: 60.00
No./teeth: 8
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 102.00
Total length mm: 189.00
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 70.00
No./mount. holes 2 (1)
Position/50 45
Position/B+ 60
Dist./back 129.00
Dist./front 60.00
Drive dist. 27.50
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 189.00 mm
Dist. 102.00 mm
Mount. hole 2 M10-1.25 mm
Mount. hole 1 11.30 mm

  • OEM
    F032116771, M000T23171, M0T23171, 31100-78K0, 31100-78K00, 31100-78k00

  • Konkurrentreferens
    CST35307, DRS0927, 25-5023, 180.016.082, 19066, 460238, 11040867

  • Normaliserat artikelnummer
    cst35307, drs0927, f032116771, m000t23171, m0t23171, 19066, 255023, 460238, 3110078k0, 3110078k00, 11040867, 180016082

  • Passar modeller
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: 4x4 Size of motor: 2.4 Brand of engine: J24B From date: 01-01-2009 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: 4X4 Size of motor: 2.4 Brand of engine: J24B Type description: JT From date: 01-09-2013 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.4 Brand of engine: J24B Type description: JT From date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.4 Brand of engine: J24B Type description: JT, TE, TD Body: Closed Off-Road Vehicle From date: 01-09-2009 Fuel: Petrol Approved: Yes
    Suzuki Model: Kizashi Model series: Kizashi Model type: 4x4 Size of motor: 2.4 Brand of engine: J24B Type description: FR From date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: Kizashi Model series: Kizashi Size of motor: 2.4 Brand of engine: J24B Type description: FR From date: 01-10-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Model type: 4x4 Type of engine: 16V Size of motor: 2.0 Type description: GY Body: Hatchback From date: 01-01-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Size of motor: 2.0 Type description: GY Body: Hatchback From date: 01-01-2010 Fuel: Gasoline Approved: Yes
    Suzuki Model: SX4 Model series: SX4 Size of motor: 2.0 Type description: GY From date: 01-01-2010 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 70.00
    Drive dist.: 27.50
    Mount. hole 2 mm: M10-1.25
    Mount. hole 1 mm: 11.30
    Dist./back: 129.00
    Dist./front: 60.00
    No./teeth: 8
    B+: M8
    Position/B+: 60
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 102.00
    Total length mm: 189.00
    No./mount. holes: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 70.00
    No./mount. holes 2 (1)
    Position/50 45
    Position/B+ 60
    Dist./back 129.00
    Dist./front 60.00
    Drive dist. 27.50
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 189.00 mm
    Dist. 102.00 mm
    Mount. hole 2 M10-1.25 mm
    Mount. hole 1 11.30 mm
  • Fordonsmatchning

    • OEM
      F032116771, M000T23171, M0T23171, 31100-78K0, 31100-78K00, 31100-78k00

    • Konkurrentreferens
      CST35307, DRS0927, 25-5023, 180.016.082, 19066, 460238, 11040867

    • Normaliserat artikelnummer
      cst35307, drs0927, f032116771, m000t23171, m0t23171, 19066, 255023, 460238, 3110078k0, 3110078k00, 11040867, 180016082

    • Passar modeller
      Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: 4x4 Size of motor: 2.4 Brand of engine: J24B From date: 01-01-2009 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: 4X4 Size of motor: 2.4 Brand of engine: J24B Type description: JT From date: 01-09-2013 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.4 Brand of engine: J24B Type description: JT From date: 01-09-2008 Fuel: Gasoline Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.4 Brand of engine: J24B Type description: JT, TE, TD Body: Closed Off-Road Vehicle From date: 01-09-2009 Fuel: Petrol Approved: Yes
      Suzuki Model: Kizashi Model series: Kizashi Model type: 4x4 Size of motor: 2.4 Brand of engine: J24B Type description: FR From date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Suzuki Model: Kizashi Model series: Kizashi Size of motor: 2.4 Brand of engine: J24B Type description: FR From date: 01-10-2010 Fuel: Gasoline Approved: Yes
      Suzuki Model: SX4 Model series: SX4 Model type: 4x4 Type of engine: 16V Size of motor: 2.0 Type description: GY Body: Hatchback From date: 01-01-2010 Fuel: Gasoline Approved: Yes
      Suzuki Model: SX4 Model series: SX4 Size of motor: 2.0 Type description: GY Body: Hatchback From date: 01-01-2010 Fuel: Gasoline Approved: Yes
      Suzuki Model: SX4 Model series: SX4 Size of motor: 2.0 Type description: GY From date: 01-01-2010 Fuel: Gasoline Approved: Yes
