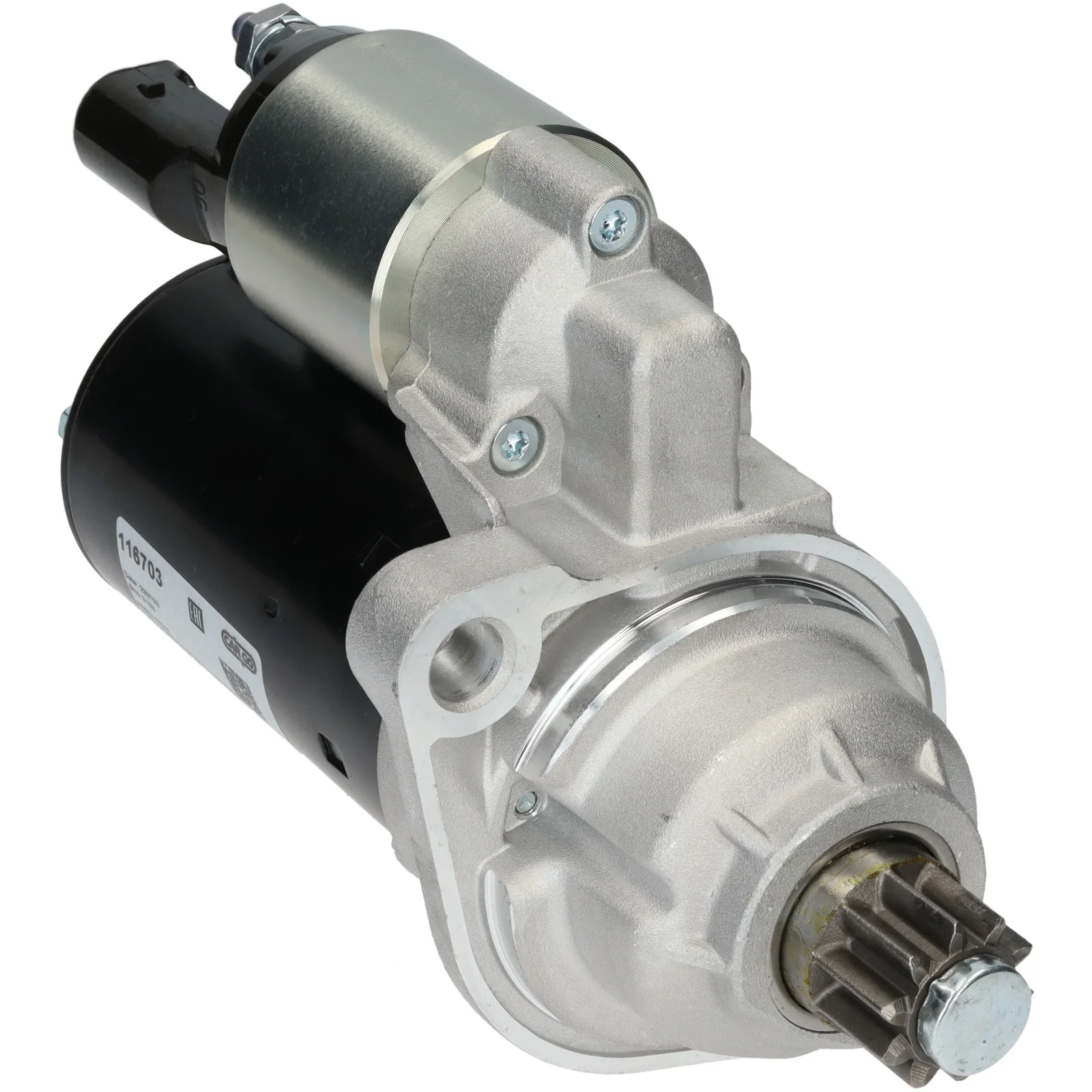

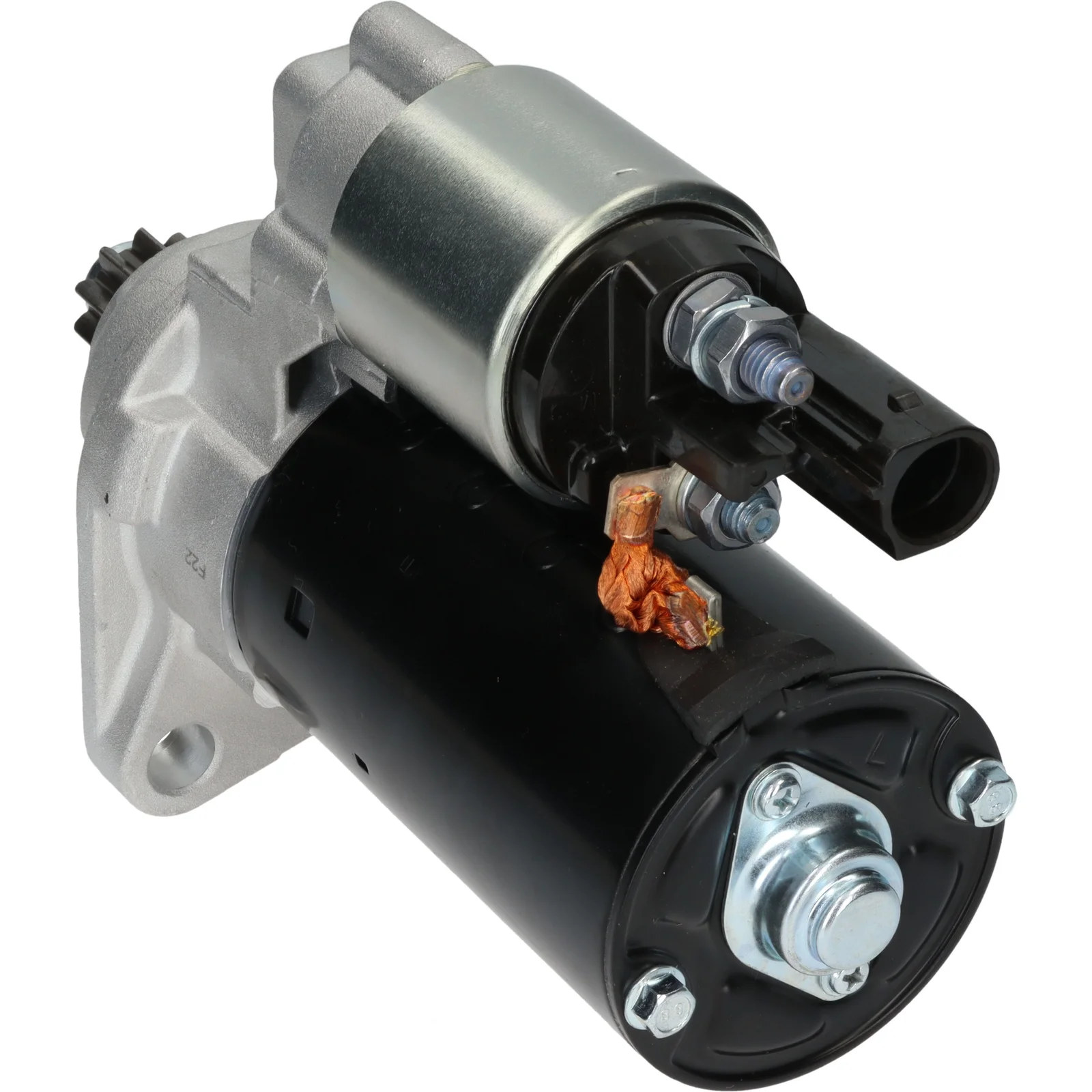

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116703

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 10, Rotation: CCW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 76.20
Drive dist.: 62.00
Mount. hole 2 mm: 12.50
Mount. hole 1 mm: 12.50
Dist./back: 159.50
Dist./front: 65.00
No./teeth: 10
B+: M8
Position/B+: 60
Position/50: 16
Terminal 50: Plug
Gear type: GR
Dist. mm: 111.50
Rotation: CCW
Total length mm: 225.00
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 76.20
No./mount. holes 2 (0)
Position/50 16
Position/B+ 60
Rotation CCW
Dist./back 159.50
Dist./front 65.00
Drive dist. 62.00
Gear type GR
kW 1.4
Terminal 50 Plug
Voltage 12
Total length 225.00 mm
Dist. 111.50 mm
Mount. hole 2 12.50 mm
Mount. hole 1 12.50 mm

  • OEM
    F032116703, 02M911023S, 02M911023SX, 1986S00795, 0001122402, 0001122403

  • Konkurrentreferens
    CST10521, DRS0225, lrs02195, S0120, 25-3366, 300.581.102, 311.227.102, 3117, 17969R, 101347, 106237, 8080219, 8212280, 11090150, 42000000, 944280802, 0986022347, 0986025840, 944280802190

  • Normaliserat artikelnummer
    cst10521, drs0225, f032116703, lrs02195, s0120, 02m911023s, 02m911023sx, 1986s00795, 3117, 17969r, 101347, 106237, 253366, 0001122402, 0001122403, 8080219, 8212280, 11090150, 42000000, 300581102, 311227102, 944280802, 0986022347, 0986025840, 944280802190

  • Passar modeller
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.5 Brand of engine: CEPA Type description: 8J3 Body: Coupe From date: 01-07-2009 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.5 Brand of engine: CEPA Type description: 8J9 Body: Convertible From date: 01-07-2009 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.5 Brand of engine: CEPB Type description: 8J3 Body: Coupe From date: 01-05-2011 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Roadster Model type: Quattro Type of engine: TFSi Size of motor: 2.5 Brand of engine: CEPB Type description: 8J9 Body: Convertible From date: 01-03-2012 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    VW Model: Beetle Model series: Beetle Size of motor: 2.5 Brand of engine: CBTA Type description: 5C7 Body: Convertible From date: 01-12-2011 To date: 01-07-2016 Fuel: Gasoline Approved: Yes
    VW Model: Beetle Model series: Beetle Size of motor: 2.5 Brand of engine: CBUA Type description: 5C7 Body: Convertible From date: 01-12-2011 To date: 01-07-2016 Fuel: Gasoline Approved: Yes
    VW Model: Beetle Model series: Beetle Size of motor: 2.5 Brand of engine: CCCA Type description: 5C7 Body: Convertible From date: 01-12-2011 To date: 01-07-2016 Fuel: Gasoline Approved: Yes
    VW Model: Golf Model series: Golf V Size of motor: 2.5 Brand of engine: CCCA Type description: 1K5 Body: Estate From date: 01-01-2008 To date: 01-07-2009 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Golf Model series: Golf VI Size of motor: 2.5 Brand of engine: CBTA Type description: AJ5 Body: Estate From date: 01-07-2009 To date: 01-07-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Golf Model series: Golf VI Size of motor: 2.5 Brand of engine: CBUA Type description: AJ5 Body: Estate From date: 01-07-2009 To date: 01-07-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Jetta Model series: Jetta Size of motor: 2.5 Brand of engine: BGP Type description: 1K2 From date: 01-01-2006 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
    VW Model: Jetta Model series: Jetta Size of motor: 2.5 Brand of engine: BTK Type description: 1K2 From date: 01-01-2006 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
    VW Model: Jetta Model series: Jetta Type of engine: FSi Size of motor: 2.5 Brand of engine: CBTA Type description: 162 From date: 01-04-2010 Fuel: Gasoline Approved: Yes
    VW Model: Jetta Model series: Jetta Type of engine: FSi Size of motor: 2.5 Brand of engine: CBUA Type description: 162 From date: 01-04-2010 Fuel: Gasoline Approved: Yes
    VW Model: Jetta Model series: Jetta Type of engine: FSi Size of motor: 2.5 Brand of engine: CCC Type description: 1K2 From date: 01-07-2008 To date: 01-10-2010 Fuel: Gasoline Approved: Yes
    VW Model: Jetta Model series: Jetta Type of engine: FSi Size of motor: 2.5 Brand of engine: CCCA Type description: 162 From date: 01-04-2010 Fuel: Gasoline Approved: Yes
    VW Model: New Beetle Model series: New Beetle Type of engine: Turbo Size of motor: 2.5 Brand of engine: BPR Type description: 1Y7 Body: Convertible From date: 01-07-2005 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
    VW Model: New Beetle Model series: New Beetle Type of engine: Turbo Size of motor: 2.5 Brand of engine: BPR Type description: 9C1, 1C1 Body: Hatchback From date: 01-07-2005 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
    VW Model: New Beetle Model series: New Beetle Type of engine: Turbo Size of motor: 2.5 Brand of engine: BPS Type description: 1Y7 Body: Convertible From date: 01-07-2005 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
    VW Model: New Beetle Model series: New Beetle Type of engine: Turbo Size of motor: 2.5 Brand of engine: BPS Type description: 9C1, 1C1 Body: Hatchback From date: 01-07-2005 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Size of motor: 2.5 Brand of engine: CBTA,CBUA Type description: 362 From date: 01-01-2011 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.6 Brand of engine: CLSA From date: 01-05-2010 Fuel: Gasoline Approved: Yes
