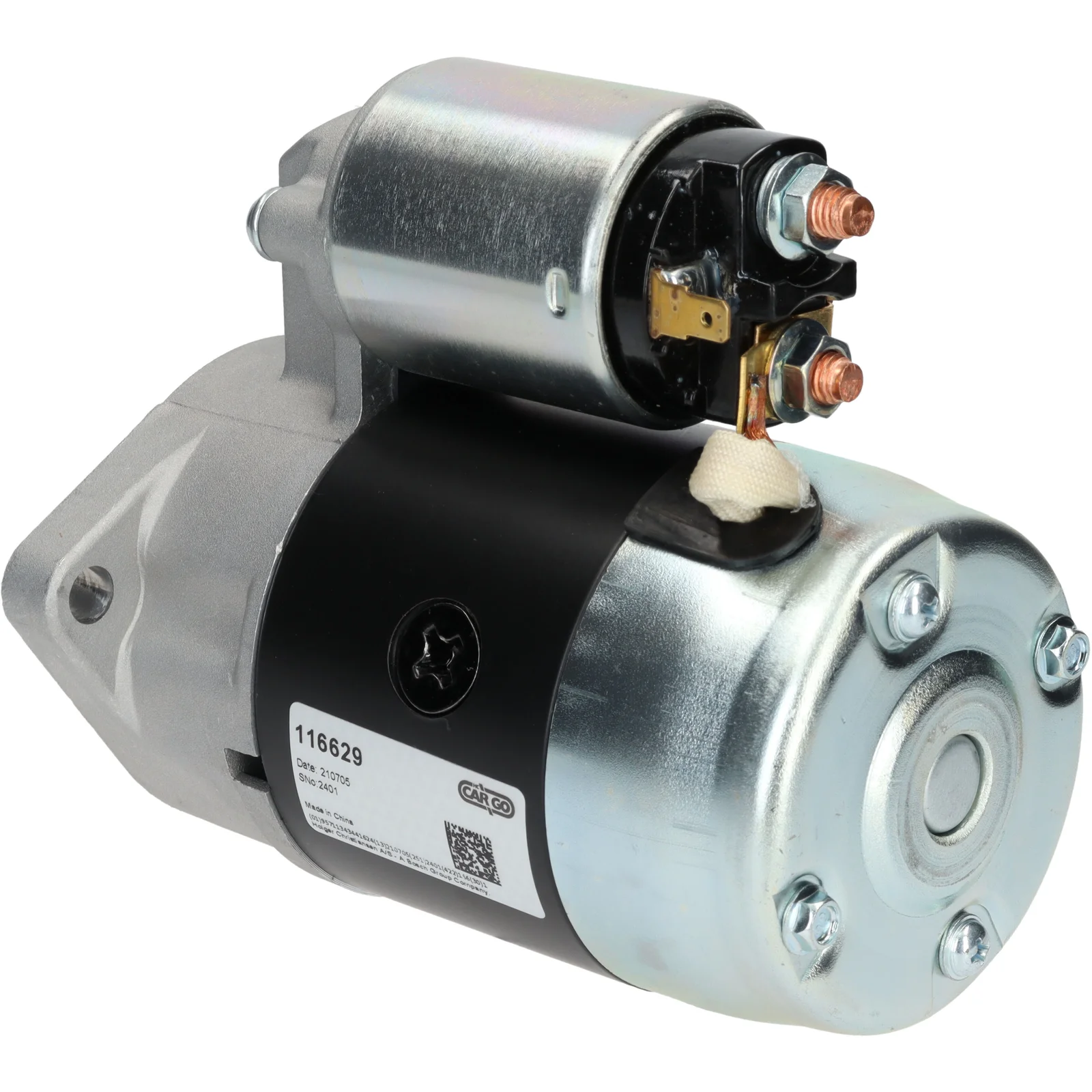

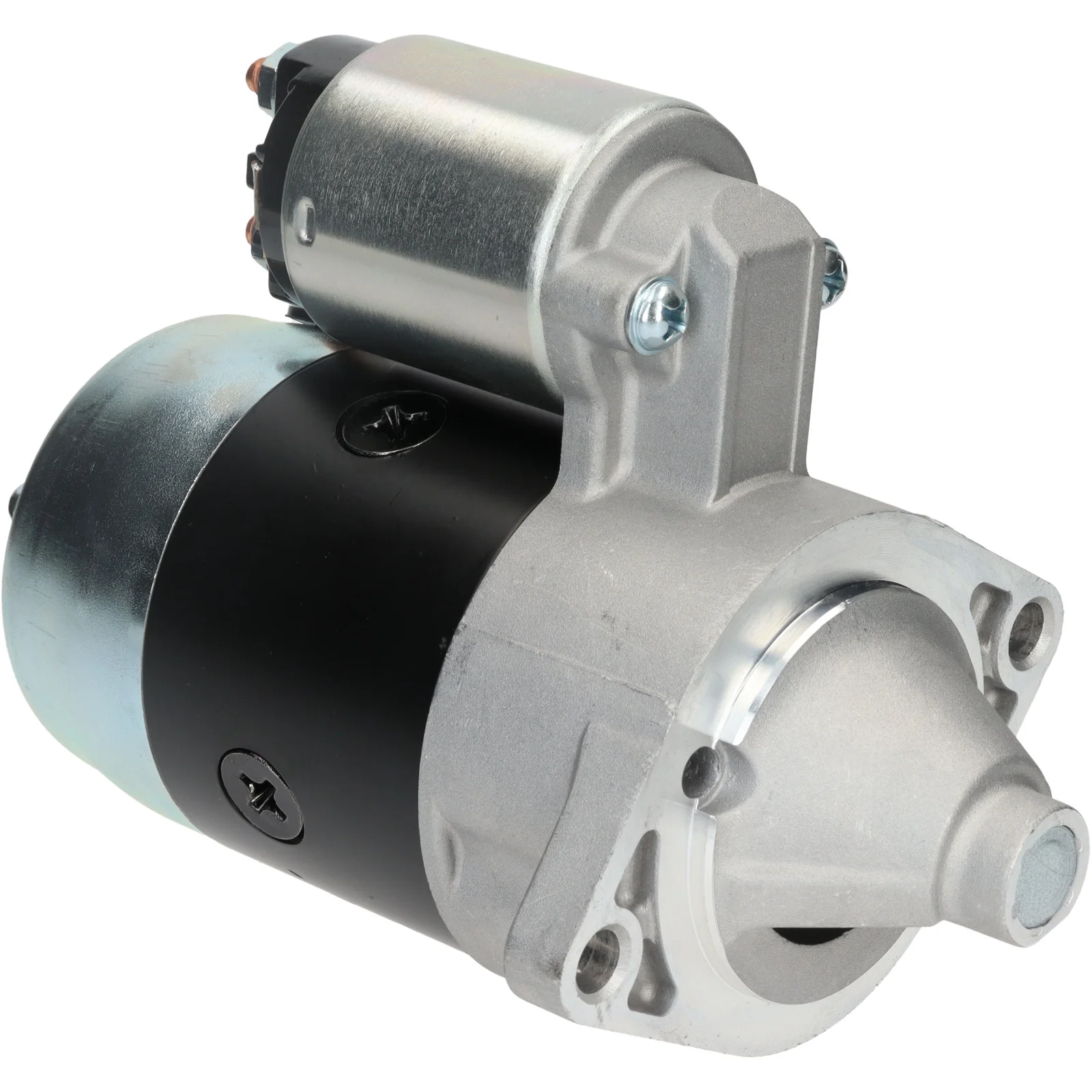

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116629

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.85, No./teeth: 8, Rotation: CW

Beskrivning

Voltage: 12
kW: 0.85
Mount. flange: 66.00
Drive dist.: 4.00
Dist./back: 148.00
Dist./front: 41.00
No./teeth: 8
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: 6.30
Gear type: DD
Dist. mm: 105.00
Rotation: CW
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 66.00
No./mount. holes 2 (0)
Position/50 45
Position/B+ 60
Rotation CW
Dist./back 148.00
Dist./front 41.00
Drive dist. 4.00
Gear type DD
kW 0.85
Terminal 50 6.30
Voltage 12
Dist. 105.00 mm

  • OEM
    F032116629, M003T41781, m3t41781, 31100-83030, 31100-83031, 31100-83032

  • Konkurrentreferens
    azs-213, drs3045, ISJ0002, J5218005, lrs00605, vs333, 25-1261, 37-52.805, 345.003.082, 103250, 455901, 0986014351, 944280528050

  • Normaliserat artikelnummer
    azs213, drs3045, f032116629, isj0002, j5218005, lrs00605, m003t41781, m3t41781, vs333, 103250, 251261, 455901, 3752805, 345003082, 0986014351, 3110083030, 3110083031, 3110083032, 944280528050

  • Passar modeller
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: 4x4 Size of motor: 2.0 Brand of engine: J20A Type description: FT, GT From date: 01-04-1998 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.0 Brand of engine: J20A From date: 01-03-1998 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.0 Brand of engine: J20A From date: 01-10-2005 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    Suzuki Model: Samurai Model series: Samurai Size of motor: 1.3 Brand of engine: G13A Type description: SJ413 From date: 01-11-1988 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Suzuki Model: Samurai Model series: Samurai Size of motor: 1.3 Brand of engine: G13BA Type description: SJ413 From date: 01-11-1988 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Suzuki Model: SJ Model series: SJ 413 Size of motor: 1.3 Brand of engine: G13A Type description: SJ413 From date: 01-08-1986 To date: 01-08-1990 Fuel: Gasoline Approved: Yes
    Suzuki Model: SJ Model series: SJ 413 Size of motor: 1.3 Brand of engine: G13A Type description: SJ413 From date: 01-09-1984 To date: 01-08-1990 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Model type: 4WD Type of engine: i Size of motor: 1.6 Brand of engine: G16B Type description: ET Body: Convertible From date: 01-07-1990 To date: 01-03-1999 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Model type: 4X4 Size of motor: 1.6 Brand of engine: G16A(8V) Type description: ET, TA From date: 01-10-1988 To date: 01-12-1998 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Model type: All-wheel Drive (SE 416) Size of motor: 1.6 Brand of engine: G16B Type description: ET, TA, TD Body: Closed Off-Road Vehicle From date: 01-02-1991 To date: 01-03-1998 Fuel: Petrol Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Size of motor: 1.6 Brand of engine: G16A Type description: ET From date: 01-07-1988 To date: 01-12-1991 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Size of motor: 1.6 Brand of engine: G16A Type description: TA Body: Convertible From date: 01-07-1988 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Size of motor: 1.6 Brand of engine: G16A Type description: TA From date: 01-07-1988 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Size of motor: 1.6 Brand of engine: G16B Type description: ET, TA From date: 01-02-1991 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Size of motor: 1.6 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Size of motor: 2.0 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Type of engine: 16V Size of motor: 1.6 Brand of engine: G16B Type description: ET From date: 01-07-1990 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Suzuki Model: X-90 Model series: X-90 Type of engine: i 16V Size of motor: 1.6 Brand of engine: G16B Body: Convertible From date: 01-09-1995 To date: 01-12-1997 Fuel: Gasoline Approved: Yes
