HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116445

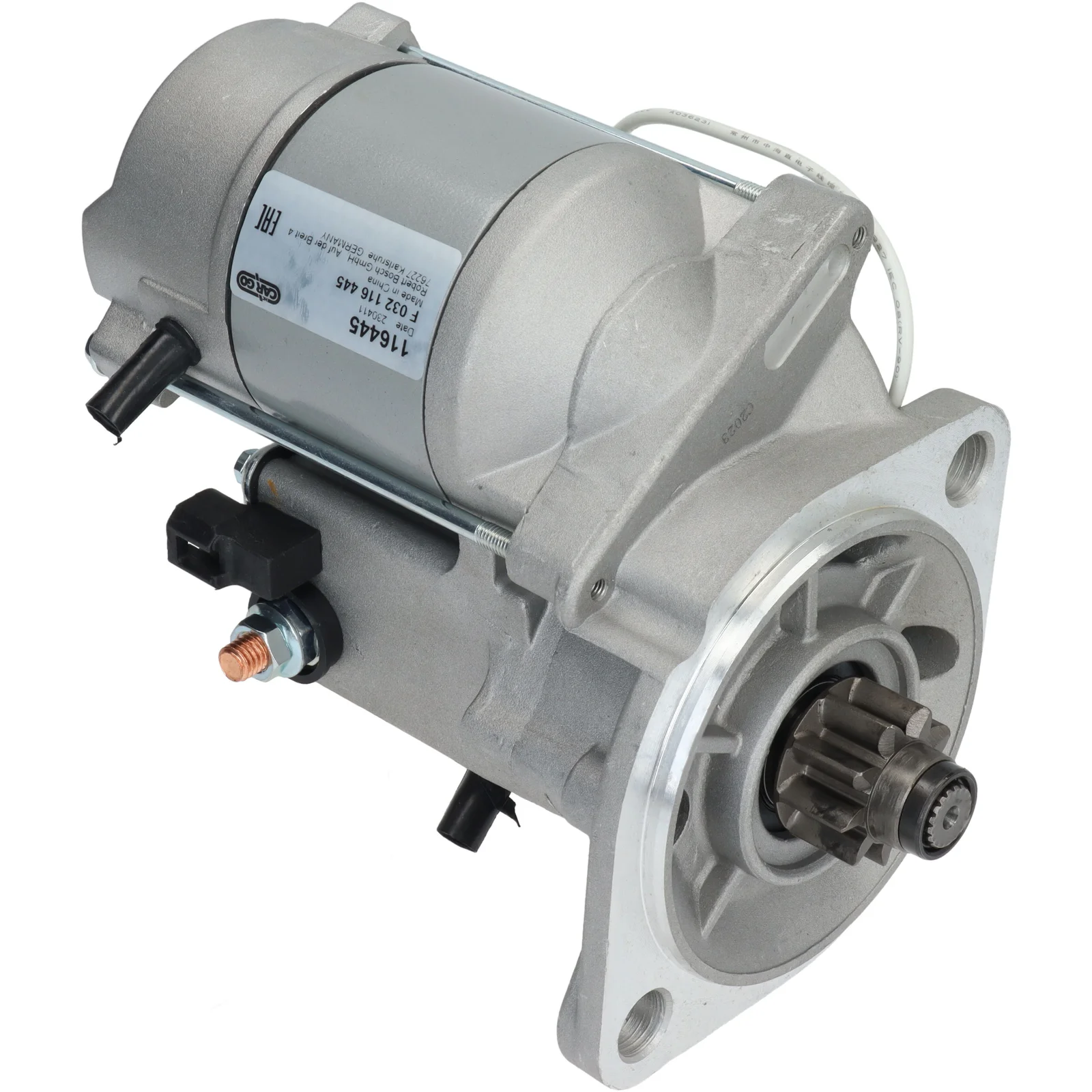

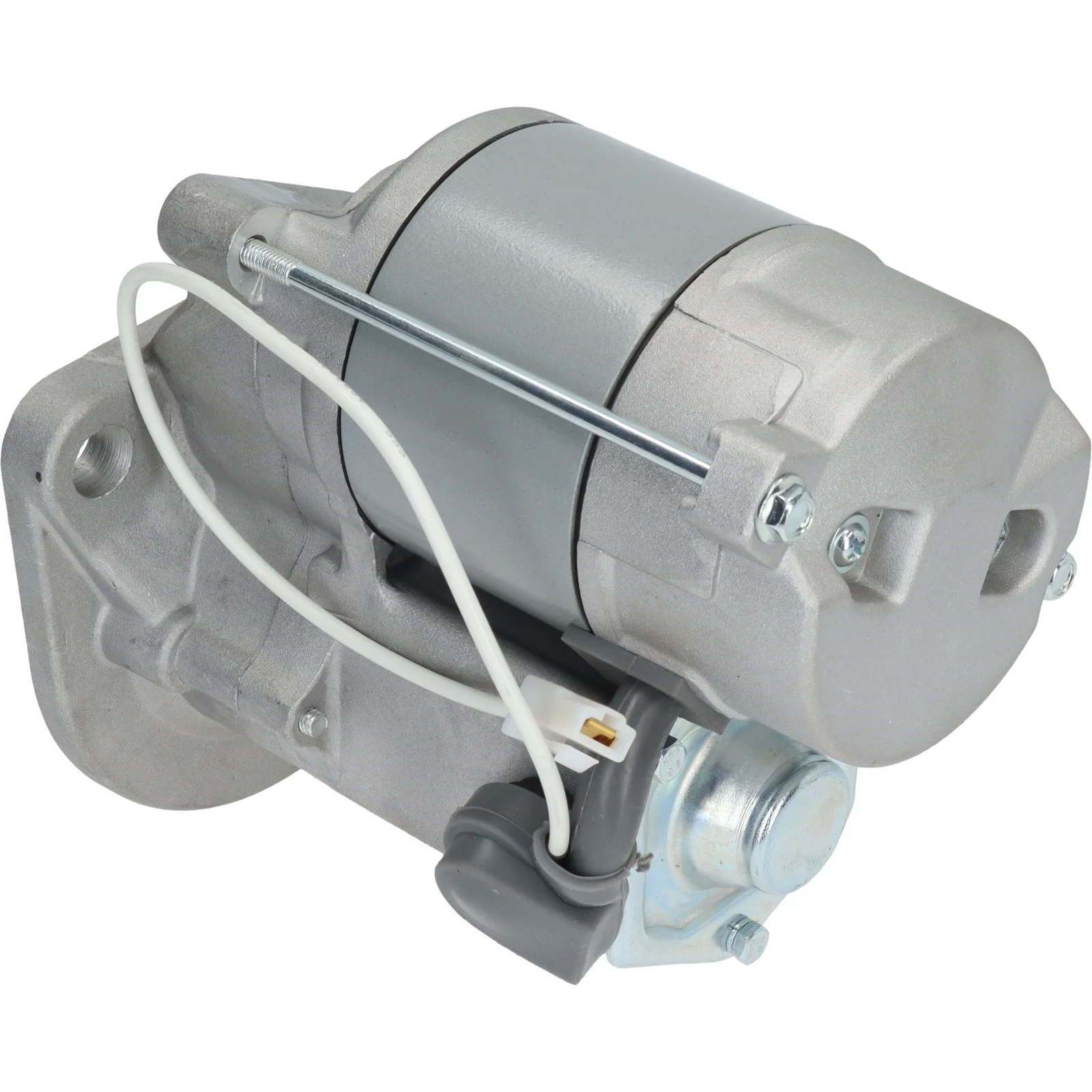

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Beskrivning

HC-Cargo Startmotor

Voltage: 12
kW: 1.4
Mount. flange: 95.00
Drive dist.: 20.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 124.50
Dist./front: 32.50
No./teeth: 9
B+: M8
Position/B+: 15
Position/50: 10
Terminal 50: Plug
Gear type: GR
Dist. mm: 120.00
Rotation: CW
Total length mm: 187.00
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 95.00
No./mount. holes 2 (0)
Position/50 10
Position/B+ 15
Rotation CW
Dist./back 124.50
Dist./front 32.50
Drive dist. 20.00
Gear type GR
kW 1.4
Terminal 50 Plug
Voltage 12
Total length 187.00 mm
Dist. 120.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032116445, 228000-1130, 228000-1131, 228000-1132, 228000-1133, 8970489660, 8970489661, 8970489662, 8970489663

  • Konkurrentreferens
    DSN2129, LRS01299, 1-9512N, 25-1050, 25-2038, 130.552.092, 19512N, 105395

  • Normaliserat artikelnummer
    dsn2129, f032116445, lrs01299, 19512n, 105395, 251050, 252038, 130552092, 2280001130, 2280001131, 2280001132, 2280001133, 8970489660, 8970489661, 8970489662, 8970489663

  • Passar modeller
    Iseki Model: Various Models Model series: Various Models Approved: Yes
    Isuzu Model: Engine Model series: Engine Brand of engine: 3AB1 Approved: Yes
    Komatsu Model: FD Model series: FD10, FD14, FD18 Size of motor: 4FE1 Approved: Yes
    Komatsu Model: FD Model series: FD20L-10, FD25L-10 Size of motor: 4FE1 Approved: Yes
    TCM Model: FD Model series: FD10Z, 14Z, 15Z, 18Z , 20Z Approved: Yes
  • Beskrivning
    HC-Cargo Startmotor

    Voltage: 12
    kW: 1.4
    Mount. flange: 95.00
    Drive dist.: 20.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 124.50
    Dist./front: 32.50
    No./teeth: 9
    B+: M8
    Position/B+: 15
    Position/50: 10
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 120.00
    Rotation: CW
    Total length mm: 187.00
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 95.00
    No./mount. holes 2 (0)
    Position/50 10
    Position/B+ 15
    Rotation CW
    Dist./back 124.50
    Dist./front 32.50
    Drive dist. 20.00
    Gear type GR
    kW 1.4
    Terminal 50 Plug
    Voltage 12
    Total length 187.00 mm
    Dist. 120.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      F032116445, 228000-1130, 228000-1131, 228000-1132, 228000-1133, 8970489660, 8970489661, 8970489662, 8970489663

    • Konkurrentreferens
      DSN2129, LRS01299, 1-9512N, 25-1050, 25-2038, 130.552.092, 19512N, 105395

    • Normaliserat artikelnummer
      dsn2129, f032116445, lrs01299, 19512n, 105395, 251050, 252038, 130552092, 2280001130, 2280001131, 2280001132, 2280001133, 8970489660, 8970489661, 8970489662, 8970489663

    • Passar modeller
      Iseki Model: Various Models Model series: Various Models Approved: Yes
      Isuzu Model: Engine Model series: Engine Brand of engine: 3AB1 Approved: Yes
      Komatsu Model: FD Model series: FD10, FD14, FD18 Size of motor: 4FE1 Approved: Yes
      Komatsu Model: FD Model series: FD20L-10, FD25L-10 Size of motor: 4FE1 Approved: Yes
      TCM Model: FD Model series: FD10Z, 14Z, 15Z, 18Z , 20Z Approved: Yes
