HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116426

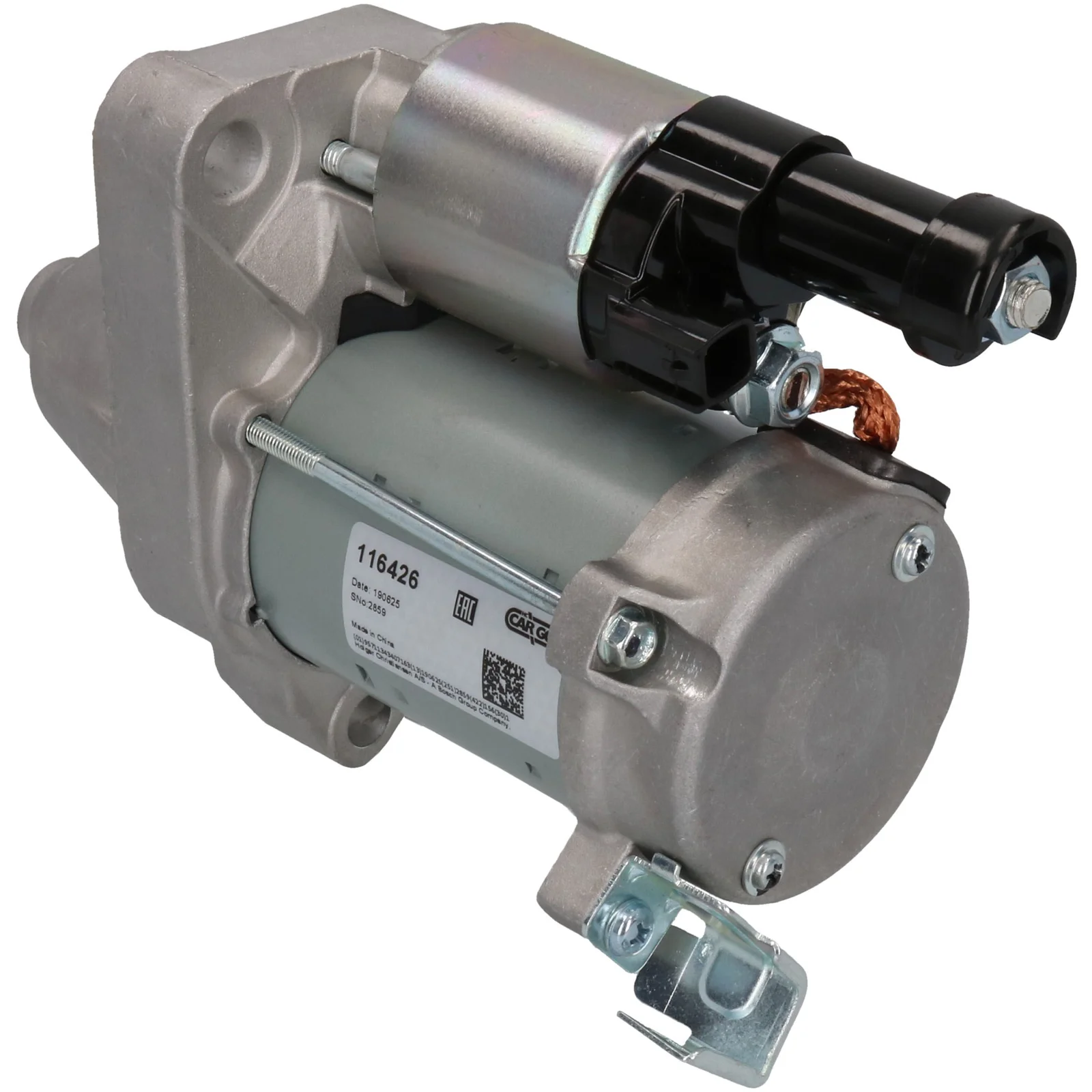

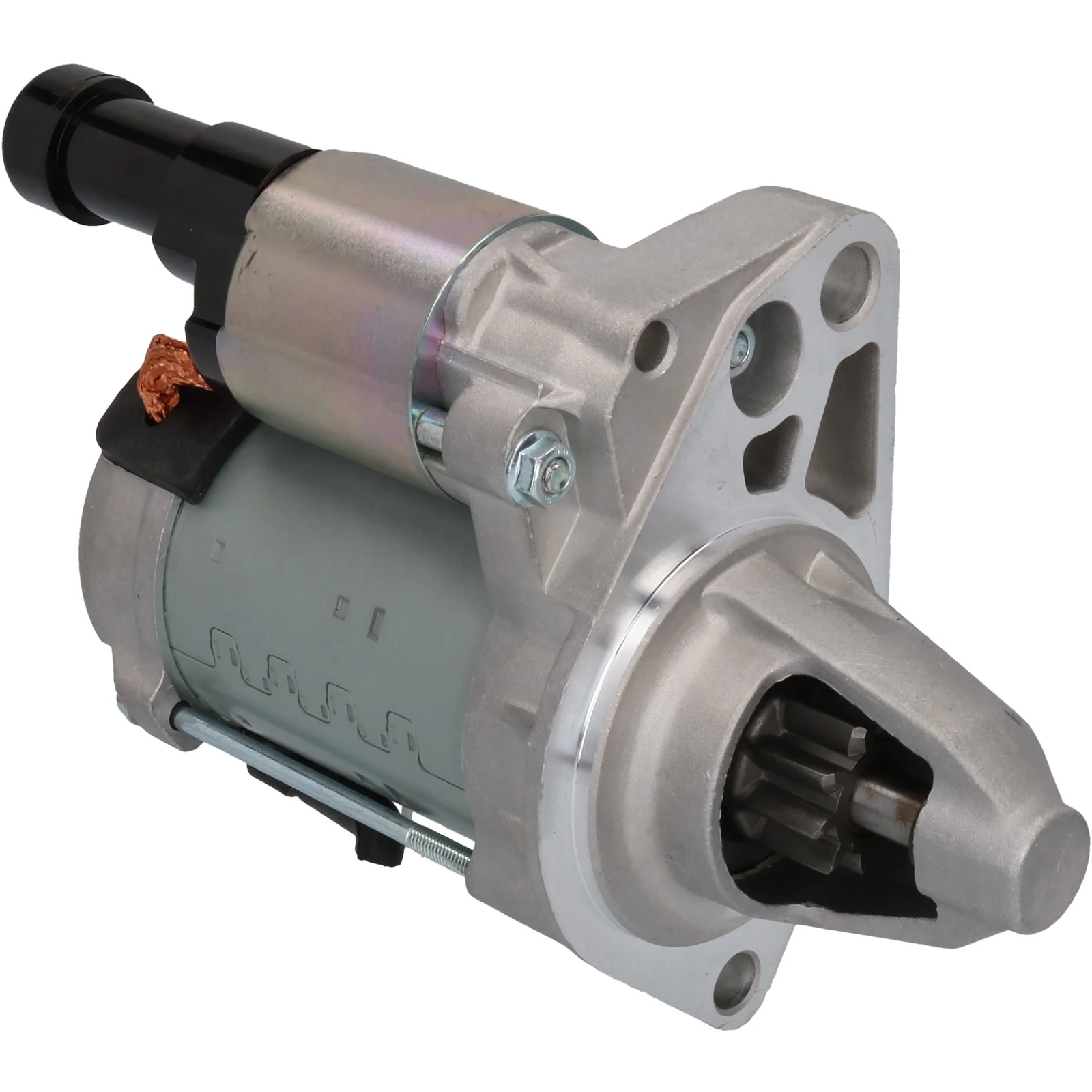

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.3, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.3
Mount. flange: 75.00
Drive dist.: 33.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 13.00
Dist./back: 130.00
Dist./front: 68.00
No./teeth: 9
B+: M8
Position/B+: 59
Position/50: 40
Terminal 50: Plug
Gear type: GR
Dist. mm: 125.50
Rotation: CW
Total length mm: 220.00
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 75.00
No./mount. holes 2 (0)
Position/50 40
Position/B+ 59
Rotation CW
Dist./back 130.00
Dist./front 68.00
Drive dist. 33.00
Gear type GR
kW 1.3
Terminal 50 Plug
Voltage 12
Total length 220.00 mm
Dist. 125.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 13.00 mm

  • OEM
    F032116426, 31200-R1A-G51, 31200-R1P-H01, 428000-8170

  • Konkurrentreferens
    CST40525, DSN1492, LRS03953, S6280S, 25-5115, 120.597.092, 322.076.092, 11040940

  • Normaliserat artikelnummer
    cst40525, dsn1492, f032116426, lrs03953, s6280s, 31200r1ag51, 31200r1ph01, 255115, 11040940, 120597092, 322076092, 4280008170

  • Passar modeller
    Honda Model: Accord Model series: Accord Saloon Size of motor: 2.4 Brand of engine: K24W1 Type description: CR Body: Saloon From date: 01-09-2012 Fuel: Petrol Approved: Yes
    Honda Model: Accord Model series: Accord Saloon Size of motor: 2.4 Brand of engine: K24Z3 Type description: CR Body: Saloon From date: 01-09-2012 Fuel: Petrol Approved: Yes
    Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24W1 Type description: CR Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Honda Model: Civic Model series: Civic Saloon Size of motor: 1.6 Brand of engine: R16B1 Type description: FB Body: Saloon From date: 01-09-2011 Fuel: Petrol Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18Z1 Type description: FB, FG From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18Z4 Type description: FB, FG From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Type of engine: i-VTEC Size of motor: 1.8 Brand of engine: R18Z4 Type description: FK Body: Estate From date: 01-01-2014 Fuel: Gasoline Approved: Yes Manufacture type: Tourer
    Honda Model: Civic Model series: Civic Type of engine: iVTEC Size of motor: 1.6 Brand of engine: R16B1 Type description: FC_ From date: 01-01-2019 Fuel: LPG Approved: Yes
    Honda Model: Civic Model series: Civic Type of engine: VTEC Size of motor: 1.8 Brand of engine: R18Z4 Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic X Saloon Model type: i-VTEC (FC5) Size of motor: 1.6 Brand of engine: R16B1 Type description: FC_ Body: Saloon From date: 01-09-2016 Fuel: Petrol Approved: Yes
    Honda Model: CR-V Model series: CR-V Model type: AWD Size of motor: 2.0 Brand of engine: R20A9 From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Honda Model: CR-V Model series: CR-V Size of motor: 2.0 Brand of engine: R20A9 From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Honda Model: HR-V Model series: HR-V Size of motor: 1.8 Brand of engine: R18ZF Type description: RU Body: SUV From date: 01-01-2015 Fuel: Petrol Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 1.3
    Mount. flange: 75.00
    Drive dist.: 33.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 13.00
    Dist./back: 130.00
    Dist./front: 68.00
    No./teeth: 9
    B+: M8
    Position/B+: 59
    Position/50: 40
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 125.50
    Rotation: CW
    Total length mm: 220.00
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 75.00
    No./mount. holes 2 (0)
    Position/50 40
    Position/B+ 59
    Rotation CW
    Dist./back 130.00
    Dist./front 68.00
    Drive dist. 33.00
    Gear type GR
    kW 1.3
    Terminal 50 Plug
    Voltage 12
    Total length 220.00 mm
    Dist. 125.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      F032116426, 31200-R1A-G51, 31200-R1P-H01, 428000-8170

    • Konkurrentreferens
      CST40525, DSN1492, LRS03953, S6280S, 25-5115, 120.597.092, 322.076.092, 11040940

    • Normaliserat artikelnummer
      cst40525, dsn1492, f032116426, lrs03953, s6280s, 31200r1ag51, 31200r1ph01, 255115, 11040940, 120597092, 322076092, 4280008170

    • Passar modeller
      Honda Model: Accord Model series: Accord Saloon Size of motor: 2.4 Brand of engine: K24W1 Type description: CR Body: Saloon From date: 01-09-2012 Fuel: Petrol Approved: Yes
      Honda Model: Accord Model series: Accord Saloon Size of motor: 2.4 Brand of engine: K24Z3 Type description: CR Body: Saloon From date: 01-09-2012 Fuel: Petrol Approved: Yes
      Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24W1 Type description: CR Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Honda Model: Civic Model series: Civic Saloon Size of motor: 1.6 Brand of engine: R16B1 Type description: FB Body: Saloon From date: 01-09-2011 Fuel: Petrol Approved: Yes
      Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18Z1 Type description: FB, FG From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Size of motor: 1.8 Brand of engine: R18Z4 Type description: FB, FG From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Type of engine: i-VTEC Size of motor: 1.8 Brand of engine: R18Z4 Type description: FK Body: Estate From date: 01-01-2014 Fuel: Gasoline Approved: Yes Manufacture type: Tourer
      Honda Model: Civic Model series: Civic Type of engine: iVTEC Size of motor: 1.6 Brand of engine: R16B1 Type description: FC_ From date: 01-01-2019 Fuel: LPG Approved: Yes
      Honda Model: Civic Model series: Civic Type of engine: VTEC Size of motor: 1.8 Brand of engine: R18Z4 Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic X Saloon Model type: i-VTEC (FC5) Size of motor: 1.6 Brand of engine: R16B1 Type description: FC_ Body: Saloon From date: 01-09-2016 Fuel: Petrol Approved: Yes
      Honda Model: CR-V Model series: CR-V Model type: AWD Size of motor: 2.0 Brand of engine: R20A9 From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Honda Model: CR-V Model series: CR-V Size of motor: 2.0 Brand of engine: R20A9 From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Honda Model: HR-V Model series: HR-V Size of motor: 1.8 Brand of engine: R18ZF Type description: RU Body: SUV From date: 01-01-2015 Fuel: Petrol Approved: Yes
