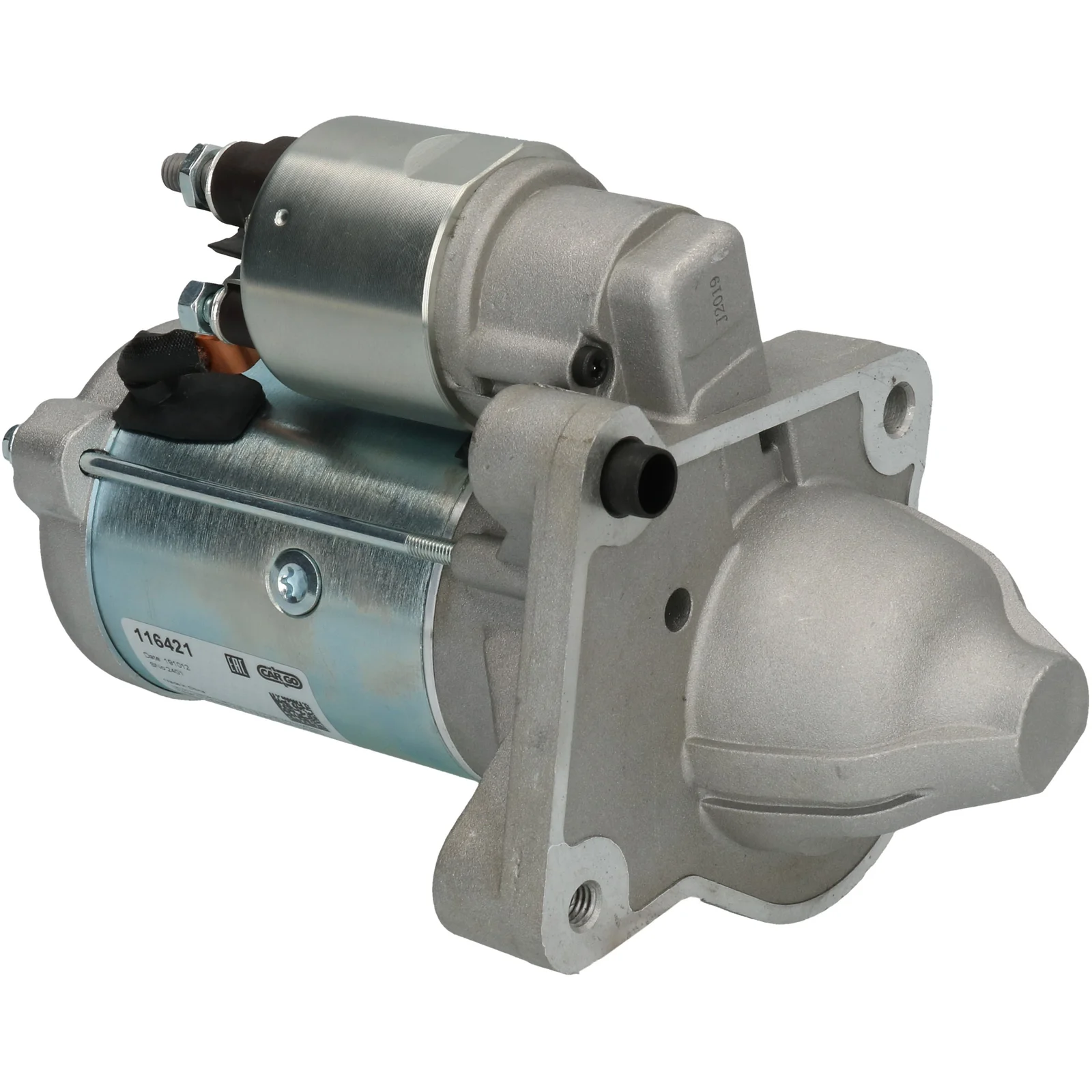

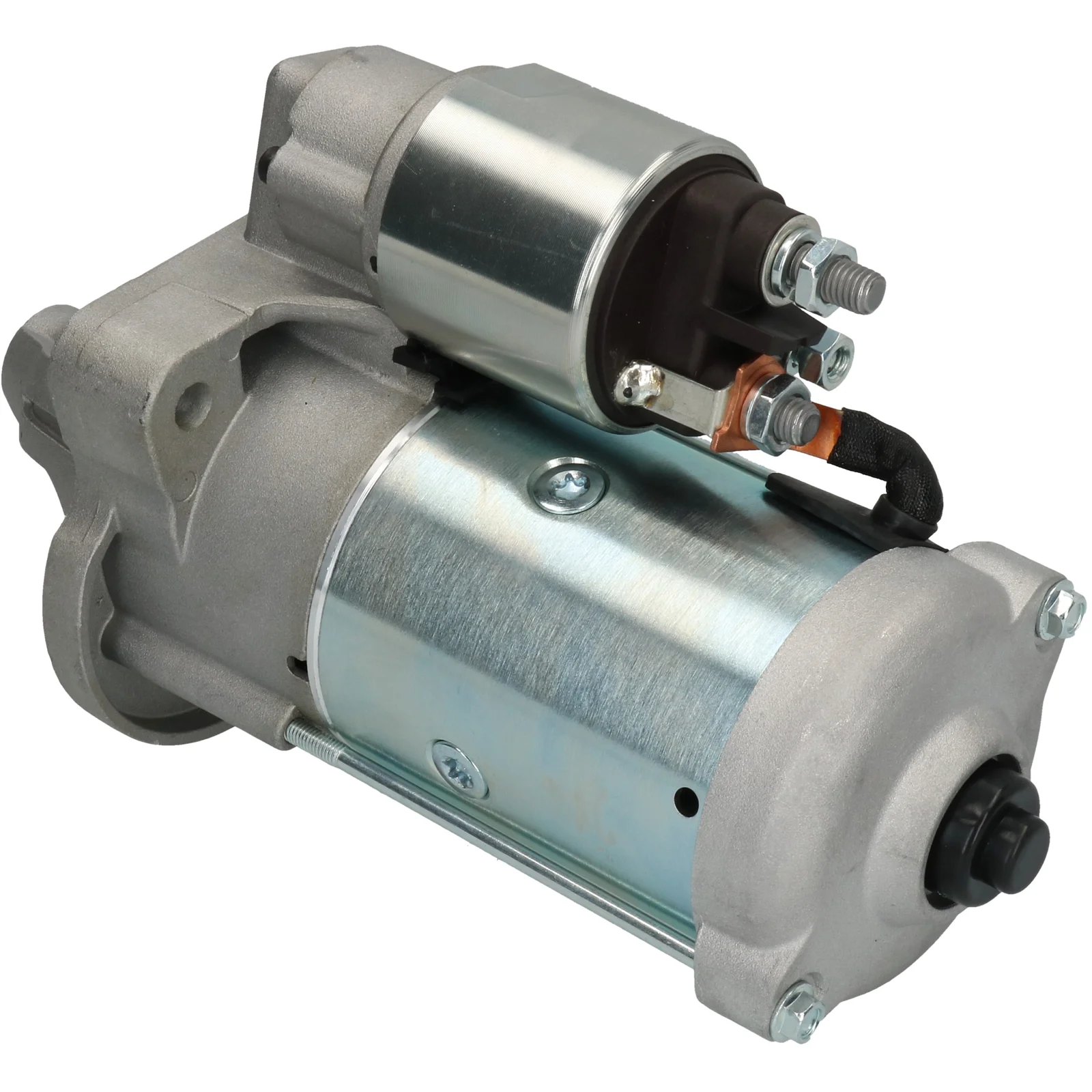

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116421

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 13, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Drive dist.: 14.00
Mount. hole 3 mm: M8
Mount. hole 1 mm: 9.00
Dist./back: 182.00
Dist./front: 53.00
No./teeth: 13
B+: M8
Position/B+: 60
Position/50: 18
Terminal 50: M6
Gear type: GR
Dist. 2: 74.50
Dist. 3: 84.00
Dist. mm: 116.00
Rotation: CW
Total length mm: 235.00
No./mount. holes: 3 (2)

Filer

Specifikation

B+ M8
No./teeth 13
No./mount. holes 3 (2)
Position/50 18
Position/B+ 60
Dist. 2 74.50
Dist. 3 84.00
Rotation CW
Dist./back 182.00
Dist./front 53.00
Drive dist. 14.00
Gear type GR
kW 2.0
Terminal 50 M6
Voltage 12
Total length 235.00 mm
Dist. 116.00 mm
Mount. hole 3 M8 mm
Mount. hole 1 9.00 mm

  • OEM
    CV2T11000AA, CV2T11000AB, CV2T11000AC, ESW2023, ESW20E-18, ESW20E18, F032116421, 1902473, 2033252

  • Konkurrentreferens
    CST15283, DRS1009, S3158S, 25-4452, 319.095.132, 590.579.133, 33240N, 220901, 220901A, 11090289

  • Normaliserat artikelnummer
    cst15283, cv2t11000aa, cv2t11000ab, cv2t11000ac, drs1009, esw2023, esw20e18, f032116421, s3158s, 33240n, 220901, 220901a, 254452, 1902473, 2033252, 11090289, 319095132, 590579133

  • Passar modeller
    Ford Model: B-Max Model series: B-Max Type of engine: TDCi Size of motor: 1.5 Brand of engine: UGJC Body: MPV From date: 01-10-2012 Fuel: Diesel Approved: Yes
    Ford Model: B-Max Model series: B-Max Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVJA Body: Van From date: 01-04-2015 Fuel: Diesel Approved: Yes
    Ford Model: B-Max Model series: B-Max Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVJA Type description: JK Body: MPV From date: 01-04-2015 Fuel: Diesel Approved: Yes
    Ford Model: B-Max Model series: B-Max Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVJC Body: Van From date: 01-04-2015 Fuel: Diesel Approved: Yes
    Ford Model: B-Max Model series: B-Max Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVJC Type description: JK Body: MPV From date: 01-04-2015 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3JA Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: TZJA Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: TZJB Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
    Ford Model: Tourneo Model series: Tourneo Courier Model type: Courier Kombi Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCA Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Tourneo Model series: Tourneo Courier Model type: Courier Kombi Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCB Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Tourneo Model series: Tourneo Courier Model type: Courier Kombi Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCC Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Tourneo Model series: Tourneo Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: UGCA Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Tourneo Model series: Tourneo Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: UGCB Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Tourneo Model series: Tourneo Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CA Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Tourneo Model series: Tourneo Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CB Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: UGCA Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: UGCA Body: Van From date: 01-02-2014 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: UGCB Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: UGCB Body: Van From date: 01-02-2014 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCA Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCA Body: Van From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCB Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCB Body: Van From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCC Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCC Body: Van From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CA Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CA Body: Van From date: 01-02-2014 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CB Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CB Body: Van From date: 01-02-2014 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CC Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CC Body: Van From date: 01-02-2014 Fuel: Diesel Approved: Yes
    1 / 7
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Drive dist.: 14.00
    Mount. hole 3 mm: M8
    Mount. hole 1 mm: 9.00
    Dist./back: 182.00
    Dist./front: 53.00
    No./teeth: 13
    B+: M8
    Position/B+: 60
    Position/50: 18
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 74.50
    Dist. 3: 84.00
    Dist. mm: 116.00
    Rotation: CW
    Total length mm: 235.00
    No./mount. holes: 3 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 13
    No./mount. holes 3 (2)
    Position/50 18
    Position/B+ 60
    Dist. 2 74.50
    Dist. 3 84.00
    Rotation CW
    Dist./back 182.00
    Dist./front 53.00
    Drive dist. 14.00
    Gear type GR
    kW 2.0
    Terminal 50 M6
    Voltage 12
    Total length 235.00 mm
    Dist. 116.00 mm
    Mount. hole 3 M8 mm
    Mount. hole 1 9.00 mm
  • Fordonsmatchning

    • OEM
      CV2T11000AA, CV2T11000AB, CV2T11000AC, ESW2023, ESW20E-18, ESW20E18, F032116421, 1902473, 2033252

    • Konkurrentreferens
      CST15283, DRS1009, S3158S, 25-4452, 319.095.132, 590.579.133, 33240N, 220901, 220901A, 11090289

    • Normaliserat artikelnummer
      cst15283, cv2t11000aa, cv2t11000ab, cv2t11000ac, drs1009, esw2023, esw20e18, f032116421, s3158s, 33240n, 220901, 220901a, 254452, 1902473, 2033252, 11090289, 319095132, 590579133

    • Passar modeller
      Ford Model: B-Max Model series: B-Max Type of engine: TDCi Size of motor: 1.5 Brand of engine: UGJC Body: MPV From date: 01-10-2012 Fuel: Diesel Approved: Yes
      Ford Model: B-Max Model series: B-Max Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVJA Body: Van From date: 01-04-2015 Fuel: Diesel Approved: Yes
      Ford Model: B-Max Model series: B-Max Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVJA Type description: JK Body: MPV From date: 01-04-2015 Fuel: Diesel Approved: Yes
      Ford Model: B-Max Model series: B-Max Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVJC Body: Van From date: 01-04-2015 Fuel: Diesel Approved: Yes
      Ford Model: B-Max Model series: B-Max Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVJC Type description: JK Body: MPV From date: 01-04-2015 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3JA Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: TZJA Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.6 Brand of engine: TZJB Body: Hatchback From date: 01-02-2010 Fuel: Diesel Approved: Yes
      Ford Model: Tourneo Model series: Tourneo Courier Model type: Courier Kombi Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCA Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Tourneo Model series: Tourneo Courier Model type: Courier Kombi Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCB Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Tourneo Model series: Tourneo Courier Model type: Courier Kombi Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCC Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Tourneo Model series: Tourneo Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: UGCA Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Tourneo Model series: Tourneo Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: UGCB Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Tourneo Model series: Tourneo Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CA Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Tourneo Model series: Tourneo Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CB Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: UGCA Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: UGCA Body: Van From date: 01-02-2014 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: UGCB Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: UGCB Body: Van From date: 01-02-2014 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCA Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCA Body: Van From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCB Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCB Body: Van From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCC Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.5 Brand of engine: XVCC Body: Van From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CA Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CA Body: Van From date: 01-02-2014 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CB Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CB Body: Van From date: 01-02-2014 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CC Body: Estate From date: 01-02-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Ford Model: Transit Model series: Transit Courier Type of engine: TDCi Size of motor: 1.6 Brand of engine: T3CC Body: Van From date: 01-02-2014 Fuel: Diesel Approved: Yes
