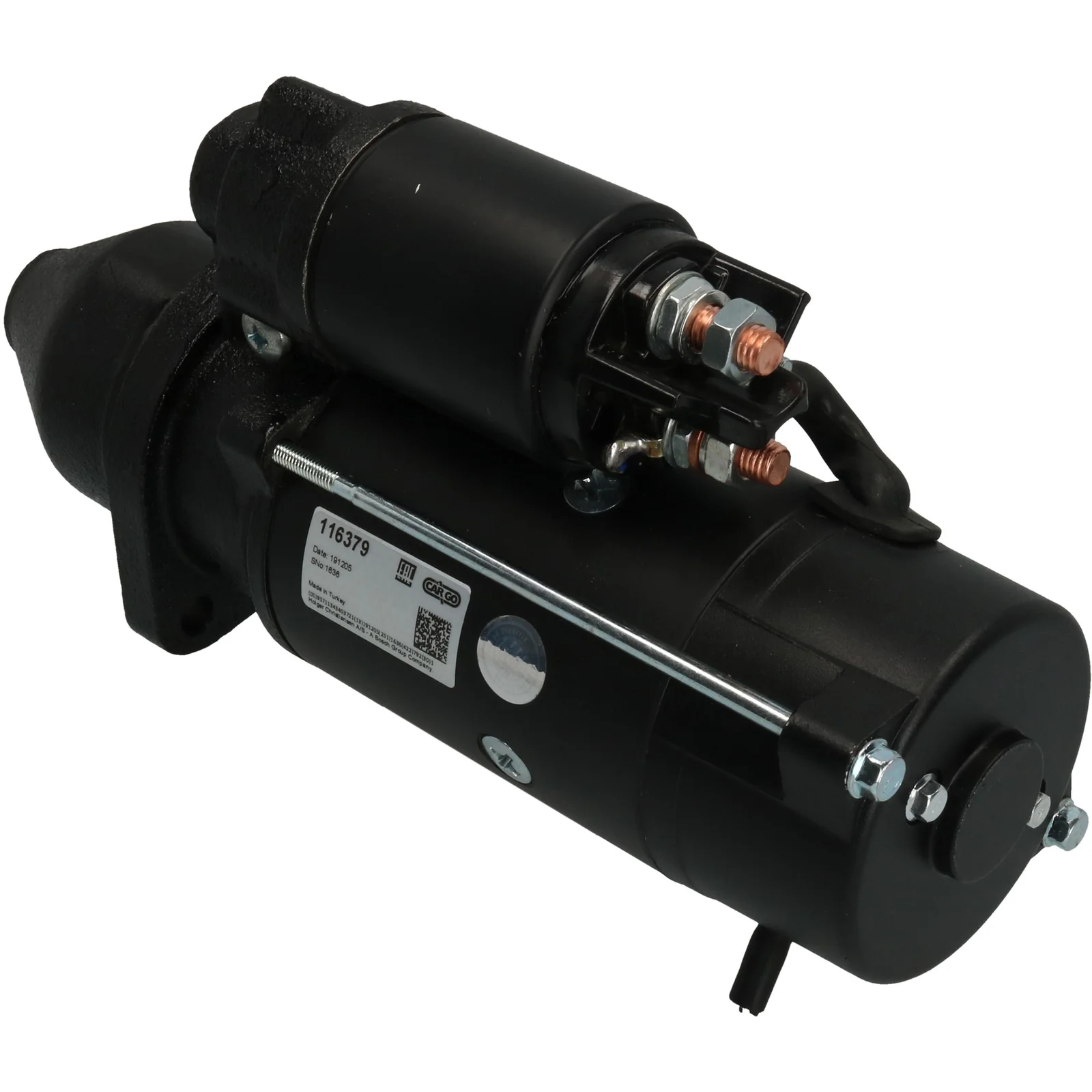

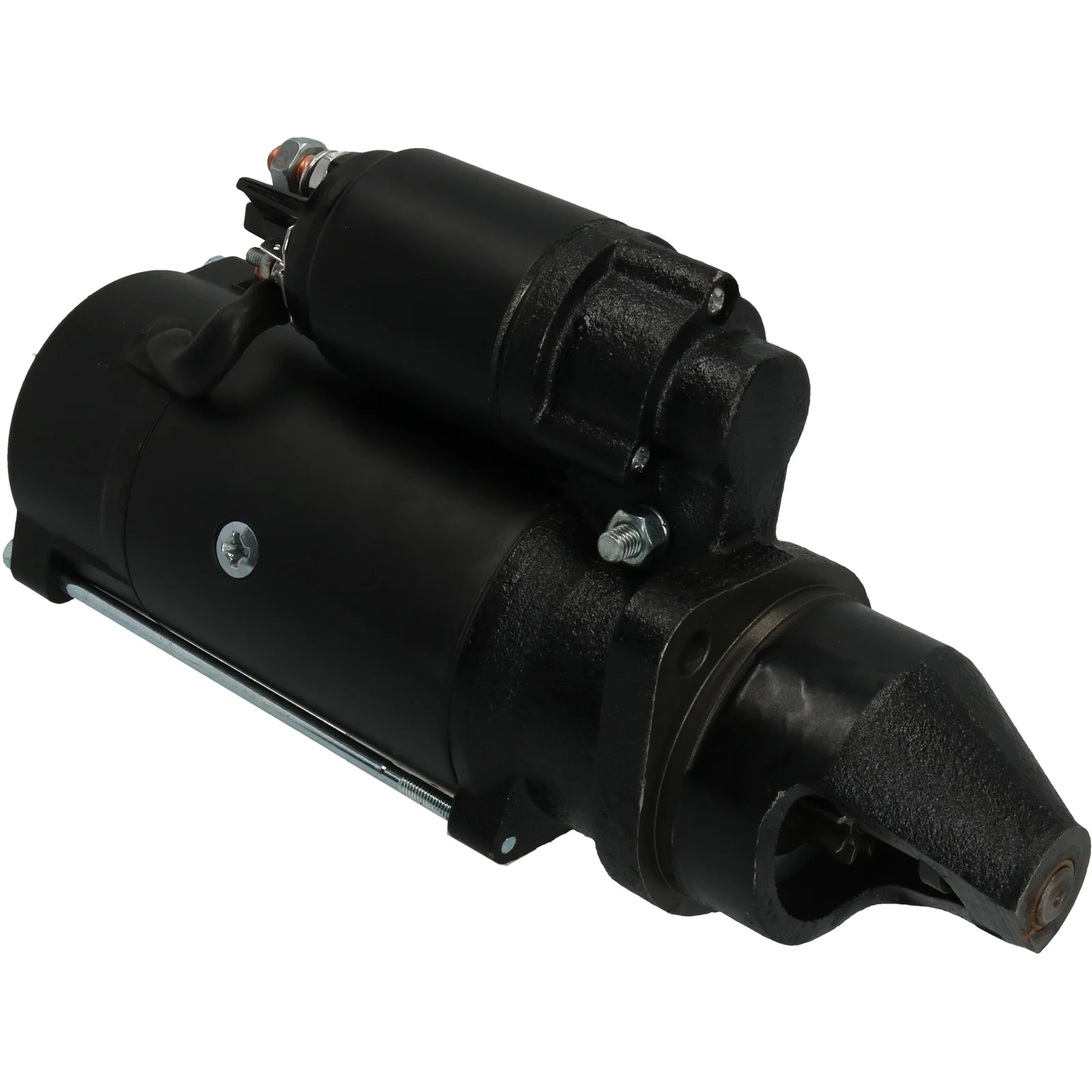

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116379

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.2
Mount. flange: 82.50
Drive dist.: 34.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 239.00
Dist./front: 82.00
No./teeth: 10
B+: M10
Position/B+: 60
Position/50: 15
Terminal 50: M5
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 321.00
Remarks: Alternative HC-CARGO 113478.
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 15
Position/B+ 60
Remarks Alternative HC-CARGO 113478.
Rotation CW
Dist./back 239.00
Dist./front 82.00
Drive dist. 34.00
Gear type GR
kW 3.2
Terminal 50 M5
Voltage 12
Total length 321.00 mm
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZE4185, aze4534, F032116379, RE501713, re506589, RE508736, RE516455, RE519568, RE519975, RE551444, 11.131.108, 11.131.833, 501854, 501869, 0001230003

  • Konkurrentreferens
    DRS0152, IS1059, LES0677, LRS02467, MS430, S3071, S9352S, 8EA015642-561, 25-4139, 630.511.112, 630.538.102, 686.014.112, 106258, 254242, 254364, 11090153, 0986025803

  • Normaliserat artikelnummer
    aze4185, aze4534, drs0152, f032116379, is1059, les0677, lrs02467, ms430, re501713, re506589, re508736, re516455, re519568, re519975, re551444, s3071, s9352s, 8ea015642561, 106258, 254139, 254242, 254364, 501854, 501869, 0001230003, 11090153, 11131108, 11131833, 630511112, 630538102, 686014112, 0986025803

  • Passar modeller
    Atlas Copco Model: Various Models Model series: Various Models Approved: Yes
    John Deere Model: 5000 Series Model series: 5210 Approved: Yes
    John Deere Model: 5000 Series Model series: 5310 Approved: Yes
    John Deere Model: 5000 Series Model series: 5410 Approved: Yes
    John Deere Model: 6000 Series Model series: 6320 Size of motor: 3.9 From date: 01-01-2002 Fuel: Diesel Approved: Yes
    John Deere Model: Series 2050 Model series: 2550 Size of motor: 3.9 Body: Tractor From date: 01-01-1983 To date: 01-12-1986 Fuel: Diesel Approved: Yes
    John Deere Model: Series 5 Model series: 5105M Size of motor: 4.5 Body: Tractor From date: 01-10-2009 Fuel: Diesel Approved: Yes
    John Deere Model: Series 5000 Model series: 5300 Size of motor: 2.9 Brand of engine: 3029DF150 Body: Tractor From date: 01-01-1996 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    John Deere Model: Series 5000 Model series: 5500 Size of motor: 3.9 Brand of engine: 4039T Body: Tractor From date: 01-01-1996 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 3.2
    Mount. flange: 82.50
    Drive dist.: 34.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 239.00
    Dist./front: 82.00
    No./teeth: 10
    B+: M10
    Position/B+: 60
    Position/50: 15
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 321.00
    Remarks: Alternative HC-CARGO 113478.
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 15
    Position/B+ 60
    Remarks Alternative HC-CARGO 113478.
    Rotation CW
    Dist./back 239.00
    Dist./front 82.00
    Drive dist. 34.00
    Gear type GR
    kW 3.2
    Terminal 50 M5
    Voltage 12
    Total length 321.00 mm
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      AZE4185, aze4534, F032116379, RE501713, re506589, RE508736, RE516455, RE519568, RE519975, RE551444, 11.131.108, 11.131.833, 501854, 501869, 0001230003

    • Konkurrentreferens
      DRS0152, IS1059, LES0677, LRS02467, MS430, S3071, S9352S, 8EA015642-561, 25-4139, 630.511.112, 630.538.102, 686.014.112, 106258, 254242, 254364, 11090153, 0986025803

    • Normaliserat artikelnummer
      aze4185, aze4534, drs0152, f032116379, is1059, les0677, lrs02467, ms430, re501713, re506589, re508736, re516455, re519568, re519975, re551444, s3071, s9352s, 8ea015642561, 106258, 254139, 254242, 254364, 501854, 501869, 0001230003, 11090153, 11131108, 11131833, 630511112, 630538102, 686014112, 0986025803

    • Passar modeller
      Atlas Copco Model: Various Models Model series: Various Models Approved: Yes
      John Deere Model: 5000 Series Model series: 5210 Approved: Yes
      John Deere Model: 5000 Series Model series: 5310 Approved: Yes
      John Deere Model: 5000 Series Model series: 5410 Approved: Yes
      John Deere Model: 6000 Series Model series: 6320 Size of motor: 3.9 From date: 01-01-2002 Fuel: Diesel Approved: Yes
      John Deere Model: Series 2050 Model series: 2550 Size of motor: 3.9 Body: Tractor From date: 01-01-1983 To date: 01-12-1986 Fuel: Diesel Approved: Yes
      John Deere Model: Series 5 Model series: 5105M Size of motor: 4.5 Body: Tractor From date: 01-10-2009 Fuel: Diesel Approved: Yes
      John Deere Model: Series 5000 Model series: 5300 Size of motor: 2.9 Brand of engine: 3029DF150 Body: Tractor From date: 01-01-1996 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      John Deere Model: Series 5000 Model series: 5500 Size of motor: 3.9 Brand of engine: 4039T Body: Tractor From date: 01-01-1996 To date: 01-12-2000 Fuel: Diesel Approved: Yes
