HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116369

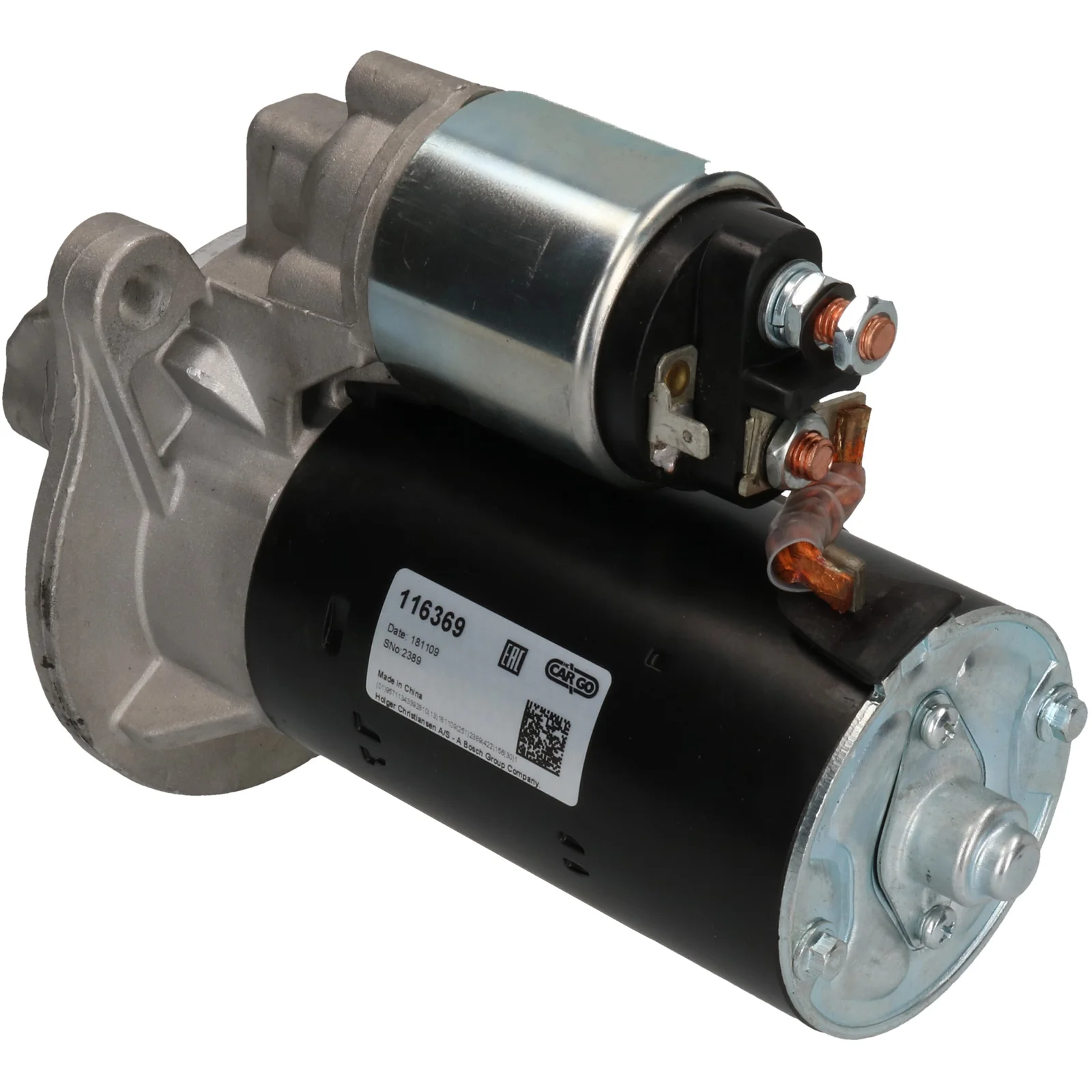

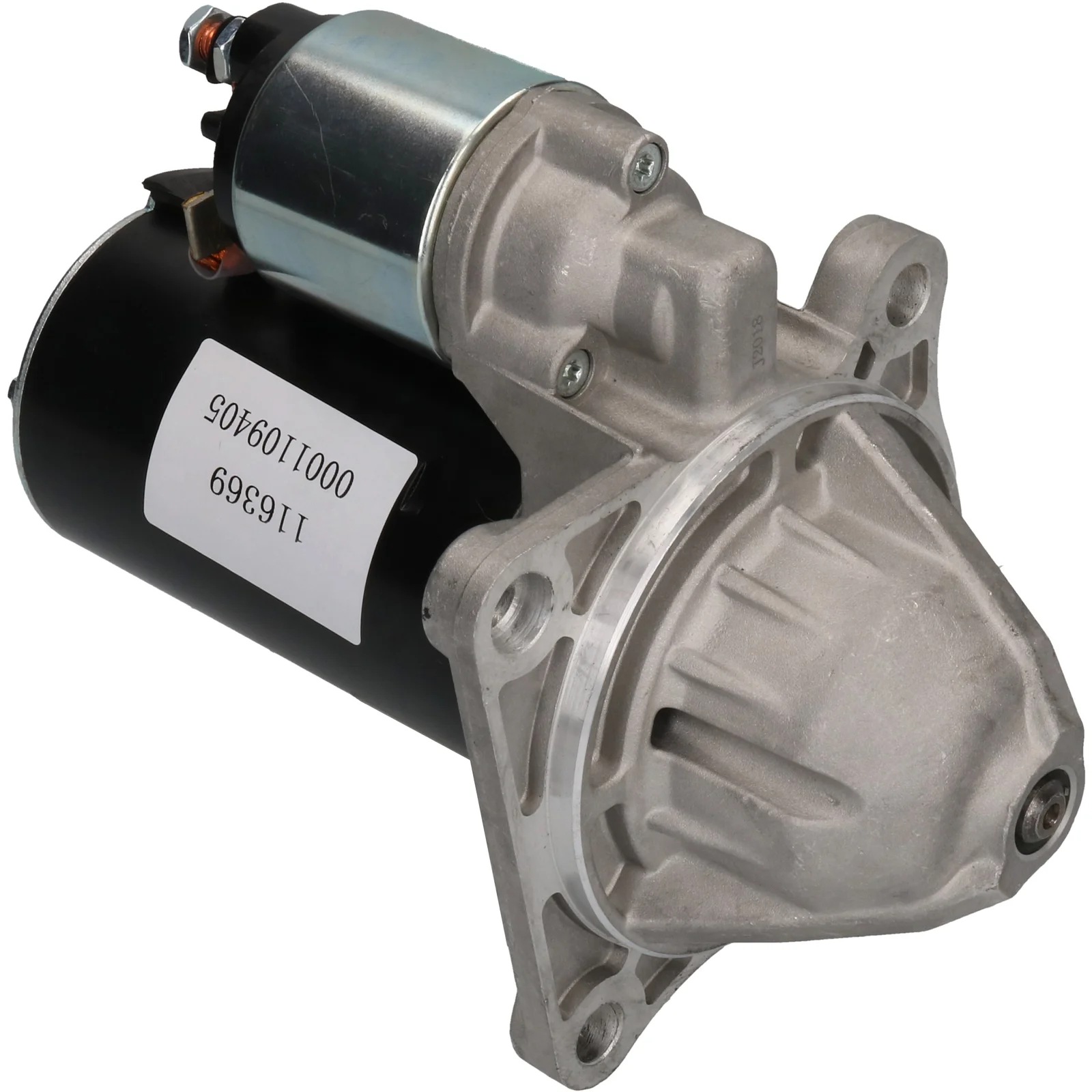

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.7, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.7
Mount. flange: 110.00
Drive dist.: 27.00
Mount. hole 3 mm: 12.00
Mount. hole 2 mm: 12.00
Mount. hole 1 mm: 12.00
Dist./back: 179.50
Dist./front: 66.50
No./teeth: 9
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. 2: 103.50
Dist. 3: 103.50
Dist. mm: 146.00
Rotation: CW
Total length mm: 246.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 110.00
No./mount. holes 3 (0)
Position/50 45
Dist. 2 103.50
Dist. 3 103.50
Rotation CW
Dist./back 179.50
Dist./front 66.50
Drive dist. 27.00
Gear type GR
kW 2.7
Terminal 50 6.30
Voltage 12
Total length 246.00 mm
Dist. 146.00 mm
Mount. hole 3 12.00 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    F032116369, 1986S10035, 0001109405, 0001109406, 5801441816

  • Konkurrentreferens
    LRS04234, S0698S, 8EA015642-471, 25-5396, 220914, 220914A, 11022550

  • Normaliserat artikelnummer
    f032116369, lrs04234, s0698s, 8ea015642471, 1986s10035, 220914, 220914a, 255396, 0001109405, 0001109406, 11022550, 5801441816

  • Passar modeller
    New Holland Model: TN-A Model series: TN60DA Size of motor: 2.9 Body: Tractor From date: 01-01-2004 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    New Holland Model: TN-A Model series: TN60SA Size of motor: 2.9 Body: Tractor From date: 01-01-2004 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    New Holland Model: TN-A Model series: TN70DA, TN75DA Size of motor: 2.9 Body: Tractor From date: 01-01-2004 To date: 01-12-2008 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.7
    Mount. flange: 110.00
    Drive dist.: 27.00
    Mount. hole 3 mm: 12.00
    Mount. hole 2 mm: 12.00
    Mount. hole 1 mm: 12.00
    Dist./back: 179.50
    Dist./front: 66.50
    No./teeth: 9
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. 2: 103.50
    Dist. 3: 103.50
    Dist. mm: 146.00
    Rotation: CW
    Total length mm: 246.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 110.00
    No./mount. holes 3 (0)
    Position/50 45
    Dist. 2 103.50
    Dist. 3 103.50
    Rotation CW
    Dist./back 179.50
    Dist./front 66.50
    Drive dist. 27.00
    Gear type GR
    kW 2.7
    Terminal 50 6.30
    Voltage 12
    Total length 246.00 mm
    Dist. 146.00 mm
    Mount. hole 3 12.00 mm
    Mount. hole 2 12.00 mm
    Mount. hole 1 12.00 mm
  • Fordonsmatchning

    • OEM
      F032116369, 1986S10035, 0001109405, 0001109406, 5801441816

    • Konkurrentreferens
      LRS04234, S0698S, 8EA015642-471, 25-5396, 220914, 220914A, 11022550

    • Normaliserat artikelnummer
      f032116369, lrs04234, s0698s, 8ea015642471, 1986s10035, 220914, 220914a, 255396, 0001109405, 0001109406, 11022550, 5801441816

    • Passar modeller
      New Holland Model: TN-A Model series: TN60DA Size of motor: 2.9 Body: Tractor From date: 01-01-2004 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      New Holland Model: TN-A Model series: TN60SA Size of motor: 2.9 Body: Tractor From date: 01-01-2004 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      New Holland Model: TN-A Model series: TN70DA, TN75DA Size of motor: 2.9 Body: Tractor From date: 01-01-2004 To date: 01-12-2008 Fuel: Diesel Approved: Yes
