HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116340

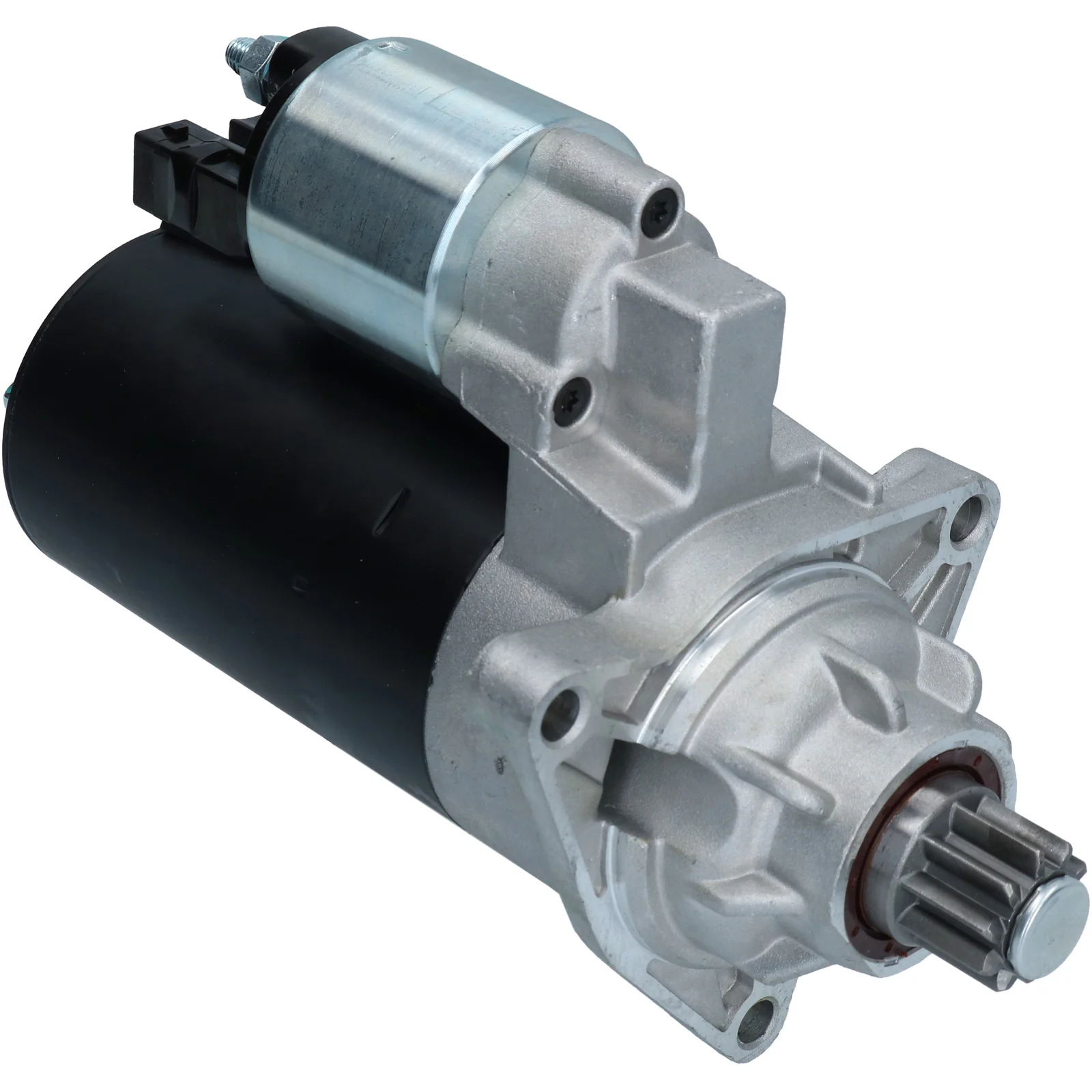

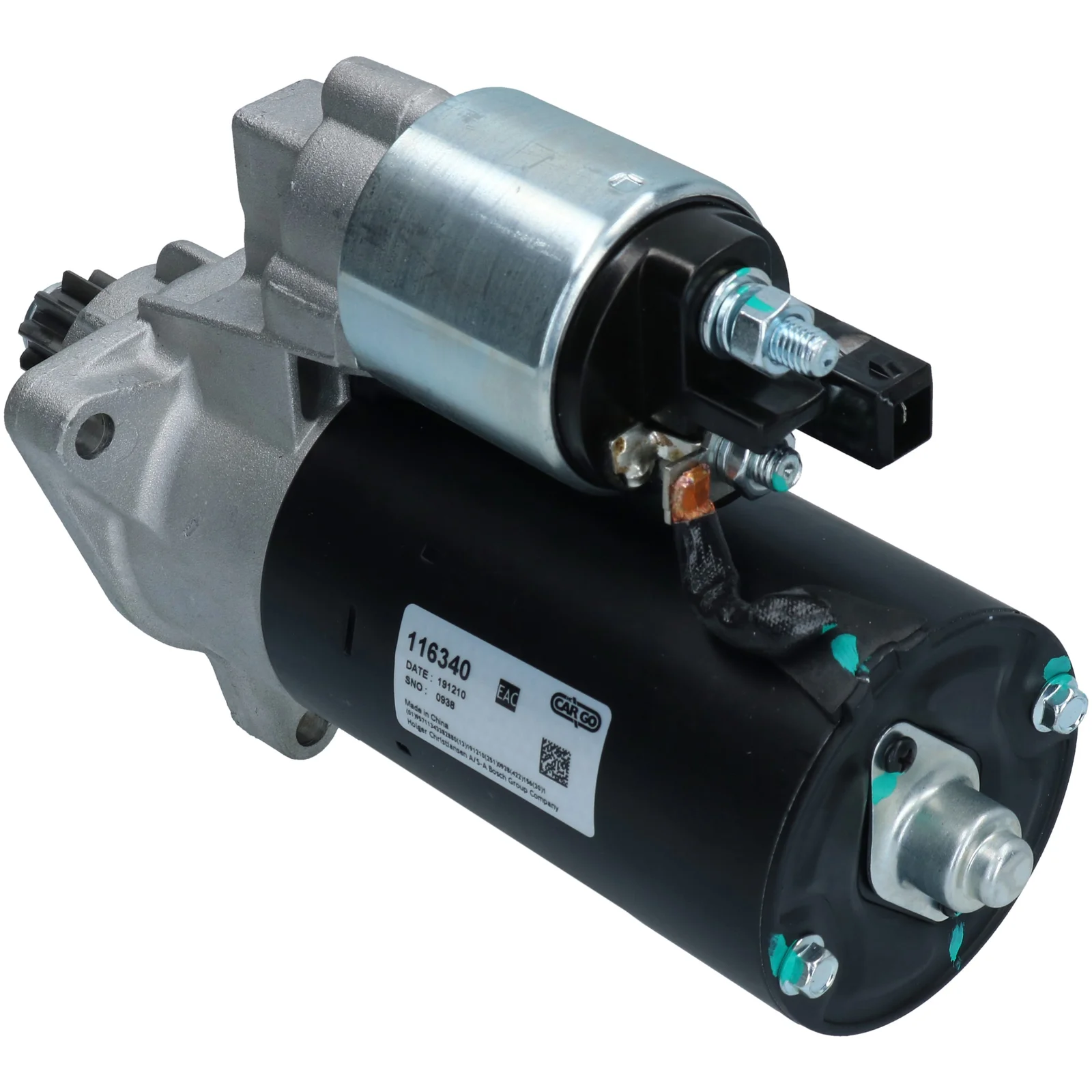

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CCW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 76.20
Drive dist.: 62.00
Mount. hole 3 mm: 9.00
Mount. hole 2 mm: 9.00
Mount. hole 1 mm: 9.00
Dist./back: 179.00
Dist./front: 66.00
No./teeth: 10
B+: M8
Position/B+: 60
Position/50: 20
Terminal 50: Plug
Gear type: GR
Dist. 2: 106.00
Dist. 3: 101.50
Dist. mm: 101.50
Rotation: CCW
Total length mm: 255.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 76.20
No./mount. holes 3 (0)
Position/50 20
Position/B+ 60
Dist. 2 106.00
Dist. 3 101.50
Rotation CCW
Dist./back 179.00
Dist./front 66.00
Drive dist. 62.00
Gear type GR
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 255.00 mm
Dist. 101.50 mm
Mount. hole 3 9.00 mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    F032116340, 02b911023e, 02B911023EX, 02B911023M, 02B911023MX, 1986S00811, 0001125016, 0001125017, 0001125046, 0001125047, 1516691R

  • Konkurrentreferens
    CST10286, DRS3823, LRS01564, S0212, 8EA737892-001, 25-3063, 311.070.102, 3112, 32564N, 101209, 104785, 460223, 8080205, 8212530, 11090032, 42021870, 0986021870

  • Normaliserat artikelnummer
    cst10286, drs3823, f032116340, lrs01564, s0212, 02b911023e, 02b911023ex, 02b911023m, 02b911023mx, 8ea737892001, 1986s00811, 3112, 32564n, 101209, 104785, 253063, 460223, 0001125016, 0001125017, 0001125046, 0001125047, 1516691r, 8080205, 8212530, 11090032, 42021870, 311070102, 0986021870

  • Passar modeller
    VW Model: California Model series: California T4 Camper Model type: VR6 Size of motor: 2.8 Brand of engine: AMV Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-05-2000 To date: 01-04-2001 Fuel: Petrol Approved: Yes
    VW Model: California Model series: California T4 Camper Type of engine: TDI Size of motor: 2.5 Brand of engine: AXG, AHY Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-07-1999 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHY Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AXG Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AXG Type description: 70XA Body: Van From date: 01-09-2000 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: V6 Size of motor: 2.8 Brand of engine: AMV Type description: 70XB,70XC,7DB,7DW Body: Bus From date: 01-04-2000 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 76.20
    Drive dist.: 62.00
    Mount. hole 3 mm: 9.00
    Mount. hole 2 mm: 9.00
    Mount. hole 1 mm: 9.00
    Dist./back: 179.00
    Dist./front: 66.00
    No./teeth: 10
    B+: M8
    Position/B+: 60
    Position/50: 20
    Terminal 50: Plug
    Gear type: GR
    Dist. 2: 106.00
    Dist. 3: 101.50
    Dist. mm: 101.50
    Rotation: CCW
    Total length mm: 255.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 76.20
    No./mount. holes 3 (0)
    Position/50 20
    Position/B+ 60
    Dist. 2 106.00
    Dist. 3 101.50
    Rotation CCW
    Dist./back 179.00
    Dist./front 66.00
    Drive dist. 62.00
    Gear type GR
    kW 2.0
    Terminal 50 Plug
    Voltage 12
    Total length 255.00 mm
    Dist. 101.50 mm
    Mount. hole 3 9.00 mm
    Mount. hole 2 9.00 mm
    Mount. hole 1 9.00 mm
  • Fordonsmatchning

    • OEM
      F032116340, 02b911023e, 02B911023EX, 02B911023M, 02B911023MX, 1986S00811, 0001125016, 0001125017, 0001125046, 0001125047, 1516691R

    • Konkurrentreferens
      CST10286, DRS3823, LRS01564, S0212, 8EA737892-001, 25-3063, 311.070.102, 3112, 32564N, 101209, 104785, 460223, 8080205, 8212530, 11090032, 42021870, 0986021870

    • Normaliserat artikelnummer
      cst10286, drs3823, f032116340, lrs01564, s0212, 02b911023e, 02b911023ex, 02b911023m, 02b911023mx, 8ea737892001, 1986s00811, 3112, 32564n, 101209, 104785, 253063, 460223, 0001125016, 0001125017, 0001125046, 0001125047, 1516691r, 8080205, 8212530, 11090032, 42021870, 311070102, 0986021870

    • Passar modeller
      VW Model: California Model series: California T4 Camper Model type: VR6 Size of motor: 2.8 Brand of engine: AMV Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-05-2000 To date: 01-04-2001 Fuel: Petrol Approved: Yes
      VW Model: California Model series: California T4 Camper Type of engine: TDI Size of motor: 2.5 Brand of engine: AXG, AHY Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-07-1999 To date: 01-04-2003 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AHY Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AXG Body: Bus From date: 01-05-1998 To date: 01-04-2003 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: AXG Type description: 70XA Body: Van From date: 01-09-2000 To date: 01-04-2003 Fuel: Diesel Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: V6 Size of motor: 2.8 Brand of engine: AMV Type description: 70XB,70XC,7DB,7DW Body: Bus From date: 01-04-2000 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
