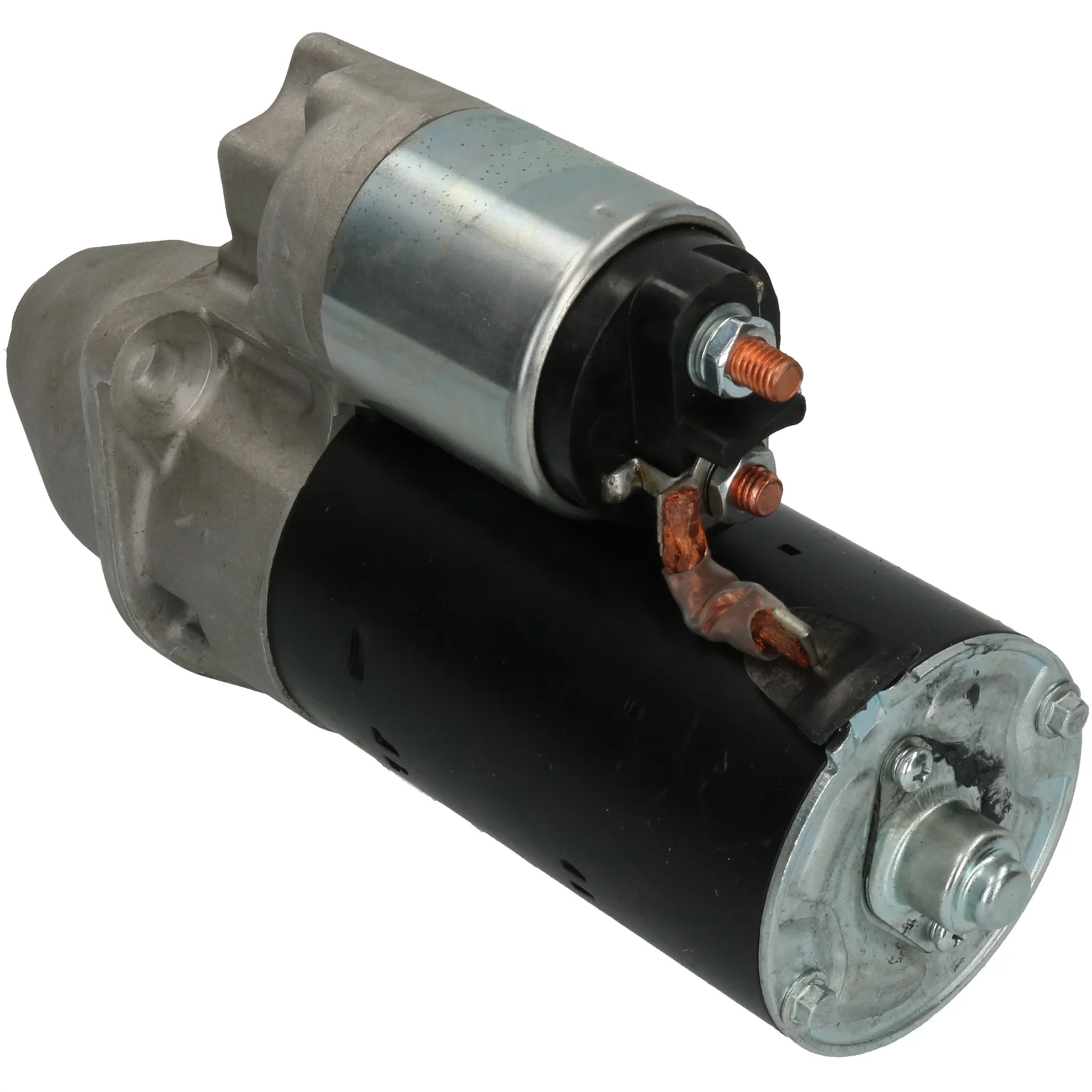

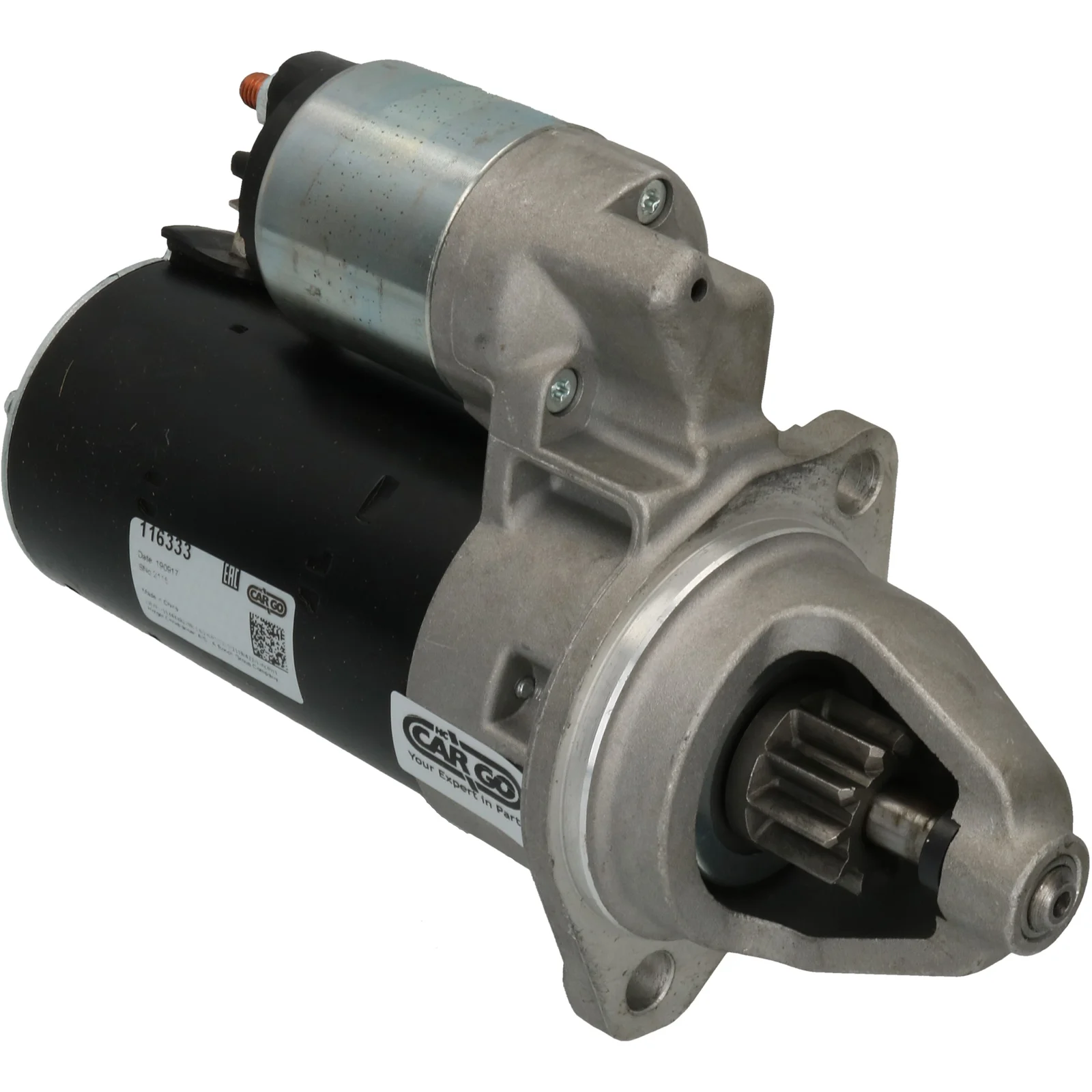

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116333

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.5, No./teeth: 10, Rotation: CW

Beskrivning

Hatz Startm. 12V-1.5kW, 10k 12V - 1.8kW, 10k Nyare modell G/R typ = 91-216-0923 För Yourex produkt order 91-216-1808

Voltage: 12
kW: 1.5
Mount. flange: 82.50
Drive dist.: 40.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 175.00
Dist./front: 78.00
No./teeth: 10
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. mm: 102.00
Rotation: CW
Total length mm: 265.00
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 15
Position/B+ 60
Rotation CW
Dist./back 175.00
Dist./front 78.00
Drive dist. 40.00
Gear type GR
kW 1.5
Terminal 50 6.30
Voltage 12
Total length 265.00 mm
Dist. 102.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116333, 0001 109 363, 0001 109 442, 0001 314 047, 0986 018 080, 1986S00753, 0001109363, 0001109442, 0001314047, 50353420, 50353421

  • Konkurrentreferens
    CST10314, DRS8080, LRS01434, S0788S, STR22100, 8EA015642-601, 25-2347, 680.006.102, 8018080, 11018080, 0986018080, 0986018087

  • Bilmärken
    Hatz

  • Normaliserat artikelnummer
    cst10314, drs8080, f032116333, lrs01434, s0788s, str22100, 8ea015642601, 1986s00753, 252347, 0001109363, 0001109442, 0001314047, 8018080, 11018080, 50353420, 50353421, 680006102, 0986018080, 0986018087

  • Passar modeller
    Hatz Model: Stationnares Model series: Stationnares Model type: 73 Size of motor: 0.7 Brand of engine: 1D80 From date: 01-04-1989 Fuel: Diesel Approved: Yes
    Hatz Model: Stationnares Model series: Stationnares Model type: 74 Size of motor: 0.5 Brand of engine: 1D60 From date: 01-04-1989 Fuel: Diesel Approved: Yes
    Hatz Series: 1 D 60 Engine volume: 0.5 Year: 04.89-
    Hatz Series: 1 D 80 Engine volume: 0.7 Year: 04.89-
  • Beskrivning
    Hatz Startm. 12V-1.5kW, 10k 12V - 1.8kW, 10k Nyare modell G/R typ = 91-216-0923 För Yourex produkt order 91-216-1808

    Voltage: 12
    kW: 1.5
    Mount. flange: 82.50
    Drive dist.: 40.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 175.00
    Dist./front: 78.00
    No./teeth: 10
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 102.00
    Rotation: CW
    Total length mm: 265.00
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 15
    Position/B+ 60
    Rotation CW
    Dist./back 175.00
    Dist./front 78.00
    Drive dist. 40.00
    Gear type GR
    kW 1.5
    Terminal 50 6.30
    Voltage 12
    Total length 265.00 mm
    Dist. 102.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032116333, 0001 109 363, 0001 109 442, 0001 314 047, 0986 018 080, 1986S00753, 0001109363, 0001109442, 0001314047, 50353420, 50353421

    • Konkurrentreferens
      CST10314, DRS8080, LRS01434, S0788S, STR22100, 8EA015642-601, 25-2347, 680.006.102, 8018080, 11018080, 0986018080, 0986018087

    • Bilmärken
      Hatz

    • Normaliserat artikelnummer
      cst10314, drs8080, f032116333, lrs01434, s0788s, str22100, 8ea015642601, 1986s00753, 252347, 0001109363, 0001109442, 0001314047, 8018080, 11018080, 50353420, 50353421, 680006102, 0986018080, 0986018087

    • Passar modeller
      Hatz Model: Stationnares Model series: Stationnares Model type: 73 Size of motor: 0.7 Brand of engine: 1D80 From date: 01-04-1989 Fuel: Diesel Approved: Yes
      Hatz Model: Stationnares Model series: Stationnares Model type: 74 Size of motor: 0.5 Brand of engine: 1D60 From date: 01-04-1989 Fuel: Diesel Approved: Yes
      Hatz Series: 1 D 60 Engine volume: 0.5 Year: 04.89-
      Hatz Series: 1 D 80 Engine volume: 0.7 Year: 04.89-
