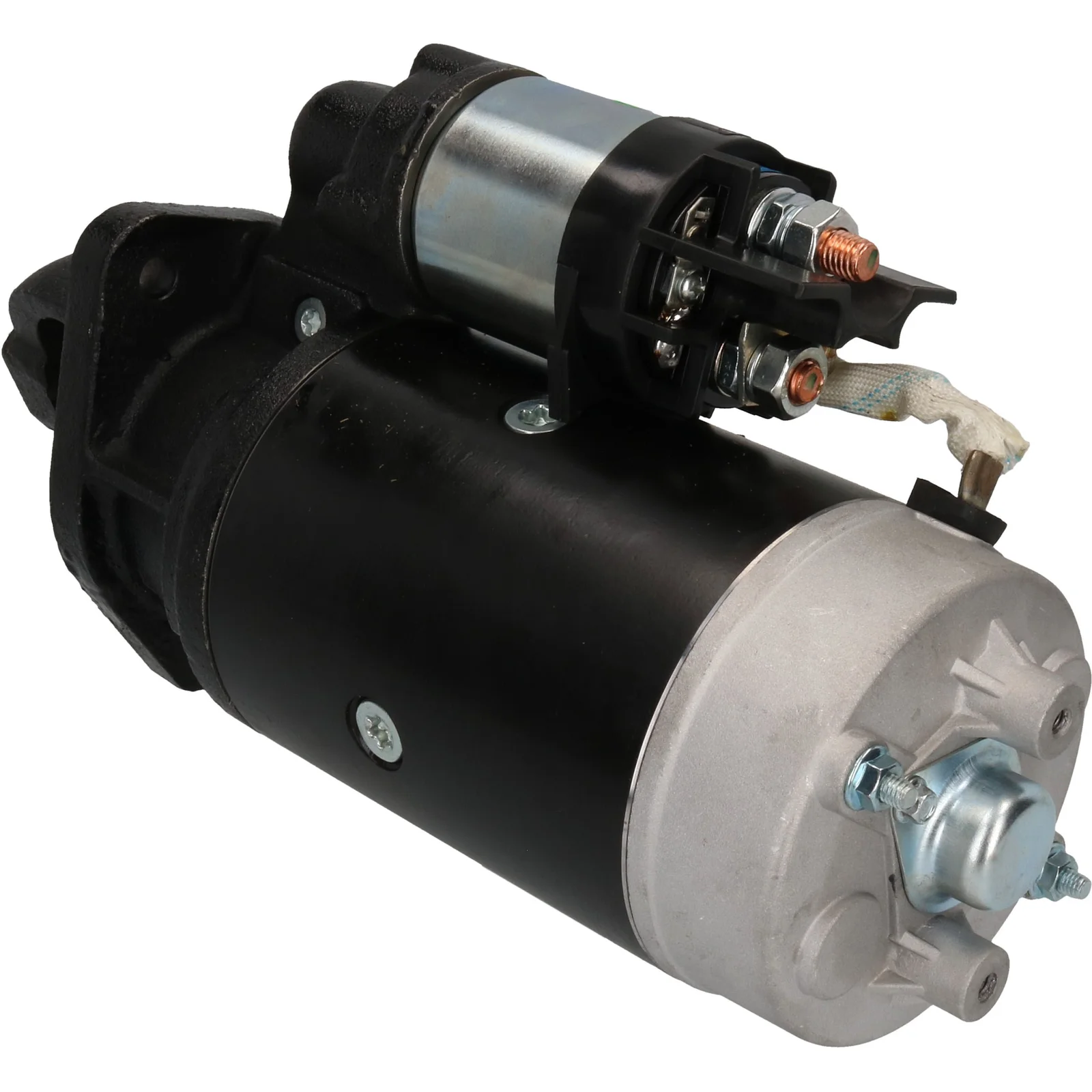

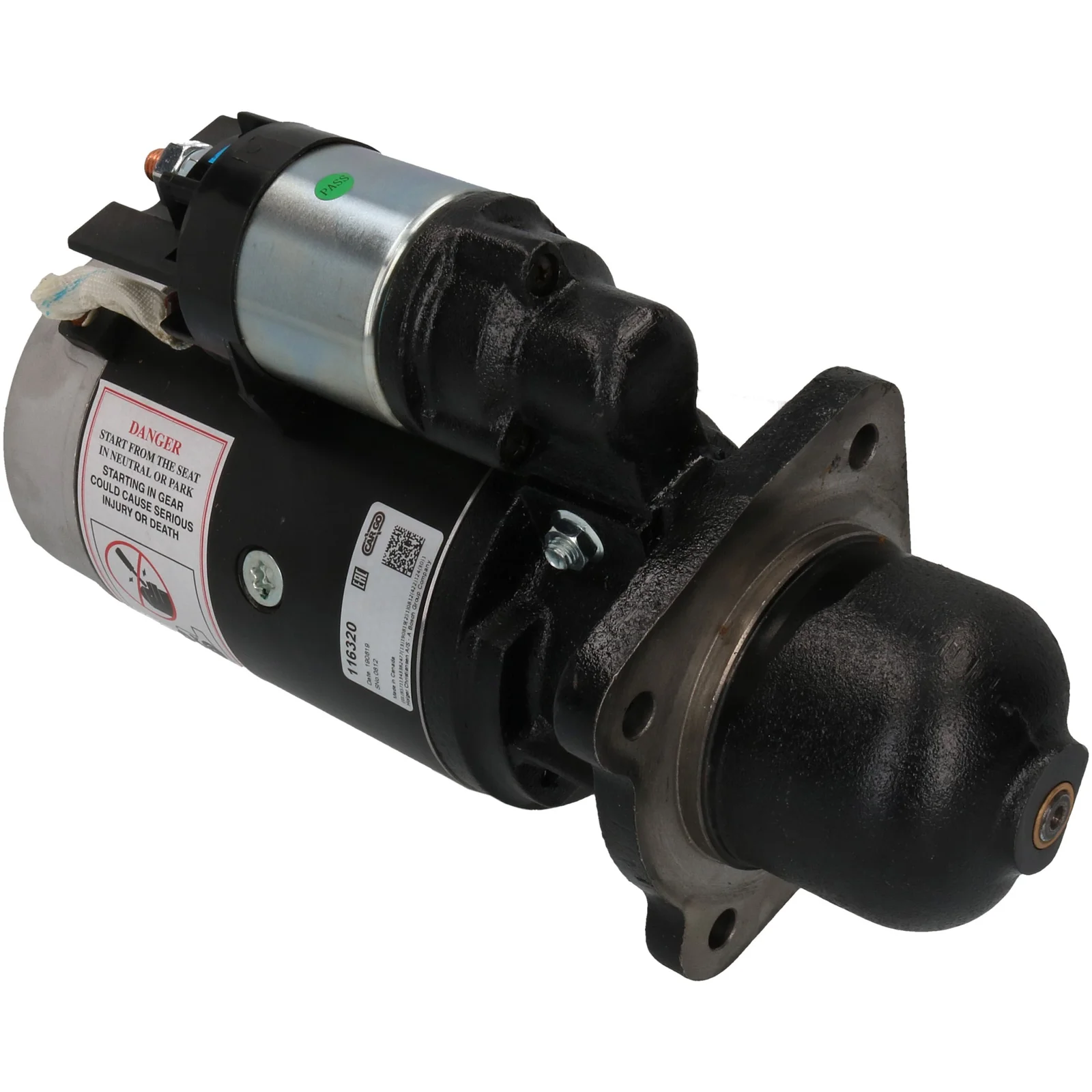

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116320

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.7, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.7
Mount. flange: 89.00
Drive dist.: 28.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 263.00
Dist./front: 75.00
No./teeth: 11
B+: M10
Position/B+: 60
Position/50: 45
Terminal 50: M4
Gear type: DD
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 338.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 45
Position/B+ 60
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 263.00
Dist./front 75.00
Drive dist. 28.00
Gear type DD
kW 2.7
Terminal 50 M4
Voltage 12
Total length 338.00 mm
Dist. 127.00 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    B4R12X3H7622, F032116320, 01170051, 1170051, 0001358033, 05710990, 05719897

  • Konkurrentreferens
    S4032, 25-0154, 33769

  • Normaliserat artikelnummer
    b4r12x3h7622, f032116320, s4032, 33769, 250154, 01170051, 1170051, 0001358033, 05710990, 05719897

  • Passar modeller
    Bomag Model: 200 Series Model series: BW 211 B Size of motor: 5.7 Brand of engine: F6L912 From date: 01-01-1983 Fuel: Diesel Approved: Yes
    Fendt Model: Farmer Model series: 204 P, 204 V Size of motor: 3.8 Brand of engine: F4L912 Body: Tractor From date: 01-01-1974 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Fendt Model: Farmer Model series: 204 PA, 204 VA Size of motor: 3.8 Brand of engine: F4L912 Body: Tractor From date: 01-01-1974 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Fendt Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.7
    Mount. flange: 89.00
    Drive dist.: 28.00
    Mount. hole 3 mm: 10.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 263.00
    Dist./front: 75.00
    No./teeth: 11
    B+: M10
    Position/B+: 60
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 338.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 45
    Position/B+ 60
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 263.00
    Dist./front 75.00
    Drive dist. 28.00
    Gear type DD
    kW 2.7
    Terminal 50 M4
    Voltage 12
    Total length 338.00 mm
    Dist. 127.00 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      B4R12X3H7622, F032116320, 01170051, 1170051, 0001358033, 05710990, 05719897

    • Konkurrentreferens
      S4032, 25-0154, 33769

    • Normaliserat artikelnummer
      b4r12x3h7622, f032116320, s4032, 33769, 250154, 01170051, 1170051, 0001358033, 05710990, 05719897

    • Passar modeller
      Bomag Model: 200 Series Model series: BW 211 B Size of motor: 5.7 Brand of engine: F6L912 From date: 01-01-1983 Fuel: Diesel Approved: Yes
      Fendt Model: Farmer Model series: 204 P, 204 V Size of motor: 3.8 Brand of engine: F4L912 Body: Tractor From date: 01-01-1974 To date: 01-12-1996 Fuel: Diesel Approved: Yes
      Fendt Model: Farmer Model series: 204 PA, 204 VA Size of motor: 3.8 Brand of engine: F4L912 Body: Tractor From date: 01-01-1974 To date: 01-12-1996 Fuel: Diesel Approved: Yes
      Fendt Model: Various Models Model series: Various Models Approved: Yes
