HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116307

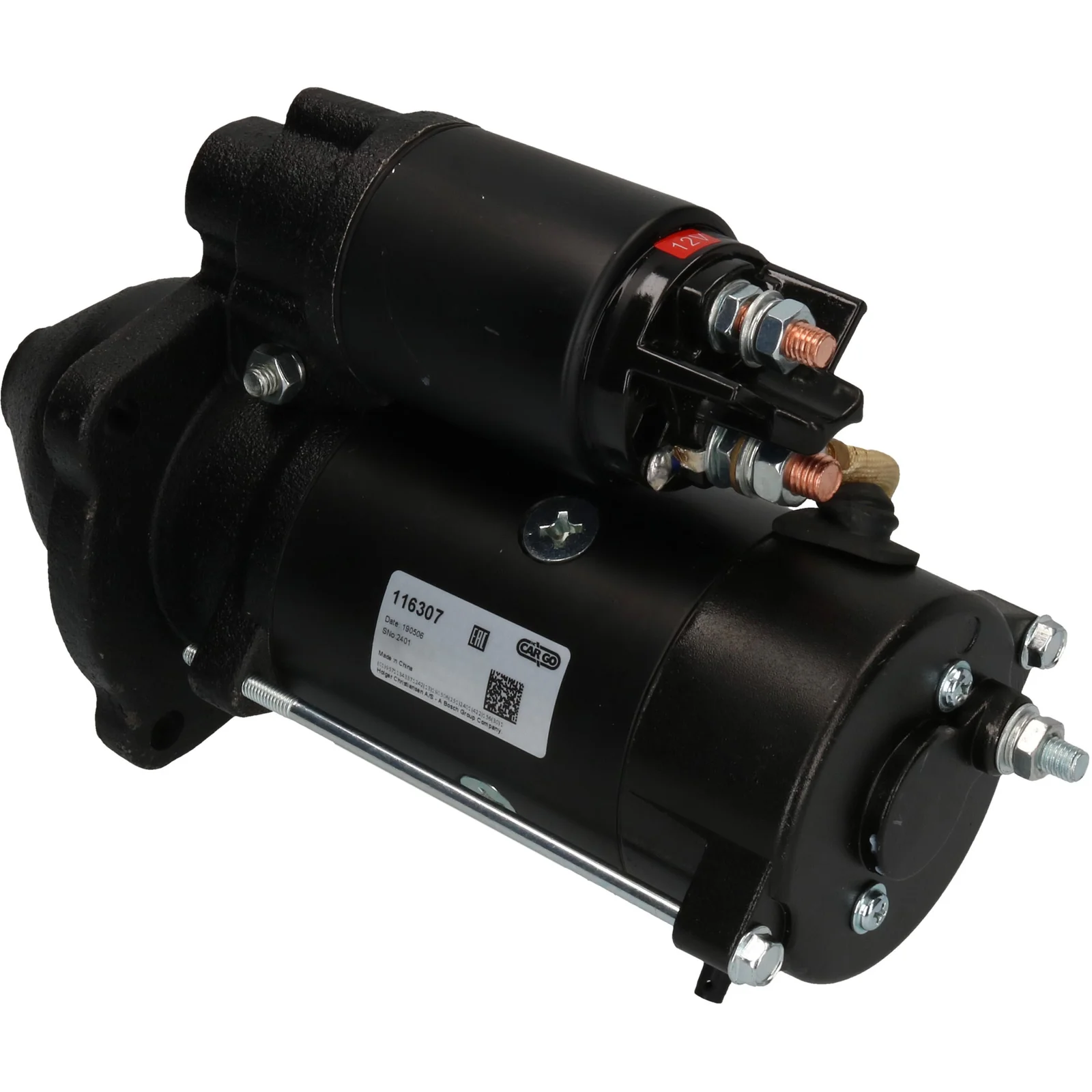

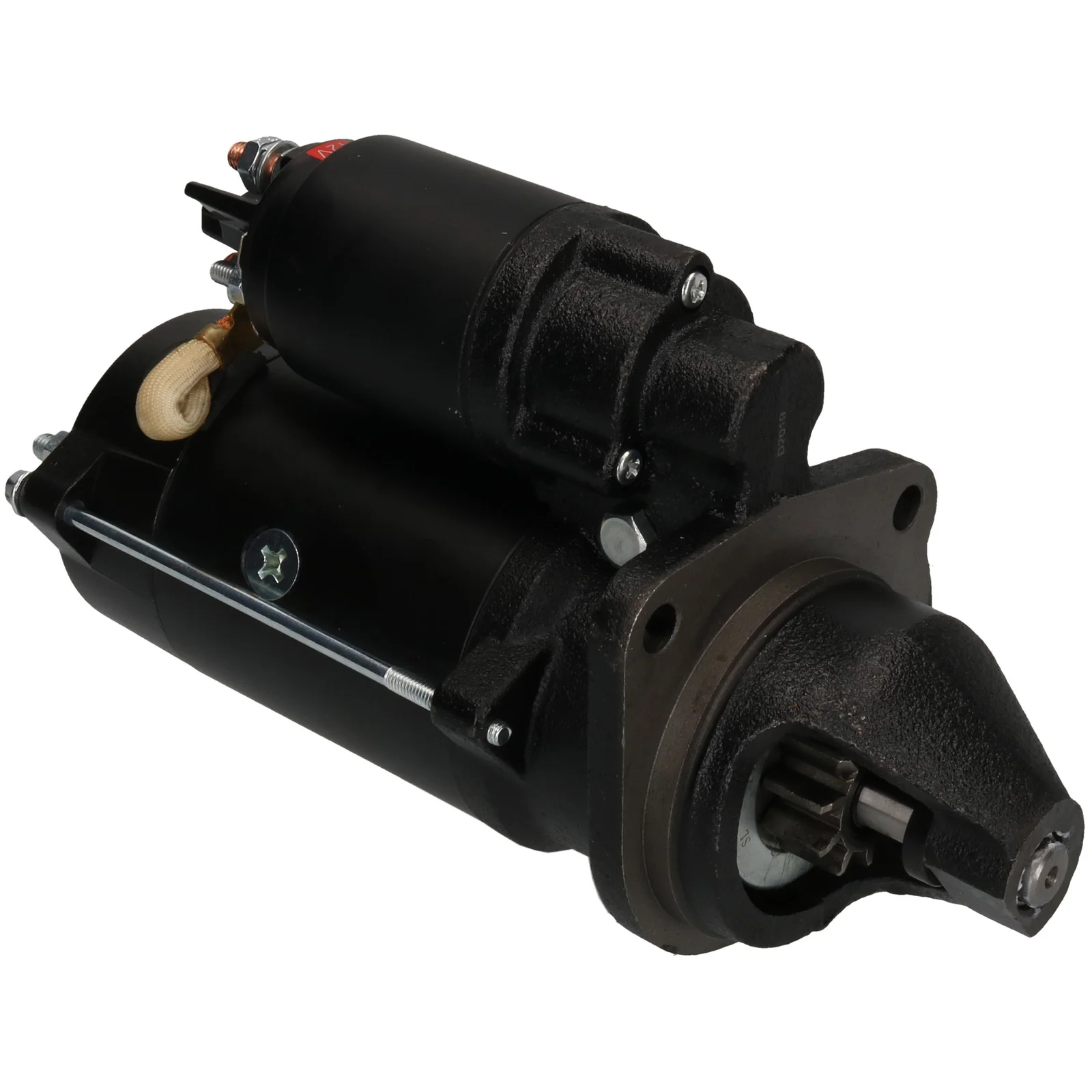

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.2, No./teeth: 10, Rotation: CW

Beskrivning

MF Startm. 12V-3.2kW,Iskra typ 12V - 3.2kW, 10k. Iskra G/R typ. A - 89mm, B - 29.5mm JD Bosch typ Model Störe & längre modell passar dem traktortyper som har utryme = 91-441-7069. För Yourex produkt order 91-355-1071

Voltage: 12
kW: 3.2
Mount. flange: 89.00
Drive dist.: 29.00
Mount. hole 3 mm: 10.80
Mount. hole 2 mm: 10.80
Mount. hole 1 mm: 10.80
Dist./back: 200.00
Dist./front: 76.00
No./teeth: 10
B+: M8
Thread length mm: 15.00
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Position/b-: 10
B-: M8
Total length mm: 299.00
Prod. info: BN
Remarks: Iskra version.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
B- M8
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 15
Position/b- 10
Prod. info BN
Dist. 2 127.00
Remarks Iskra version.
Dist. 3 90.00
Rotation CW
Dist./back 200.00
Dist./front 76.00
Drive dist. 29.00
Gear type GR
kW 3.2
Terminal 50 M6
Voltage 12
Total length 299.00 mm
Dist. 90.00 mm
Thread length 15.00 mm
Mount. hole 3 10.80 mm
Mount. hole 2 10.80 mm
Mount. hole 1 10.80 mm

  • OEM
    AZE4272, AZF 4542, AZF 4569, F032113489, F032116307, T400268, t410874, 11.131.228, 11.131.410, 11.131.606, 11.131.780, 11.131.946, 11.131.964, 11.132.035, 11.132.149, 225-3148, 1071, 1195, 2873 K404, 2873k621, 2873k632, 3823 621 M91, 11131 065, 11131 228, 116307, 388186A1, 388186A2, 388186A3, 860714, 958578, 1447773R1, 3575202, 3586847, 3667040M91, 3680133M91, 3784889M2, 3784890M1, 3786094M93, 3823621M91, 3823621M92, 3823621M93, 3823621M94, 3823621M95, 3823621M96, 5269854, 6306848M91, 11445780, 63280040

  • Konkurrentreferens
    CST21106, CST21107, CST21186, CST30161, DRS0066, DRS0279, IS1195, LRS02598, MS111, MS289, S9144, S9172(LETRIKA), S9417S, 25-3377, 25-4271, 650.505.103, 18941N, 18941R, 30529N, 33410N, 107091, 220814, 220814A

  • Bilmärken
    Caterpillar, JCB, Massey Ferguson, Perkins Engines, Terex Corporation

  • Normaliserat artikelnummer
    aze4272, azf4542, azf4569, cst21106, cst21107, cst21186, cst30161, drs0066, drs0279, f032113489, f032116307, is1195, lrs02598, ms111, ms289, s9144, s9172letrika, s9417s, t400268, t410874, 1071, 1195, 2873k404, 2873k621, 2873k632, 18941n, 18941r, 30529n, 33410n, 107091, 116307, 220814, 220814a, 253377, 254271, 388186a1, 388186a2, 388186a3, 860714, 958578, 1447773r1, 2253148, 3575202, 3586847, 3667040m91, 3680133m91, 3784889m2, 3784890m1, 3786094m93, 3823621m91, 3823621m92, 3823621m93, 3823621m94, 3823621m95, 3823621m96, 5269854, 6306848m91, 11131065, 11131228, 11131410, 11131606, 11131780, 11131946, 11131964, 11132035, 11132149, 11445780, 63280040, 650505103

  • Passar modeller
    Caterpillar Series: Engine Model: 3056E 12V
    JCB Model: 8 Model series: 8 Brand of engine: Perkins 6-354 From date: 01-01-1969 Fuel: Diesel Approved: Yes
    Massey Ferguson Series: Traktor Model: MF 6270
    Massey Ferguson Series: Traktor Model: MF 6290
    Massey Ferguson Series: Traktor Model: MF 8210
    Massey Ferguson Series: Traktor Model: MF 8220
    Perkins Engines Model: 1006-6 12V
    Perkins Engines Model: 1006-60
    Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Terex Corporation Series: Grävlastare Model: 980 Engine type: Perkins
    Terex Corporation Series: Hjullastare Model: TL 120 Engine type: Perkins
