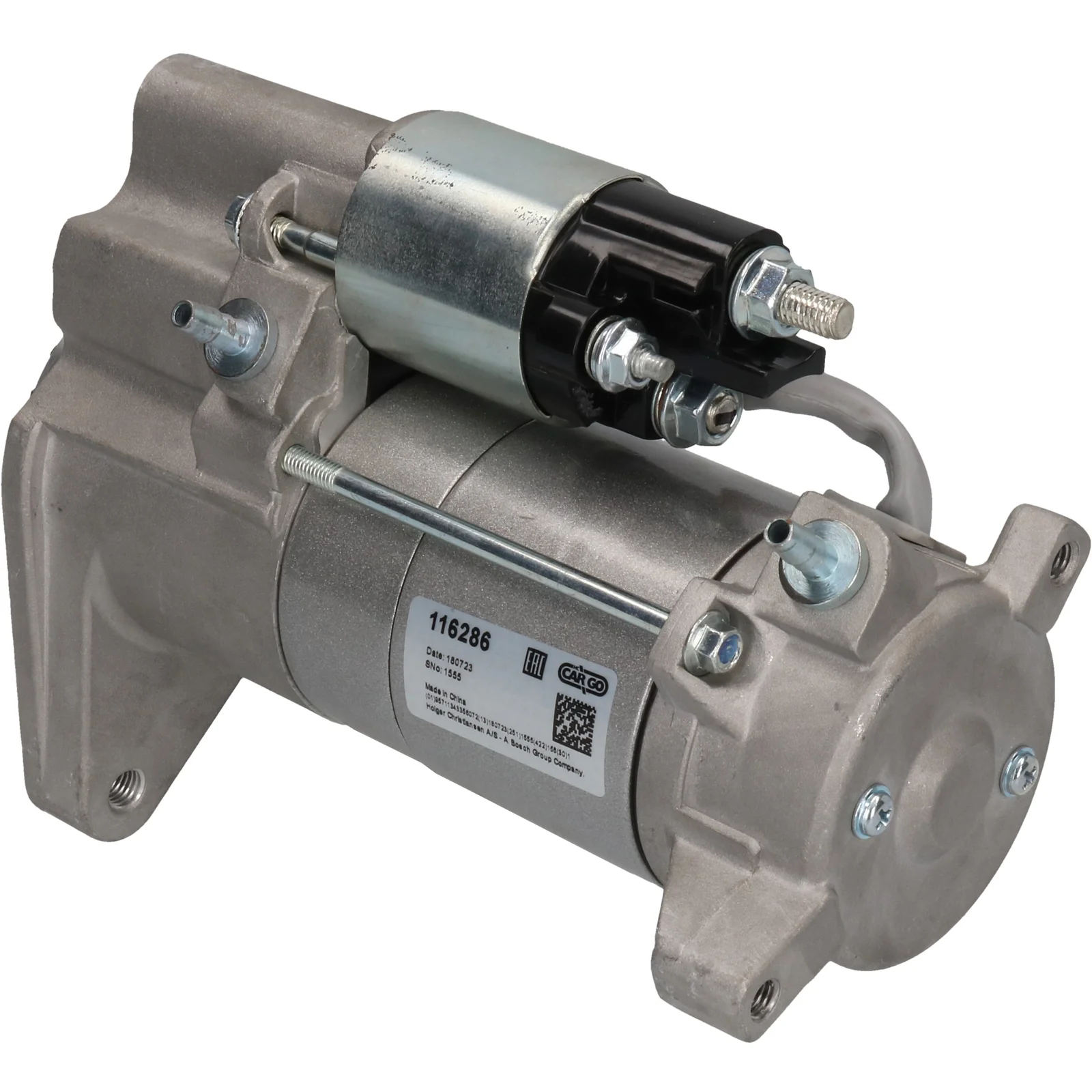

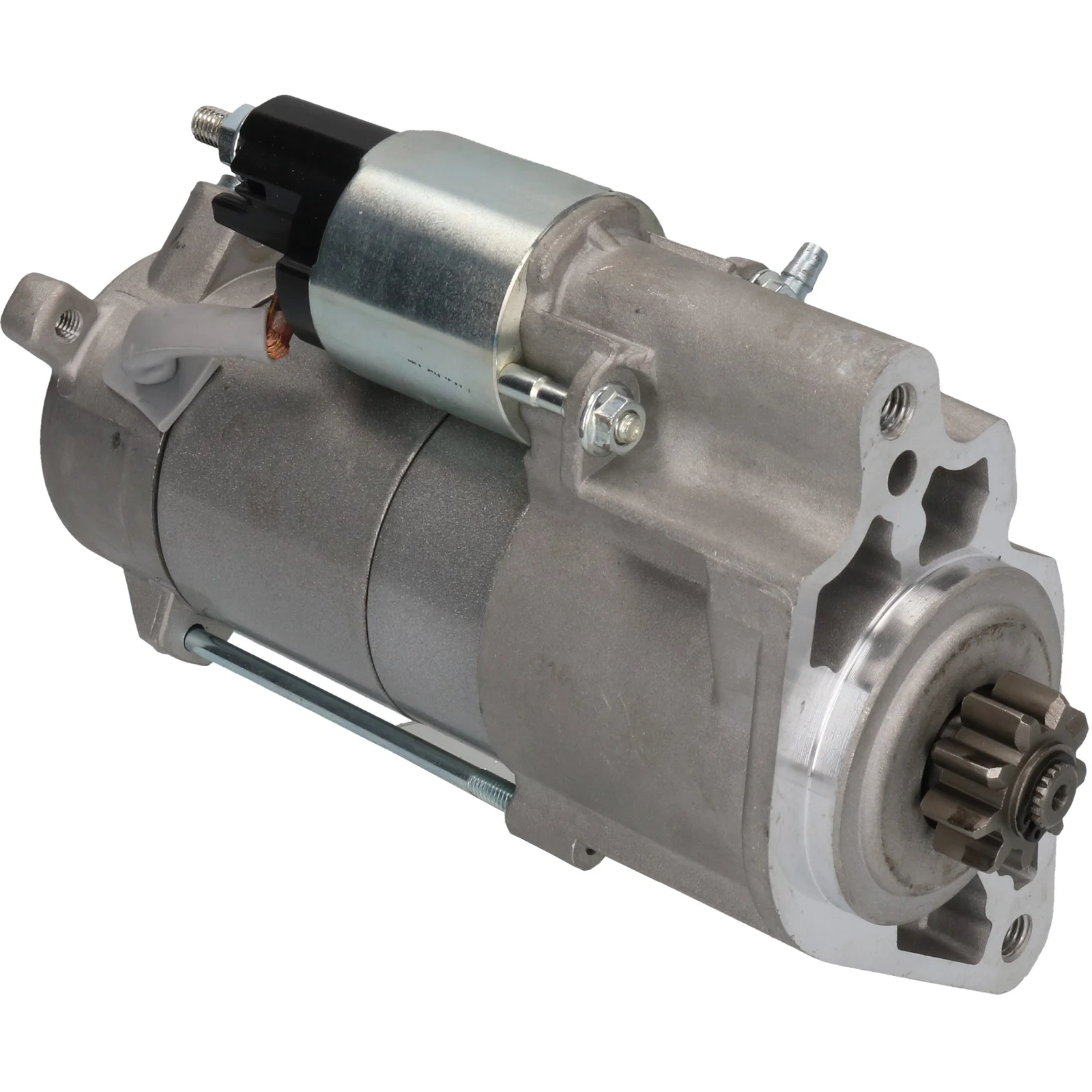

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116286

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 70.00
Drive dist.: 25.50
Dist./back: 212.00
Dist./front: 30.00
No./teeth: 9
B+: M8
Position/50: 45
Terminal 50: M6
Gear type: GR
Dist. mm: 146.50
Rotation: CW
Total length mm: 242.00
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 70.00
No./mount. holes 2 (2)
Position/50 45
Rotation CW
Dist./back 212.00
Dist./front 30.00
Drive dist. 25.50
Gear type GR
kW 2.0
Terminal 50 M6
Voltage 12
Total length 242.00 mm
Dist. 146.50 mm

  • OEM
    AH2211001AC, AH2211001AD, AH2211001AE, AH2211001AF, AH2211001AG, F032116286, LR013540, LR043924, LR052752, LR080299, 1986S00630, 428000-5950, 428000-5951, 428000-5952, 428000-5953

  • Konkurrentreferens
    CST40372, DRS0918, DSN976, LRS02616, 8EA011613-141, 25-4289, 314.051.092, 30431N, 30431R, 220765, 220765A, 254467, 11040884, 0986026550

  • Normaliserat artikelnummer
    ah2211001ac, ah2211001ad, ah2211001ae, ah2211001af, ah2211001ag, cst40372, drs0918, dsn976, f032116286, lr013540, lr043924, lr052752, lr080299, lrs02616, 8ea011613141, 1986s00630, 30431n, 30431r, 220765, 220765a, 254289, 254467, 11040884, 314051092, 0986026550, 4280005950, 4280005951, 4280005952, 4280005953

  • Passar modeller
    Land Rover Model: Discovery Model series: Discovery Model type: 4x4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: LR_ From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Model type: 4x4 Type of engine: TDI Size of motor: 3.0 Brand of engine: 306DT Type description: L319 Body: Van From date: 01-01-2011 To date: 01-12-2017 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Model type: Sdv6 4X4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: L462 Body: Box Body / Estate From date: 01-09-2018 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Model type: Td6 4X4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: L462 Body: Box Body / Estate From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: SDV6 4x4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT (TDV6) Type description: L405 Body: SUV Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 70.00
    Drive dist.: 25.50
    Dist./back: 212.00
    Dist./front: 30.00
    No./teeth: 9
    B+: M8
    Position/50: 45
    Terminal 50: M6
    Gear type: GR
    Dist. mm: 146.50
    Rotation: CW
    Total length mm: 242.00
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 70.00
    No./mount. holes 2 (2)
    Position/50 45
    Rotation CW
    Dist./back 212.00
    Dist./front 30.00
    Drive dist. 25.50
    Gear type GR
    kW 2.0
    Terminal 50 M6
    Voltage 12
    Total length 242.00 mm
    Dist. 146.50 mm
  • Fordonsmatchning

    • OEM
      AH2211001AC, AH2211001AD, AH2211001AE, AH2211001AF, AH2211001AG, F032116286, LR013540, LR043924, LR052752, LR080299, 1986S00630, 428000-5950, 428000-5951, 428000-5952, 428000-5953

    • Konkurrentreferens
      CST40372, DRS0918, DSN976, LRS02616, 8EA011613-141, 25-4289, 314.051.092, 30431N, 30431R, 220765, 220765A, 254467, 11040884, 0986026550

    • Normaliserat artikelnummer
      ah2211001ac, ah2211001ad, ah2211001ae, ah2211001af, ah2211001ag, cst40372, drs0918, dsn976, f032116286, lr013540, lr043924, lr052752, lr080299, lrs02616, 8ea011613141, 1986s00630, 30431n, 30431r, 220765, 220765a, 254289, 254467, 11040884, 314051092, 0986026550, 4280005950, 4280005951, 4280005952, 4280005953

    • Passar modeller
      Land Rover Model: Discovery Model series: Discovery Model type: 4x4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: LR_ From date: 01-09-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Model type: 4x4 Type of engine: TDI Size of motor: 3.0 Brand of engine: 306DT Type description: L319 Body: Van From date: 01-01-2011 To date: 01-12-2017 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Model type: Sdv6 4X4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: L462 Body: Box Body / Estate From date: 01-09-2018 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Model type: Td6 4X4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT Type description: L462 Body: Box Body / Estate From date: 01-09-2016 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Model type: SDV6 4x4 Type of engine: Diesel Size of motor: 3.0 Brand of engine: 306DT (TDV6) Type description: L405 Body: SUV Fuel: Diesel Approved: Yes
