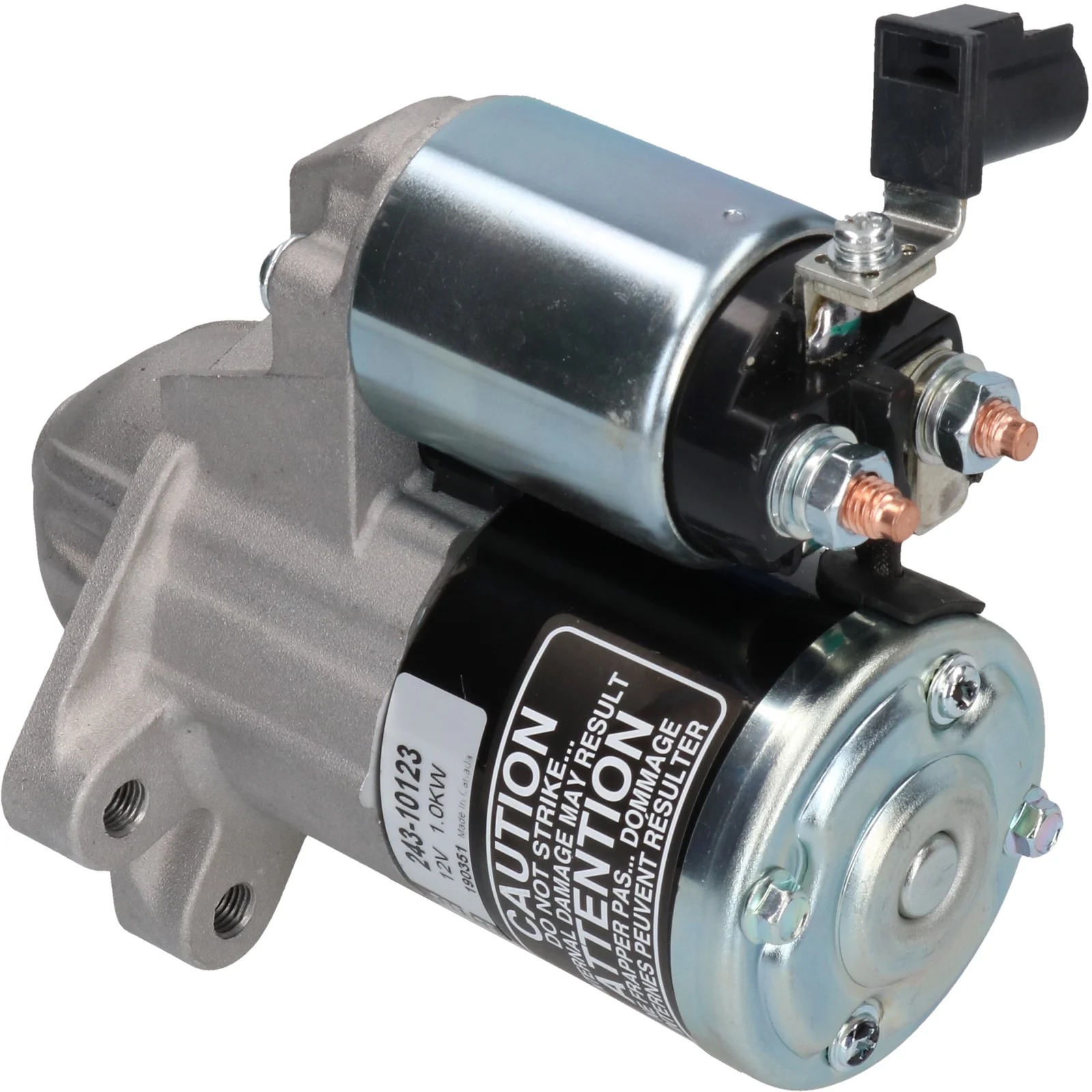

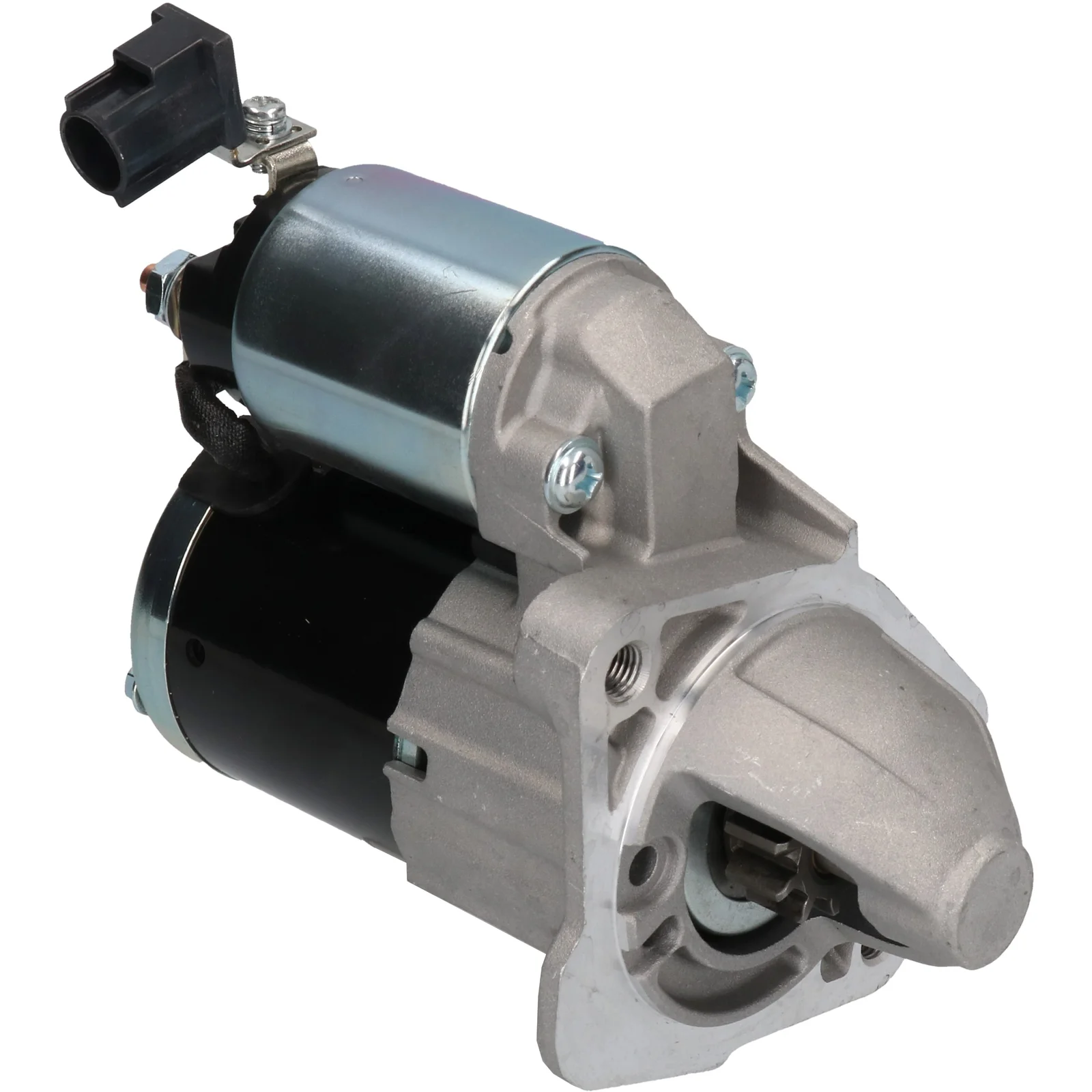

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116275

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.0
Mount. flange: 74.00
Drive dist.: 15.00
Mount. hole 3 mm: M10-1.25
Dist./back: 125.00
Dist./front: 48.00
No./teeth: 10
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: GR
Dist. 2: 106.00
Dist. 3: 99.50
Dist. mm: 36.50
Rotation: CW
Total length mm: 173.00
No./mount. holes: 3 (3)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 74.00
No./mount. holes 3 (3)
Position/50 60
Dist. 2 106.00
Dist. 3 99.50
Rotation CW
Dist./back 125.00
Dist./front 48.00
Drive dist. 15.00
Gear type GR
kW 1.0
Terminal 50 6.30
Voltage 12
Total length 173.00 mm
Dist. 36.50 mm
Mount. hole 3 M10-1.25 mm

  • OEM
    F032116275, M000T33971, M0T33971, ZYF2-18-400

  • Konkurrentreferens
    DRS0483N, 19226N

  • Normaliserat artikelnummer
    drs0483n, f032116275, m000t33971, m0t33971, zyf218400, 19226n

  • Passar modeller
    Changan Ford Mazda Model: Mazda Model series: Mazda Size of motor: 1.5 Brand of engine: ZY-VE Body: Hatchback From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: (DE3FS) Size of motor: 1.3 Brand of engine: ZJ-VE Type description: DE_, DH_ Body: Hatchback Fuel: Petrol Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: (DE3FS) Size of motor: 1.3 Brand of engine: ZJ-VEM Type description: DE_, DH_ Body: Hatchback Fuel: Petrol Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: BiFuel Size of motor: 1.3 Brand of engine: ZJ46 Type description: DE Body: Hatchback From date: 01-05-2011 To date: 01-11-2014 Fuel: Electric/Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: BiFuel Type of engine: VTi Size of motor: 1.3 Brand of engine: ZJ46 Type description: DE Body: Hatchback From date: 01-05-2011 To date: 01-11-2014 Fuel: Electric/Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: MZR Size of motor: 1.5 Brand of engine: ZY05 Type description: DE Body: Hatchback From date: 01-06-2011 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Model type: MZR Size of motor: 1.5 Brand of engine: ZY66 Type description: DE Body: Hatchback From date: 01-06-2011 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Size of motor: 1.3 Brand of engine: ZJ-VE Type description: DE Body: Hatchback From date: 01-10-2007 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Size of motor: 1.5 Brand of engine: ZY-DE Type description: DE Body: Hatchback From date: 01-07-2007 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Size of motor: 1.5 Brand of engine: ZY-VE Type description: DE Body: Hatchback From date: 01-07-2007 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mazda Model: 2 Model series: 2 Type of engine: i Size of motor: 1.5 Brand of engine: ZY-DE Type description: DE From date: 01-05-2010 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
