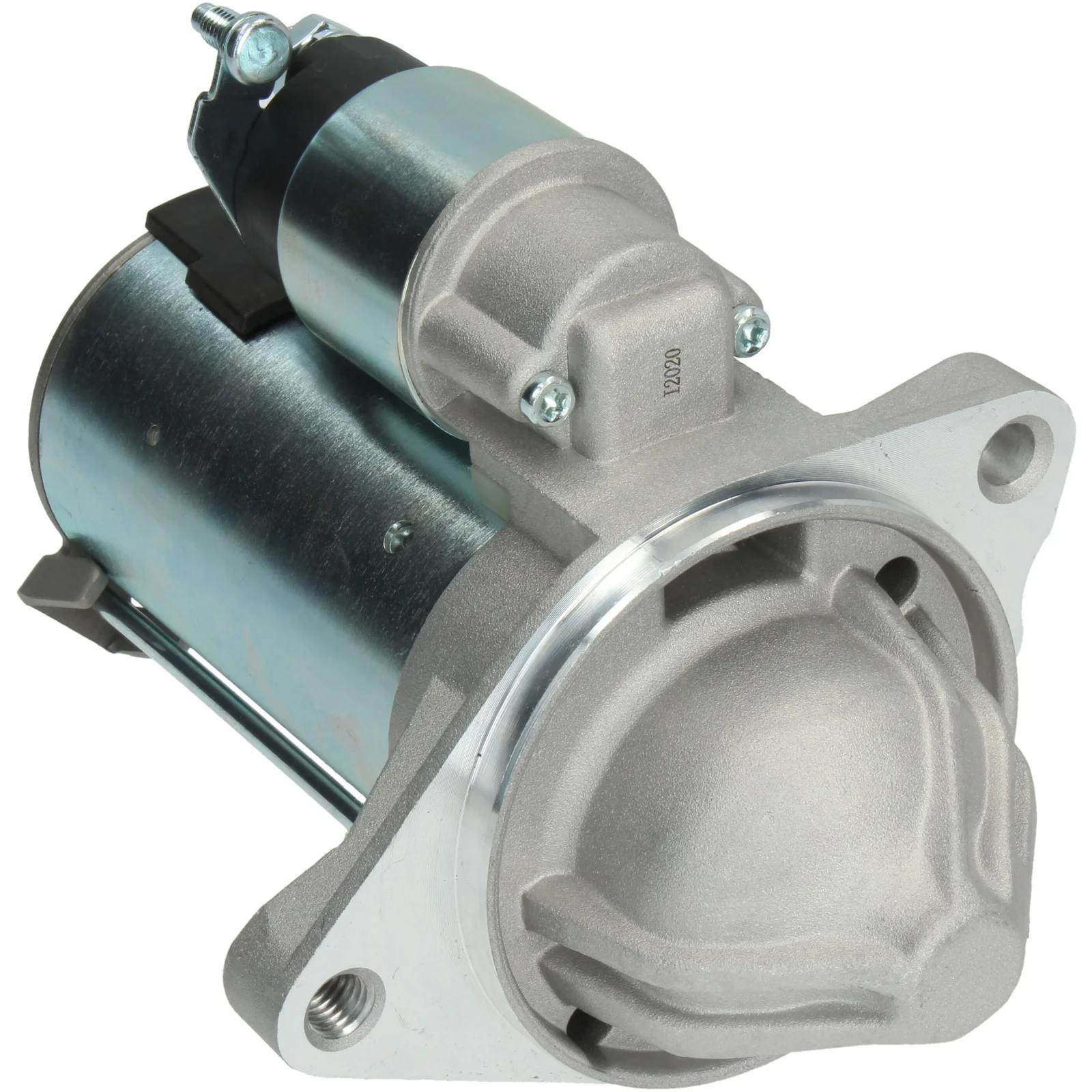

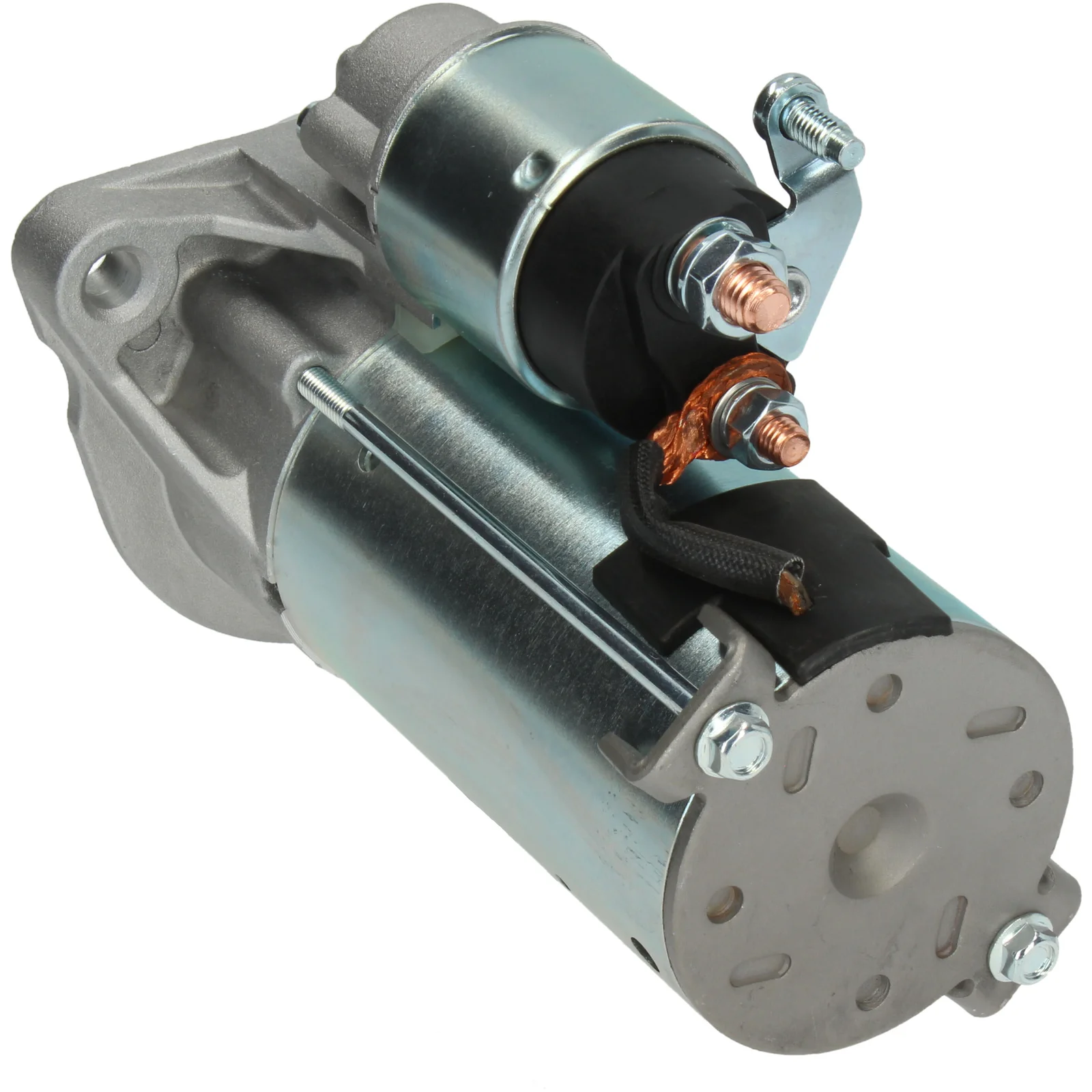

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116266

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 8, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.2
Mount. flange: 86.00
Drive dist.: 20.00
Mount. hole 1 mm: 9.00
Dist./back: 146.00
Dist./front: 49.00
No./teeth: 8
B+: M8
Position/B+: 57
Position/50: 6
Terminal 50: M6
Gear type: GR
Dist. mm: 115.50
Rotation: CW
Total length mm: 195.00
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 86.00
No./mount. holes 2 (1)
Position/50 6
Position/B+ 57
Rotation CW
Dist./back 146.00
Dist./front 49.00
Drive dist. 20.00
Gear type GR
kW 1.2
Terminal 50 M6
Voltage 12
Total length 195.00 mm
Dist. 115.50 mm
Mount. hole 1 9.00 mm

  • OEM
    CV6T11000AA, CV6T11000AB, E4B511000AA, F032116266, LS12E401, 1986S01123, 1776538

  • Konkurrentreferens
    CST15290, DRS0952, S9402S, 8EA011612-631, 25-4446, 319.092.082, 10971R, 220732, 220732A, 438301, 11090315, 0986028060

  • Normaliserat artikelnummer
    cst15290, cv6t11000aa, cv6t11000ab, drs0952, e4b511000aa, f032116266, ls12e401, s9402s, 8ea011612631, 1986s01123, 10971r, 220732, 220732a, 254446, 438301, 1776538, 11090315, 319092082, 0986028060

  • Passar modeller
    Ford Model: B-Max Model series: B-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: M1JA Type description: JK Body: Van From date: 01-08-2012 Fuel: Petrol Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH Body: Estate From date: 01-10-2017 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH Body: Hatchback From date: 01-10-2017 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH From date: 01-10-2017 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 1.2
    Mount. flange: 86.00
    Drive dist.: 20.00
    Mount. hole 1 mm: 9.00
    Dist./back: 146.00
    Dist./front: 49.00
    No./teeth: 8
    B+: M8
    Position/B+: 57
    Position/50: 6
    Terminal 50: M6
    Gear type: GR
    Dist. mm: 115.50
    Rotation: CW
    Total length mm: 195.00
    No./mount. holes: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 86.00
    No./mount. holes 2 (1)
    Position/50 6
    Position/B+ 57
    Rotation CW
    Dist./back 146.00
    Dist./front 49.00
    Drive dist. 20.00
    Gear type GR
    kW 1.2
    Terminal 50 M6
    Voltage 12
    Total length 195.00 mm
    Dist. 115.50 mm
    Mount. hole 1 9.00 mm
  • Fordonsmatchning

    • OEM
      CV6T11000AA, CV6T11000AB, E4B511000AA, F032116266, LS12E401, 1986S01123, 1776538

    • Konkurrentreferens
      CST15290, DRS0952, S9402S, 8EA011612-631, 25-4446, 319.092.082, 10971R, 220732, 220732A, 438301, 11090315, 0986028060

    • Normaliserat artikelnummer
      cst15290, cv6t11000aa, cv6t11000ab, drs0952, e4b511000aa, f032116266, ls12e401, s9402s, 8ea011612631, 1986s01123, 10971r, 220732, 220732a, 254446, 438301, 1776538, 11090315, 319092082, 0986028060

    • Passar modeller
      Ford Model: B-Max Model series: B-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: M1JA Type description: JK Body: Van From date: 01-08-2012 Fuel: Petrol Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH Body: Estate From date: 01-10-2017 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH Body: Hatchback From date: 01-10-2017 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH From date: 01-10-2017 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      1 / 2
