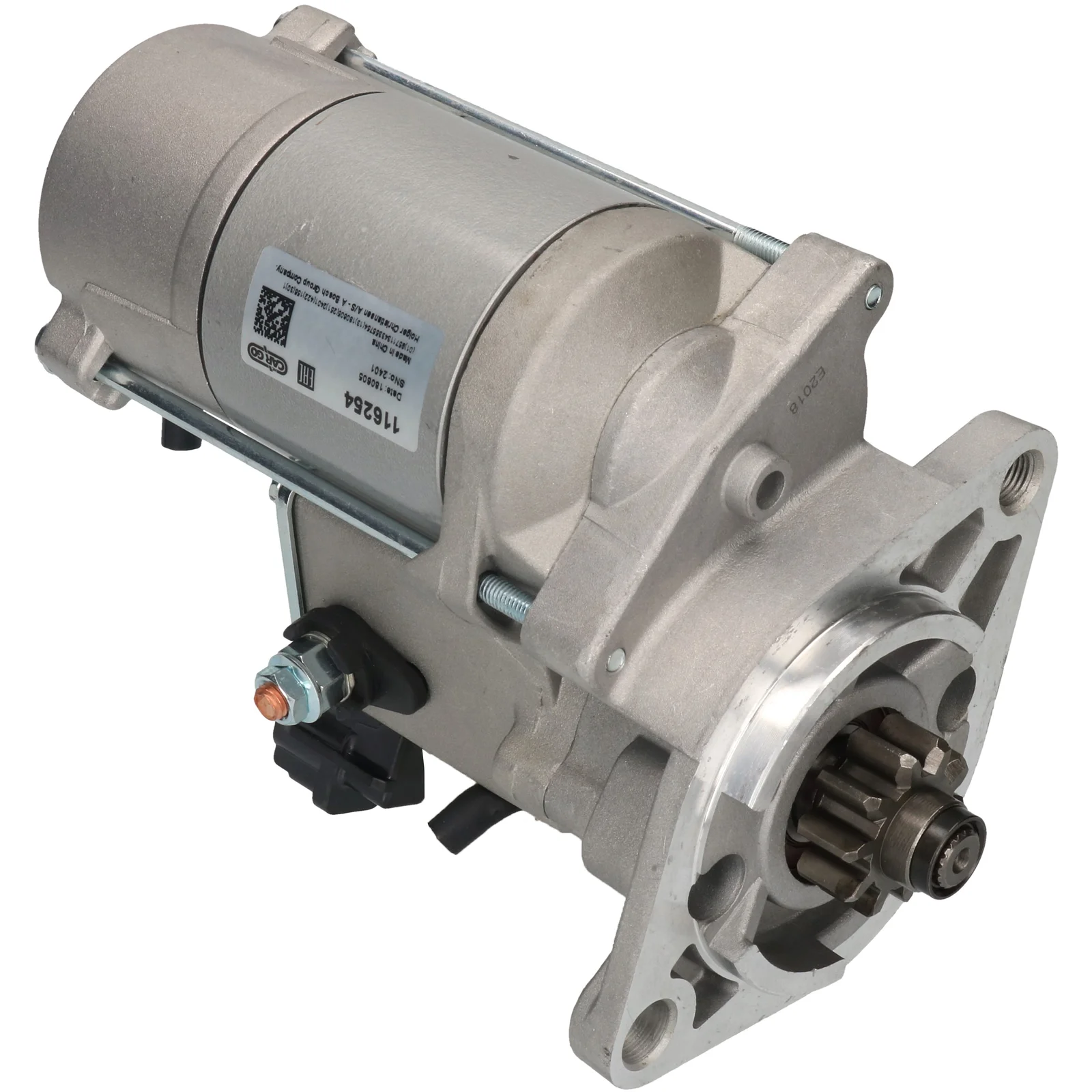

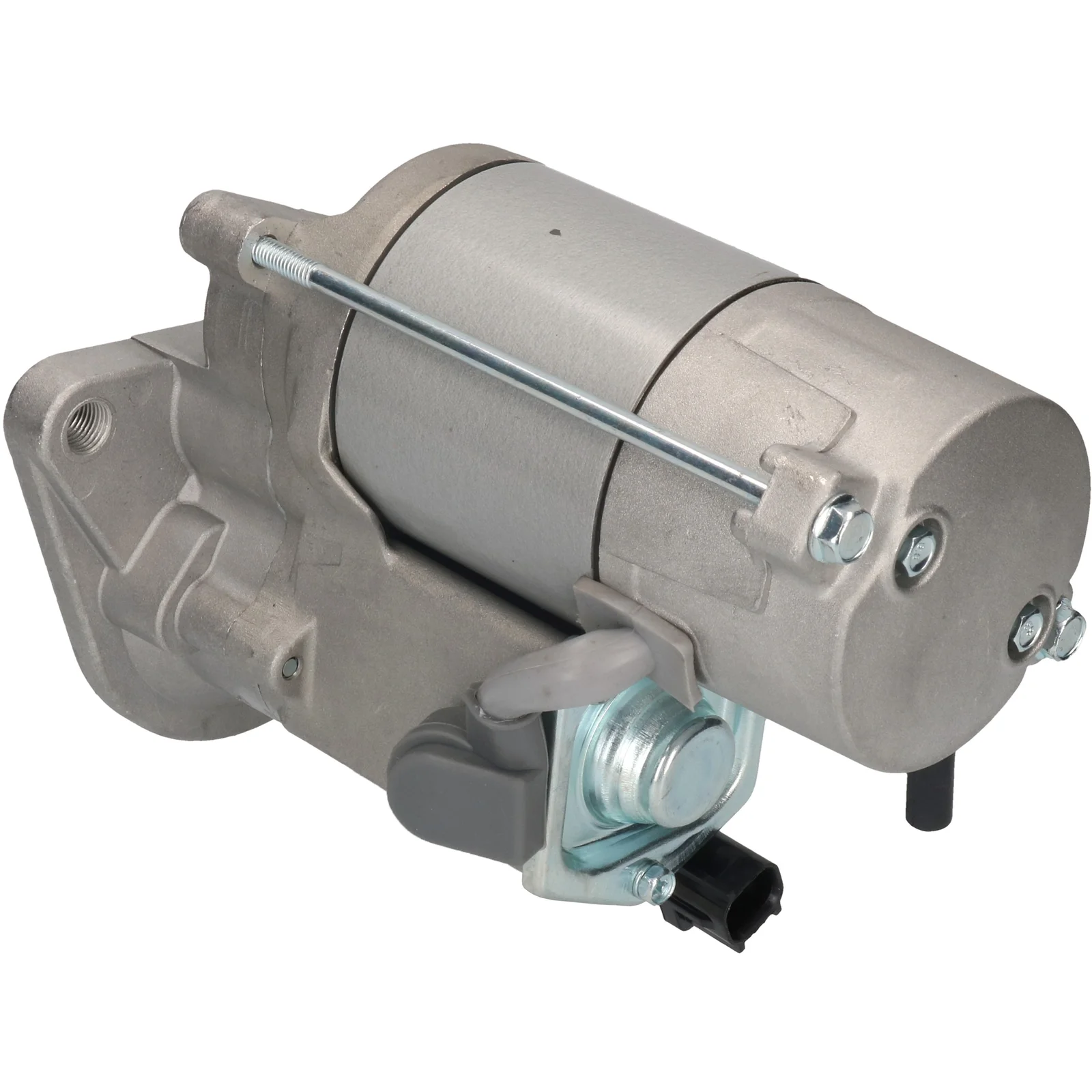

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116254

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 82.50
Drive dist.: 18.00
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: M12-1.25
Dist./back: 130.00
Dist./front: 30.00
No./teeth: 10
B+: M8
Position/50: 25
Terminal 50: Plug
Gear type: GR
Dist. mm: 129.50
Rotation: CW
Total length mm: 220.00
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 82.50
No./mount. holes 2 (1)
Position/50 25
Rotation CW
Dist./back 130.00
Dist./front 30.00
Drive dist. 18.00
Gear type GR
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 220.00 mm
Dist. 129.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 M12-1.25 mm

  • OEM
    F032116254, 28100-30040, 428000-0250

  • Konkurrentreferens
    DSN1001, F042200202, S6060, 220361, 220361A, 458776, 11040633

  • Normaliserat artikelnummer
    dsn1001, f032116254, f042200202, s6060, 220361, 220361a, 458776, 11040633, 2810030040, 4280000250

  • Passar modeller
    Toyota Model: Dyna Model series: Dyna Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: KD_, LY_ Body: Platform / Chassis From date: 01-07-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Bus Model type: D-4D (KDH200) Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Bus Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: H200 Body: Bus From date: 01-09-2006 To date: 01-06-2014 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: H200 Body: Van From date: 01-09-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: H20_ Body: Bus From date: 01-09-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: H20_ Body: Van From date: 01-06-2004 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4WD Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-11-2001 To date: 01-07-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4WD Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: TGN1_, GGN2_, LAN_, GGN1_, KUN Body: Pick Up From date: 01-11-2004 To date: 01-12-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-11-2001 To date: 01-07-2005 Fuel: Diesel Approved: Yes
