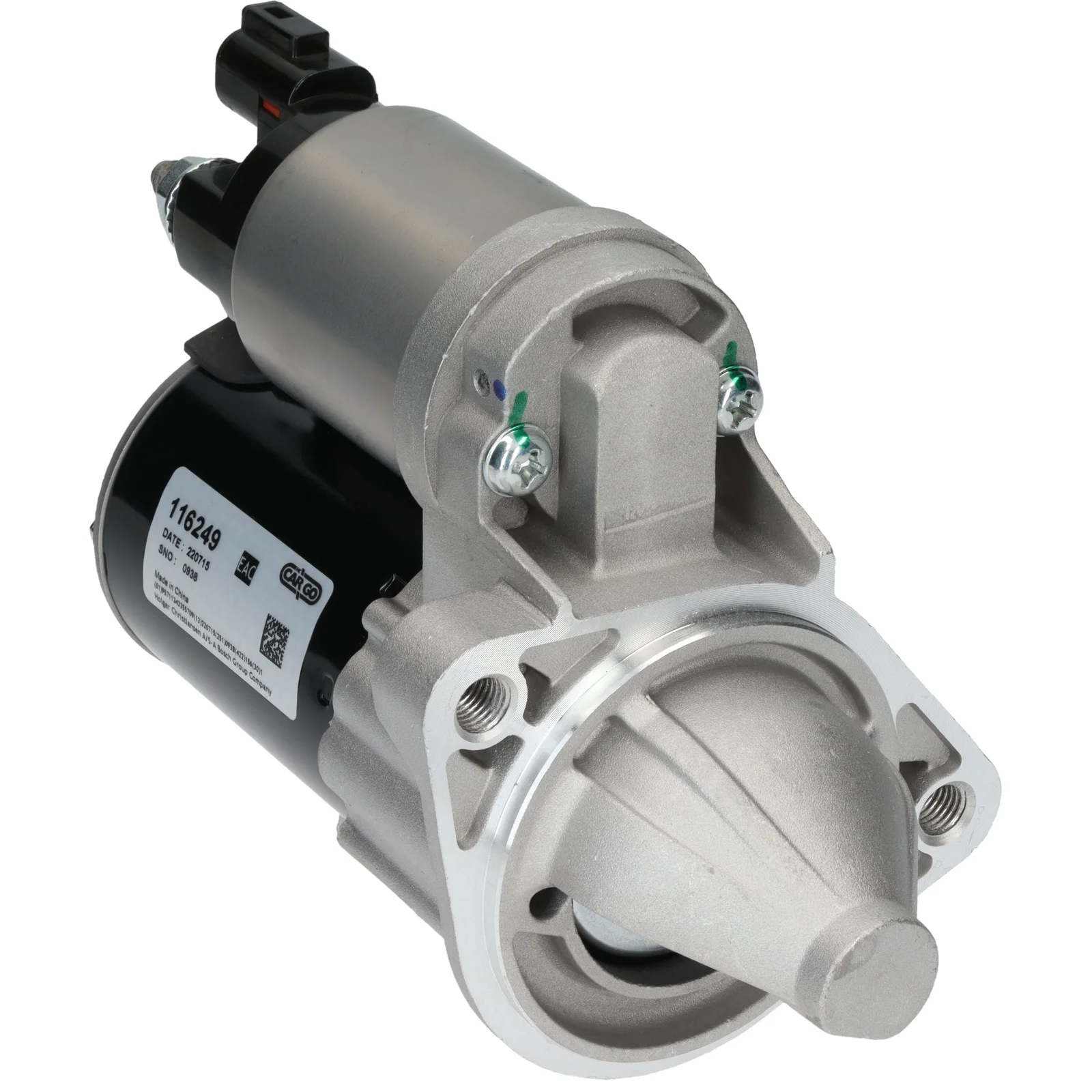

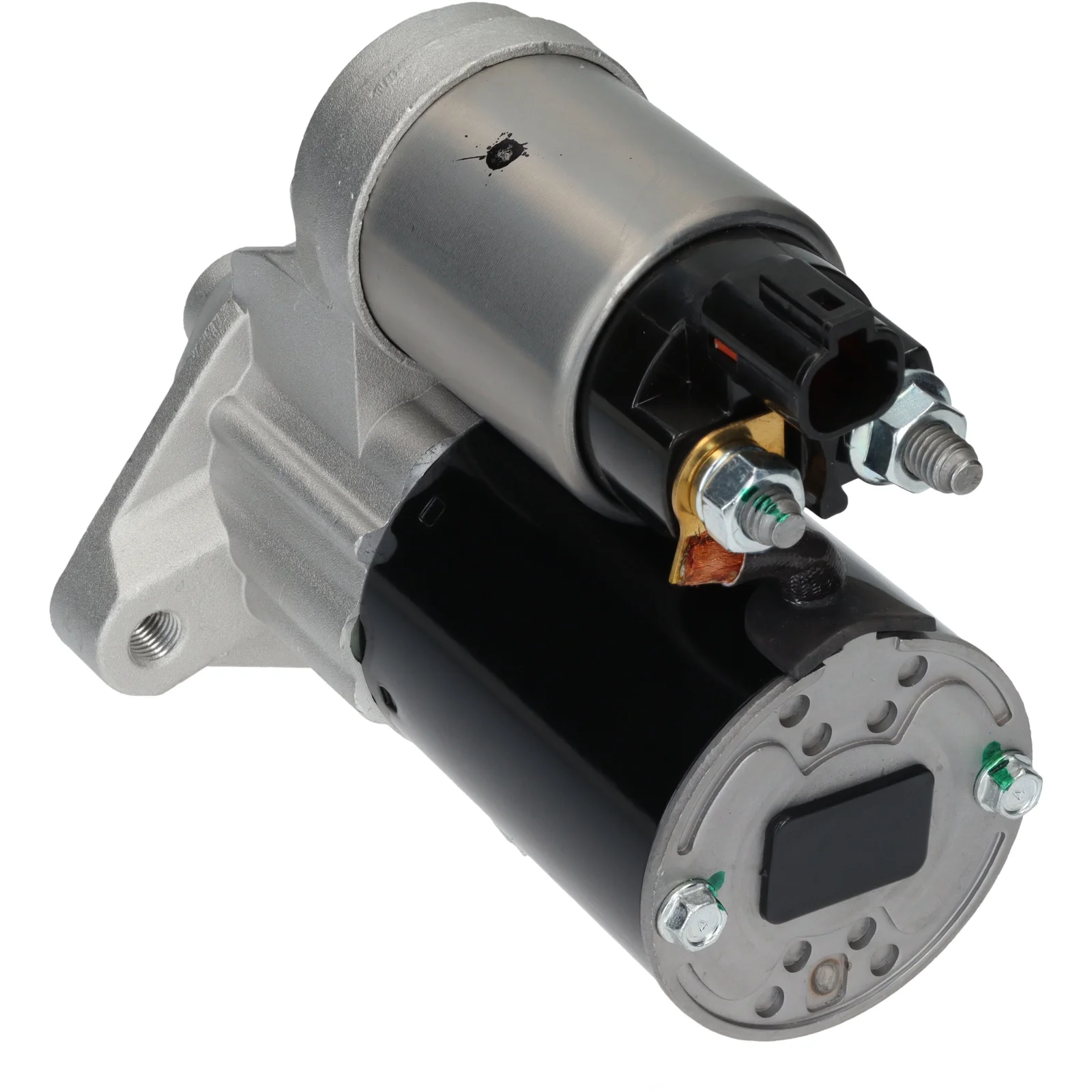

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116249

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.8, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 0.8
Mount. flange: 75.00
Drive dist.: 14.00
Mount. hole 2 mm: M10-1.25
Mount. hole 1 mm: M10-1.25
Dist./back: 134.50
Dist./front: 47.00
No./teeth: 10
B+: M8
Position/B+: 15
Position/50: 60
Terminal 50: 6.30
Gear type: GR
Dist. mm: 99.00
Rotation: CW
Total length mm: 183.00
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 75.00
No./mount. holes 2 (2)
Position/50 60
Position/B+ 15
Rotation CW
Dist./back 134.50
Dist./front 47.00
Drive dist. 14.00
Gear type GR
kW 0.8
Terminal 50 6.30
Voltage 12
Total length 183.00 mm
Dist. 99.00 mm
Mount. hole 2 M10-1.25 mm
Mount. hole 1 M10-1.25 mm

  • OEM
    F032116249, JM000-0202, 36100-03201, 36100-03402, 20489007, 26024461, 26024461A

  • Konkurrentreferens
    CST25136

  • Normaliserat artikelnummer
    cst25136, f032116249, jm0000202, 20489007, 26024461, 26024461a, 3610003201, 3610003402

  • Passar modeller
    Hyundai Model: i10 Model series: i10 Size of motor: 1.2 Brand of engine: G4LA Body: Hatchback From date: 01-04-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: I20 Model series: I20 Size of motor: 1.2 Brand of engine: G4LA Type description: PB, PBT Body: Hatchback From date: 01-03-2012 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Hyundai Model: i20 Model series: i20 Size of motor: 1.2 Type description: PB, PBT Body: Hatchback From date: 01-01-2013 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Model type: Bi-Fuel Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Diesel Approved: Yes
    Kia Model: Picanto Model series: Picanto Model type: LPG Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-08-2013 Fuel: Bi-Fuel Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.2 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.2 Type description: TA Body: Hatchback From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.3 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 To date: 01-02-2017 Fuel: Petrol Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 0.8
    Mount. flange: 75.00
    Drive dist.: 14.00
    Mount. hole 2 mm: M10-1.25
    Mount. hole 1 mm: M10-1.25
    Dist./back: 134.50
    Dist./front: 47.00
    No./teeth: 10
    B+: M8
    Position/B+: 15
    Position/50: 60
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 99.00
    Rotation: CW
    Total length mm: 183.00
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 75.00
    No./mount. holes 2 (2)
    Position/50 60
    Position/B+ 15
    Rotation CW
    Dist./back 134.50
    Dist./front 47.00
    Drive dist. 14.00
    Gear type GR
    kW 0.8
    Terminal 50 6.30
    Voltage 12
    Total length 183.00 mm
    Dist. 99.00 mm
    Mount. hole 2 M10-1.25 mm
    Mount. hole 1 M10-1.25 mm
  • Fordonsmatchning

    • OEM
      F032116249, JM000-0202, 36100-03201, 36100-03402, 20489007, 26024461, 26024461A

    • Konkurrentreferens
      CST25136

    • Normaliserat artikelnummer
      cst25136, f032116249, jm0000202, 20489007, 26024461, 26024461a, 3610003201, 3610003402

    • Passar modeller
      Hyundai Model: i10 Model series: i10 Size of motor: 1.2 Brand of engine: G4LA Body: Hatchback From date: 01-04-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Hyundai Model: I20 Model series: I20 Size of motor: 1.2 Brand of engine: G4LA Type description: PB, PBT Body: Hatchback From date: 01-03-2012 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Hyundai Model: i20 Model series: i20 Size of motor: 1.2 Type description: PB, PBT Body: Hatchback From date: 01-01-2013 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Model type: Bi-Fuel Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Diesel Approved: Yes
      Kia Model: Picanto Model series: Picanto Model type: LPG Size of motor: 1.0 Brand of engine: B3LA Type description: TA Body: Hatchback From date: 01-08-2013 Fuel: Bi-Fuel Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.2 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.2 Type description: TA Body: Hatchback From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.3 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 To date: 01-02-2017 Fuel: Petrol Approved: Yes
      1 / 2
