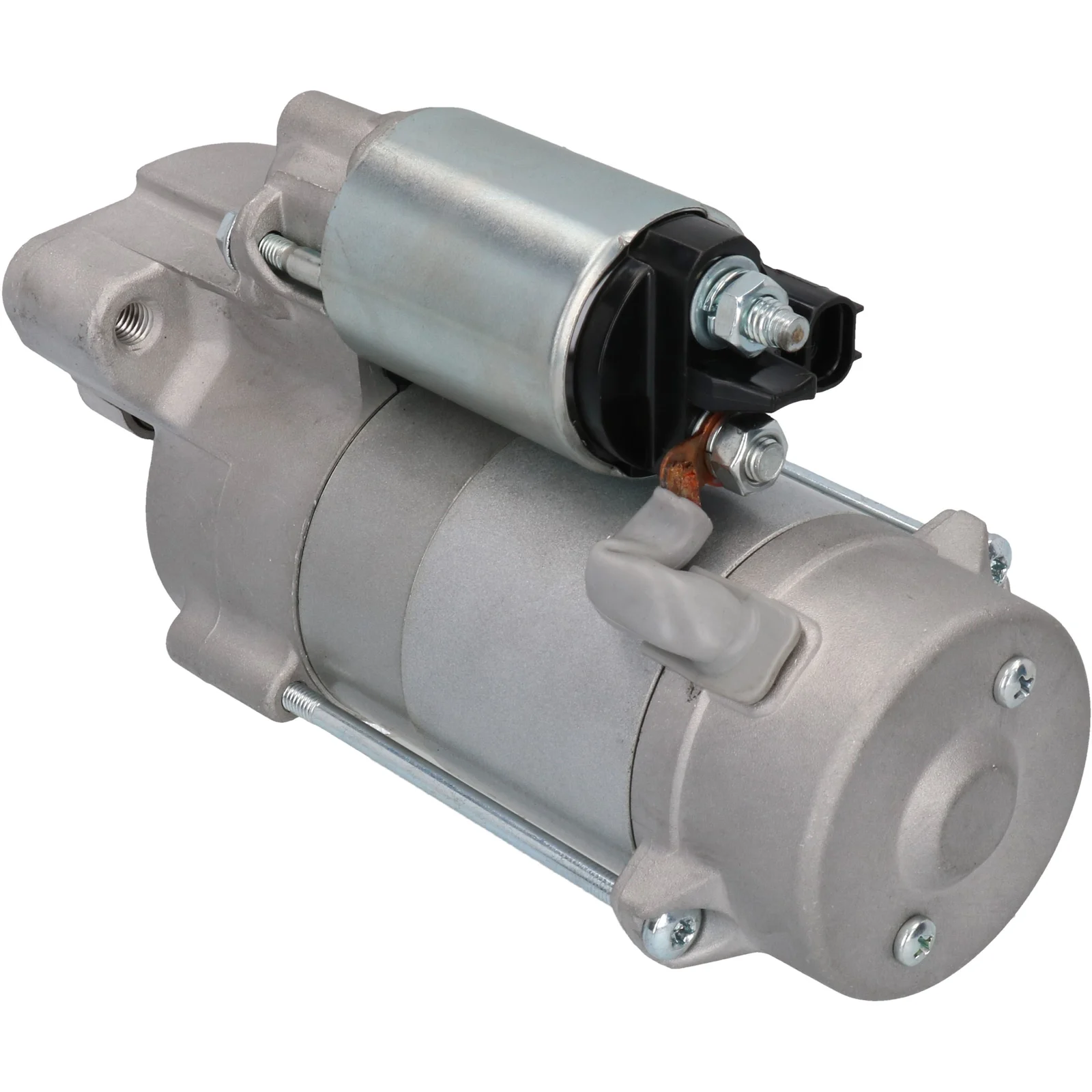

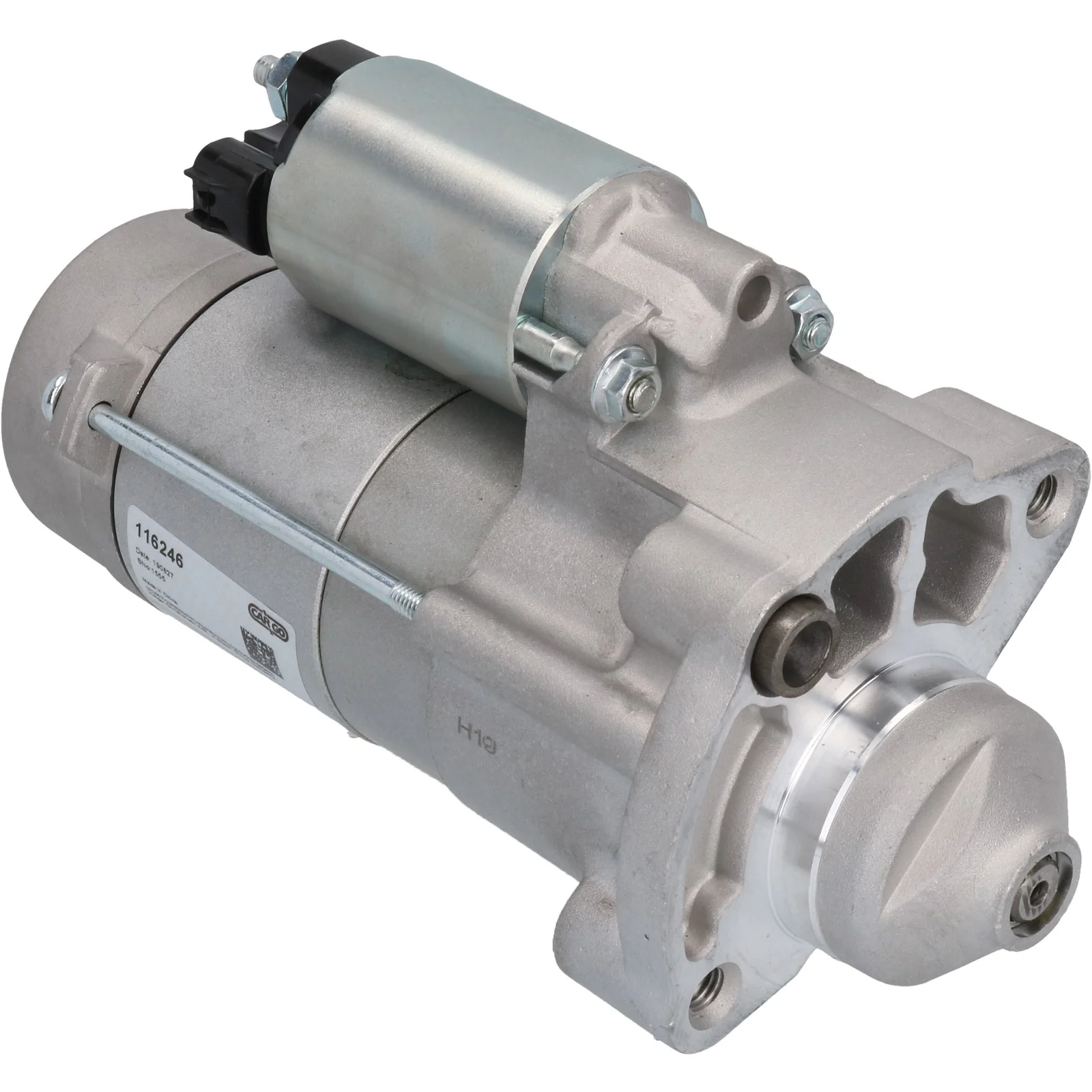

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116246

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.9, No./teeth: 13, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.9
Mount. flange: 54.50
Drive dist.: -1.50
Mount. hole 3 mm: M10
Mount. hole 2 mm: M10
Mount. hole 1 mm: M10
Dist./back: 207.50
Dist./front: 37.50
No./teeth: 13
B+: M8
Position/B+: 60
Terminal 50: Plug
Gear type: GR
Dist. 2: 65.50
Dist. 3: 65.50
Dist. mm: 102.50
Rotation: CW
Total length mm: 245.00
No./mount. holes: 3 (3)

Filer

Specifikation

B+ M8
No./teeth 13
Mount. flange 54.50
No./mount. holes 3 (3)
Position/B+ 60
Dist. 2 65.50
Dist. 3 65.50
Rotation CW
Dist./back 207.50
Dist./front 37.50
Drive dist. -1.50
Gear type GR
kW 1.9
Terminal 50 Plug
Voltage 12
Total length 245.00 mm
Dist. 102.50 mm
Mount. hole 3 M10 mm
Mount. hole 2 M10 mm
Mount. hole 1 M10 mm

  • OEM
    EJ3211001AB, EJ3211001AC, EJ3211001AD, F032116246, LR047573, LR065819, LR084922, 438000-0820, 438000-0821, 438000-0822

  • Konkurrentreferens
    DSN1365, 8EA011613-121, 450.539.133, 11090340

  • Normaliserat artikelnummer
    dsn1365, ej3211001ab, ej3211001ac, ej3211001ad, f032116246, lr047573, lr065819, lr084922, 8ea011613121, 11090340, 450539133, 4380000820, 4380000821, 4380000822

  • Passar modeller
    Land Rover Model: Discovery Model series: Discovery Sport Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: LC From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: ED4 Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: SD4 Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: TD4 Type of engine: TD Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Evoque Model type: 4X4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: L538 Body: Box Body / Estate From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.9
    Mount. flange: 54.50
    Drive dist.: -1.50
    Mount. hole 3 mm: M10
    Mount. hole 2 mm: M10
    Mount. hole 1 mm: M10
    Dist./back: 207.50
    Dist./front: 37.50
    No./teeth: 13
    B+: M8
    Position/B+: 60
    Terminal 50: Plug
    Gear type: GR
    Dist. 2: 65.50
    Dist. 3: 65.50
    Dist. mm: 102.50
    Rotation: CW
    Total length mm: 245.00
    No./mount. holes: 3 (3)

    Filer

  • Specifikation
    B+ M8
    No./teeth 13
    Mount. flange 54.50
    No./mount. holes 3 (3)
    Position/B+ 60
    Dist. 2 65.50
    Dist. 3 65.50
    Rotation CW
    Dist./back 207.50
    Dist./front 37.50
    Drive dist. -1.50
    Gear type GR
    kW 1.9
    Terminal 50 Plug
    Voltage 12
    Total length 245.00 mm
    Dist. 102.50 mm
    Mount. hole 3 M10 mm
    Mount. hole 2 M10 mm
    Mount. hole 1 M10 mm
  • Fordonsmatchning

    • OEM
      EJ3211001AB, EJ3211001AC, EJ3211001AD, F032116246, LR047573, LR065819, LR084922, 438000-0820, 438000-0821, 438000-0822

    • Konkurrentreferens
      DSN1365, 8EA011613-121, 450.539.133, 11090340

    • Normaliserat artikelnummer
      dsn1365, ej3211001ab, ej3211001ac, ej3211001ad, f032116246, lr047573, lr065819, lr084922, 8ea011613121, 11090340, 450539133, 4380000820, 4380000821, 4380000822

    • Passar modeller
      Land Rover Model: Discovery Model series: Discovery Sport Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: LC From date: 01-09-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: ED4 Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: SD4 Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: TD4 Type of engine: TD Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Evoque Model type: 4X4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: L538 Body: Box Body / Estate From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
