HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116144

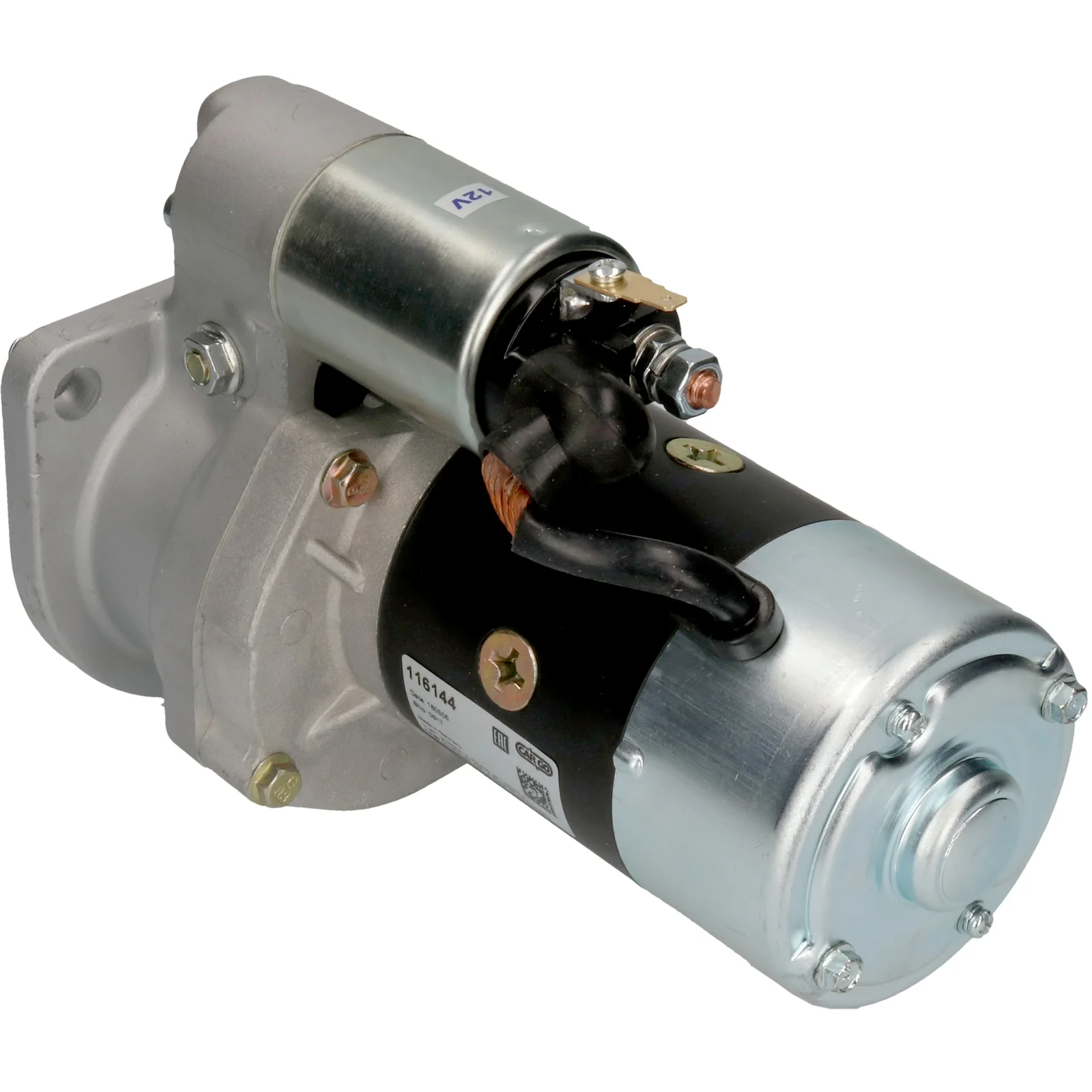

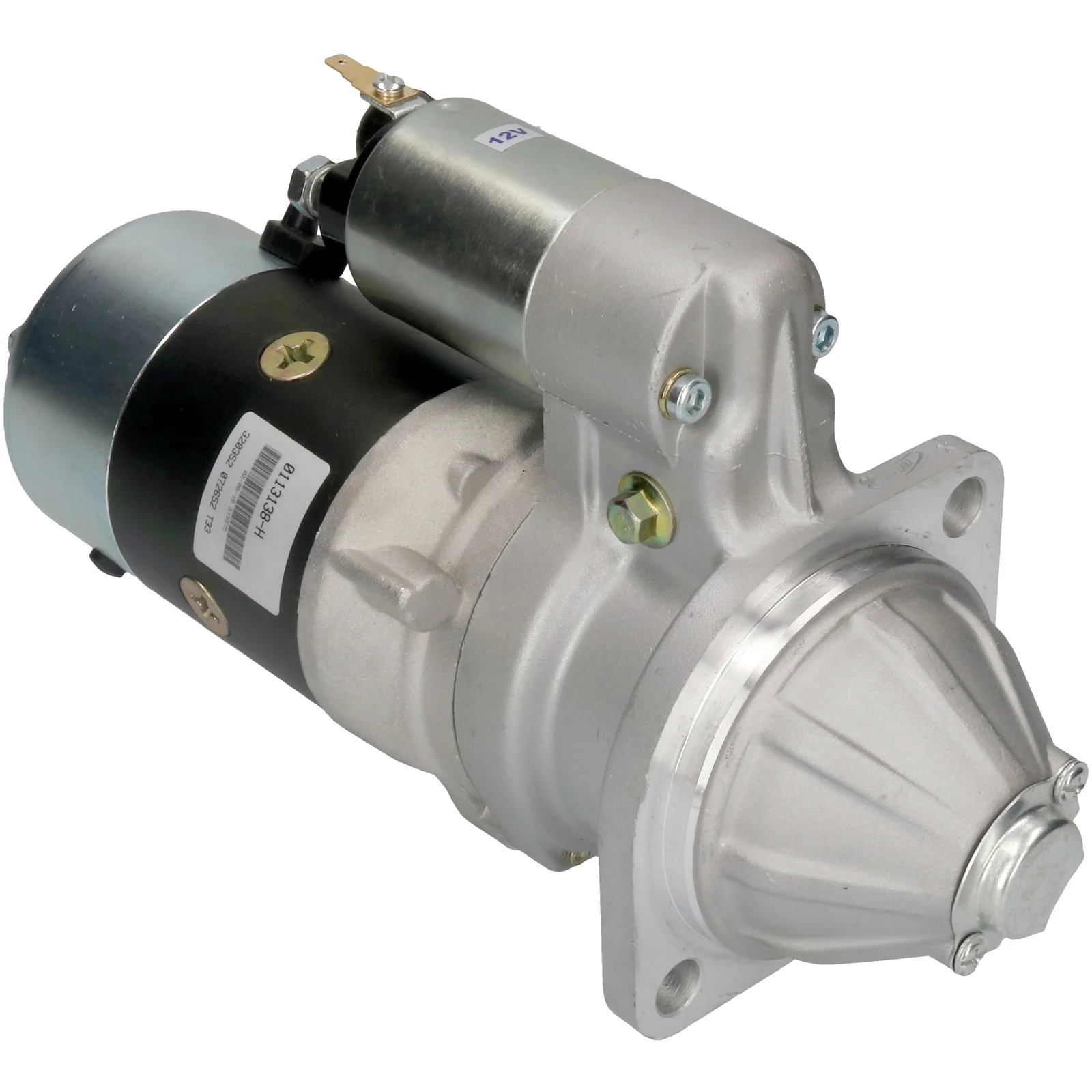

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.0
Mount. flange: 95.00
Drive dist.: 20.00
Mount. hole 2 mm: 12.50
Mount. hole 1 mm: 12.50
Dist./back: 230.00
Dist./front: 62.00
No./teeth: 9
B+: M8
Position/50: 2
Terminal 50: M4-6.30
Gear type: GR
Dist. mm: 119.50
Rotation: CW
Total length mm: 292.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 95.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 2
Clutch type Wet
Prod. info BN
Rotation CW
Dist./back 230.00
Dist./front 62.00
Drive dist. 20.00
Drive type Steel
Gear type GR
kW 3.0
Terminal 50 M4-6.30
Voltage 12
Total length 292.00 mm
Waterproof No
Dist. 119.50 mm
Mount. hole 2 12.50 mm
Mount. hole 1 12.50 mm

  • OEM
    F032116144, s13-138, s13-138a, 129953-77010, 129953-77019

  • Konkurrentreferens
    CST20155, lrs01643, S2088S, STR72003, 19694N, 254016

  • Normaliserat artikelnummer
    cst20155, f032116144, lrs01643, s13138, s13138a, s2088s, str72003, 19694n, 254016, 12995377010, 12995377019

  • Passar modeller
    Yanmar Model: Engine Model series: Various Models Brand of engine: 3TG66 Approved: Yes
    Yanmar Model: Engine Model series: Various Models Brand of engine: 4TNE98 From date: 01-01-1996 Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 3.0
    Mount. flange: 95.00
    Drive dist.: 20.00
    Mount. hole 2 mm: 12.50
    Mount. hole 1 mm: 12.50
    Dist./back: 230.00
    Dist./front: 62.00
    No./teeth: 9
    B+: M8
    Position/50: 2
    Terminal 50: M4-6.30
    Gear type: GR
    Dist. mm: 119.50
    Rotation: CW
    Total length mm: 292.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 95.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 2
    Clutch type Wet
    Prod. info BN
    Rotation CW
    Dist./back 230.00
    Dist./front 62.00
    Drive dist. 20.00
    Drive type Steel
    Gear type GR
    kW 3.0
    Terminal 50 M4-6.30
    Voltage 12
    Total length 292.00 mm
    Waterproof No
    Dist. 119.50 mm
    Mount. hole 2 12.50 mm
    Mount. hole 1 12.50 mm
  • Fordonsmatchning

    • OEM
      F032116144, s13-138, s13-138a, 129953-77010, 129953-77019

    • Konkurrentreferens
      CST20155, lrs01643, S2088S, STR72003, 19694N, 254016

    • Normaliserat artikelnummer
      cst20155, f032116144, lrs01643, s13138, s13138a, s2088s, str72003, 19694n, 254016, 12995377010, 12995377019

    • Passar modeller
      Yanmar Model: Engine Model series: Various Models Brand of engine: 3TG66 Approved: Yes
      Yanmar Model: Engine Model series: Various Models Brand of engine: 4TNE98 From date: 01-01-1996 Approved: Yes
