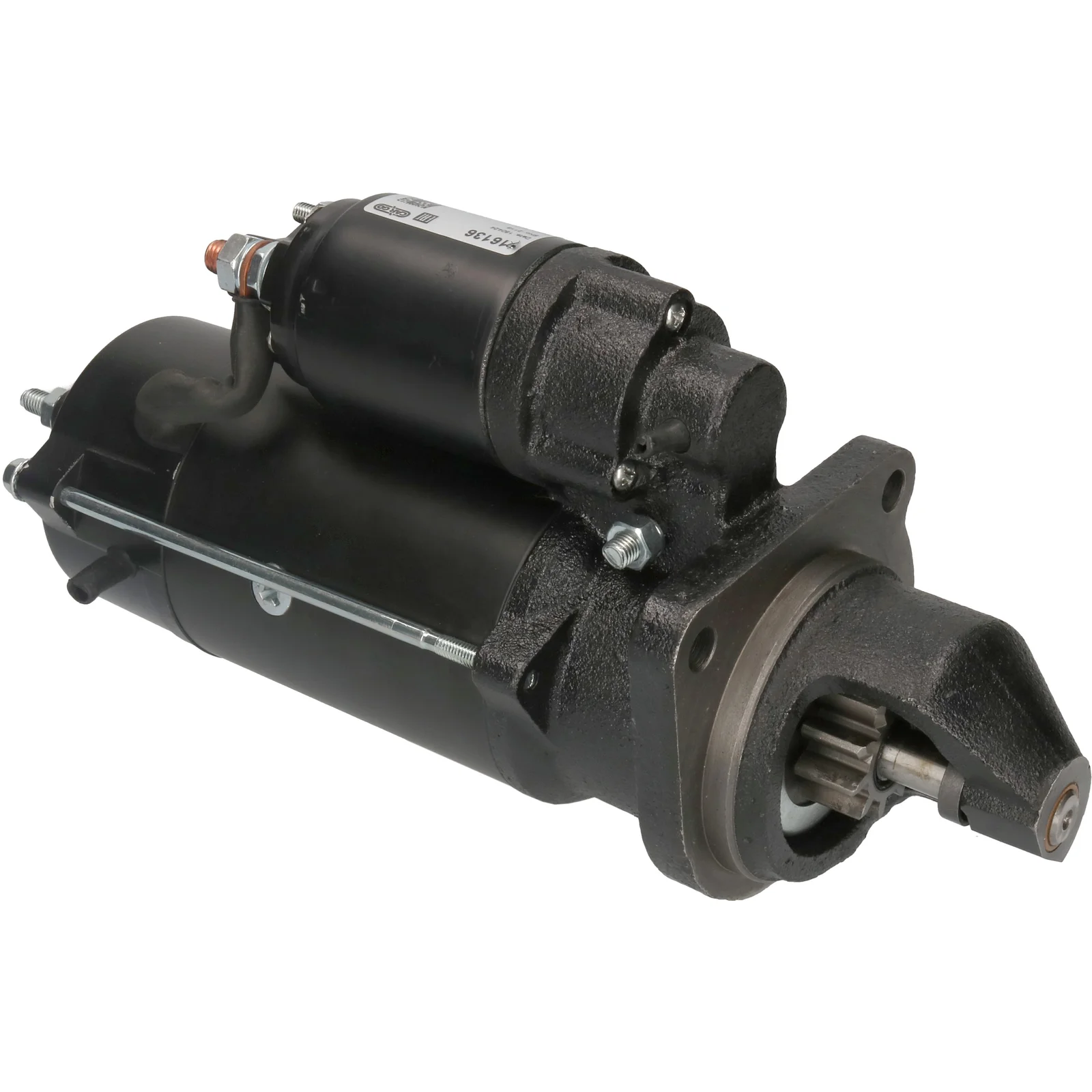

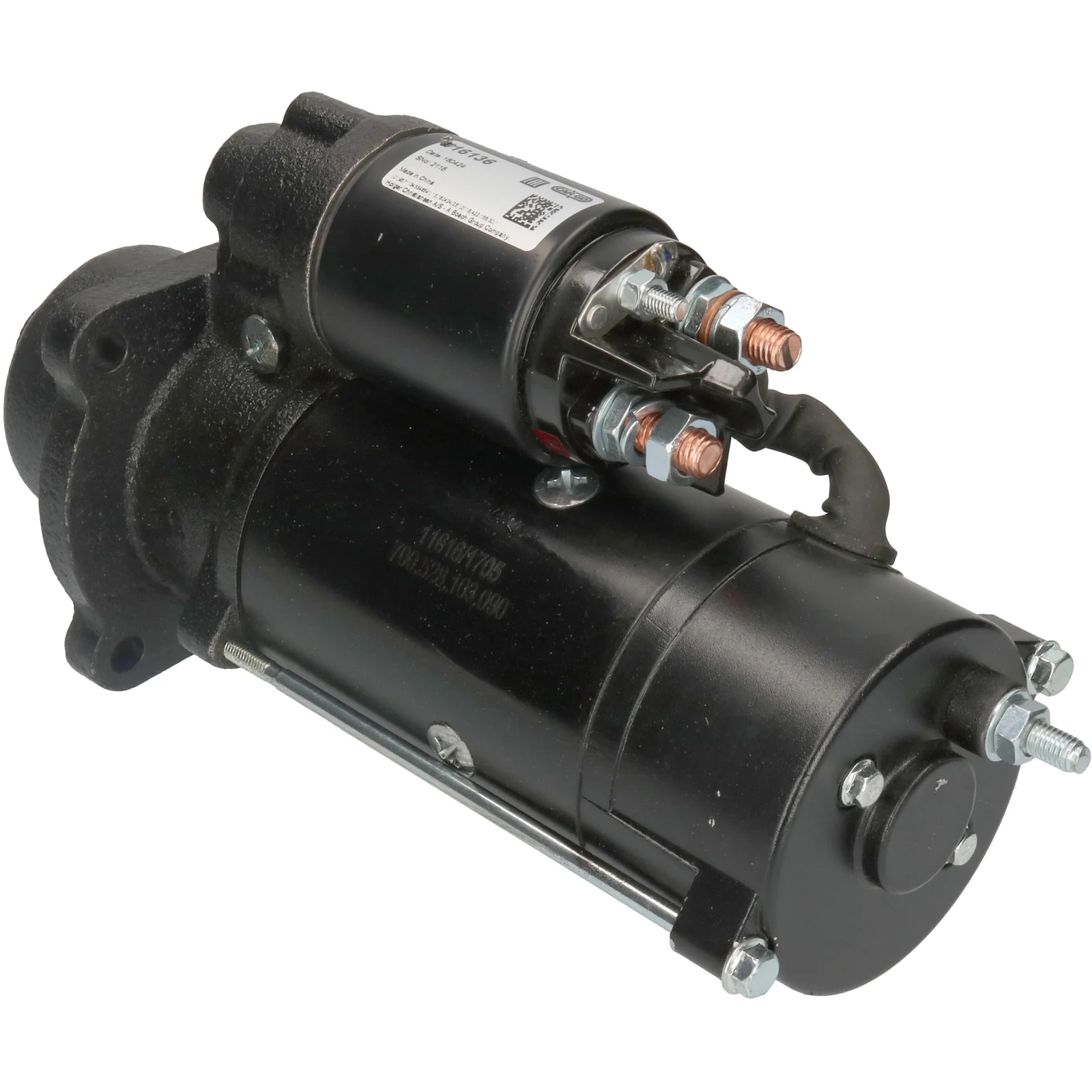

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116136

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 4.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 4.2
Mount. flange: 89.00
Drive dist.: 29.50
Mount. hole 3 mm: 11.30
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 268.00
Dist./front: 77.50
No./teeth: 10
B+: M10
Position/50: 55
Terminal 50: M6
Gear type: GR
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Position/b-: 10
B-: M8
Total length mm: 345.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M8
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 55
Position/b- 10
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 268.00
Dist./front 77.50
Drive dist. 29.50
Gear type GR
kW 4.2
Terminal 50 M6
Voltage 12
Total length 345.00 mm
Dist. 90.00 mm
Mount. hole 3 11.30 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZF4205, F032116136, 11.131.783, 2873k607, 2873K608, 2873K612

  • Konkurrentreferens
    CST21149, IS1194, MS401, S9234, 700.528.103, 33408N

  • Normaliserat artikelnummer
    azf4205, cst21149, f032116136, is1194, ms401, s9234, 2873k607, 2873k608, 2873k612, 33408n, 11131783, 700528103

  • Passar modeller
    Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 4.2
    Mount. flange: 89.00
    Drive dist.: 29.50
    Mount. hole 3 mm: 11.30
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 268.00
    Dist./front: 77.50
    No./teeth: 10
    B+: M10
    Position/50: 55
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Position/b-: 10
    B-: M8
    Total length mm: 345.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M8
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 55
    Position/b- 10
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 268.00
    Dist./front 77.50
    Drive dist. 29.50
    Gear type GR
    kW 4.2
    Terminal 50 M6
    Voltage 12
    Total length 345.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.30 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      AZF4205, F032116136, 11.131.783, 2873k607, 2873K608, 2873K612

    • Konkurrentreferens
      CST21149, IS1194, MS401, S9234, 700.528.103, 33408N

    • Normaliserat artikelnummer
      azf4205, cst21149, f032116136, is1194, ms401, s9234, 2873k607, 2873k608, 2873k612, 33408n, 11131783, 700528103

    • Passar modeller
      Perkins Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
