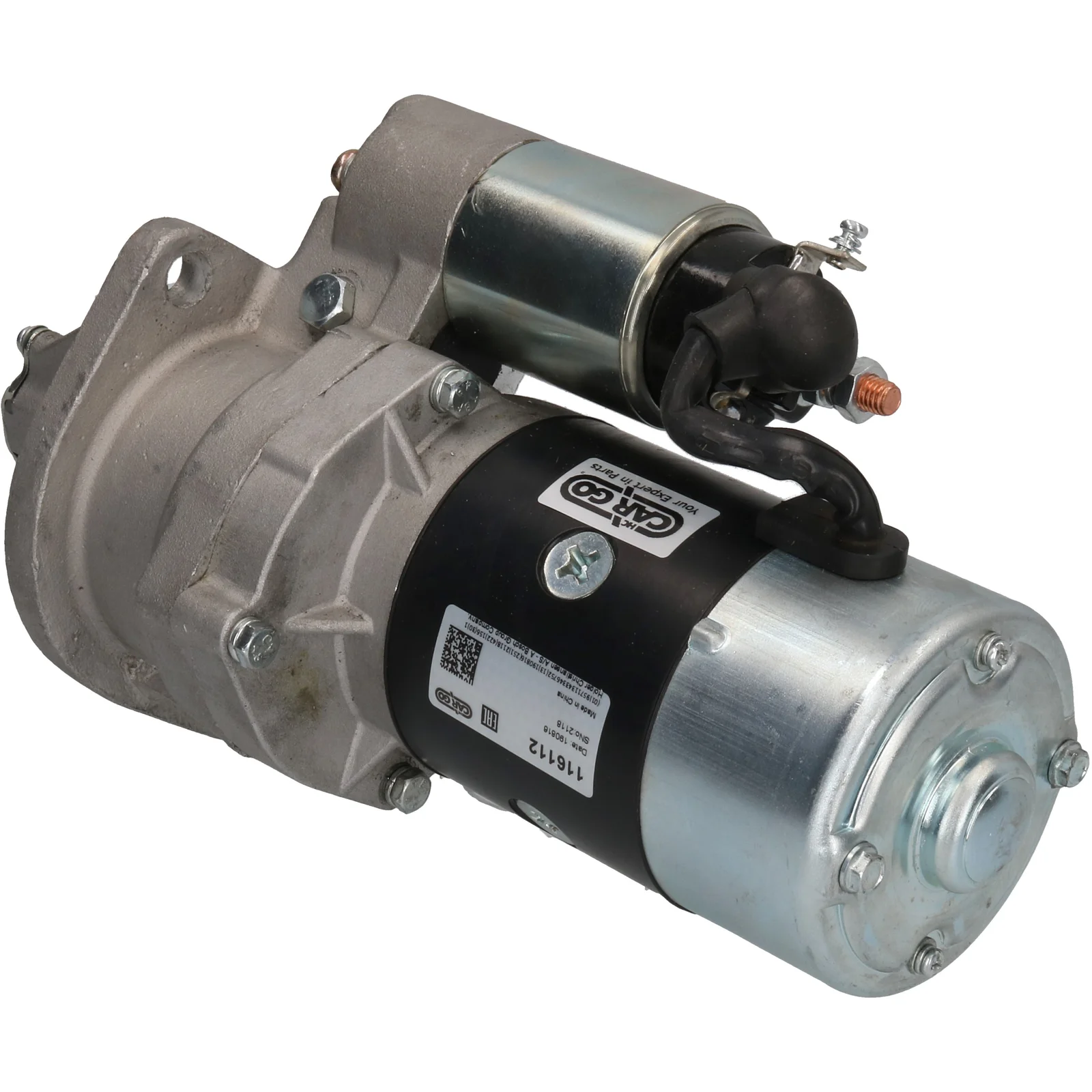

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116112

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 15, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 95.00
Drive dist.: 19.00
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 234.00
Dist./front: 63.50
No./teeth: 15
B+: M8
Position/B+: 20
Position/50: 5
Terminal 50: M4
Gear type: GR
Dist. mm: 120.00
Rotation: CW
Total length mm: 297.00
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 15
Mount. flange 95.00
No./mount. holes 2 (0)
Position/50 5
Position/B+ 20
Rotation CW
Dist./back 234.00
Dist./front 63.50
Drive dist. 19.00
Gear type GR
kW 2.5
Terminal 50 M4
Voltage 12
Total length 297.00 mm
Dist. 120.00 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032116112, MG120558, s13-41, s13-41a, s13-41b, s13-41c, s13-41d, 121254-77010, 121254-77011, 121254-77012, 121254-77019

  • Konkurrentreferens
    CST20134, CST20148, DRS0052, DRS0106, LES0113, LRS01206, LRS01308, S2044, 25-1273, 682.012.152, 19839N, 220578, 220578A, 254032, 11040698

  • Normaliserat artikelnummer
    cst20134, cst20148, drs0052, drs0106, f032116112, les0113, lrs01206, lrs01308, mg120558, s1341, s1341a, s1341b, s1341c, s1341d, s2044, 19839n, 220578, 220578a, 251273, 254032, 11040698, 682012152, 12125477010, 12125477011, 12125477012, 12125477019

  • Passar modeller
    John Deere Model: Skid Steer Loader Model series: 575 Approved: Yes
    John Deere Model: Skid Steer Loader Model series: 675 Approved: Yes
    John Deere Model: Skid Steer Loader Model series: 675B Approved: Yes
    Yanmar Model: 4LH-DTE Approved: Yes
    Yanmar Model: 4LH-DTZ Approved: Yes
    Yanmar Model: 4LH-HTE Approved: Yes
    Yanmar Model: 4LH-STE Approved: Yes
    Yanmar Model: 4LHA-DTE Approved: Yes
    Yanmar Model: 4LHA-HTE Approved: Yes
    Yanmar Model: 4LHA-HTZE Approved: Yes
    Yanmar Model: 4LHA-STE Approved: Yes
    Yanmar Model: 4LHA-STZE Approved: Yes
    Yanmar Model: Tractor Model series: Various Models Approved: Yes
    Yanmar Model: Various Models Model series: Various Models Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 2.5
    Mount. flange: 95.00
    Drive dist.: 19.00
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 234.00
    Dist./front: 63.50
    No./teeth: 15
    B+: M8
    Position/B+: 20
    Position/50: 5
    Terminal 50: M4
    Gear type: GR
    Dist. mm: 120.00
    Rotation: CW
    Total length mm: 297.00
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 15
    Mount. flange 95.00
    No./mount. holes 2 (0)
    Position/50 5
    Position/B+ 20
    Rotation CW
    Dist./back 234.00
    Dist./front 63.50
    Drive dist. 19.00
    Gear type GR
    kW 2.5
    Terminal 50 M4
    Voltage 12
    Total length 297.00 mm
    Dist. 120.00 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Fordonsmatchning

    • OEM
      F032116112, MG120558, s13-41, s13-41a, s13-41b, s13-41c, s13-41d, 121254-77010, 121254-77011, 121254-77012, 121254-77019

    • Konkurrentreferens
      CST20134, CST20148, DRS0052, DRS0106, LES0113, LRS01206, LRS01308, S2044, 25-1273, 682.012.152, 19839N, 220578, 220578A, 254032, 11040698

    • Normaliserat artikelnummer
      cst20134, cst20148, drs0052, drs0106, f032116112, les0113, lrs01206, lrs01308, mg120558, s1341, s1341a, s1341b, s1341c, s1341d, s2044, 19839n, 220578, 220578a, 251273, 254032, 11040698, 682012152, 12125477010, 12125477011, 12125477012, 12125477019

    • Passar modeller
      John Deere Model: Skid Steer Loader Model series: 575 Approved: Yes
      John Deere Model: Skid Steer Loader Model series: 675 Approved: Yes
      John Deere Model: Skid Steer Loader Model series: 675B Approved: Yes
      Yanmar Model: 4LH-DTE Approved: Yes
      Yanmar Model: 4LH-DTZ Approved: Yes
      Yanmar Model: 4LH-HTE Approved: Yes
      Yanmar Model: 4LH-STE Approved: Yes
      Yanmar Model: 4LHA-DTE Approved: Yes
      Yanmar Model: 4LHA-HTE Approved: Yes
      Yanmar Model: 4LHA-HTZE Approved: Yes
      Yanmar Model: 4LHA-STE Approved: Yes
      Yanmar Model: 4LHA-STZE Approved: Yes
      Yanmar Model: Tractor Model series: Various Models Approved: Yes
      Yanmar Model: Various Models Model series: Various Models Approved: Yes
      1 / 3
