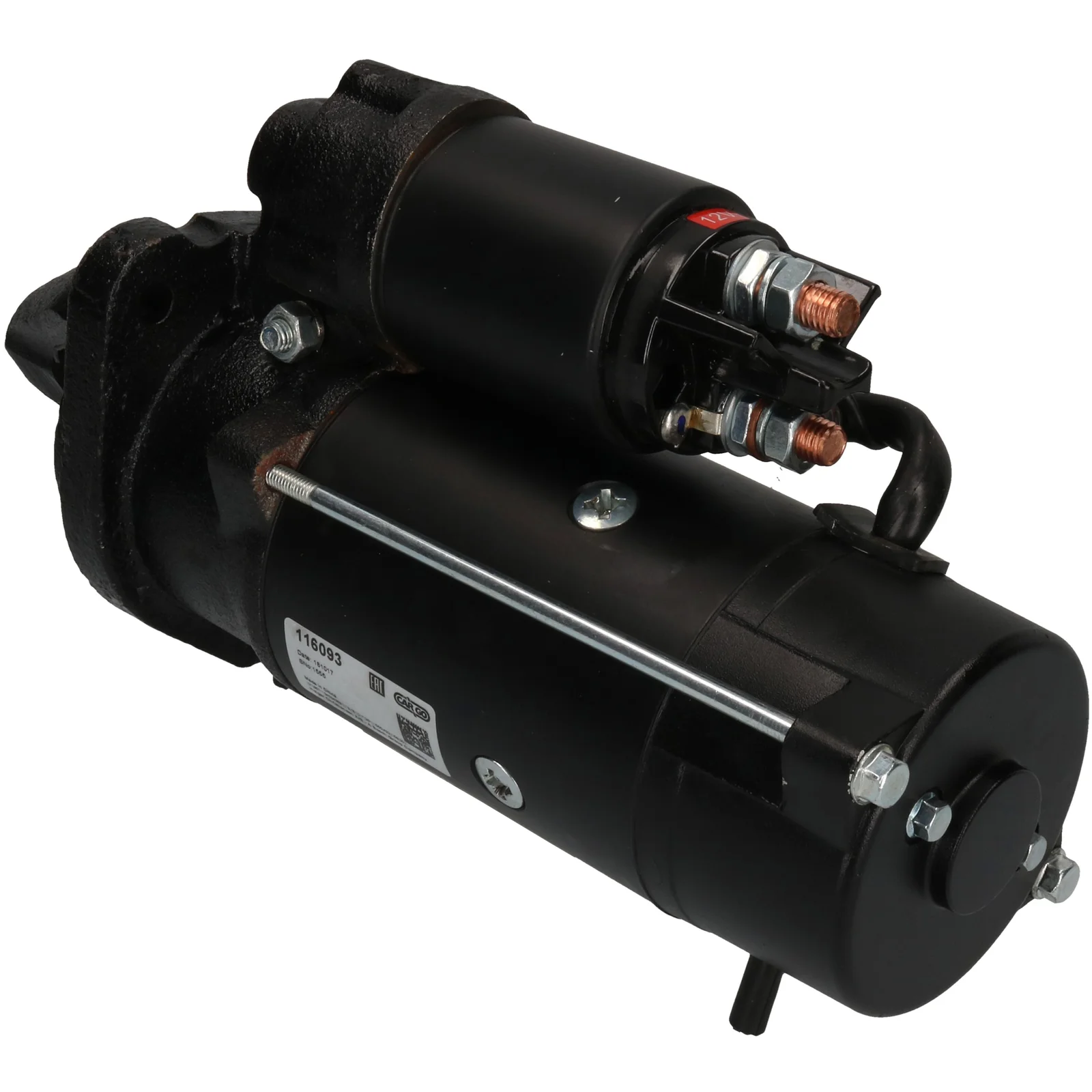

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116093

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 4.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 4.0
Mount. flange: 89.00
Drive dist.: 28.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 248.00
Dist./front: 73.00
No./teeth: 9
B+: M10
Position/B+: 60
Position/50: 20
Terminal 50: M5
Gear type: GR
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 321.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 20
Position/B+ 60
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 248.00
Dist./front 73.00
Drive dist. 28.00
Gear type GR
kW 4.0
Terminal 50 M5
Voltage 12
Total length 321.00 mm
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZF4194, AZF4197, AZF4309, azf4343, F032116093, 11.131.620, 11.131.754, 11.131.769, 11.132.256, 1269844, 5263797, 05712909, 05719269, 5719269, 5411656410

  • Konkurrentreferens
    DRS0934, DRS0934N, IS1254, LRS02515, MS65, S9236, S9236(LETRIKA), 220787, 220787A

  • Normaliserat artikelnummer
    azf4194, azf4197, azf4309, azf4343, drs0934, drs0934n, f032116093, is1254, lrs02515, ms65, s9236, s9236letrika, 220787, 220787a, 1269844, 5263797, 05712909, 05719269, 5719269, 11131620, 11131754, 11131769, 11132256, 5411656410

  • Passar modeller
    Bomag Model: BW 211 D-4 & BW 211 PD-4 Model series: BW 211 D-4 & BW 211 PD-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 211 D-40 & BW 211 PD-40 Model series: BW 211 D-40 & BW 211 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 211 SERIES Model series: BW 211 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 212 D-40 & BW 212 PD-40 Model series: BW 212 D-40 & BW 212 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 D-4, BW 213 DH-4 & BW 213 PDH-4 Model series: BW 213 D-4, BW 213 DH-4 & BW 213 PDH-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 D-40 & BW 213 PD-40 Model series: BW 213 D-40 & BW 213 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 DH-4 BVC & BW 213 DI-4 BVC Model series: BW 213 DH-4 BVC & BW 213 DI-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 DH-4 BVC (VIBRATORY PLATES) Model series: BW 213 DH-4 BVC (VIBRATORY PLATES) Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 DH-4 BVC Model series: BW 213 DH-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 DI-4 BVC Model series: BW 213 DI-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 SERIES Model series: BW 213 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 214 & BW 216 SERIES Model series: BW 214 & BW 216 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 214 DH-4 & BW 214 PDH-4 Model series: BW 214 DH-4 & BW 214 PDH-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 216 D-4 & BW 216 PD-4 Model series: BW 216 D-4 & BW 216 PD-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW211-40 SERIES Model series: BW211-40 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW213D-40 Model series: BW213D-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: C840D SERIES Model series: C840D SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: C850D SERIES Model series: C850D SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: Various Models Model series: Various Models From date: 01-01-1975 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: Agri Model series: Agri 605 From date: 01-01-1997 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: Various Models Model series: Various Models Approved: Yes
    Hyundai Model: HR110C-9 Model series: HR110C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Hyundai Model: HR120C-9 Model series: HR120C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Hyundai Model: HR140C-9 Model series: HR140C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Same Model: Various Models Model series: Various Models Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 12
    kW: 4.0
    Mount. flange: 89.00
    Drive dist.: 28.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 248.00
    Dist./front: 73.00
    No./teeth: 9
    B+: M10
    Position/B+: 60
    Position/50: 20
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 321.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 20
    Position/B+ 60
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 248.00
    Dist./front 73.00
    Drive dist. 28.00
    Gear type GR
    kW 4.0
    Terminal 50 M5
    Voltage 12
    Total length 321.00 mm
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      AZF4194, AZF4197, AZF4309, azf4343, F032116093, 11.131.620, 11.131.754, 11.131.769, 11.132.256, 1269844, 5263797, 05712909, 05719269, 5719269, 5411656410

    • Konkurrentreferens
      DRS0934, DRS0934N, IS1254, LRS02515, MS65, S9236, S9236(LETRIKA), 220787, 220787A

    • Normaliserat artikelnummer
      azf4194, azf4197, azf4309, azf4343, drs0934, drs0934n, f032116093, is1254, lrs02515, ms65, s9236, s9236letrika, 220787, 220787a, 1269844, 5263797, 05712909, 05719269, 5719269, 11131620, 11131754, 11131769, 11132256, 5411656410

    • Passar modeller
      Bomag Model: BW 211 D-4 & BW 211 PD-4 Model series: BW 211 D-4 & BW 211 PD-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 211 D-40 & BW 211 PD-40 Model series: BW 211 D-40 & BW 211 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 211 SERIES Model series: BW 211 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 212 D-40 & BW 212 PD-40 Model series: BW 212 D-40 & BW 212 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 D-4, BW 213 DH-4 & BW 213 PDH-4 Model series: BW 213 D-4, BW 213 DH-4 & BW 213 PDH-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 D-40 & BW 213 PD-40 Model series: BW 213 D-40 & BW 213 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 DH-4 BVC & BW 213 DI-4 BVC Model series: BW 213 DH-4 BVC & BW 213 DI-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 DH-4 BVC (VIBRATORY PLATES) Model series: BW 213 DH-4 BVC (VIBRATORY PLATES) Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 DH-4 BVC Model series: BW 213 DH-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 DI-4 BVC Model series: BW 213 DI-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 SERIES Model series: BW 213 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 214 & BW 216 SERIES Model series: BW 214 & BW 216 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 214 DH-4 & BW 214 PDH-4 Model series: BW 214 DH-4 & BW 214 PDH-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 216 D-4 & BW 216 PD-4 Model series: BW 216 D-4 & BW 216 PD-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW211-40 SERIES Model series: BW211-40 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW213D-40 Model series: BW213D-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: C840D SERIES Model series: C840D SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: C850D SERIES Model series: C850D SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: Various Models Model series: Various Models From date: 01-01-1975 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: Agri Model series: Agri 605 From date: 01-01-1997 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: Various Models Model series: Various Models Approved: Yes
      Hyundai Model: HR110C-9 Model series: HR110C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Hyundai Model: HR120C-9 Model series: HR120C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Hyundai Model: HR140C-9 Model series: HR140C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Same Model: Various Models Model series: Various Models Approved: Yes
      1 / 5
