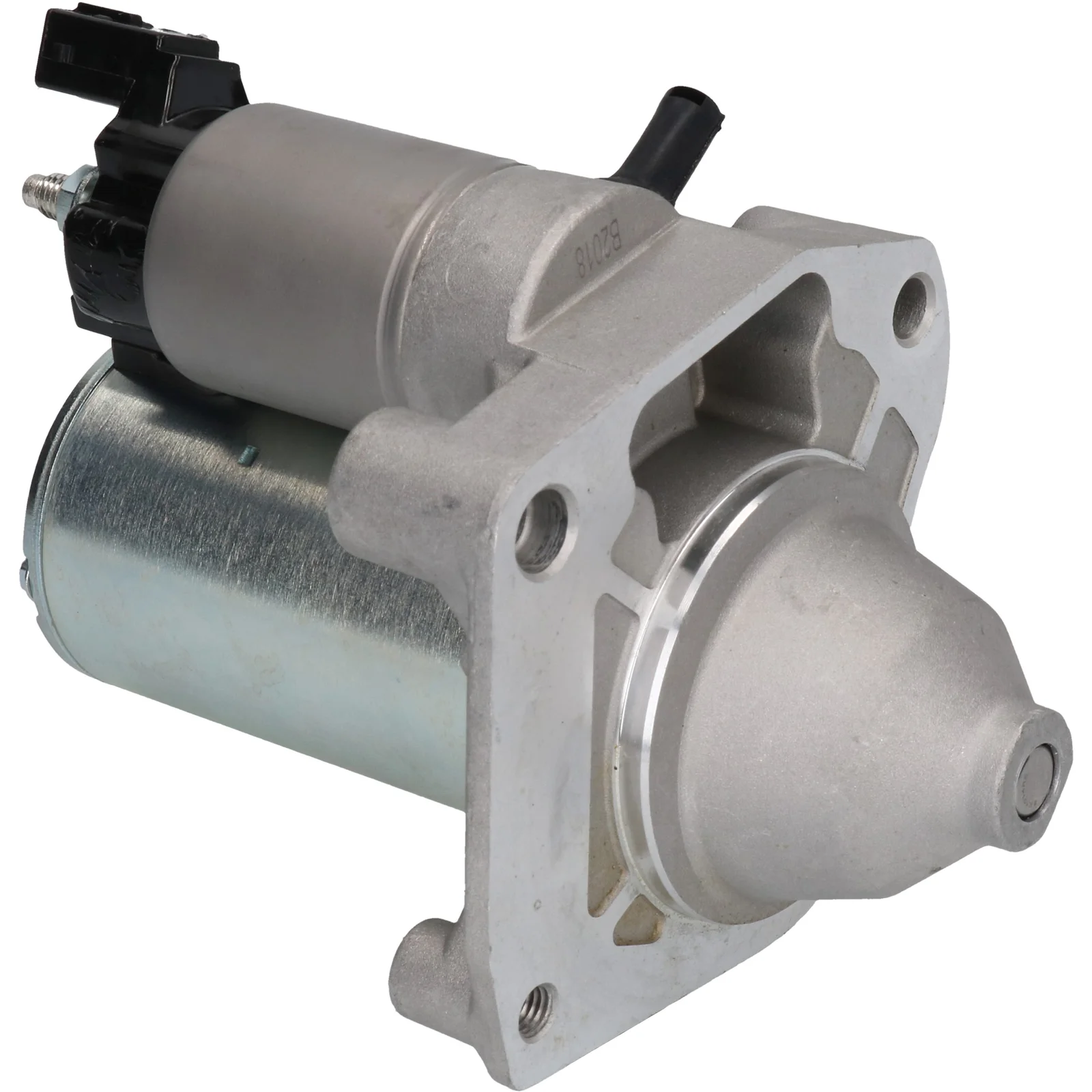

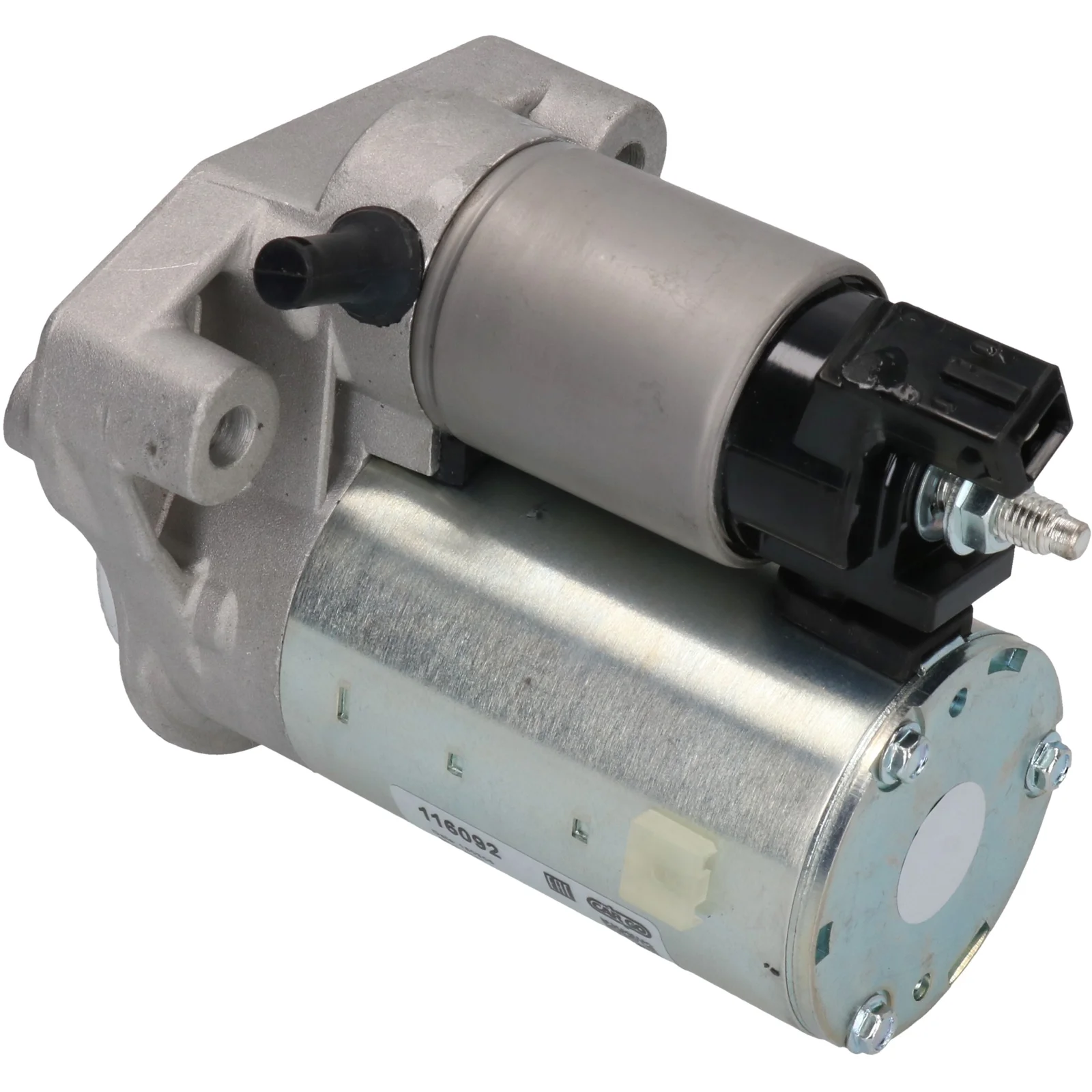

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116092

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.0
Mount. flange: 72.00
Drive dist.: 14.00
Mount. hole 3 mm: 9.00
Mount. hole 1 mm: 9.00
Dist./back: 132.00
Dist./front: 46.50
No./teeth: 10
B+: M8
Position/50: 55
Terminal 50: Plug
Gear type: GR
Dist. 2: 75.00
Dist. 3: 91.50
Dist. mm: 124.00
Rotation: CW
Total length mm: 190.50
Prod. info: BN
No./mount. holes: 3 (1)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 72.00
No./mount. holes 3 (1)
Position/50 55
Prod. info BN
Dist. 2 75.00
Dist. 3 91.50
Rotation CW
Dist./back 132.00
Dist./front 46.50
Drive dist. 14.00
Gear type GR
kW 1.0
Terminal 50 Plug
Voltage 12
Total length 190.50 mm
Dist. 124.00 mm
Mount. hole 3 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    F032116092, 1986S00985, 1986S01294, 428000-8331, 428000-8332, 3639503, 1608064680, 9671530880, 9688477380, 967153088002

  • Konkurrentreferens
    CST40419, DRS0931, DSN1368, S6188(DENSO), S6235S, 8EA011611-611, 25-5011, 220.536.103, 31233N-OS, 220970, 220970A, 255320, 457404, 458995, 11090338, 42118817, 0986027370

  • Normaliserat artikelnummer
    cst40419, drs0931, dsn1368, f032116092, s6188denso, s6235s, 8ea011611611, 1986s00985, 1986s01294, 31233nos, 220970, 220970a, 255011, 255320, 457404, 458995, 3639503, 11090338, 42118817, 220536103, 0986027370, 1608064680, 4280008331, 4280008332, 9671530880, 9688477380, 967153088002

  • Passar modeller
    Citroen Model: C-Elysee Model series: C-Elysee Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2), HMZ (EB2F) From date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C-Elysee Model series: C-Elysee Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HMR (EB2FA) Type description: DD_ From date: 01-02-2018 Fuel: Petrol Approved: Yes
    Citroen Model: C-Elysee Model series: C-Elysee Type of engine: VTi Size of motor: 1.2 Brand of engine: HMY (EB2M) From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Citroen Model: C1 Model series: C1 Model type: 82 Size of motor: 1.2 Brand of engine: HMT (EB2D) Body: Hatchback From date: 01-04-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Aircross Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2017 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Aircross Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: 2C_, 2R_ Body: Closed Off-Road Vehicle From date: 01-05-2019 Fuel: Petrol Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: 68 Type of engine: VTi Size of motor: 1.0 Brand of engine: ZMZ (EB0) Body: Hatchback From date: 01-08-2012 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2012 To date: 01-09-2016 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: PureTech 82 LPG Type of engine: LPG Size of motor: 1.2 Brand of engine: HMR (EB2FA) Type description: SX Body: Hatchback From date: 01-05-2018 Fuel: Petrol/Electro Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: PureTech 82 Size of motor: 1.2 Brand of engine: HMR (EB2FA) Type description: SX Body: Hatchback From date: 01-05-2018 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: PureTech 82 Size of motor: 1.2 Brand of engine: HMR (EB2FA) Type description: SX Body: Hatchback Fuel: Petrol Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HMR (EB2FA) Type description: SX_, SY_ Body: Box Body / Hatchback From date: 01-03-2019 Fuel: Petrol Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: THP 110 Size of motor: 1.2 Brand of engine: HNV (EB2DTM) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: THP 110 Size of motor: 1.2 Brand of engine: HNZ (EB2DT) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: Vti 68 Size of motor: 1.2 Brand of engine: HMP (EB2FB) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: VTi 82 LPG Type of engine: LPG Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Petrol/Electro Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: Vti 82 Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes
    Citroen Model: C3 Model series: C3 Model type: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Type description: SX_, SY_ Body: Hatchback Van From date: 01-07-2016 Fuel: Petrol Approved: Yes
    Citroen Model: C4 Model series: C4 Cactus Model type: 75 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMU (EB2D) Body: Hatchback From date: 01-09-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C4 Model series: C4 Cactus Model type: 82 Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-09-2014 Fuel: Gasoline Approved: Yes
    Citroen Model: C4 Model series: C4 Cactus Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HMZ (EB2) Type description: 0B_, 0P_ Body: Box Body / Hatchback From date: 01-05-2019 Fuel: Petrol Approved: Yes
    Citroen Model: DS Model series: DS3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Convertible From date: 01-01-2013 To date: 01-07-2015 Fuel: Gasoline Approved: Yes
    Citroen Model: DS Model series: DS3 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-01-2013 To date: 01-03-2015 Fuel: Gasoline Approved: Yes
    DS Model: DS 3 Model series: DS 3 Model type: VTi 82 (SAHMZ6) Size of motor: 1.2 Brand of engine: HMZ (EB2), HMZ (EB2F) Type description: SA_ Body: Hatchback Fuel: Petrol Approved: Yes
    DS Model: DS 3 Model series: DS 3 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Convertible From date: 01-07-2015 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
    Opel Model: Corsa Model series: Corsa F Size of motor: 1.2 Brand of engine: F12XEL (EB2FAD) Body: Hatchback From date: 01-07-2019 Fuel: Petrol Approved: Yes
    Opel Model: Corsa Model series: Corsa F Size of motor: 1.2 Brand of engine: F12XEL (EB2FAD) Body: Twin Cab From date: 01-07-2019 Fuel: Petrol Approved: Yes
    Peugeot Model: 108 Model series: 108 Size of motor: 1.2 Brand of engine: HMT (EB2D) Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Peugeot Model: 2008 Model series: 2008 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Estate From date: 01-03-2013 To date: 01-12-2018 Fuel: Gasoline Approved: Yes
    Peugeot Model: 208 Model series: 208 Model type: Puretech 75 Size of motor: 1.2 Brand of engine: HMH (EB2FAD) Type description: UB_, UP_, UW_, UJ_ Body: Hatchback From date: 01-06-2019 Fuel: Petrol Approved: Yes
    Peugeot Model: 208 Model series: 208 Model type: PureTech 82 Size of motor: 1.2 Brand of engine: HMR (EB2FA) Type description: CA_, CC_ Body: Hatchback From date: 01-03-2018 Fuel: Gasoline Approved: Yes
    Peugeot Model: 208 Model series: 208 Model type: Puretech 82 Type of engine: VTI Size of motor: 1.2 Brand of engine: HMZ (EB2F), HMZ (EB2), HMR (EB2FA) Type description: CR_ Body: Box From date: 01-06-2015 Fuel: Petrol Approved: Yes
    Peugeot Model: 208 Model series: 208 Size of motor: 1.0 Brand of engine: ZMZ (EB0) Body: Hatchback From date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Peugeot Model: 208 Model series: 208 Size of motor: 1.2 Brand of engine: HMP (EB2FB) Body: Hatchback From date: 01-08-2016 Fuel: Gasoline Approved: Yes
    Peugeot Model: 208 Model series: 208 Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Peugeot Model: 208 Model series: 208 Type of engine: GPL Size of motor: 1.2 Brand of engine: HMZ (EB2F) Body: Hatchback From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Peugeot Model: 301 Model series: 301 Model type: 72 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMY (EB2M) From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Peugeot Model: 301 Model series: 301 Model type: 82 Type of engine: VTi Size of motor: 1.2 Brand of engine: HMZ (EB2F) From date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Peugeot Model: 301 Model series: 301 Model type: Puretech 82 Size of motor: 1.2 Brand of engine: HMR (EB2FA) From date: 01-02-2018 Fuel: Petrol Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa Size of motor: 1.2 Brand of engine: F12XEL (EB2FAD) Type description: F Body: Hatchback From date: 01-07-2019 Fuel: Petrol Approved: Yes
    1 / 8
