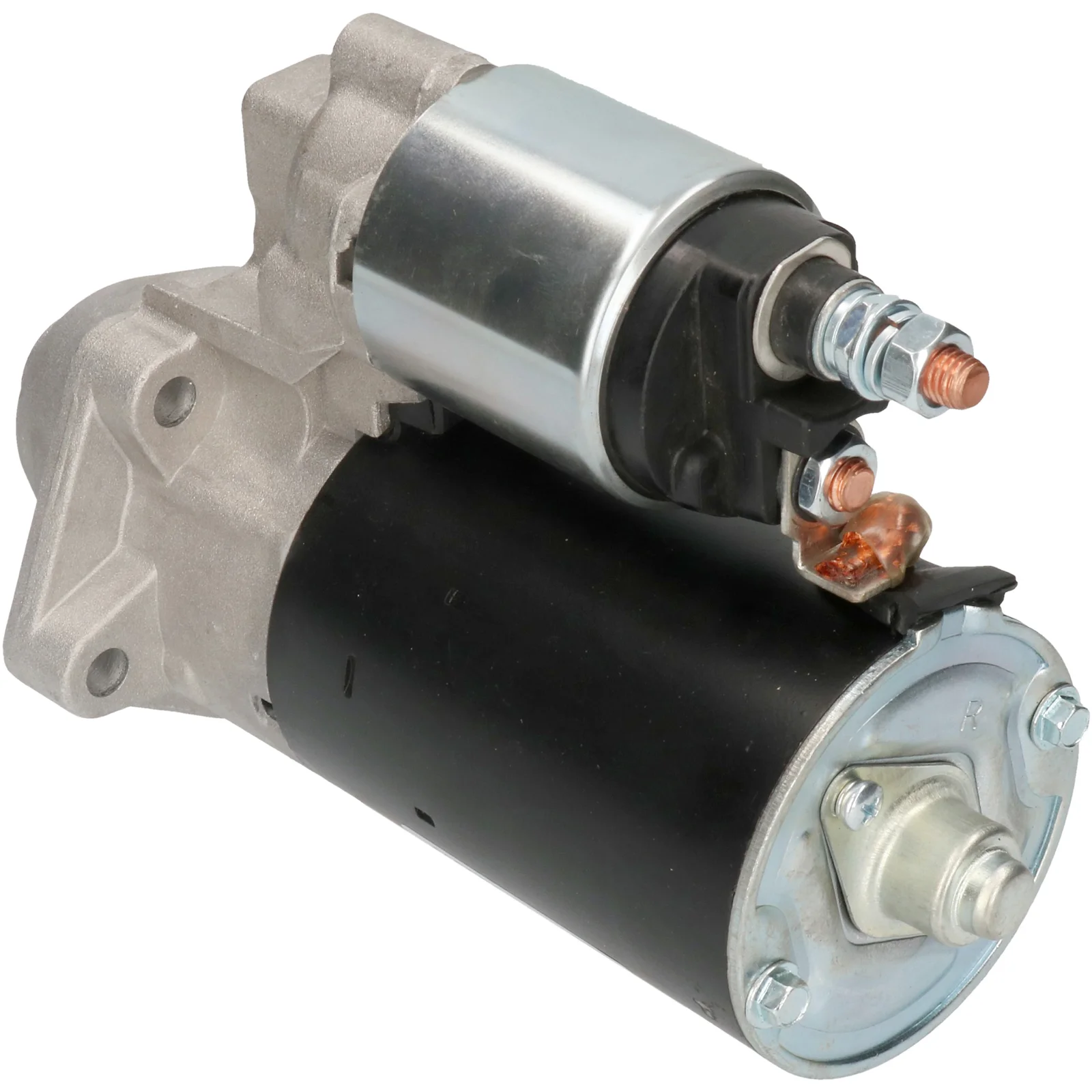

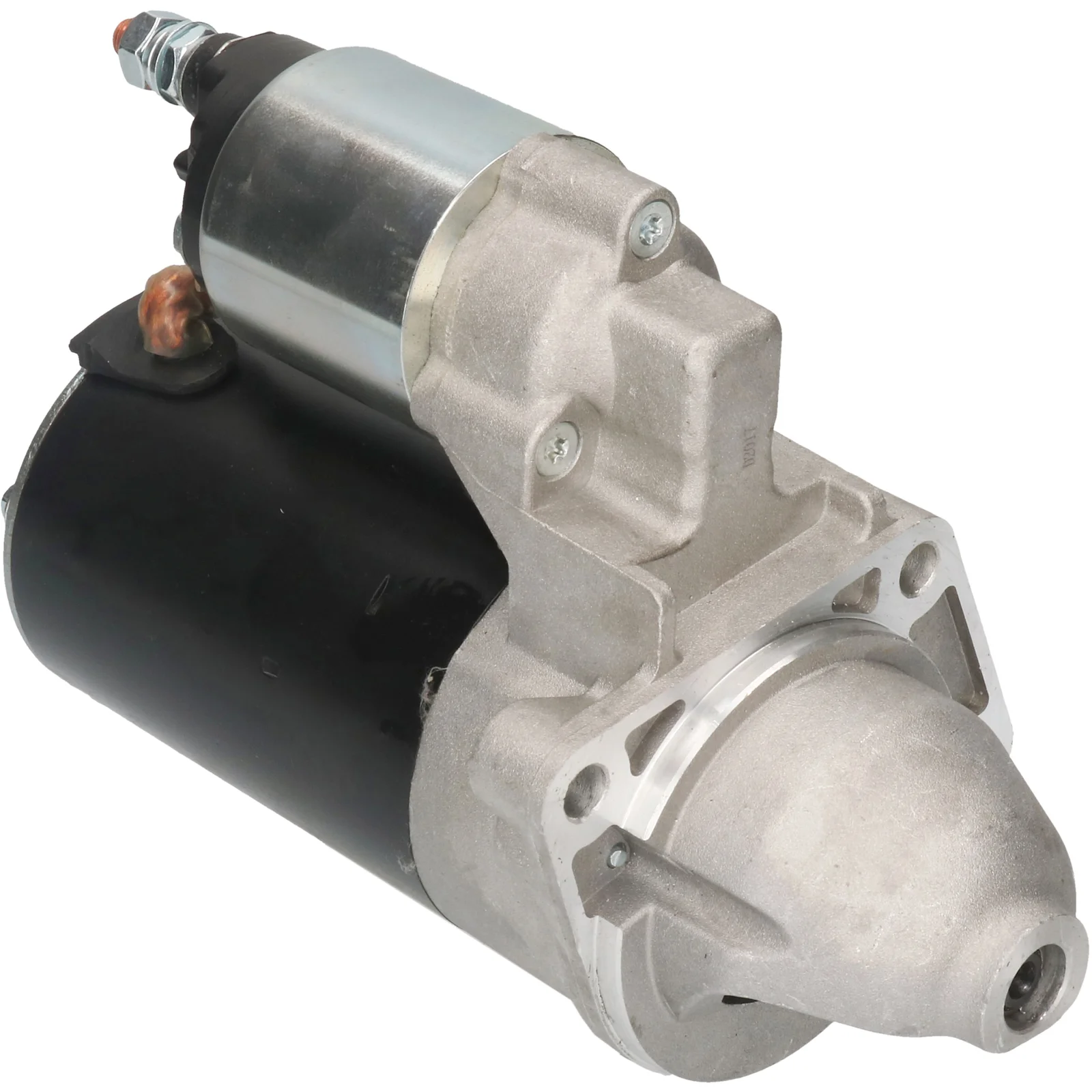

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116024

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.1, No./teeth: 10, Rotation: CW

Beskrivning

HC-Cargo Startmotor

Voltage: 12
kW: 1.1
Mount. flange: 76.20
Drive dist.: 20.00
Mount. hole 3 mm: 8.50
Mount. hole 2 mm: 8.50
Mount. hole 1 mm: 8.50
Dist./back: 151.00
Dist./front: 53.50
No./teeth: 10
B+: M8
Position/50: 60
Terminal 50: M6
Gear type: GR
Dist. 2: 95.50
Dist. 3: 72.00
Dist. mm: 46.50
Rotation: CW
Total length mm: 216.50
Starter type: Start/Stop
Prod. info: BN
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 76.20
No./mount. holes 3 (0)
Position/50 60
Prod. info BN
Dist. 2 95.50
Dist. 3 72.00
Rotation CW
Dist./back 151.00
Dist./front 53.50
Drive dist. 20.00
Gear type GR
Starter type Start/Stop
kW 1.1
Terminal 50 M6
Voltage 12
Total length 216.50 mm
Dist. 46.50 mm
Mount. hole 3 8.50 mm
Mount. hole 2 8.50 mm
Mount. hole 1 8.50 mm

  • OEM
    F032116024, 1986S00647, 1986S00826, 0001137003, 0001137004, 0001170406, 0001170407, 51829380, 51938439

  • Konkurrentreferens
    CST10526, DRS0656, DSN975, LRS02506, S0609S, S6056(DENSO), 8EA011611-801, 25-4178, 318.219.102, 500.538.103, 500.567.103, 500.568.103, 30244, 30244R, 31249N, 220672, 220672A, 254621, 11029150, 0986029150

  • Normaliserat artikelnummer
    cst10526, drs0656, dsn975, f032116024, lrs02506, s0609s, s6056denso, 8ea011611801, 1986s00647, 1986s00826, 30244, 30244r, 31249n, 220672, 220672a, 254178, 254621, 0001137003, 0001137004, 0001170406, 0001170407, 11029150, 51829380, 51938439, 318219102, 500538103, 500567103, 500568103, 0986029150

  • Passar modeller
    Alfa Romeo Model: Mito Model series: Mito Size of motor: 0.9 Brand of engine: 199B6.000 Type description: 955 Body: Hatchback From date: 01-04-2013 Fuel: Gasoline Approved: Yes
    Alfa Romeo Model: Mito Model series: Mito Size of motor: 0.9 Brand of engine: 199B6.000 Type description: 955 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Alfa Romeo Model: Mito Model series: Mito Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 955 Body: Hatchback From date: 01-07-2011 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 C Model series: 500 C Size of motor: 0.9 Brand of engine: 312A6.000 Type description: 312_ Body: Convertible From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 C Size of motor: 0.9 Brand of engine: 199B6.000 Body: Convertible From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 C Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 150 Body: Convertible From date: 01-09-2009 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 C Size of motor: 0.9 Brand of engine: 312A4.000 Body: Convertible From date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 C Size of motor: 0.9 Brand of engine: 312A5.000 Type description: 312 Body: Convertible From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 Size of motor: 0.9 Brand of engine: 199B6.000 Body: Hatchback From date: 01-10-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 150 Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 Size of motor: 0.9 Brand of engine: 312A4.000 Body: Hatchback From date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 Size of motor: 0.9 Brand of engine: 312A5.000 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 Size of motor: 1.0 Brand of engine: 312A4.000 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500L Model type: CNG Size of motor: 0.9 Brand of engine: 312A2.000 Body: Hatchback From date: 01-03-2013 Fuel: Gasoline/gas Approved: Yes
    Fiat Model: 500 Model series: 500L Size of motor: 0.9 Brand of engine: 199B6.000 Body: Hatchback From date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: 500L Model series: 500L Model type: Natural Power Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 351_, 352_ Body: Hatchback From date: 01-04-2017 Fuel: Gasoline/gas Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: 4x4 Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: 4x4 Size of motor: 0.9 Brand of engine: 312A7.000 Type description: 312 Body: Hatchback From date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: CNG Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-07-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: Natural Power Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-01-2015 Fuel: Gasoline/gas Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: Natural Power Size of motor: 0.9 Brand of engine: 46337566 Type description: 312_, 319_ Body: Hatchback From date: 01-03-2019 Fuel: LNG Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 0.9 Brand of engine: 312A5.000 Type description: 312, 319 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 1.0 Brand of engine: 312A4.000 Type description: 312 Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 1.0 Brand of engine: 312A4.000 Type description: 312, 319 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Van Model type: 4x4 Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Van Model type: Natural Power Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312_ Body: Van From date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Van Model type: Natural Power Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312_ Body: Van From date: 01-07-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Van Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Van Size of motor: 0.9 Brand of engine: 312A5.000 Type description: 312_ Body: Van From date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Van Size of motor: 1.0 Brand of engine: 312A4.000 Type description: 312 Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Model type: Twinair Turbo Type of engine: Turbo Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Size of motor: 0.9 Brand of engine: 199B6.000 Type description: 199 Body: Hatchback From date: 01-07-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Size of motor: 0.9 Brand of engine: 199B6.000 Type description: 199 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: BiFuel Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Bi-Fuel Approved: Yes
    Fiat Model: Punto Model series: Punto Van Type of engine: Twinair Turbo Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 199 Body: Van From date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Lancia Model: Ypsilon Model series: Ypsilon Model type: CNG Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 846 Body: Hatchback From date: 01-05-2011 Fuel: Gasoline/gas Approved: Yes
    Lancia Model: Ypsilon Model series: Ypsilon Model type: Twinair Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 846 Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
    Lancia Model: Ypsilon Model series: Ypsilon Type of engine: CNG Size of motor: 0.9 Brand of engine: 312A5.000 Type description: 312_ Body: Hatchback From date: 01-01-2014 Fuel: Gasoline/gas Approved: Yes
    Lancia Model: Ypsilon Model series: Ypsilon Type of engine: Twinair Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 846 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    1 / 8
  • Beskrivning
    HC-Cargo Startmotor

    Voltage: 12
    kW: 1.1
    Mount. flange: 76.20
    Drive dist.: 20.00
    Mount. hole 3 mm: 8.50
    Mount. hole 2 mm: 8.50
    Mount. hole 1 mm: 8.50
    Dist./back: 151.00
    Dist./front: 53.50
    No./teeth: 10
    B+: M8
    Position/50: 60
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 95.50
    Dist. 3: 72.00
    Dist. mm: 46.50
    Rotation: CW
    Total length mm: 216.50
    Starter type: Start/Stop
    Prod. info: BN
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 76.20
    No./mount. holes 3 (0)
    Position/50 60
    Prod. info BN
    Dist. 2 95.50
    Dist. 3 72.00
    Rotation CW
    Dist./back 151.00
    Dist./front 53.50
    Drive dist. 20.00
    Gear type GR
    Starter type Start/Stop
    kW 1.1
    Terminal 50 M6
    Voltage 12
    Total length 216.50 mm
    Dist. 46.50 mm
    Mount. hole 3 8.50 mm
    Mount. hole 2 8.50 mm
    Mount. hole 1 8.50 mm
  • Fordonsmatchning

    • OEM
      F032116024, 1986S00647, 1986S00826, 0001137003, 0001137004, 0001170406, 0001170407, 51829380, 51938439

    • Konkurrentreferens
      CST10526, DRS0656, DSN975, LRS02506, S0609S, S6056(DENSO), 8EA011611-801, 25-4178, 318.219.102, 500.538.103, 500.567.103, 500.568.103, 30244, 30244R, 31249N, 220672, 220672A, 254621, 11029150, 0986029150

    • Normaliserat artikelnummer
      cst10526, drs0656, dsn975, f032116024, lrs02506, s0609s, s6056denso, 8ea011611801, 1986s00647, 1986s00826, 30244, 30244r, 31249n, 220672, 220672a, 254178, 254621, 0001137003, 0001137004, 0001170406, 0001170407, 11029150, 51829380, 51938439, 318219102, 500538103, 500567103, 500568103, 0986029150

    • Passar modeller
      Alfa Romeo Model: Mito Model series: Mito Size of motor: 0.9 Brand of engine: 199B6.000 Type description: 955 Body: Hatchback From date: 01-04-2013 Fuel: Gasoline Approved: Yes
      Alfa Romeo Model: Mito Model series: Mito Size of motor: 0.9 Brand of engine: 199B6.000 Type description: 955 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Alfa Romeo Model: Mito Model series: Mito Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 955 Body: Hatchback From date: 01-07-2011 Fuel: Gasoline Approved: Yes
      Fiat Model: 500 C Model series: 500 C Size of motor: 0.9 Brand of engine: 312A6.000 Type description: 312_ Body: Convertible From date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Fiat Model: 500 Model series: 500 C Size of motor: 0.9 Brand of engine: 199B6.000 Body: Convertible From date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Fiat Model: 500 Model series: 500 C Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 150 Body: Convertible From date: 01-09-2009 Fuel: Gasoline Approved: Yes
      Fiat Model: 500 Model series: 500 C Size of motor: 0.9 Brand of engine: 312A4.000 Body: Convertible From date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Fiat Model: 500 Model series: 500 C Size of motor: 0.9 Brand of engine: 312A5.000 Type description: 312 Body: Convertible From date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Fiat Model: 500 Model series: 500 Size of motor: 0.9 Brand of engine: 199B6.000 Body: Hatchback From date: 01-10-2013 Fuel: Gasoline Approved: Yes
      Fiat Model: 500 Model series: 500 Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 150 Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Fiat Model: 500 Model series: 500 Size of motor: 0.9 Brand of engine: 312A4.000 Body: Hatchback From date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Fiat Model: 500 Model series: 500 Size of motor: 0.9 Brand of engine: 312A5.000 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Fiat Model: 500 Model series: 500 Size of motor: 1.0 Brand of engine: 312A4.000 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Fiat Model: 500 Model series: 500L Model type: CNG Size of motor: 0.9 Brand of engine: 312A2.000 Body: Hatchback From date: 01-03-2013 Fuel: Gasoline/gas Approved: Yes
      Fiat Model: 500 Model series: 500L Size of motor: 0.9 Brand of engine: 199B6.000 Body: Hatchback From date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Fiat Model: 500L Model series: 500L Model type: Natural Power Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 351_, 352_ Body: Hatchback From date: 01-04-2017 Fuel: Gasoline/gas Approved: Yes
      Fiat Model: Panda Model series: Panda Model type: 4x4 Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Model type: 4x4 Size of motor: 0.9 Brand of engine: 312A7.000 Type description: 312 Body: Hatchback From date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Model type: CNG Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-07-2012 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Model type: Natural Power Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-01-2015 Fuel: Gasoline/gas Approved: Yes
      Fiat Model: Panda Model series: Panda Model type: Natural Power Size of motor: 0.9 Brand of engine: 46337566 Type description: 312_, 319_ Body: Hatchback From date: 01-03-2019 Fuel: LNG Approved: Yes
      Fiat Model: Panda Model series: Panda Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Size of motor: 0.9 Brand of engine: 312A5.000 Type description: 312, 319 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Size of motor: 1.0 Brand of engine: 312A4.000 Type description: 312 Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Size of motor: 1.0 Brand of engine: 312A4.000 Type description: 312, 319 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Van Model type: 4x4 Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Van Model type: Natural Power Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312_ Body: Van From date: 01-01-2015 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Van Model type: Natural Power Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312_ Body: Van From date: 01-07-2012 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Van Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 312 Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Van Size of motor: 0.9 Brand of engine: 312A5.000 Type description: 312_ Body: Van From date: 01-11-2013 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Van Size of motor: 1.0 Brand of engine: 312A4.000 Type description: 312 Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Fiat Model: Punto Model series: Punto Model type: Twinair Turbo Type of engine: Turbo Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Gasoline Approved: Yes
      Fiat Model: Punto Model series: Punto Size of motor: 0.9 Brand of engine: 199B6.000 Type description: 199 Body: Hatchback From date: 01-07-2013 Fuel: Gasoline Approved: Yes
      Fiat Model: Punto Model series: Punto Size of motor: 0.9 Brand of engine: 199B6.000 Type description: 199 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: BiFuel Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Bi-Fuel Approved: Yes
      Fiat Model: Punto Model series: Punto Van Type of engine: Twinair Turbo Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 199 Body: Van From date: 01-03-2012 Fuel: Gasoline Approved: Yes
      Lancia Model: Ypsilon Model series: Ypsilon Model type: CNG Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 846 Body: Hatchback From date: 01-05-2011 Fuel: Gasoline/gas Approved: Yes
      Lancia Model: Ypsilon Model series: Ypsilon Model type: Twinair Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 846 Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
      Lancia Model: Ypsilon Model series: Ypsilon Type of engine: CNG Size of motor: 0.9 Brand of engine: 312A5.000 Type description: 312_ Body: Hatchback From date: 01-01-2014 Fuel: Gasoline/gas Approved: Yes
      Lancia Model: Ypsilon Model series: Ypsilon Type of engine: Twinair Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 846 Body: Hatchback From date: 01-12-2013 Fuel: Gasoline Approved: Yes
      1 / 8
