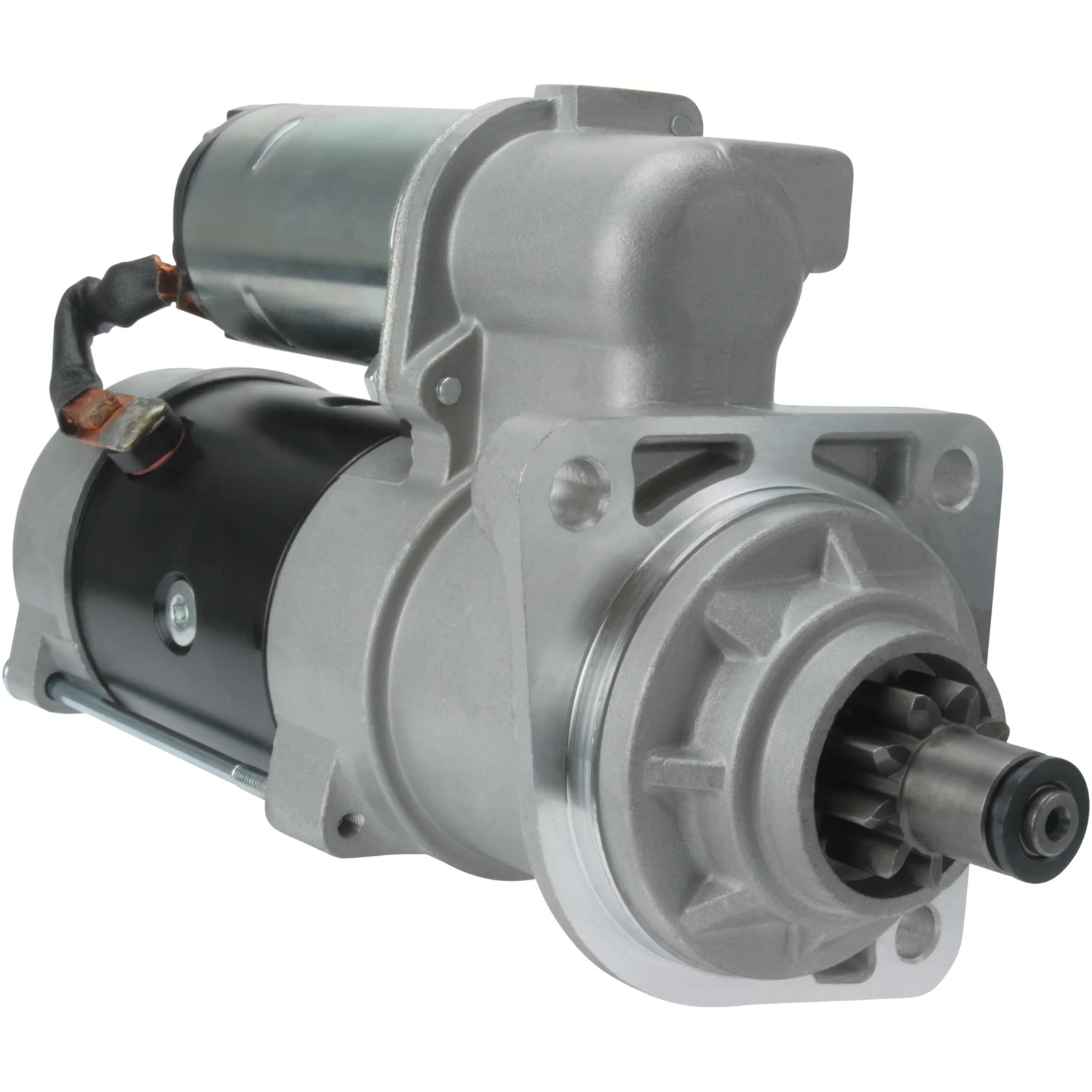

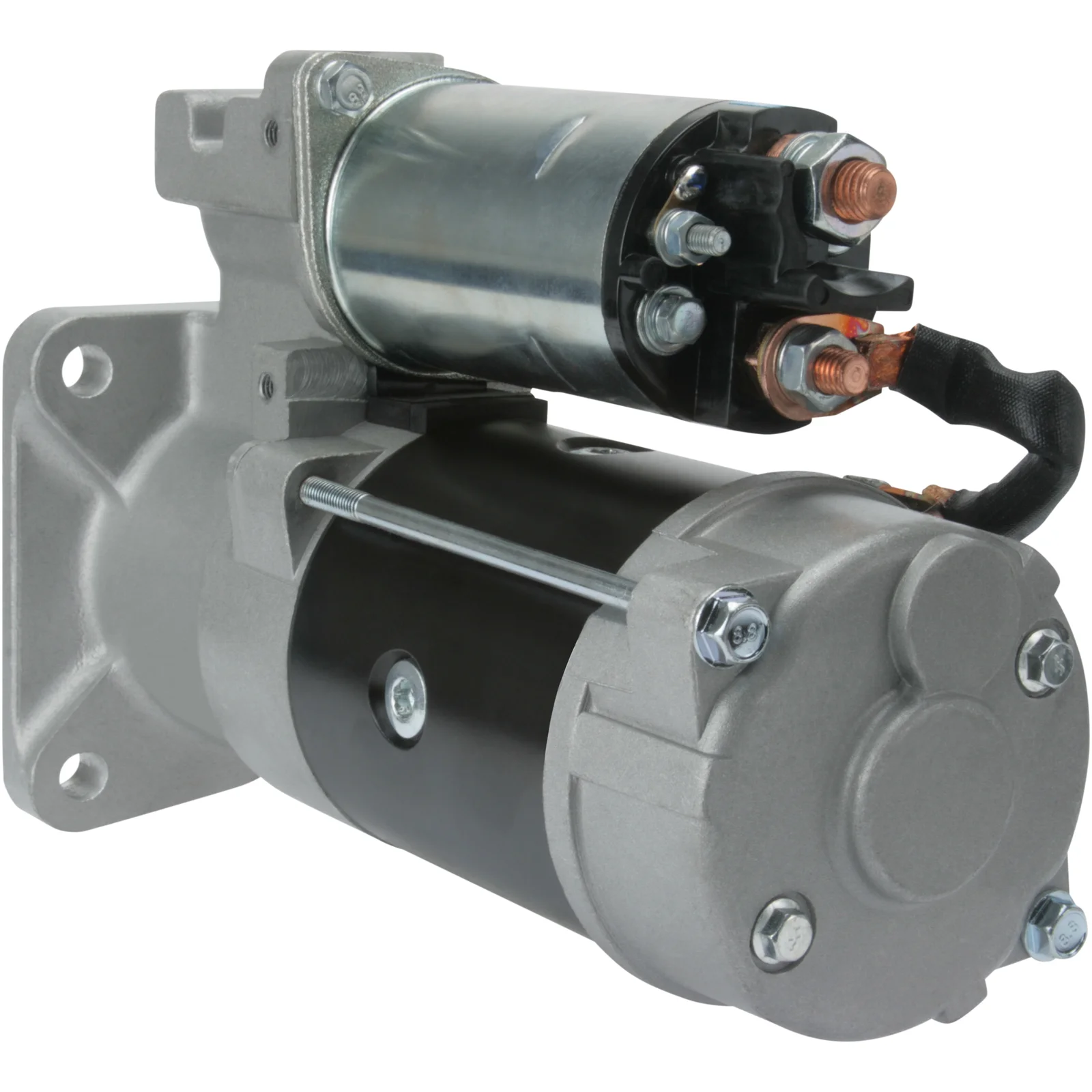

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116004

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.3, No./teeth: 9, Rotation: CW

Beskrivning

HC-Cargo Startmotor

Voltage: 12
kW: 3.3
Mount. flange: 89.00
Drive dist.: 46.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 229.00
Dist./front: 71.50
No./teeth: 9
B+: M10
Position/50: 50
Terminal 50: M5
Gear type: GR
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 306.00
Prod. info: BN
Remarks: 29MT.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 50
Prod. info BN
Dist. 2 127.00
Remarks 29MT.
Dist. 3 90.00
Rotation CW
Dist./back 229.00
Dist./front 71.50
Drive dist. 46.00
Gear type GR
kW 3.3
Terminal 50 M5
Voltage 12
Total length 306.00 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116004, 8200011, 8200570, 10461772, 19011403

  • Konkurrentreferens
    CST60143, F042003010, F042S03010, S1115, 540.503.093, 6842N, 254731

  • Normaliserat artikelnummer
    cst60143, f032116004, f042003010, f042s03010, s1115, 6842n, 254731, 8200011, 8200570, 10461772, 19011403, 540503093

  • Passar modeller
    Mercedes-Benz Model: Various Models Model series: Various Models Approved: No
  • Beskrivning
    HC-Cargo Startmotor

    Voltage: 12
    kW: 3.3
    Mount. flange: 89.00
    Drive dist.: 46.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 229.00
    Dist./front: 71.50
    No./teeth: 9
    B+: M10
    Position/50: 50
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 306.00
    Prod. info: BN
    Remarks: 29MT.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 50
    Prod. info BN
    Dist. 2 127.00
    Remarks 29MT.
    Dist. 3 90.00
    Rotation CW
    Dist./back 229.00
    Dist./front 71.50
    Drive dist. 46.00
    Gear type GR
    kW 3.3
    Terminal 50 M5
    Voltage 12
    Total length 306.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032116004, 8200011, 8200570, 10461772, 19011403

    • Konkurrentreferens
      CST60143, F042003010, F042S03010, S1115, 540.503.093, 6842N, 254731

    • Normaliserat artikelnummer
      cst60143, f032116004, f042003010, f042s03010, s1115, 6842n, 254731, 8200011, 8200570, 10461772, 19011403, 540503093

    • Passar modeller
      Mercedes-Benz Model: Various Models Model series: Various Models Approved: No
