HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115996

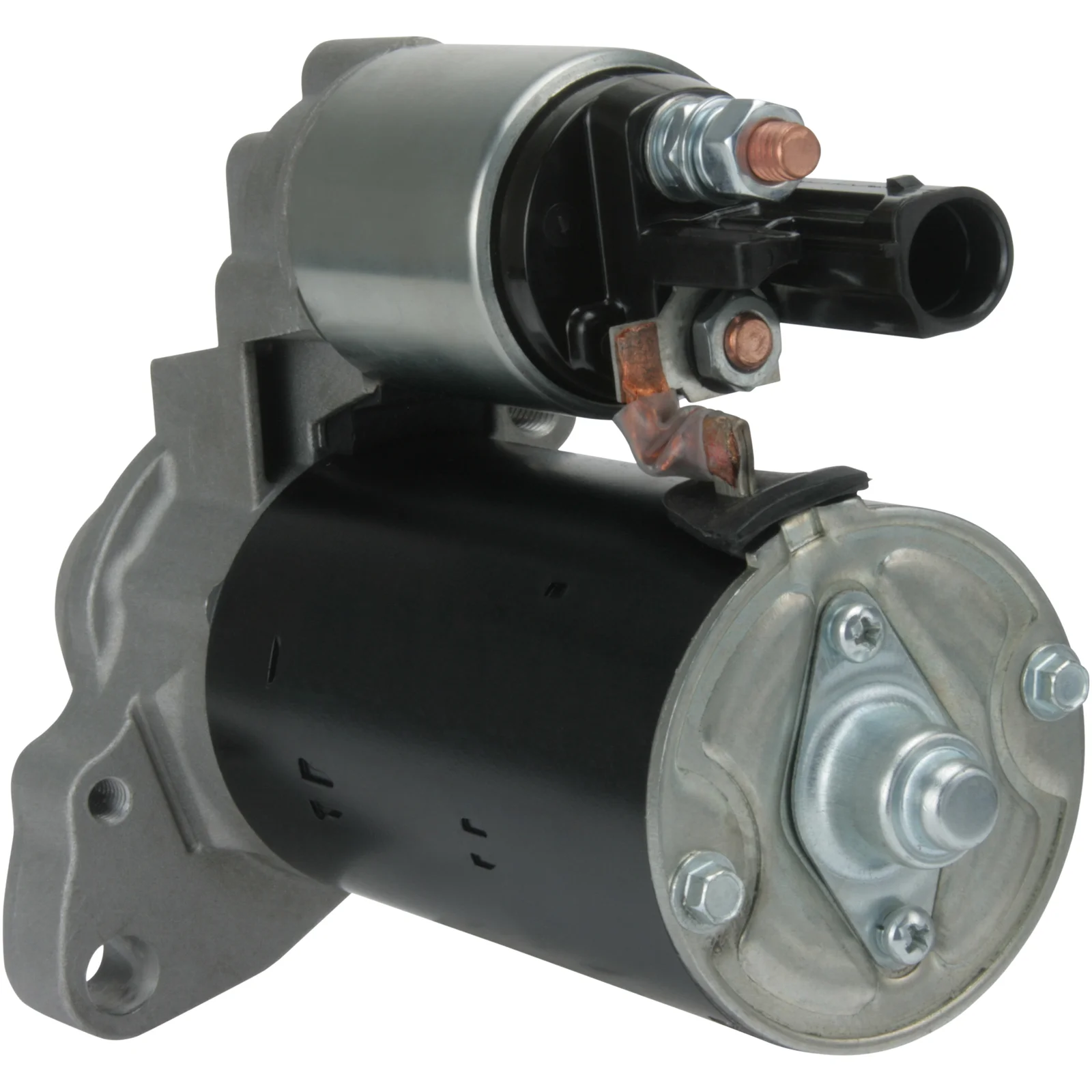

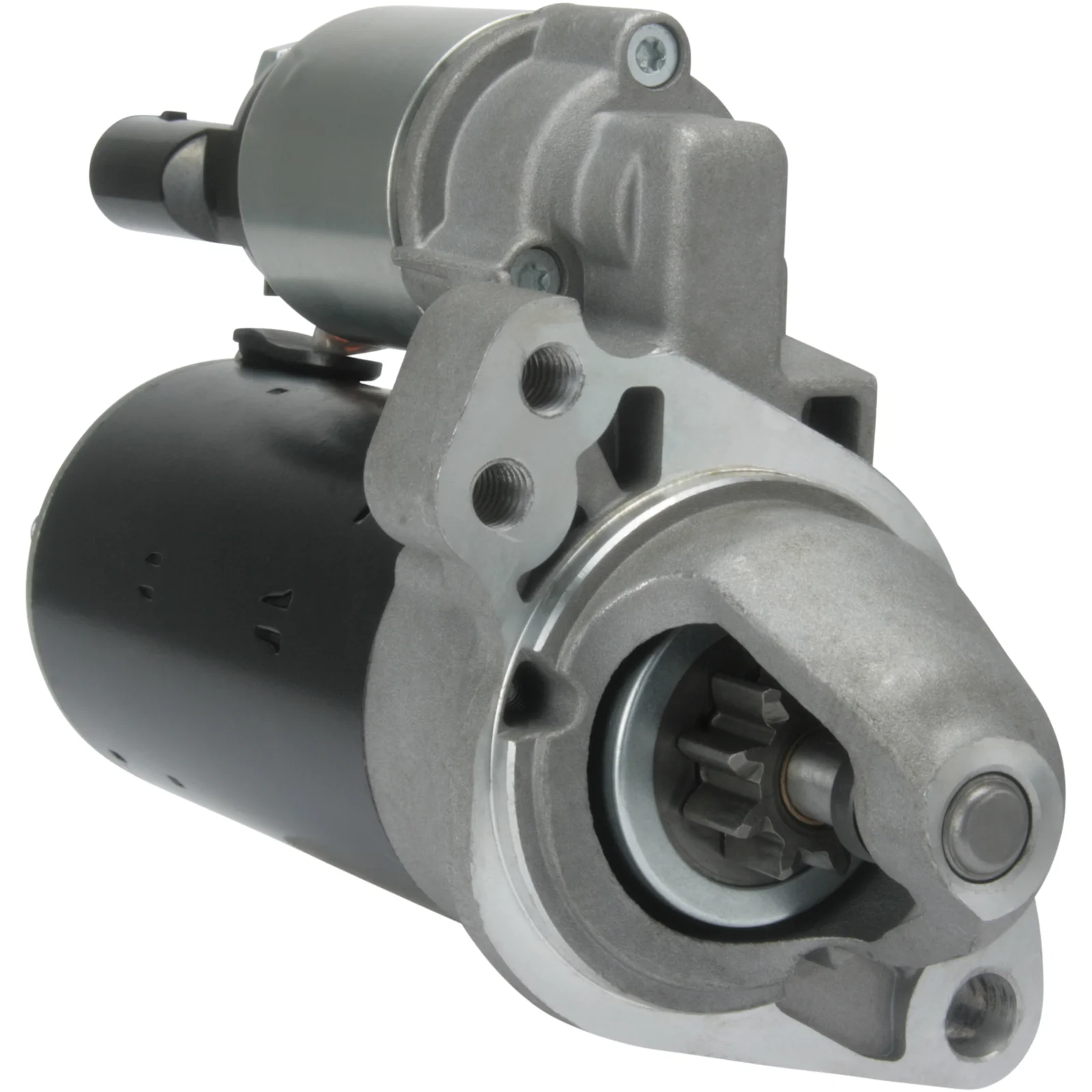

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 74.00
Drive dist.: 24.00
Mount. hole 4 mm: M10
Mount. hole 3 mm: M10
Mount. hole 2 mm: M10
Mount. hole 1 mm: 11.00
Dist./back: 155.00
Dist./front: 59.00
No./teeth: 9
B+: M8
Position/50: 17
Terminal 50: Plug
Gear type: GR
Dist. 2: 16.50
Dist. 3: 121.00
Dist. mm: 114.50
Rotation: CW
Total length mm: 226.00
Prod. info: BN
No./mount. holes: 3 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 3 (2)
Position/50 17
Prod. info BN
Dist. 2 16.50
Dist. 3 121.00
Rotation CW
Dist./back 155.00
Dist./front 59.00
Drive dist. 24.00
Gear type GR
kW 1.4
Terminal 50 Plug
Voltage 12
Total length 226.00 mm
Dist. 114.50 mm
Mount. hole 4 M10 mm
Mount. hole 3 M10 mm
Mount. hole 2 M10 mm
Mount. hole 1 11.00 mm

  • OEM
    F00E100577, F032115996, 07c911023g, 07C911023H, 07C911023HX, 1986S00698, 0001108237, 0001108238

  • Konkurrentreferens
    CST10495, LRS02461, S0545(BOSCH), S0545S, 25-4133, 200.529.092, 19004N, 19004R, 11090271

  • Normaliserat artikelnummer
    cst10495, f00e100577, f032115996, lrs02461, s0545bosch, s0545s, 07c911023g, 07c911023h, 07c911023hx, 1986s00698, 19004n, 19004r, 254133, 0001108237, 0001108238, 11090271, 200529092

  • Passar modeller
    Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 5.2 Brand of engine: BXA Type description: 4F2 From date: 01-03-2006 To date: 01-03-2011 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 5.2 Brand of engine: BXA Type description: 4F5 Body: Estate From date: 01-03-2006 To date: 01-08-2011 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: RS6 Size of motor: 5.0 Brand of engine: BUH Type description: 4F2 From date: 01-09-2008 To date: 01-08-2010 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: RS6 Model type: Quattro Size of motor: 5.0 Brand of engine: BUH Type description: 4F5 Body: Estate From date: 01-04-2008 To date: 01-08-2010 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A8 Model series: A8 Model type: Quattro Size of motor: 5.2 Brand of engine: BSM Type description: 4E_ From date: 01-06-2006 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: W12 Size of motor: 6.0 Brand of engine: BHT Type description: E4_ From date: 01-12-2003 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: W12 Size of motor: 6.0 Brand of engine: BSB Type description: E4_ From date: 01-12-2003 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: W12 Size of motor: 6.0 Brand of engine: BTE Type description: E4_ From date: 01-12-2003 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: FSI Size of motor: 4.2 Brand of engine: BAR Type description: 4LB Body: Box Body / Estate From date: 01-08-2006 To date: 01-05-2010 Fuel: Petrol Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: FSi Size of motor: 4.2 Brand of engine: BAR Body: SUV From date: 01-03-2006 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 74.00
    Drive dist.: 24.00
    Mount. hole 4 mm: M10
    Mount. hole 3 mm: M10
    Mount. hole 2 mm: M10
    Mount. hole 1 mm: 11.00
    Dist./back: 155.00
    Dist./front: 59.00
    No./teeth: 9
    B+: M8
    Position/50: 17
    Terminal 50: Plug
    Gear type: GR
    Dist. 2: 16.50
    Dist. 3: 121.00
    Dist. mm: 114.50
    Rotation: CW
    Total length mm: 226.00
    Prod. info: BN
    No./mount. holes: 3 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 3 (2)
    Position/50 17
    Prod. info BN
    Dist. 2 16.50
    Dist. 3 121.00
    Rotation CW
    Dist./back 155.00
    Dist./front 59.00
    Drive dist. 24.00
    Gear type GR
    kW 1.4
    Terminal 50 Plug
    Voltage 12
    Total length 226.00 mm
    Dist. 114.50 mm
    Mount. hole 4 M10 mm
    Mount. hole 3 M10 mm
    Mount. hole 2 M10 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F00E100577, F032115996, 07c911023g, 07C911023H, 07C911023HX, 1986S00698, 0001108237, 0001108238

    • Konkurrentreferens
      CST10495, LRS02461, S0545(BOSCH), S0545S, 25-4133, 200.529.092, 19004N, 19004R, 11090271

    • Normaliserat artikelnummer
      cst10495, f00e100577, f032115996, lrs02461, s0545bosch, s0545s, 07c911023g, 07c911023h, 07c911023hx, 1986s00698, 19004n, 19004r, 254133, 0001108237, 0001108238, 11090271, 200529092

    • Passar modeller
      Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 5.2 Brand of engine: BXA Type description: 4F2 From date: 01-03-2006 To date: 01-03-2011 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 5.2 Brand of engine: BXA Type description: 4F5 Body: Estate From date: 01-03-2006 To date: 01-08-2011 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: RS6 Size of motor: 5.0 Brand of engine: BUH Type description: 4F2 From date: 01-09-2008 To date: 01-08-2010 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: RS6 Model type: Quattro Size of motor: 5.0 Brand of engine: BUH Type description: 4F5 Body: Estate From date: 01-04-2008 To date: 01-08-2010 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A8 Model series: A8 Model type: Quattro Size of motor: 5.2 Brand of engine: BSM Type description: 4E_ From date: 01-06-2006 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: W12 Size of motor: 6.0 Brand of engine: BHT Type description: E4_ From date: 01-12-2003 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: W12 Size of motor: 6.0 Brand of engine: BSB Type description: E4_ From date: 01-12-2003 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: W12 Size of motor: 6.0 Brand of engine: BTE Type description: E4_ From date: 01-12-2003 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
      Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: FSI Size of motor: 4.2 Brand of engine: BAR Type description: 4LB Body: Box Body / Estate From date: 01-08-2006 To date: 01-05-2010 Fuel: Petrol Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: FSi Size of motor: 4.2 Brand of engine: BAR Body: SUV From date: 01-03-2006 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
      1 / 2
