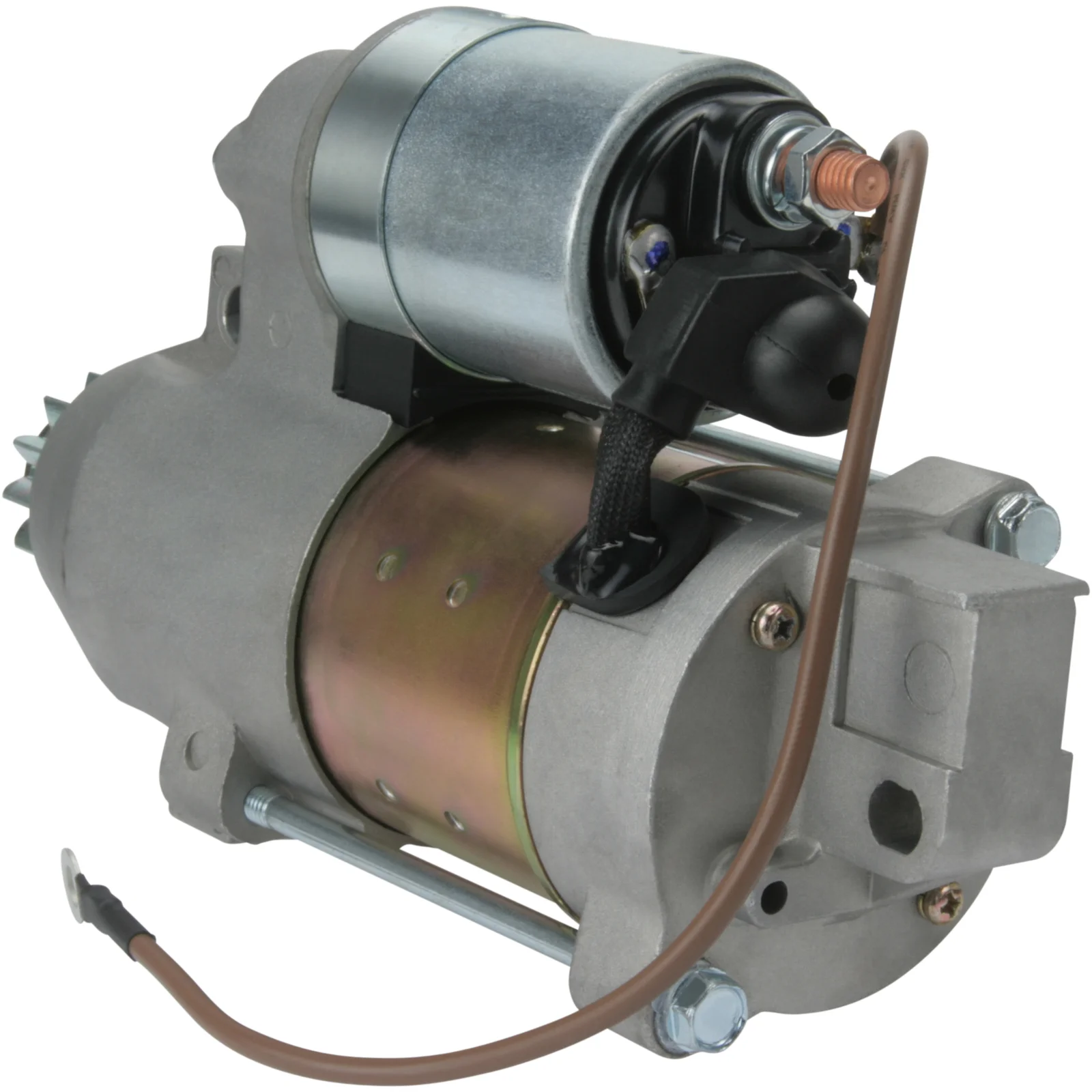

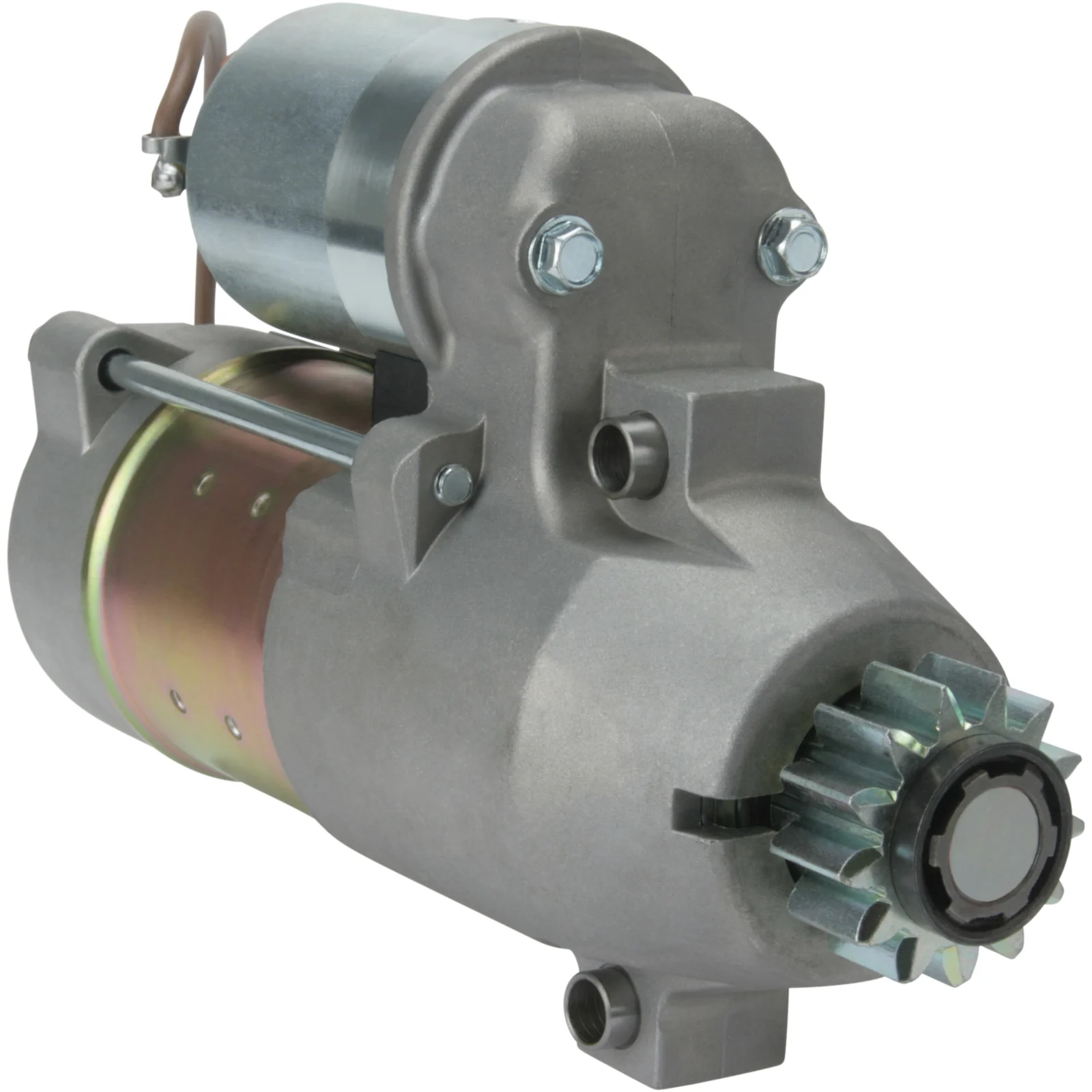

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115992

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 13, Rotation: CCW

Beskrivning

Voltage: 12
kW: 1.4
Drive dist.: 57.00
Mount. hole 3 mm: 8.50/10.00
Mount. hole 2 mm: 8.50
Mount. hole 1 mm: 8.50
Dist./back: 171.00
Dist./front: 62.00
No./teeth: 13
B+: M8
Terminal 50: 6.30
Gear type: GR
Dist. mm: 77.00
Rotation: CCW
Total length mm: 233.00
Prod. info: BN
Remarks: Terminal 50: Ø 6.30 mm.
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 13
No./mount. holes 2 (0)
Prod. info BN
Remarks Terminal 50: Ø 6.30 mm.
Rotation CCW
Dist./back 171.00
Dist./front 62.00
Drive dist. 57.00
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 233.00 mm
Dist. 77.00 mm
Mount. hole 3 8.50/10.00 mm
Mount. hole 2 8.50 mm
Mount. hole 1 8.50 mm

  • OEM
    F032115992, S114-838, s114-838a, S114-838B, S114-838C, 50-881368T1, 68V-81800-00, 68V-81800-01, 881368T1, 881368T2

  • Konkurrentreferens
    CST20209, 25-5234, 400.503.133, 18349, 18349n, 255172

  • Normaliserat artikelnummer
    cst20209, f032115992, s114838, s114838a, s114838b, s114838c, 68v8180000, 68v8180001, 18349, 18349n, 255172, 255234, 881368t1, 881368t2, 50881368t1, 400503133

  • Passar modeller
    Mercury Model: Marine Model series: Various Models Approved: Yes
    Yamaha Model: Outboat Motors Model series: Various Types From date: 01-01-1991 Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Drive dist.: 57.00
    Mount. hole 3 mm: 8.50/10.00
    Mount. hole 2 mm: 8.50
    Mount. hole 1 mm: 8.50
    Dist./back: 171.00
    Dist./front: 62.00
    No./teeth: 13
    B+: M8
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 77.00
    Rotation: CCW
    Total length mm: 233.00
    Prod. info: BN
    Remarks: Terminal 50: Ø 6.30 mm.
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 13
    No./mount. holes 2 (0)
    Prod. info BN
    Remarks Terminal 50: Ø 6.30 mm.
    Rotation CCW
    Dist./back 171.00
    Dist./front 62.00
    Drive dist. 57.00
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 233.00 mm
    Dist. 77.00 mm
    Mount. hole 3 8.50/10.00 mm
    Mount. hole 2 8.50 mm
    Mount. hole 1 8.50 mm
  • Fordonsmatchning

    • OEM
      F032115992, S114-838, s114-838a, S114-838B, S114-838C, 50-881368T1, 68V-81800-00, 68V-81800-01, 881368T1, 881368T2

    • Konkurrentreferens
      CST20209, 25-5234, 400.503.133, 18349, 18349n, 255172

    • Normaliserat artikelnummer
      cst20209, f032115992, s114838, s114838a, s114838b, s114838c, 68v8180000, 68v8180001, 18349, 18349n, 255172, 255234, 881368t1, 881368t2, 50881368t1, 400503133

    • Passar modeller
      Mercury Model: Marine Model series: Various Models Approved: Yes
      Yamaha Model: Outboat Motors Model series: Various Types From date: 01-01-1991 Approved: Yes
