HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115981

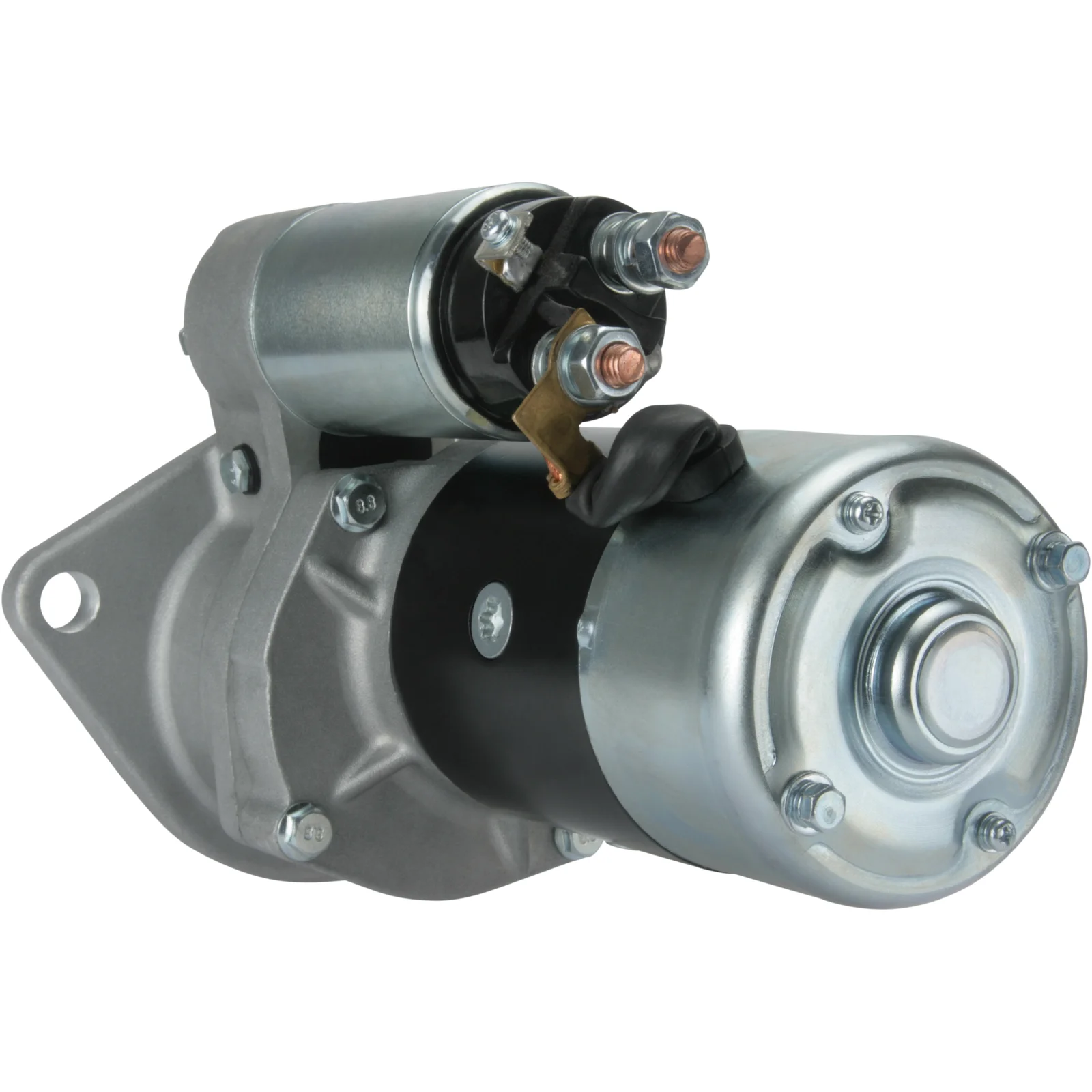

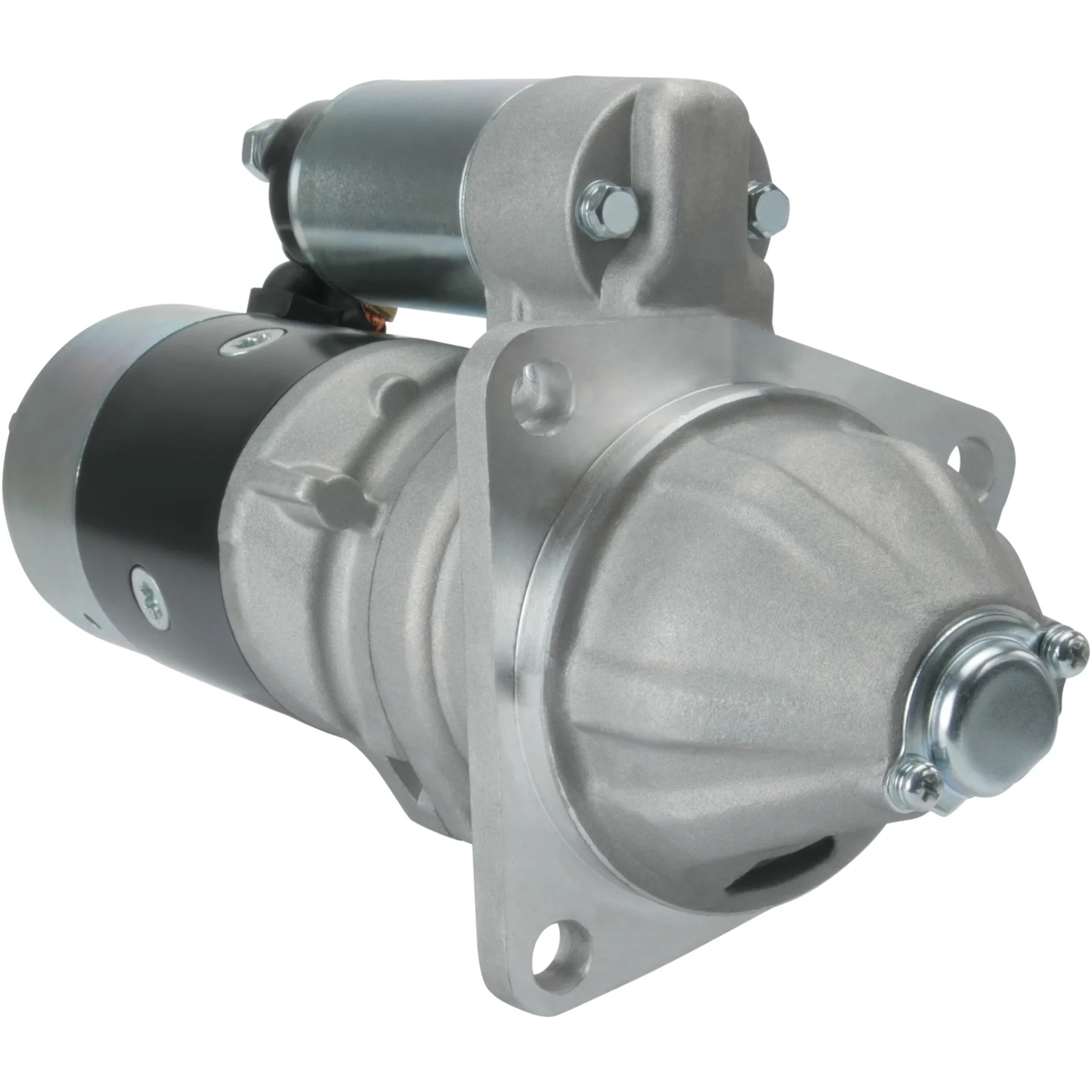

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 105.00
Drive dist.: 32.00
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 222.00
Dist./front: 78.00
No./teeth: 11
B+: M8
Position/50: 55
Terminal 50: M4
Gear type: GR
Dist. 2: 109.00
Dist. 3: 111.00
Dist. mm: 136.00
Rotation: CW
Total length mm: 304.00
Prod. info: BN
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 105.00
No./mount. holes 3 (0)
Position/50 55
Prod. info BN
Dist. 2 109.00
Dist. 3 111.00
Rotation CW
Dist./back 222.00
Dist./front 78.00
Drive dist. 32.00
Gear type GR
kW 2.5
Terminal 50 M4
Voltage 12
Total length 304.00 mm
Dist. 136.00 mm
Mount. hole 3 13.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032115981, s13-68, s13-68a, s13-68c, S13-759C, s13-86, 123500-77010, 124610-77010, 124610-77019

  • Konkurrentreferens
    CST20161, LRS01372, S2057, 25-2219, 682.022.112, 980.511.113, 18326N, 33828, 254017

  • Normaliserat artikelnummer
    cst20161, f032115981, lrs01372, s1368, s1368a, s1368c, s13759c, s1386, s2057, 18326n, 33828, 252219, 254017, 682022112, 980511113, 12350077010, 12461077010, 12461077019

  • Passar modeller
    Yanmar Model: Engine Model series: Various Models Brand of engine: 2TR16, 2TR19 Body: Tractor Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.5
    Mount. flange: 105.00
    Drive dist.: 32.00
    Mount. hole 3 mm: 13.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 222.00
    Dist./front: 78.00
    No./teeth: 11
    B+: M8
    Position/50: 55
    Terminal 50: M4
    Gear type: GR
    Dist. 2: 109.00
    Dist. 3: 111.00
    Dist. mm: 136.00
    Rotation: CW
    Total length mm: 304.00
    Prod. info: BN
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 105.00
    No./mount. holes 3 (0)
    Position/50 55
    Prod. info BN
    Dist. 2 109.00
    Dist. 3 111.00
    Rotation CW
    Dist./back 222.00
    Dist./front 78.00
    Drive dist. 32.00
    Gear type GR
    kW 2.5
    Terminal 50 M4
    Voltage 12
    Total length 304.00 mm
    Dist. 136.00 mm
    Mount. hole 3 13.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Fordonsmatchning

    • OEM
      F032115981, s13-68, s13-68a, s13-68c, S13-759C, s13-86, 123500-77010, 124610-77010, 124610-77019

    • Konkurrentreferens
      CST20161, LRS01372, S2057, 25-2219, 682.022.112, 980.511.113, 18326N, 33828, 254017

    • Normaliserat artikelnummer
      cst20161, f032115981, lrs01372, s1368, s1368a, s1368c, s13759c, s1386, s2057, 18326n, 33828, 252219, 254017, 682022112, 980511113, 12350077010, 12461077010, 12461077019

    • Passar modeller
      Yanmar Model: Engine Model series: Various Models Brand of engine: 2TR16, 2TR19 Body: Tractor Approved: Yes
