Artikelnr: F032115979

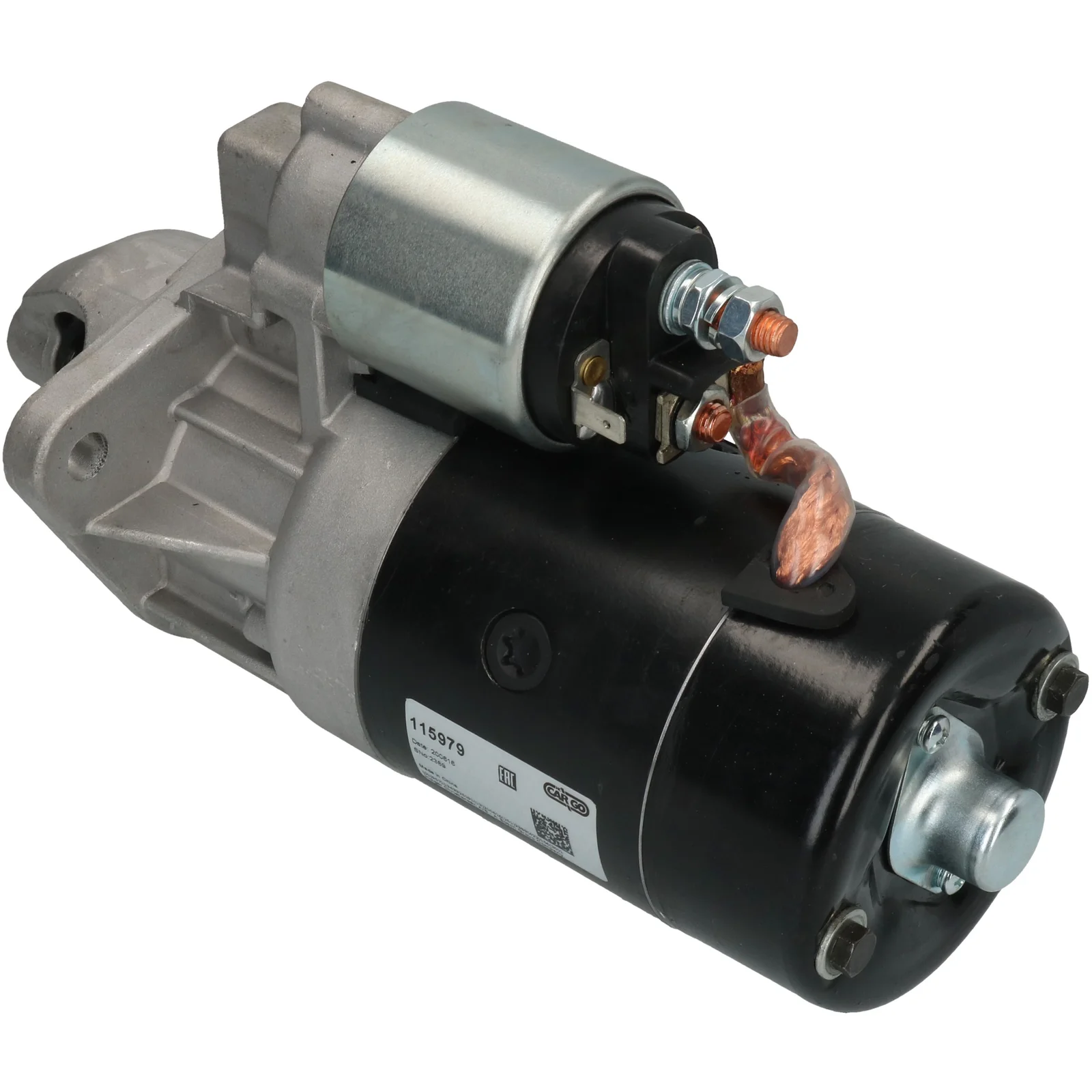

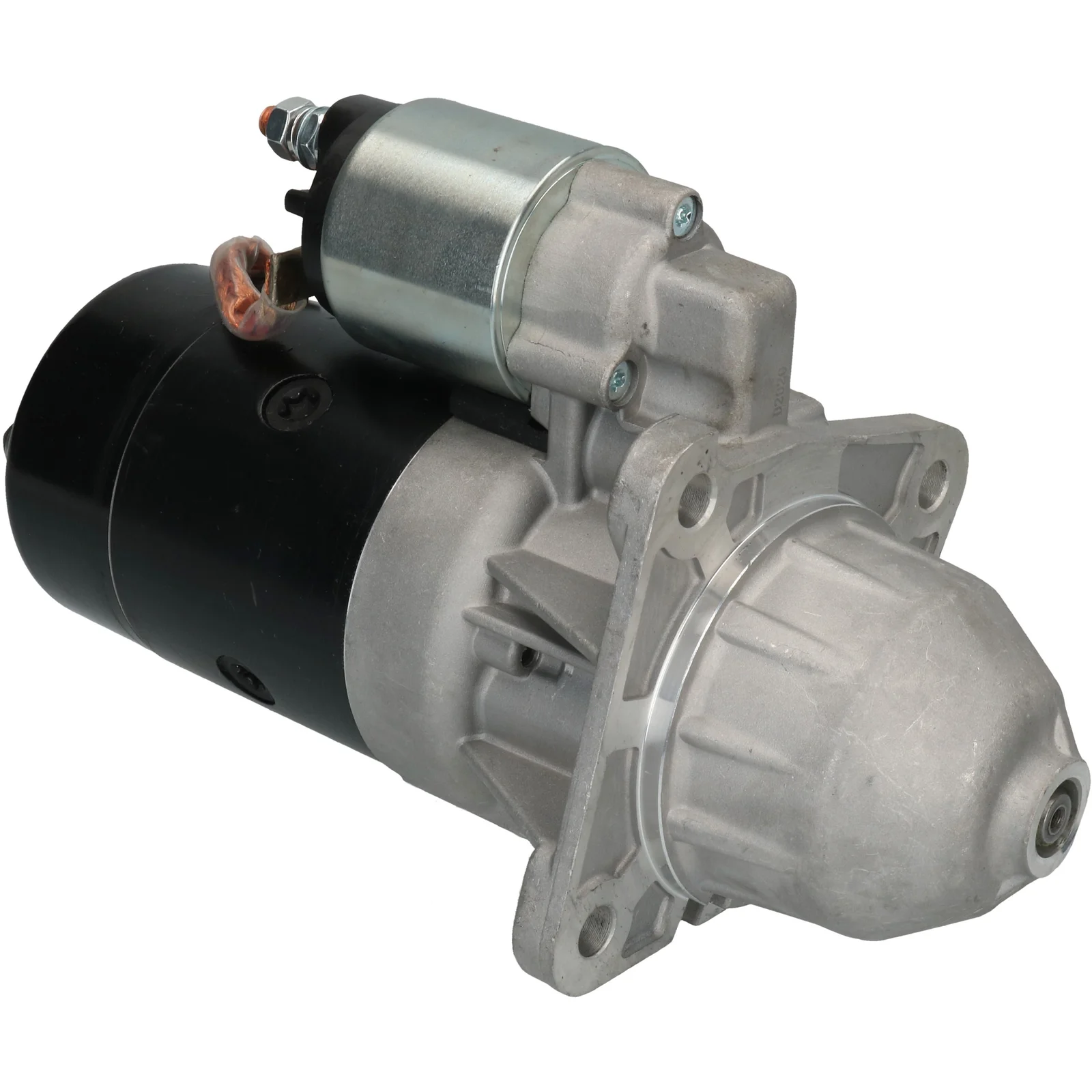

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.2
Mount. flange: 89.00
Drive dist.: 29.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 209.00
Dist./front: 69.00
No./teeth: 10
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 278.00
No./mount. holes: 3 (0)

Specifikation

B+ M8
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 45
Position/B+ 60
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 209.00
Dist./front 69.00
Drive dist. 29.00
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 278.00 mm
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm
  • OEM

    F032115979, 77200-0120, 0001218812, 9000331417, 9000331423
  • Konkurrentreferens

    CST10257, lrs01334, S0693S, 25-2134, 327.203.102, 11040795, 063522188, 063522188120
  • Normaliserat artikelnummer

    cst10257, f032115979, lrs01334, s0693s, 252134, 0001218812, 11040795, 063522188, 327203102, 772000120, 9000331417, 9000331423, 063522188120
  • Passar modeller

    Nissan Model: Trade Model series: Trade Type of engine: Diesel Size of motor: 2.8 Brand of engine: A428II Body: Platform / Chassis From date: 01-12-1986 To date: 01-06-1994 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.2
    Mount. flange: 89.00
    Drive dist.: 29.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 209.00
    Dist./front: 69.00
    No./teeth: 10
    B+: M8
    Position/B+: 60
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 278.00
    No./mount. holes: 3 (0)
  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 45
    Position/B+ 60
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 209.00
    Dist./front 69.00
    Drive dist. 29.00
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 278.00 mm
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning
    • OEM

      F032115979, 77200-0120, 0001218812, 9000331417, 9000331423
    • Konkurrentreferens

      CST10257, lrs01334, S0693S, 25-2134, 327.203.102, 11040795, 063522188, 063522188120
    • Normaliserat artikelnummer

      cst10257, f032115979, lrs01334, s0693s, 252134, 0001218812, 11040795, 063522188, 327203102, 772000120, 9000331417, 9000331423, 063522188120
    • Passar modeller

      Nissan Model: Trade Model series: Trade Type of engine: Diesel Size of motor: 2.8 Brand of engine: A428II Body: Platform / Chassis From date: 01-12-1986 To date: 01-06-1994 Fuel: Diesel Approved: Yes
