Artikelnr: F032115968

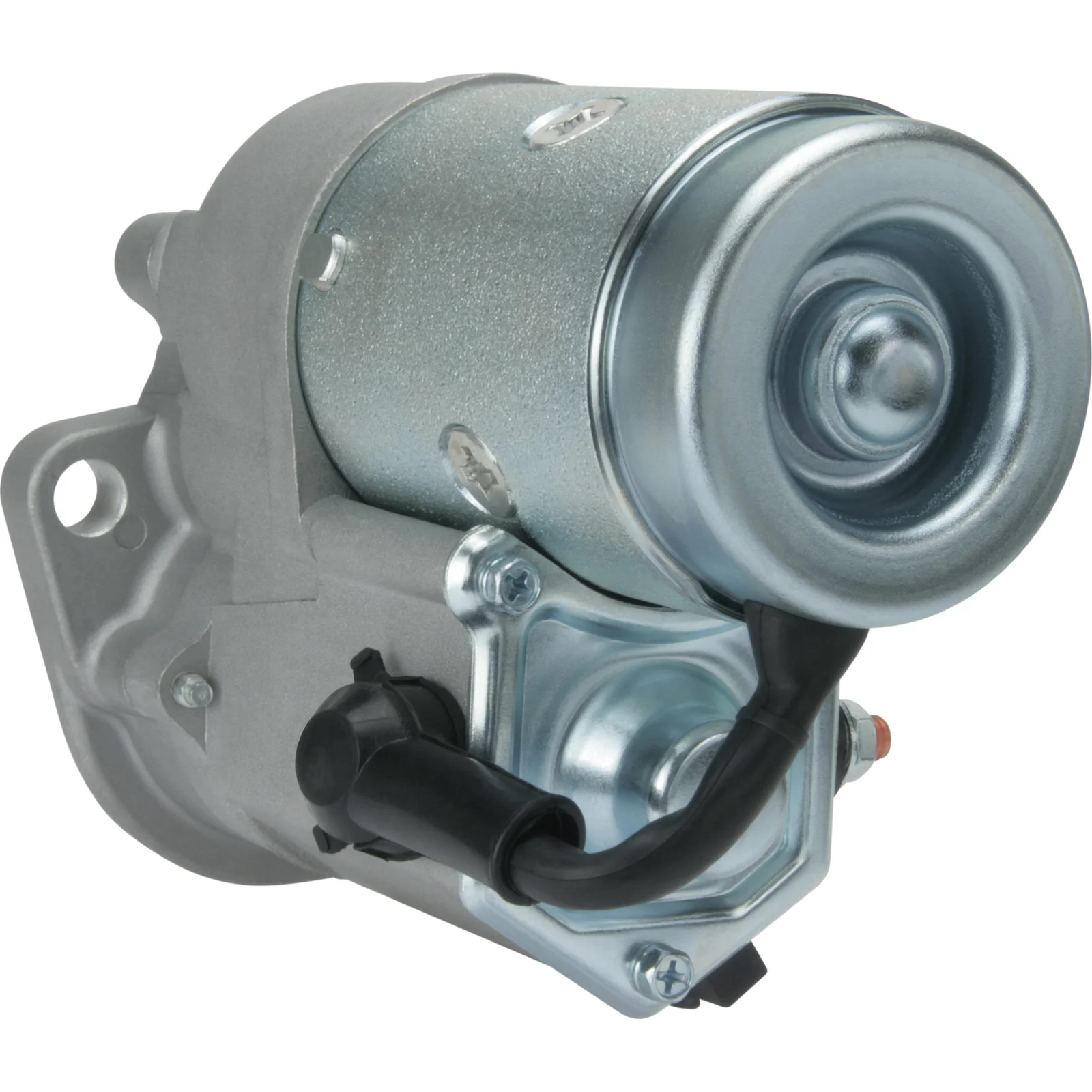

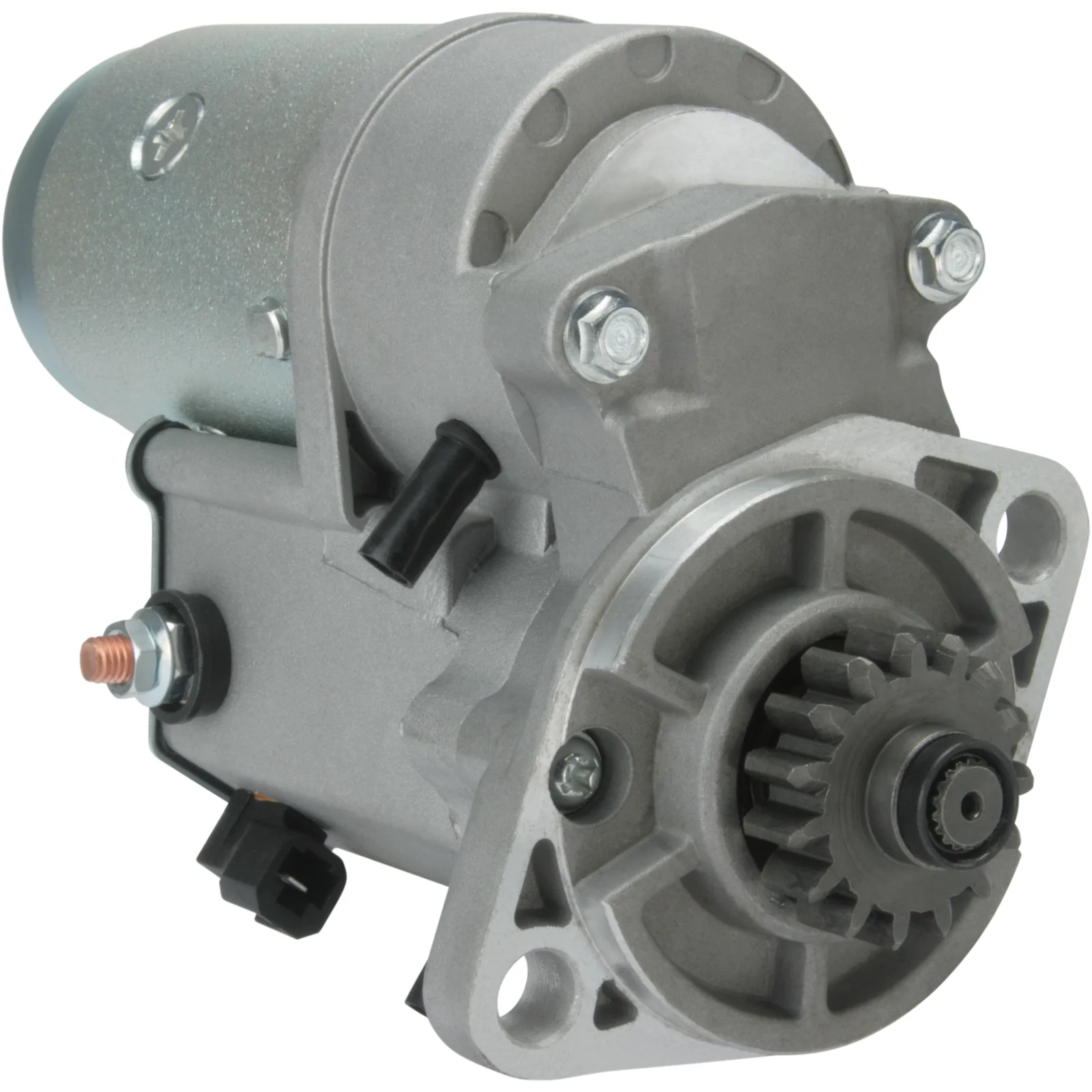

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 15, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 82.50
Drive dist.: 26.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 139.00
Dist./front: 39.00
No./teeth: 15
B+: M8
Position/B+: 15
Position/50: 24
Terminal 50: Plug
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 220.00
Prod. info: BN
No./mount. holes: 2 (0)

Specifikation

B+ M8
No./teeth 15
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 24
Position/B+ 15
Prod. info BN
Rotation CW
Dist./back 139.00
Dist./front 39.00
Drive dist. 26.00
Gear type GR
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 220.00 mm
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm
  • OEM

    F032115968, 03101-3180, 4900574
  • Konkurrentreferens

    CST41106, DRS0237, S9450S, 25-5117, 19188, 19188N, 254329, 11040924
  • Normaliserat artikelnummer

    cst41106, drs0237, f032115968, s9450s, 19188, 19188n, 254329, 255117, 4900574, 11040924, 031013180
  • Passar modeller

    Cummins Model: Type A 2300 Model series: Sweeper Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Brand of engine: Cummins A 2300 Approved: Yes
    Vermeer Model: Trencher Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 82.50
    Drive dist.: 26.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 139.00
    Dist./front: 39.00
    No./teeth: 15
    B+: M8
    Position/B+: 15
    Position/50: 24
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 220.00
    Prod. info: BN
    No./mount. holes: 2 (0)
  • Specifikation
    B+ M8
    No./teeth 15
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 24
    Position/B+ 15
    Prod. info BN
    Rotation CW
    Dist./back 139.00
    Dist./front 39.00
    Drive dist. 26.00
    Gear type GR
    kW 2.0
    Terminal 50 Plug
    Voltage 12
    Total length 220.00 mm
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning
    • OEM

      F032115968, 03101-3180, 4900574
    • Konkurrentreferens

      CST41106, DRS0237, S9450S, 25-5117, 19188, 19188N, 254329, 11040924
    • Normaliserat artikelnummer

      cst41106, drs0237, f032115968, s9450s, 19188, 19188n, 254329, 255117, 4900574, 11040924, 031013180
    • Passar modeller

      Cummins Model: Type A 2300 Model series: Sweeper Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Brand of engine: Cummins A 2300 Approved: Yes
      Vermeer Model: Trencher Model series: Various Models Approved: Yes
