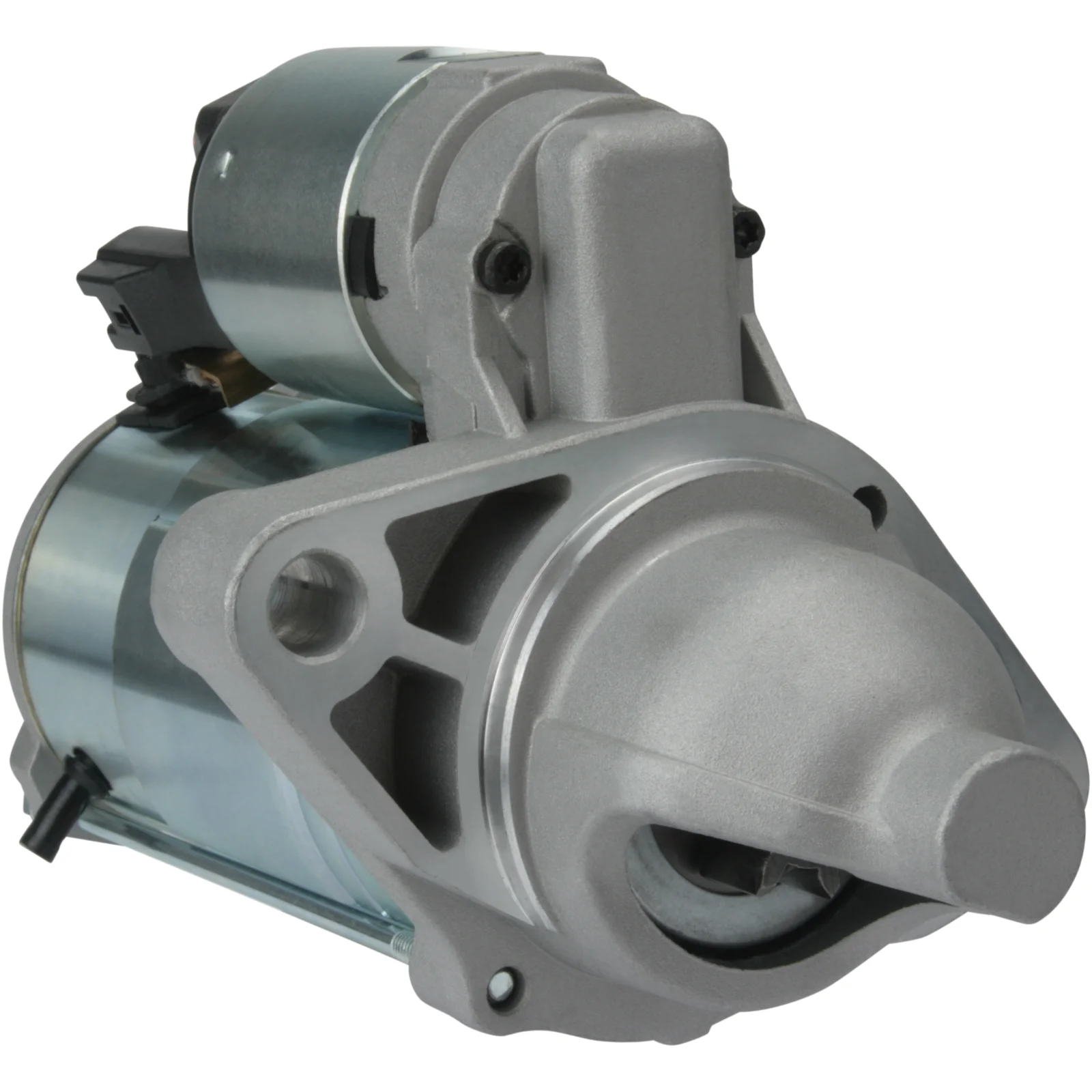

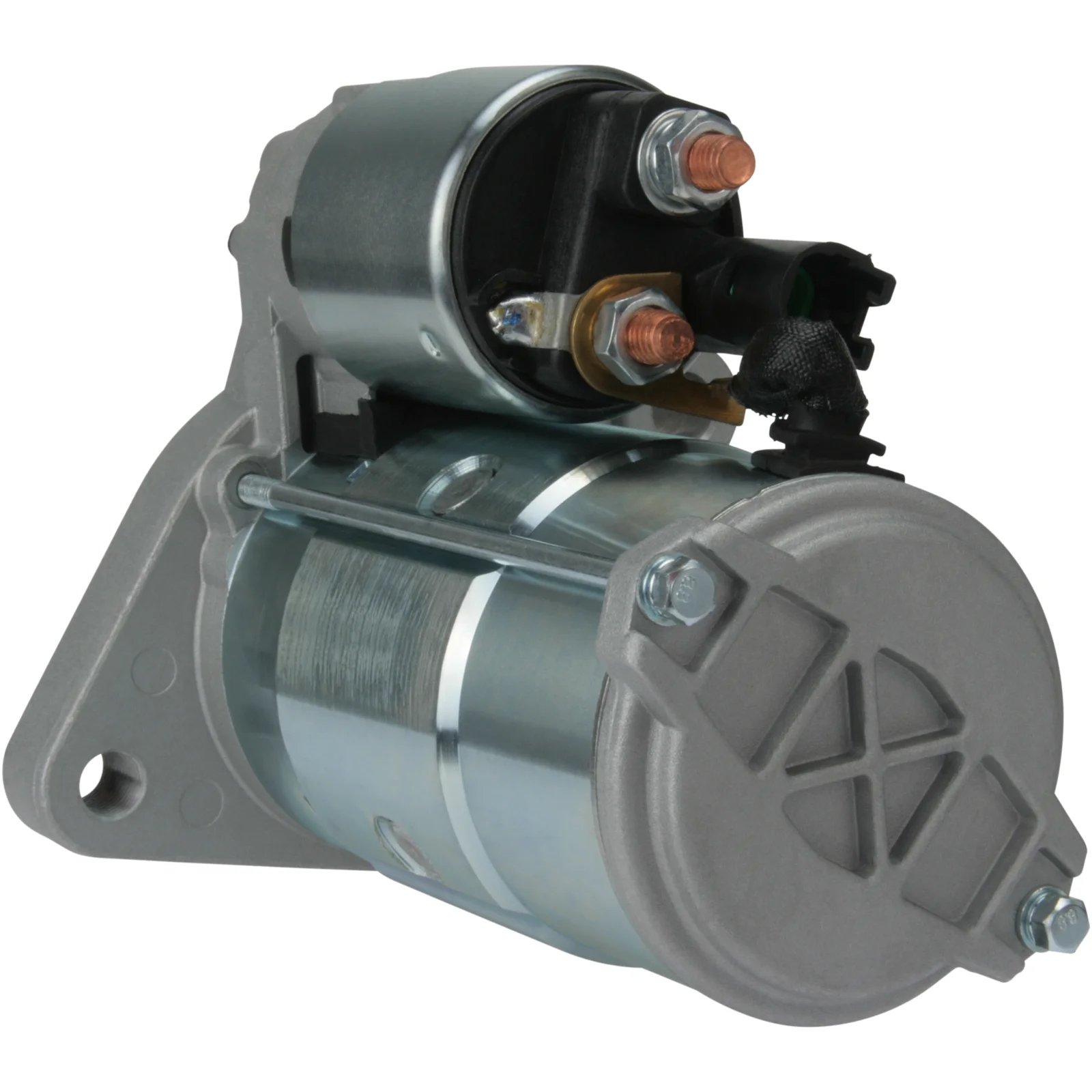

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115839

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 8, Rotation: CW

Beskrivning

12V - 2.0kW, 8k

Voltage: 12
kW: 2.0
Mount. flange: 74.00
Drive dist.: 24.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: M12-1.25
Dist./back: 155.00
Dist./front: 64.00
No./teeth: 8
B+: M8
Position/50: 20
Terminal 50: Plug
Gear type: GR
Dist. mm: 123.00
Rotation: CW
Total length mm: 217.00
Prod. info: BN
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 20
Prod. info BN
Rotation CW
Dist./back 155.00
Dist./front 64.00
Drive dist. 24.00
Gear type GR
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 217.00 mm
Dist. 123.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 M12-1.25 mm

  • OEM
    CS1542, cs1542, F032115839, TS24E3, TS24E30, 28100-0R020, 28100-0r020, 28100-0R021, 115839

  • Konkurrentreferens
    CST15257, DRS0765, S3088, S3127, 201160, 220588, 220588A, 438220, 438494, 448271, 458373, 11040749, 0986028030

  • Bilmärken
    Toyota

  • Normaliserat artikelnummer
    cs1542, cst15257, drs0765, f032115839, s3088, s3127, ts24e3, ts24e30, 115839, 201160, 220588, 220588a, 281000r020, 281000r021, 438220, 438494, 448271, 458373, 11040749, 0986028030

  • Passar modeller
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: T27 Body: Estate From date: 01-11-2011 To date: 01-10-2018 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: T27 From date: 01-11-2011 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: T27 Body: Estate From date: 01-02-2009 To date: 01-10-2018 Fuel: Diesel Approved: Yes Manufacture type: Station Wa
    Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: T27 From date: 01-11-2008 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: T27 Body: Estate From date: 01-02-2009 To date: 01-10-2018 Fuel: Diesel Approved: Yes Manufacture type: Station Wa
    Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: T27 From date: 01-11-2008 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: T27 Body: Estate From date: 01-02-2009 To date: 01-10-2018 Fuel: Diesel Approved: Yes Manufacture type: Station Wa
    Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: T27 From date: 01-11-2008 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Model type: D-CAT (AUR21_) Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: _R2_ Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: AUR20 Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: _AUR2_, _ZGR2_ Body: MPV From date: 01-11-2012 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: AUR21 Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: _R2_ Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Van Model series: Verso Van Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: _R2_ Body: Van From date: 01-11-2012 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Van Model series: Verso Van Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: _R2_ Body: Van From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Series: AVENSIS Kombi Model: 2.0 D-4D Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.08-10.18
    Toyota Series: AVENSIS Kombi Model: 2.0 D-4D Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.11-10.18
    Toyota Series: AVENSIS Kombi Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FHV Year: 11.08-10.18
    Toyota Series: AVENSIS Kombi Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FHV/2AD-FTV Year: 11.08-10.18
    Toyota Series: AVENSIS Sedan Model: 2.0 D-4D Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.08-10.18
    Toyota Series: AVENSIS Sedan Model: 2.0 D-4D Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.11-10.18
    Toyota Series: AVENSIS Sedan Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FHV Year: 11.08-10.18
    Toyota Series: AVENSIS Sedan Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FHV/2AD-FTV Year: 11.08-10.18
    Toyota Series: VERSO Model: 2.0 D-4D Engine volume: 2.0 Engine type: 1AD-FTV Year: 04.09-08.18
    Toyota Series: VERSO Model: 2.0 D-4D Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.12-08.18
    Toyota Series: VERSO Model: 2.2 D-4D Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
    Toyota Series: VERSO Model: 2.2 D-CAT Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
    Toyota Series: VERSO VAN Model: D4d Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.12-08.18
    Toyota Series: VERSO VAN Model: D4d Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
