Artikelnr: F032115778

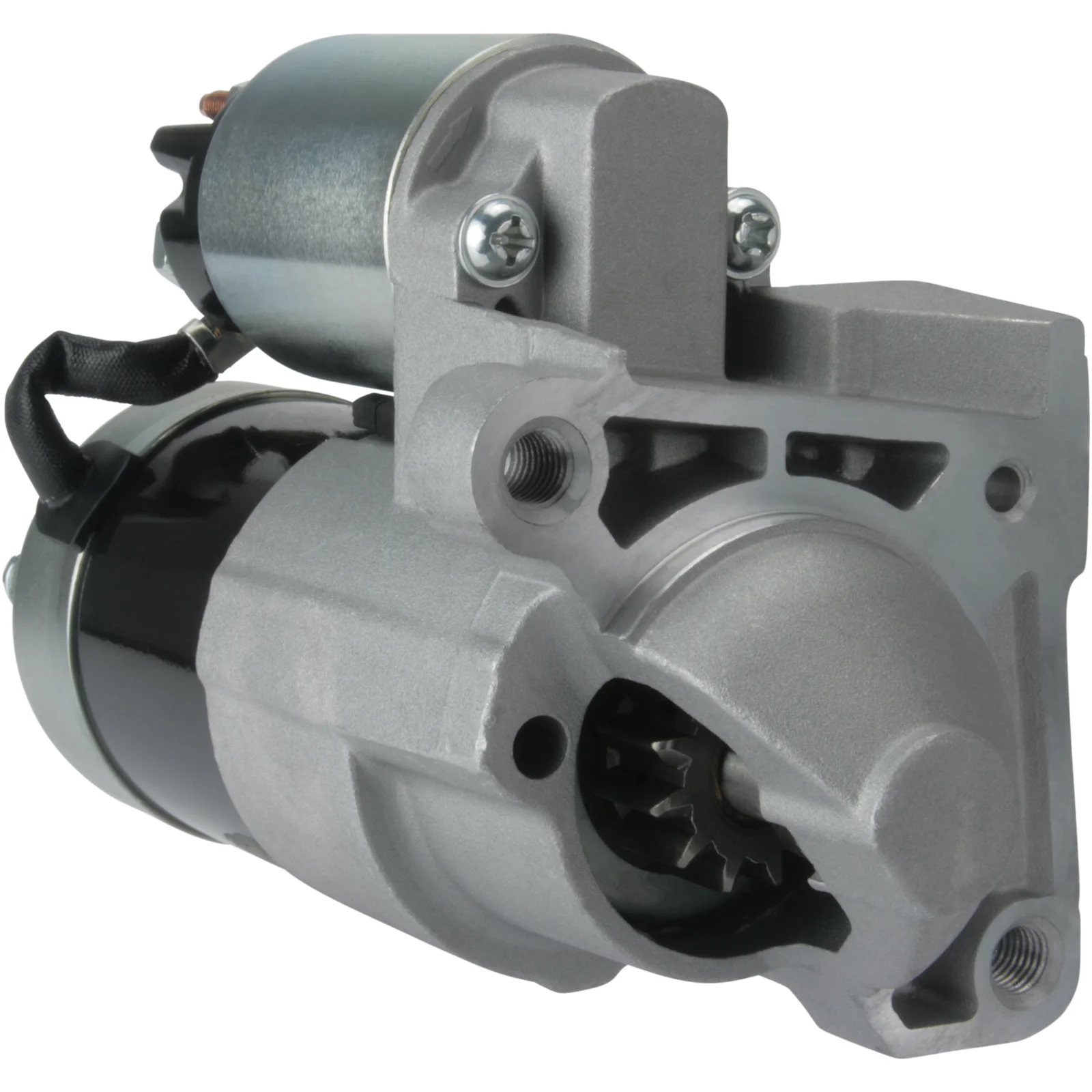

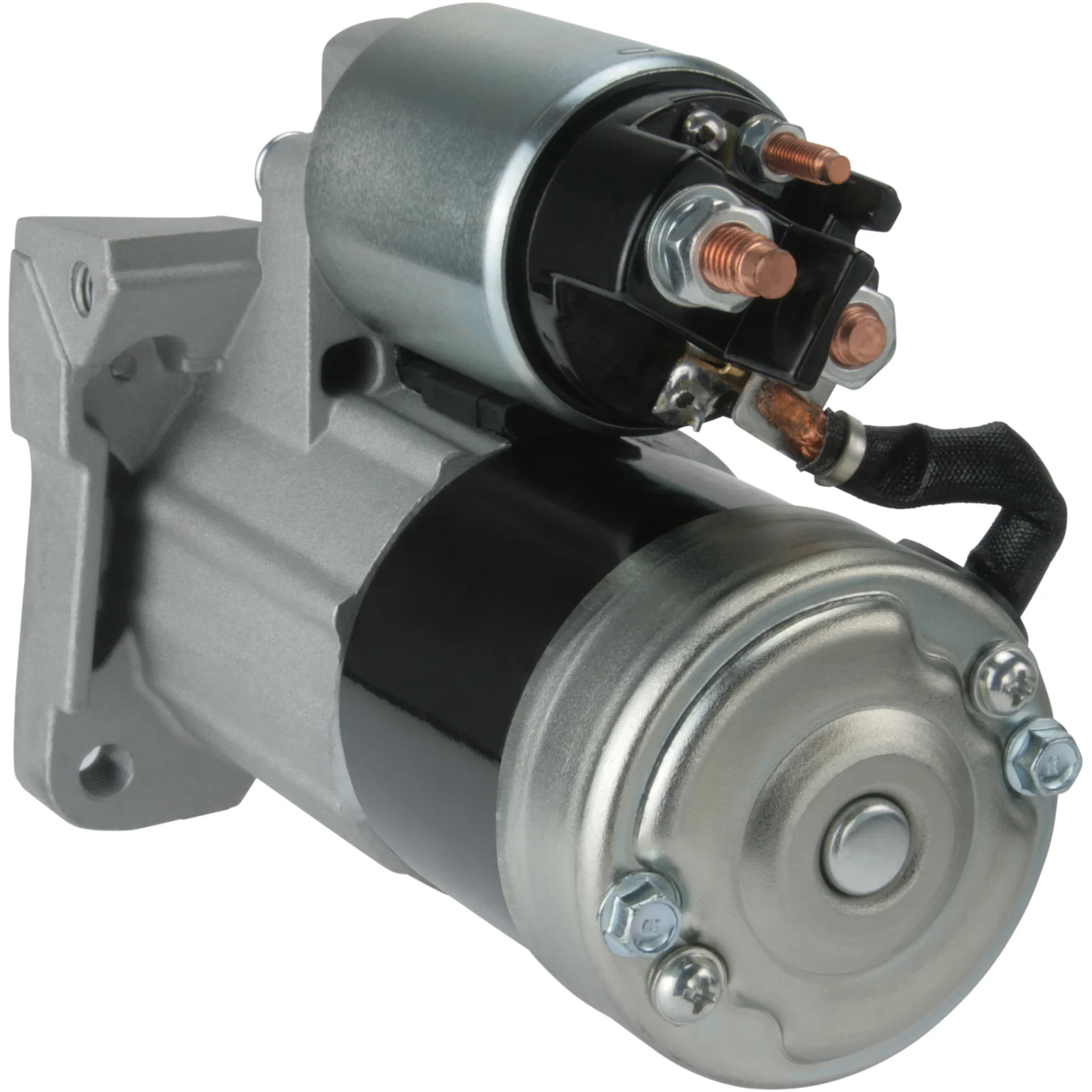

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 12, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 65.00
Drive dist.: -1.50
Mount. hole 3 mm: M10-1.25
Mount. hole 1 mm: 5.70
Dist./back: 159.00
Dist./front: 35.00
No./teeth: 12
B+: M8
Position/50: 5
Terminal 50: M5
Gear type: GR
Dist. 2: 104.00
Dist. 3: 71.50
Dist. mm: 63.50
Rotation: CW
Total length mm: 196.00
Prod. info: BN
No./mount. holes: 3 (2)

Specifikation

B+ M8
No./teeth 12
Mount. flange 65.00
No./mount. holes 3 (2)
Position/50 5
Prod. info BN
Dist. 2 104.00
Dist. 3 71.50
Rotation CW
Dist./back 159.00
Dist./front 35.00
Drive dist. -1.50
Gear type GR
kW 1.4
Terminal 50 M5
Voltage 12
Total length 196.00 mm
Dist. 63.50 mm
Mount. hole 3 M10-1.25 mm
Mount. hole 1 5.70 mm
  • OEM

    F032115778, M000T88381, M0T88381, 31100-84A00, 31100-84a00
  • Konkurrentreferens

    DRS3904N, S5436S, 220039, 220039A, 254378, 446524
  • Normaliserat artikelnummer

    drs3904n, f032115778, m000t88381, m0t88381, s5436s, 220039, 220039a, 254378, 446524, 3110084a00
  • Passar modeller

    Suzuki Model: Jimny Model series: Jimny Model type: 4WD Type of engine: DDiS Size of motor: 1.5 Brand of engine: K9K700 Type description: FJ Body: MPV From date: 01-12-2003 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 65.00
    Drive dist.: -1.50
    Mount. hole 3 mm: M10-1.25
    Mount. hole 1 mm: 5.70
    Dist./back: 159.00
    Dist./front: 35.00
    No./teeth: 12
    B+: M8
    Position/50: 5
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 104.00
    Dist. 3: 71.50
    Dist. mm: 63.50
    Rotation: CW
    Total length mm: 196.00
    Prod. info: BN
    No./mount. holes: 3 (2)
  • Specifikation
    B+ M8
    No./teeth 12
    Mount. flange 65.00
    No./mount. holes 3 (2)
    Position/50 5
    Prod. info BN
    Dist. 2 104.00
    Dist. 3 71.50
    Rotation CW
    Dist./back 159.00
    Dist./front 35.00
    Drive dist. -1.50
    Gear type GR
    kW 1.4
    Terminal 50 M5
    Voltage 12
    Total length 196.00 mm
    Dist. 63.50 mm
    Mount. hole 3 M10-1.25 mm
    Mount. hole 1 5.70 mm
  • Fordonsmatchning
    • OEM

      F032115778, M000T88381, M0T88381, 31100-84A00, 31100-84a00
    • Konkurrentreferens

      DRS3904N, S5436S, 220039, 220039A, 254378, 446524
    • Normaliserat artikelnummer

      drs3904n, f032115778, m000t88381, m0t88381, s5436s, 220039, 220039a, 254378, 446524, 3110084a00
    • Passar modeller

      Suzuki Model: Jimny Model series: Jimny Model type: 4WD Type of engine: DDiS Size of motor: 1.5 Brand of engine: K9K700 Type description: FJ Body: MPV From date: 01-12-2003 Fuel: Diesel Approved: Yes
