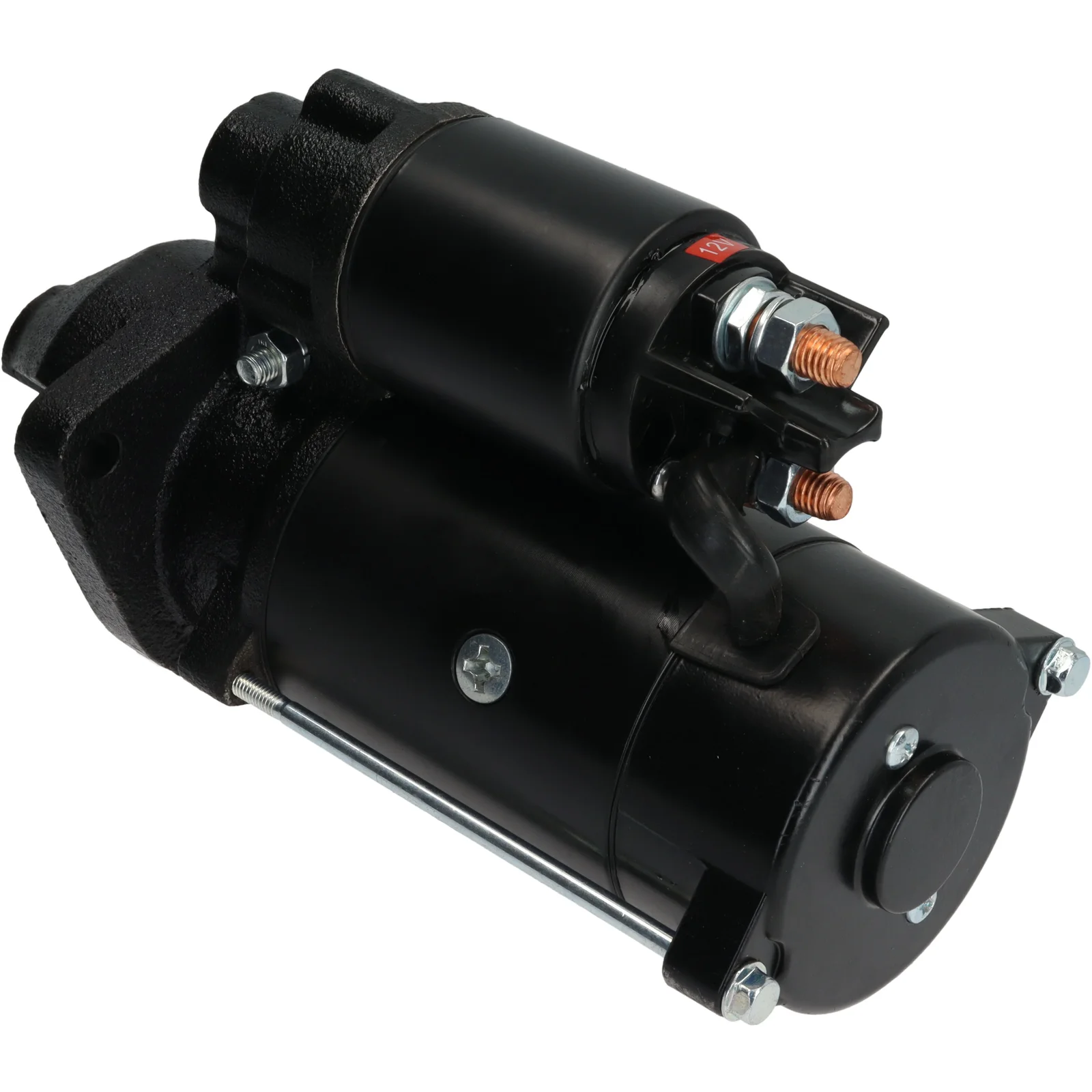

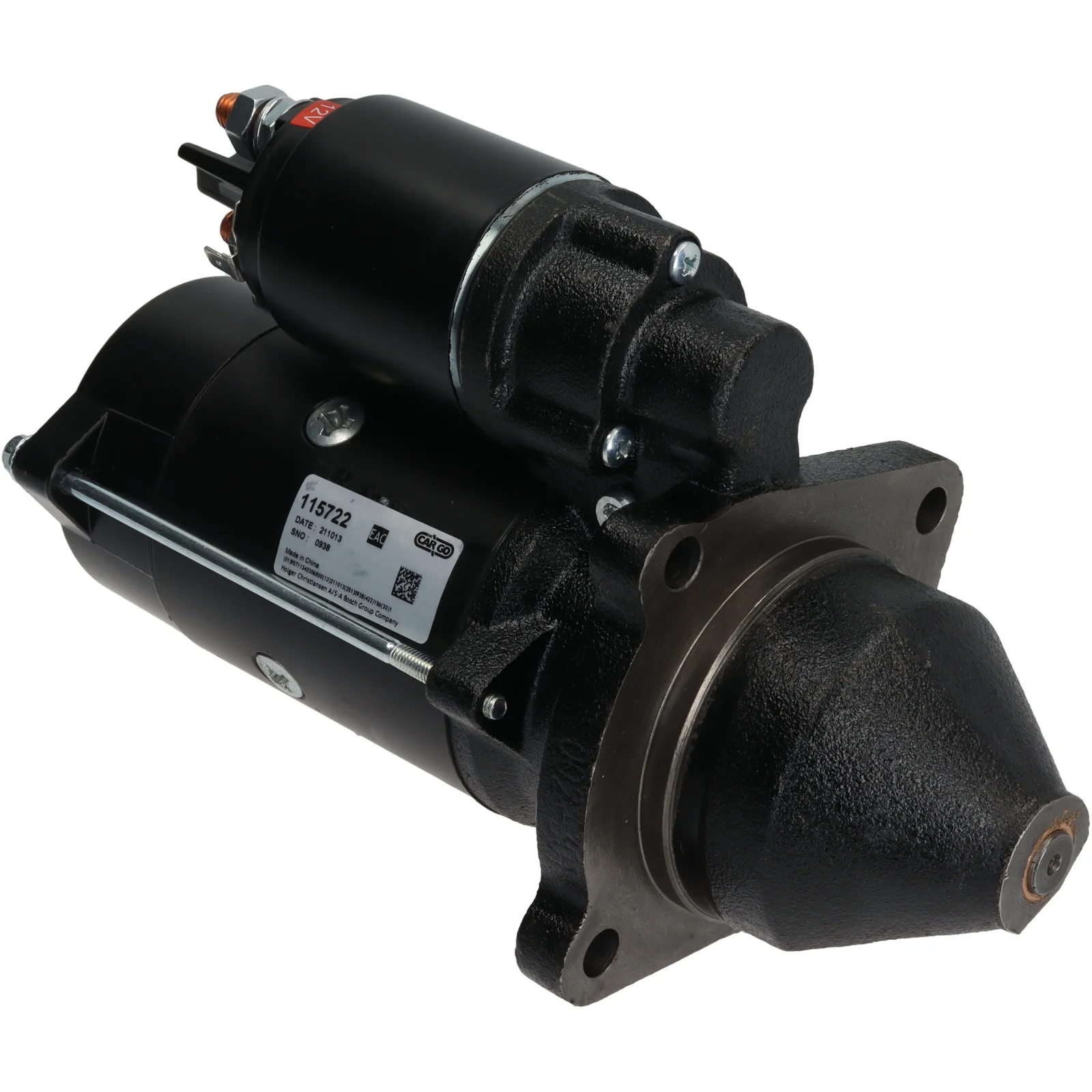

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115722

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.2
Mount. flange: 89.00
Drive dist.: 29.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 203.00
Dist./front: 74.00
No./teeth: 10
B+: M10
Position/B+: 60
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 277.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 15
Position/B+ 60
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 203.00
Dist./front 74.00
Drive dist. 29.00
Gear type GR
kW 3.2
Terminal 50 6.30
Voltage 12
Total length 277.00 mm
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZE4167, F032115722, 11.131.731, 2873K627, 2873K633, 4213912M91

  • Konkurrentreferens
    CST21135, IS1233, MS299, 650.508.103, 700.536.103, 220701, 220701A

  • Normaliserat artikelnummer
    aze4167, cst21135, f032115722, is1233, ms299, 2873k627, 2873k633, 220701, 220701a, 4213912m91, 11131731, 650508103, 700536103

  • Passar modeller
    Landini Model: GLOBALFARM 100 Model series: GLOBALFARM 100 Model type: Ag Tractors Brand of engine: 1104C-44T Body: Tractor Approved: Yes
    Landini Model: GLOBALFARM 105 Model series: GLOBALFARM 105 Model type: Ag Tractors Brand of engine: 1104C-44T Body: Tractor Approved: Yes
    Landini Model: Globalfarm Model series: 100 Size of motor: 4.4 Brand of engine: 1104D-44T Body: Tractor From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Landini Model: Globalfarm Model series: 105 Size of motor: 4.4 Brand of engine: 1104D-44T Body: Tractor From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Landini Model: Globalfarm Model series: 80, 90 Size of motor: 4.4 Brand of engine: 1104D-44 Body: Tractor From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Landini Model: Globalfarm Model series: 80, 90 Size of motor: 4.4 Brand of engine: 1104D-44T Body: Tractor From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Landini Model: POWERFARM 90 / 90HC Model series: POWERFARM 90 / 90HC Model type: Ag Tractors Brand of engine: 1104D-44T Approved: Yes
    Landini Model: POWERFARM Model series: 100, 110 Size of motor: 4.4 Brand of engine: 1104D-44TA Body: Tractor From date: 01-01-2003 Fuel: Diesel Approved: Yes
    Landini Model: POWERFARM Model series: 80, 90 Size of motor: 4.4 Brand of engine: 1104D-44T Body: Tractor From date: 01-01-2003 Fuel: Diesel Approved: Yes
    Landini Model: Powermondial Model series: 110, 115, 120 Size of motor: 4.4 Brand of engine: 1104C-E44TA Body: Tractor From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Landini Model: POWERVISION 90 Model series: POWERVISION 90 Model type: Ag Tractors Brand of engine: 1104D-44T Approved: Yes
    Landini Model: Rex Model series: 100 F, 110 F Size of motor: 4.4 Brand of engine: 1104D-44TA Body: Tractor From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Landini Model: Rex Model series: 100 GE Size of motor: 4.4 Brand of engine: 1104D-44TA Body: Tractor From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Landini Model: Rex Model series: 100 GT Size of motor: 4.4 Brand of engine: 1104D-44TA Body: Tractor From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Landini Model: Rex Model series: 120 F Size of motor: 4.4 Brand of engine: 1104D-44TA Body: Tractor From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Landini Model: Rex Model series: 120 GE Size of motor: 4.4 Brand of engine: 1104D-44TA Body: Tractor From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Landini Model: Rex Model series: 120 GT Size of motor: 4.4 Brand of engine: 1104D-44TA Body: Tractor From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Landini Model: Rex Model series: 60 F, 70 F, 85 F Size of motor: 3.3 Brand of engine: 1103D-33TA Body: Tractor From date: 01-11-2003 Fuel: Diesel Approved: Yes
    Landini Model: Rex Model series: 70 GE, 85 GE Size of motor: 3.3 Brand of engine: 1103D-33TA Body: Tractor From date: 01-11-2003 Fuel: Diesel Approved: Yes
    Landini Model: Rex Model series: 75 F, 80 F, 90 F Size of motor: 4.4 Brand of engine: 1104D-44 Body: Tractor From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Landini Model: Rex Model series: 80 GE, 90 GE Size of motor: 4.4 Brand of engine: 1104D-44 Body: Tractor From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Landini Model: Rex Model series: 80 GT Size of motor: 4.4 Brand of engine: 1104D-44 Body: Tractor From date: 01-11-2011 Fuel: Diesel Approved: Yes
