Artikelnr: F032115721

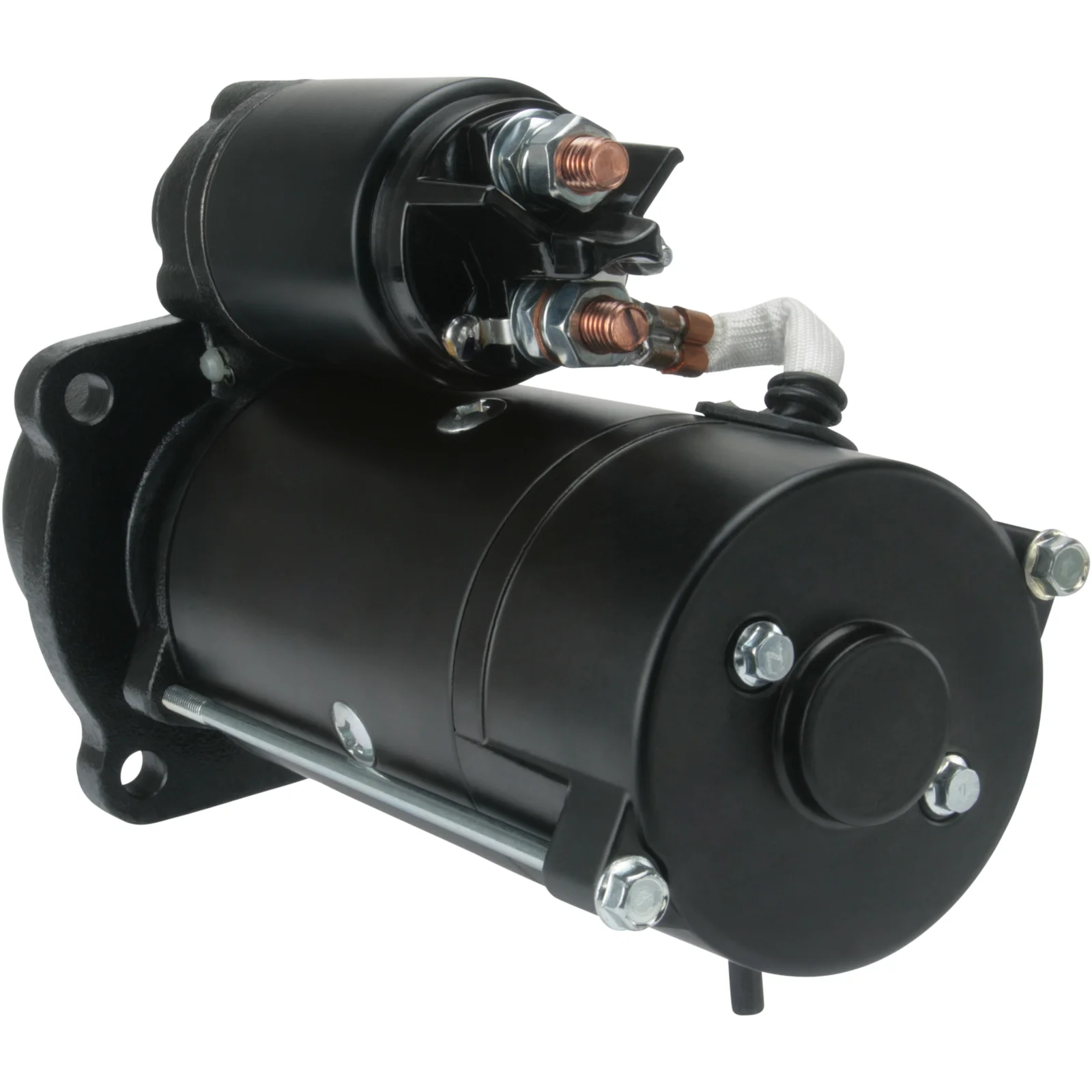

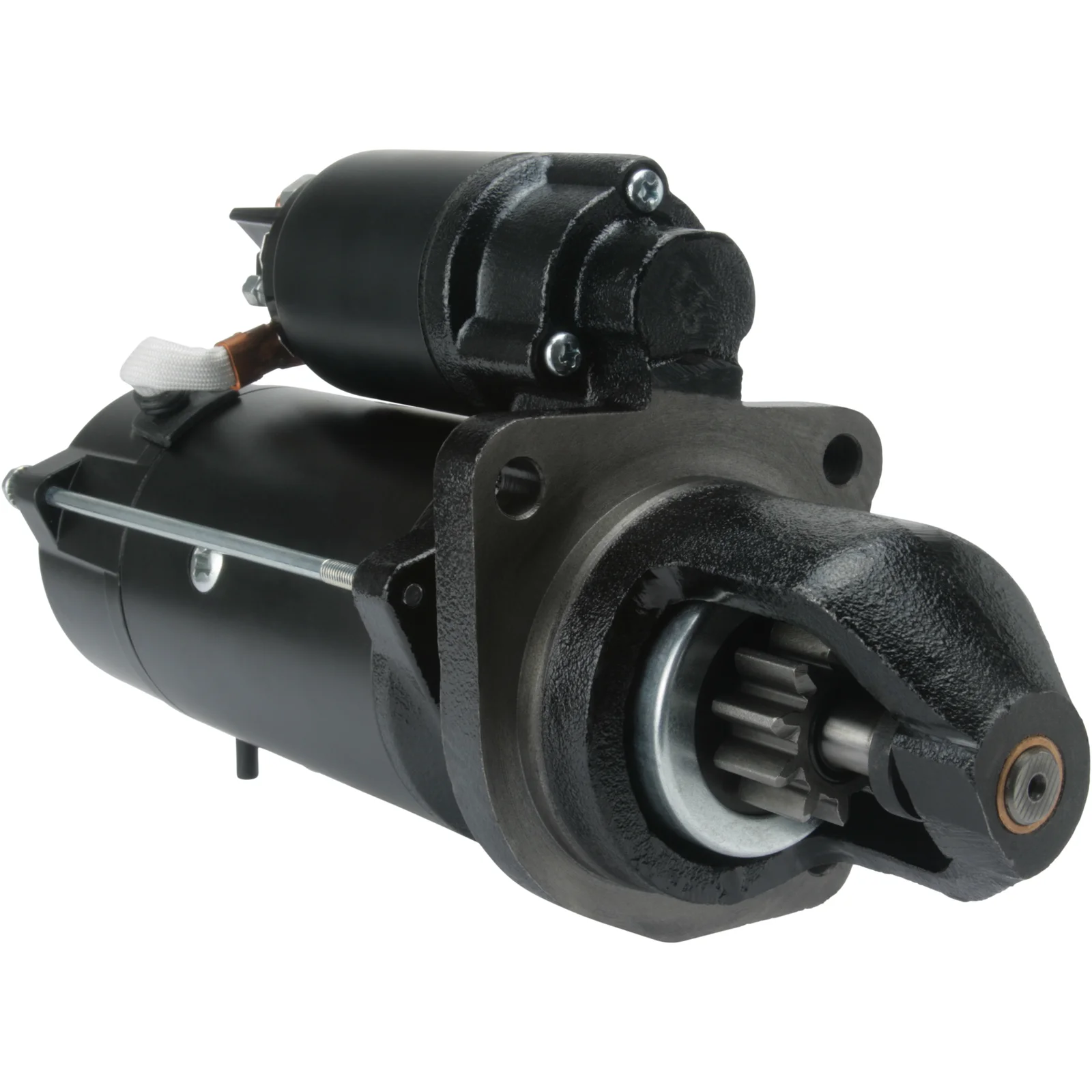

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 4.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 4.2
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 222.50
Dist./front: 96.50
No./teeth: 10
B+: M10
Position/50: 17
Terminal 50: M5
Gear type: GR
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 321.50
Prod. info: BN
No./mount. holes: 3 (0)

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 17
Prod. info BN
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 222.50
Dist./front 96.50
Drive dist. 48.00
Gear type GR
kW 4.2
Terminal 50 M5
Voltage 12
Total length 321.50 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm
  • OEM

    azf4553, AZF4598, F032115721, RE504009, RE509856, RE523502, RE68783, 11.131.145, 11.131.382, 502632, 3114986, 46550710
  • Konkurrentreferens

    CST21159, CST50104, IS1056, MS486, S9229, 650.502.103, 6584R
  • Normaliserat artikelnummer

    azf4553, azf4598, cst21159, cst50104, f032115721, is1056, ms486, re504009, re509856, re523502, re68783, s9229, 6584r, 502632, 3114986, 11131145, 11131382, 46550710, 650502103
  • Passar modeller

    Case Model: CS 660 Model series: CS 660 Size of motor: 8.3 Brand of engine: Cummins Approved: Yes
    Doosan Model: Various Industrial applications Model series: Various Models Approved: Yes
    John Deere Model: Combines Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 4.2
    Mount. flange: 89.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 222.50
    Dist./front: 96.50
    No./teeth: 10
    B+: M10
    Position/50: 17
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 321.50
    Prod. info: BN
    No./mount. holes: 3 (0)
  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 17
    Prod. info BN
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 222.50
    Dist./front 96.50
    Drive dist. 48.00
    Gear type GR
    kW 4.2
    Terminal 50 M5
    Voltage 12
    Total length 321.50 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning
    • OEM

      azf4553, AZF4598, F032115721, RE504009, RE509856, RE523502, RE68783, 11.131.145, 11.131.382, 502632, 3114986, 46550710
    • Konkurrentreferens

      CST21159, CST50104, IS1056, MS486, S9229, 650.502.103, 6584R
    • Normaliserat artikelnummer

      azf4553, azf4598, cst21159, cst50104, f032115721, is1056, ms486, re504009, re509856, re523502, re68783, s9229, 6584r, 502632, 3114986, 11131145, 11131382, 46550710, 650502103
    • Passar modeller

      Case Model: CS 660 Model series: CS 660 Size of motor: 8.3 Brand of engine: Cummins Approved: Yes
      Doosan Model: Various Industrial applications Model series: Various Models Approved: Yes
      John Deere Model: Combines Model series: Various Models Approved: Yes
