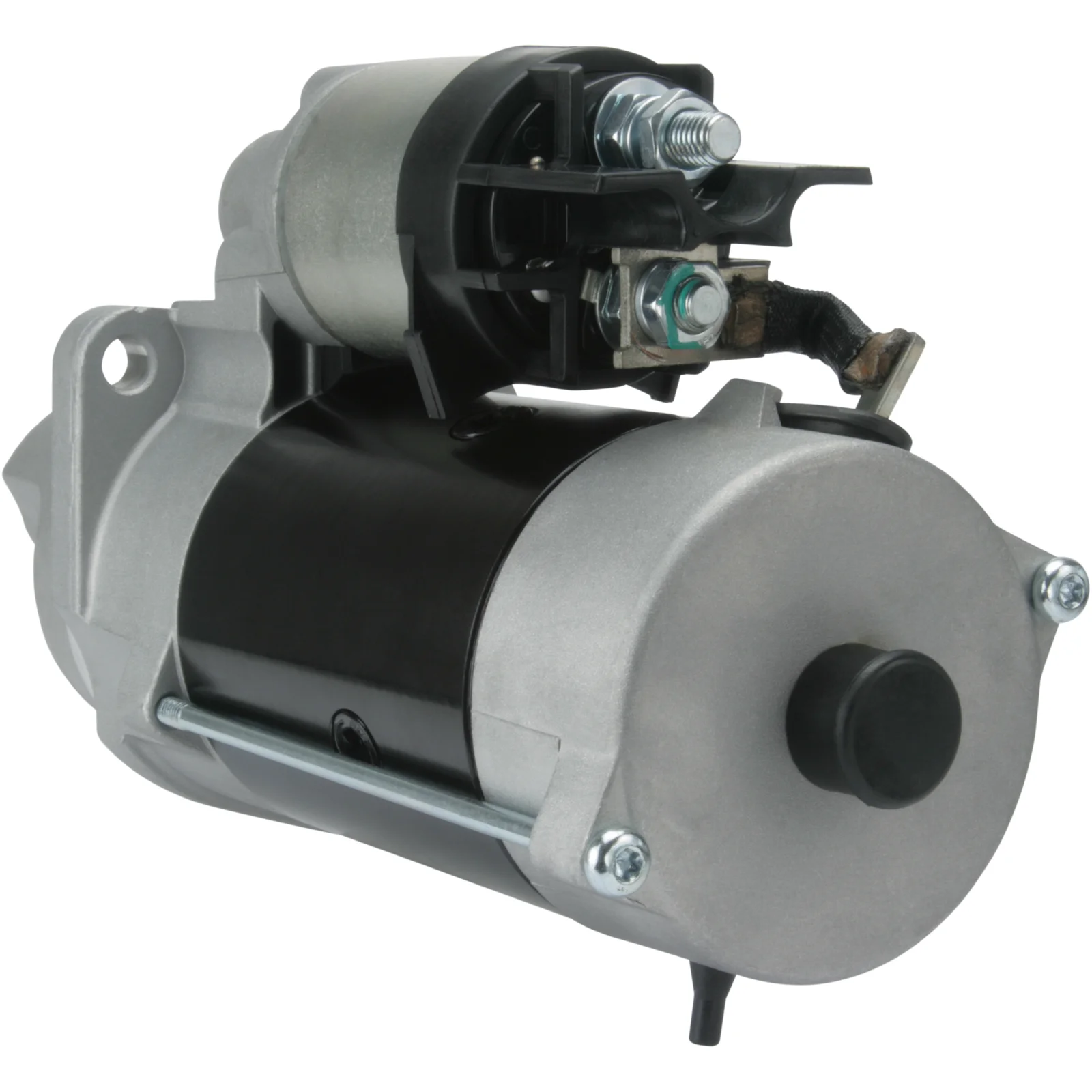

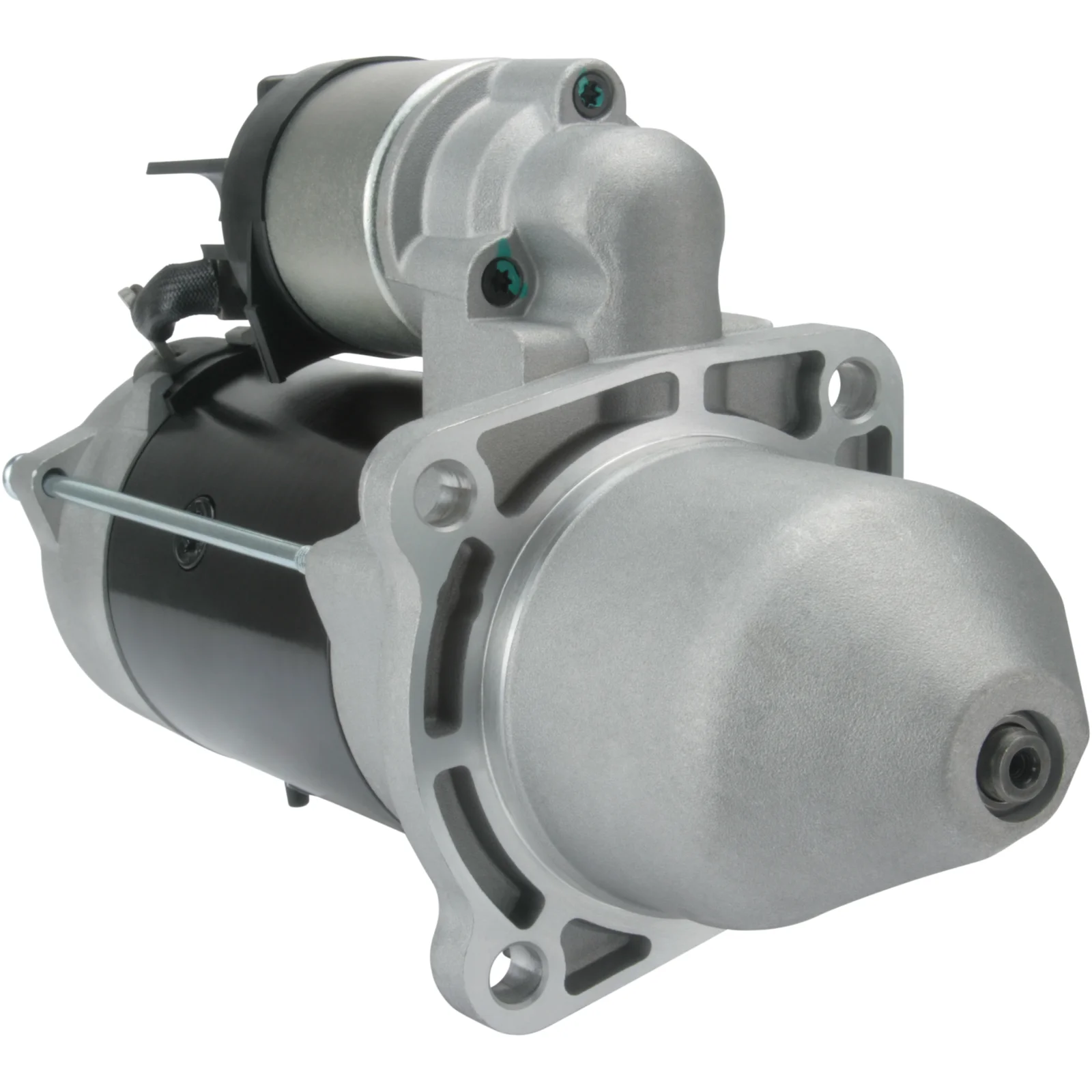

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115609

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.0
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 208.50
Dist./front: 95.00
No./teeth: 11
B+: M10
Position/50: 15
Terminal 50: M5
Gear type: GR
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 315.50
Prod. info: BN
Info: Direct Drive Starter: HC-CARGO 112442.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 15
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 208.50
Dist./front 95.00
Drive dist. 48.00
Gear type GR
Info Direct Drive Starter: HC-CARGO 112442.
kW 3.0
Terminal 50 M5
Voltage 12
Total length 315.50 mm
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    cs1376, F032115609, RE503226, RE504807, 1986S10057, 0001230002, 87524725

  • Konkurrentreferens
    DRS0067, les0407, LRS01563, S0297, S9274(LETRIKA), 8EA015642-251, 18361N, 105469, 220915, 220915A, 11090152, 0986023990, 0986023993

  • Normaliserat artikelnummer
    cs1376, drs0067, f032115609, les0407, lrs01563, re503226, re504807, s0297, s9274letrika, 8ea015642251, 1986s10057, 18361n, 105469, 220915, 220915a, 0001230002, 11090152, 87524725, 0986023990, 0986023993

  • Passar modeller
    John Deere Model: 6000 Series Model series: 6205 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6505 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6506 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6510 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6520 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6610 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6620 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6810 Size of motor: 10.0 From date: 01-08-1991 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6820 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6910 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6920 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 3.0
    Mount. flange: 89.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 208.50
    Dist./front: 95.00
    No./teeth: 11
    B+: M10
    Position/50: 15
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 315.50
    Prod. info: BN
    Info: Direct Drive Starter: HC-CARGO 112442.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 15
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 208.50
    Dist./front 95.00
    Drive dist. 48.00
    Gear type GR
    Info Direct Drive Starter: HC-CARGO 112442.
    kW 3.0
    Terminal 50 M5
    Voltage 12
    Total length 315.50 mm
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      cs1376, F032115609, RE503226, RE504807, 1986S10057, 0001230002, 87524725

    • Konkurrentreferens
      DRS0067, les0407, LRS01563, S0297, S9274(LETRIKA), 8EA015642-251, 18361N, 105469, 220915, 220915A, 11090152, 0986023990, 0986023993

    • Normaliserat artikelnummer
      cs1376, drs0067, f032115609, les0407, lrs01563, re503226, re504807, s0297, s9274letrika, 8ea015642251, 1986s10057, 18361n, 105469, 220915, 220915a, 0001230002, 11090152, 87524725, 0986023990, 0986023993

    • Passar modeller
      John Deere Model: 6000 Series Model series: 6205 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6505 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6506 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6510 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6520 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6610 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6620 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6810 Size of motor: 10.0 From date: 01-08-1991 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6820 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6910 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6920 From date: 01-01-1994 Fuel: Diesel Approved: Yes
