Artikelnr: F032115595

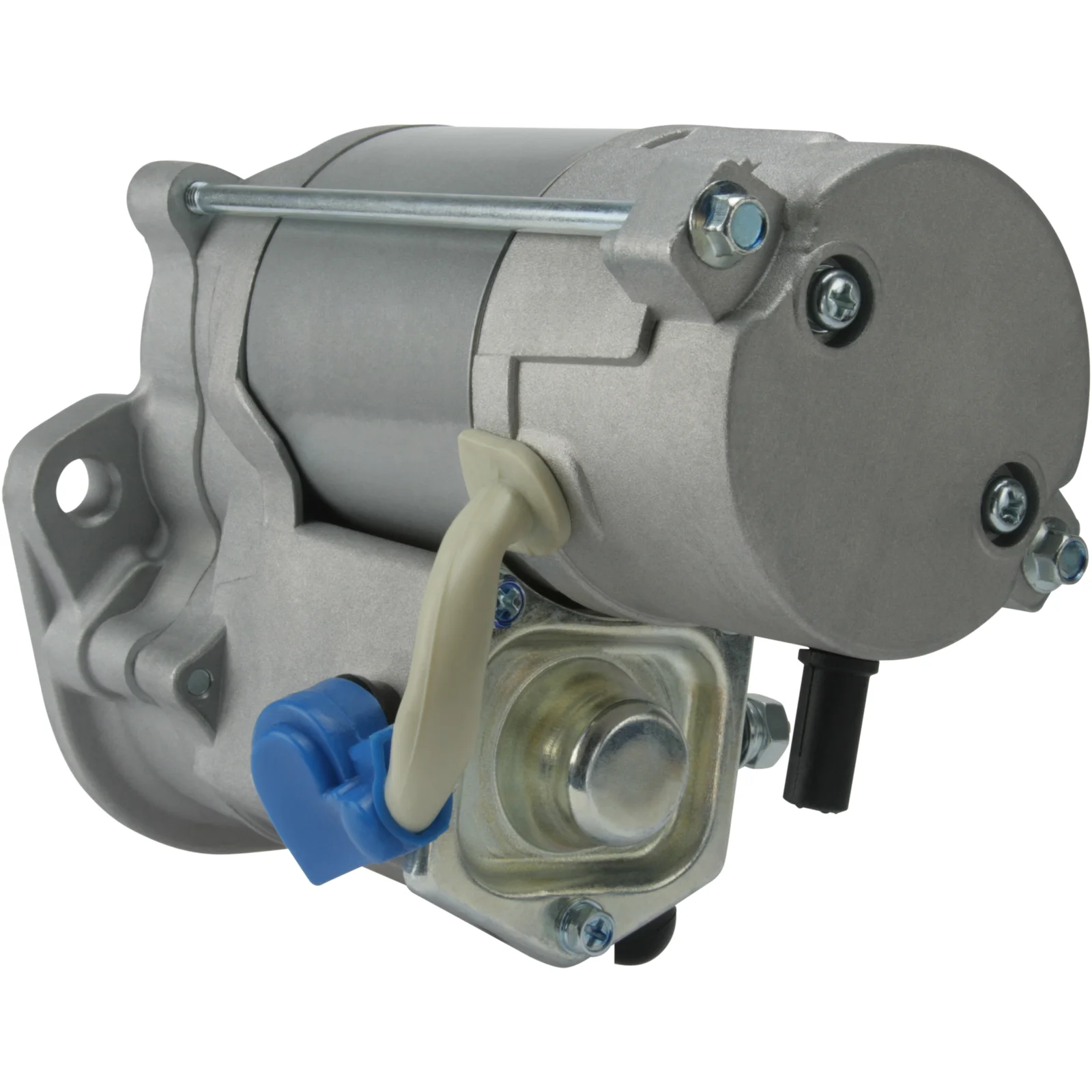

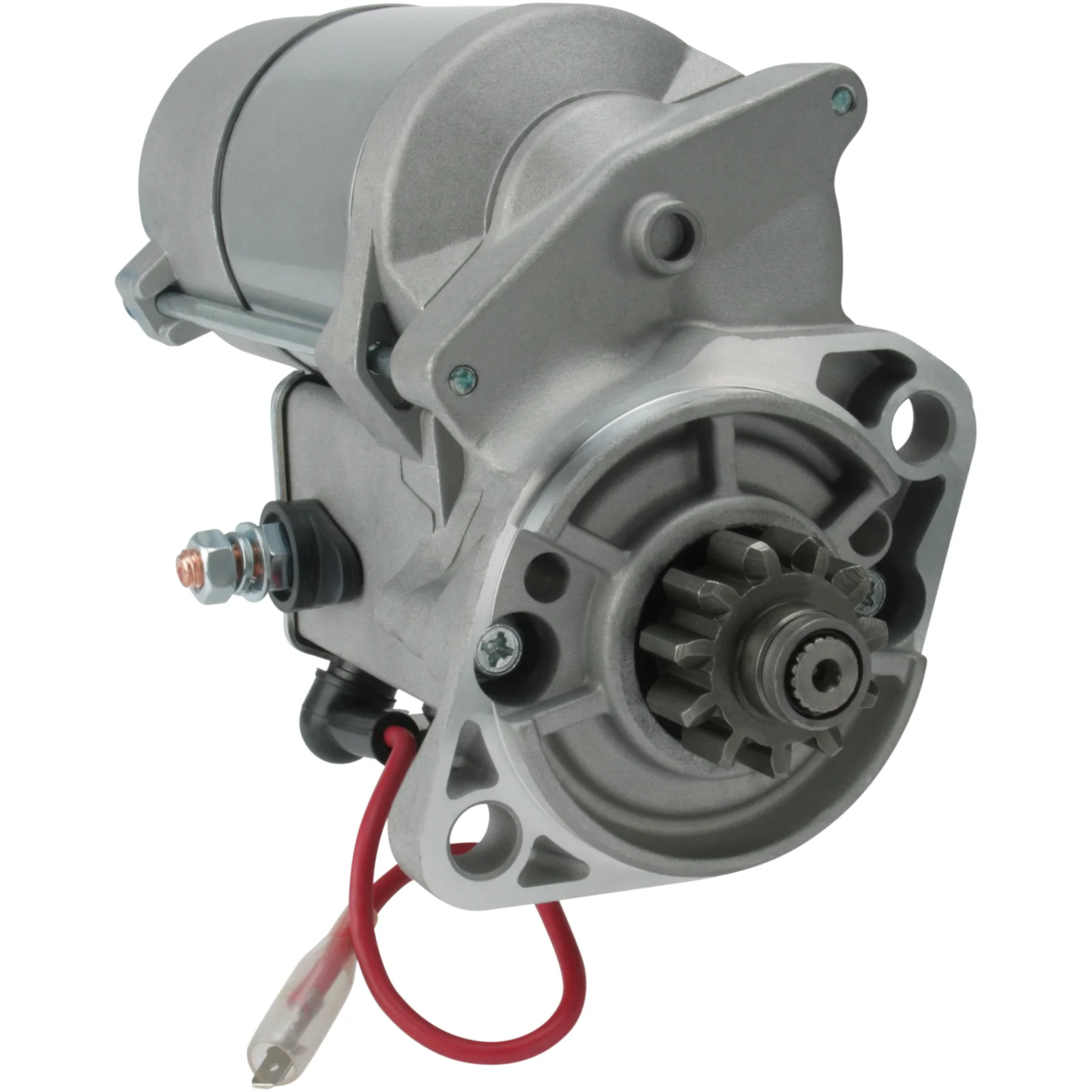

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 82.50
Drive dist.: 25.00
Mount. hole 2 mm: 11.50
Mount. hole 1 mm: 11.50
Dist./back: 124.00
Dist./front: 37.00
No./teeth: 11
B+: M8
Position/50: 25
Terminal 50: M5-6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 223.00
Prod. info: BN
No./mount. holes: 2 (0)

Specifikation

B+ M8
No./teeth 11
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 25
Prod. info BN
Rotation CW
Dist./back 124.00
Dist./front 37.00
Drive dist. 25.00
Gear type GR
kW 2.0
Terminal 50 M5-6.30
Voltage 12
Total length 223.00 mm
Dist. 105.00 mm
Mount. hole 2 11.50 mm
Mount. hole 1 11.50 mm
  • OEM

    F032115595, 17121-63013, 17121-63014, 228000-4740, 228000-4741
  • Konkurrentreferens

    CST40526, S6217S, 25-4365, 683.038.112, 690.555.112, 19648, 19648N
  • Normaliserat artikelnummer

    cst40526, f032115595, s6217s, 19648, 19648n, 254365, 683038112, 690555112, 1712163013, 1712163014, 2280004740, 2280004741
  • Passar modeller

    Kubota Model: Engine Model series: Engine Brand of engine: F2803 From date: 01-01-1985 Fuel: Diesel Approved: Yes
    Kubota Model: Engine Model series: Engine Brand of engine: V2203 Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 82.50
    Drive dist.: 25.00
    Mount. hole 2 mm: 11.50
    Mount. hole 1 mm: 11.50
    Dist./back: 124.00
    Dist./front: 37.00
    No./teeth: 11
    B+: M8
    Position/50: 25
    Terminal 50: M5-6.30
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 223.00
    Prod. info: BN
    No./mount. holes: 2 (0)
  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 25
    Prod. info BN
    Rotation CW
    Dist./back 124.00
    Dist./front 37.00
    Drive dist. 25.00
    Gear type GR
    kW 2.0
    Terminal 50 M5-6.30
    Voltage 12
    Total length 223.00 mm
    Dist. 105.00 mm
    Mount. hole 2 11.50 mm
    Mount. hole 1 11.50 mm
  • Fordonsmatchning
    • OEM

      F032115595, 17121-63013, 17121-63014, 228000-4740, 228000-4741
    • Konkurrentreferens

      CST40526, S6217S, 25-4365, 683.038.112, 690.555.112, 19648, 19648N
    • Normaliserat artikelnummer

      cst40526, f032115595, s6217s, 19648, 19648n, 254365, 683038112, 690555112, 1712163013, 1712163014, 2280004740, 2280004741
    • Passar modeller

      Kubota Model: Engine Model series: Engine Brand of engine: F2803 From date: 01-01-1985 Fuel: Diesel Approved: Yes
      Kubota Model: Engine Model series: Engine Brand of engine: V2203 Approved: Yes
