HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115393

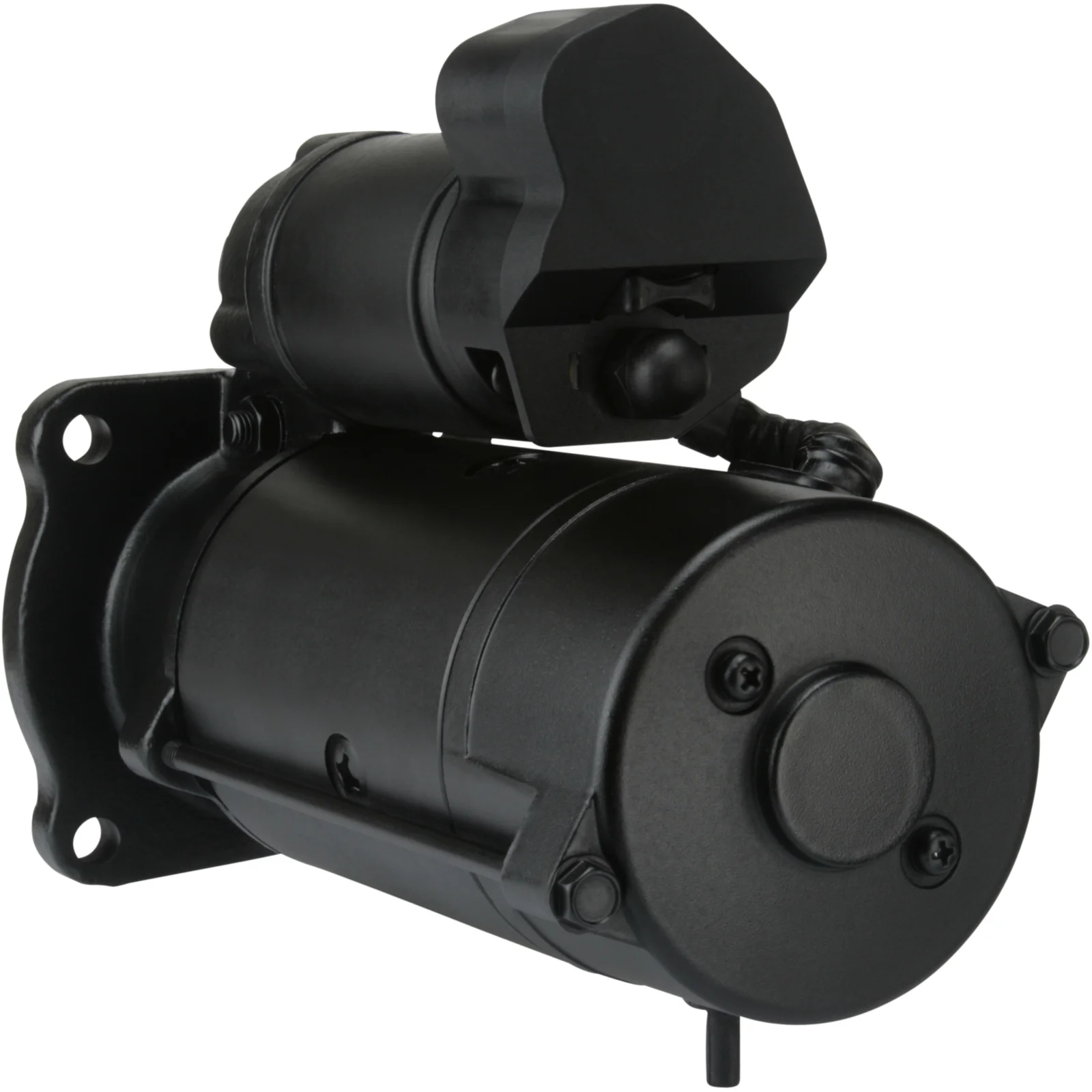

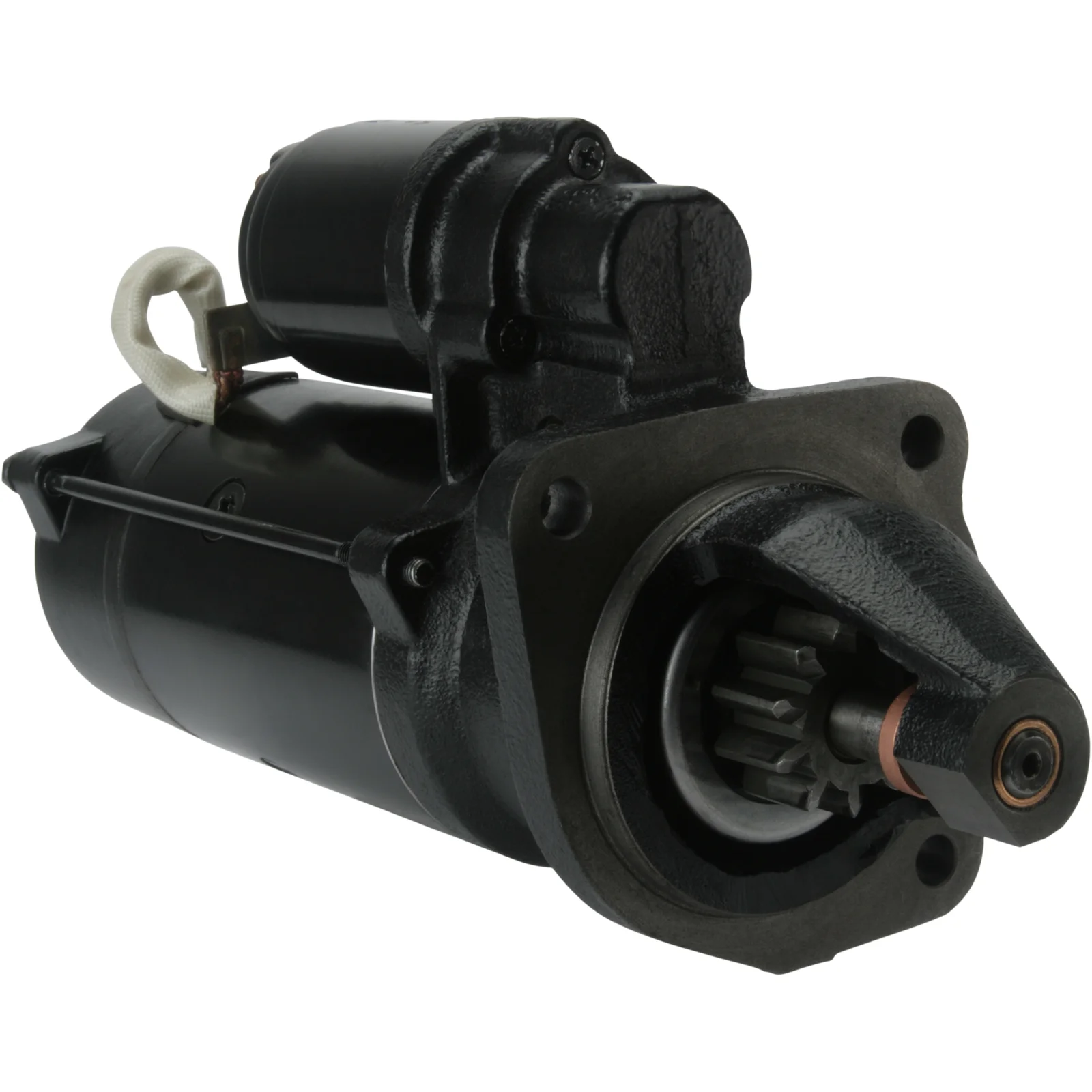

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 4.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 4.0
Mount. flange: 89.00
Drive dist.: 29.50
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 245.00
Dist./front: 78.00
No./teeth: 10
B+: M10
Position/50: 45
Terminal 50: M4-6.30
Gear type: GR
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 325.00
Prod. info: BN
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 45
Prod. info BN
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 245.00
Dist./front 78.00
Drive dist. 29.50
Gear type GR
kW 4.0
Terminal 50 M4-6.30
Voltage 12
Total length 325.00 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZF4148, F032115393, 11.131.575, 714-29300R, 1160, 1447773R1

  • Konkurrentreferens
    CST21207, MS295, S9199(LETRIKA), S9199S

  • Normaliserat artikelnummer
    azf4148, cst21207, f032115393, ms295, s9199letrika, s9199s, 1160, 1447773r1, 11131575, 71429300r

  • Passar modeller
    Bobcat Model: HD18 Model series: HD18 Model type: Dumpers/Tenders Brand of engine: 103-15 Approved: Yes
    Caterpillar Model: CB-335D Model series: CB-335D Model type: Rollers Brand of engine: 103-15 Approved: Yes
    Gehl Model: KL 165 Model series: KL 165 Model type: Wheel Loaders and Dozers Brand of engine: 103-15 Approved: Yes
    Gehl Model: KL 170 Model series: KL 170 Model type: Wheel Loaders and Dozers Brand of engine: 103-15 Approved: Yes
    Gehl Model: KL155 Model series: KL155 Model type: Wheel Loaders and Dozers Brand of engine: 103-15 Approved: Yes
    Gehl Model: KL160 Model series: KL160 Model type: Wheel Loaders and Dozers Brand of engine: 103-15 Approved: Yes
    Hako Model: HT 3000 D/DA Model series: HT 3000 D/DA Model type: Utility Vehicles Brand of engine: 103-15 Approved: Yes
    JCB Model: 802 Model series: 802 Model type: Excavators Brand of engine: 103-15 Approved: Yes
    JCB Model: 802 SUPER Model series: 802 SUPER Model type: Excavators Brand of engine: 103-15 Approved: Yes
    JCB Model: 802.4 Model series: 802.4 Model type: Excavators Brand of engine: 103-15 Approved: Yes
    JCB Model: 803 Model series: 803 Model type: Excavators Brand of engine: 103-15 Approved: Yes
    JCB Model: 803 PLUS Model series: 803 PLUS Model type: Excavators Brand of engine: 103-15 Approved: Yes
    JCB Model: 803PLUS & SUPER Model series: 803PLUS & SUPER Model type: Excavators Brand of engine: 103-15 Approved: Yes
    JCB Model: 804 Model series: 804 Model type: Excavators Brand of engine: 103-15 Approved: Yes
    JCB Model: 804 PLUS Model series: 804 PLUS Model type: Excavators Brand of engine: 103-15 Approved: Yes
    JCB Model: 804 SUPER Model series: 804 SUPER Model type: Excavators Brand of engine: 103-15 Approved: Yes
    JCB Model: 8052 Model series: 8052 Model type: Excavators Brand of engine: 103-15 Approved: Yes
    Terex Model: 128 Model series: 128 Model type: Excavators Brand of engine: 103-15 Approved: Yes
    Terex Model: 130 Model series: 130 Model type: Excavators Brand of engine: 103-15 Approved: Yes
    Terex Model: 135 Model series: 135 Model type: Excavators Brand of engine: 103-15 Approved: Yes
    Terex Model: 3715 Model series: 3715 Model type: Aerial Lifts Brand of engine: 103-15 Approved: Yes
    Terex Model: 4612 Model series: 4612 Model type: Aerial Lifts Brand of engine: 103-15 Approved: Yes
    Thwaites Model: ALLDRIVE 4000H Model series: ALLDRIVE 4000H Model type: Dumpers/Tenders Brand of engine: 103-15 Approved: Yes
    Thwaites Model: ALLDRIVE 5000 Model series: ALLDRIVE 5000 Model type: Dumpers/Tenders Brand of engine: 103-15 Approved: Yes
    Thwaites Model: ALLDRIVE 5000H Model series: ALLDRIVE 5000H Model type: Dumpers/Tenders Brand of engine: 103-15 Approved: Yes
    Thwaites Model: ALLDRIVE 6000P Model series: ALLDRIVE 6000P Model type: Dumpers/Tenders Brand of engine: 103-15 Approved: Yes
    Thwaites Model: ALLDRIVE 600P Model series: ALLDRIVE 600P Model type: Dumpers/Tenders Brand of engine: 103-15 Approved: Yes
    Thwaites Model: ALLDRIVE 6500 Model series: ALLDRIVE 6500 Model type: Dumpers/Tenders Brand of engine: 103-15 Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
    Various Industrial applications Model: Various Industrial applications Approved: Yes
    Volvo Penta Model: MD2040 Model series: MD2040 Model type: Engine Brand of engine: 103-15 Approved: Yes
    Volvo Penta Model: MD2040 Model series: MD2040 Model type: MD2040 Brand of engine: 103-15 Approved: Yes
    Volvo Penta Model: SMALL COMMERCIA Model series: SMALL COMMERCIA Model type: Engine Brand of engine: 103-15 Approved: Yes
    1 / 7
  • Beskrivning
    Voltage: 12
    kW: 4.0
    Mount. flange: 89.00
    Drive dist.: 29.50
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 245.00
    Dist./front: 78.00
    No./teeth: 10
    B+: M10
    Position/50: 45
    Terminal 50: M4-6.30
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 325.00
    Prod. info: BN
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 45
    Prod. info BN
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 245.00
    Dist./front 78.00
    Drive dist. 29.50
    Gear type GR
    kW 4.0
    Terminal 50 M4-6.30
    Voltage 12
    Total length 325.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      AZF4148, F032115393, 11.131.575, 714-29300R, 1160, 1447773R1

    • Konkurrentreferens
      CST21207, MS295, S9199(LETRIKA), S9199S

    • Normaliserat artikelnummer
      azf4148, cst21207, f032115393, ms295, s9199letrika, s9199s, 1160, 1447773r1, 11131575, 71429300r

    • Passar modeller
      Bobcat Model: HD18 Model series: HD18 Model type: Dumpers/Tenders Brand of engine: 103-15 Approved: Yes
      Caterpillar Model: CB-335D Model series: CB-335D Model type: Rollers Brand of engine: 103-15 Approved: Yes
      Gehl Model: KL 165 Model series: KL 165 Model type: Wheel Loaders and Dozers Brand of engine: 103-15 Approved: Yes
      Gehl Model: KL 170 Model series: KL 170 Model type: Wheel Loaders and Dozers Brand of engine: 103-15 Approved: Yes
      Gehl Model: KL155 Model series: KL155 Model type: Wheel Loaders and Dozers Brand of engine: 103-15 Approved: Yes
      Gehl Model: KL160 Model series: KL160 Model type: Wheel Loaders and Dozers Brand of engine: 103-15 Approved: Yes
      Hako Model: HT 3000 D/DA Model series: HT 3000 D/DA Model type: Utility Vehicles Brand of engine: 103-15 Approved: Yes
      JCB Model: 802 Model series: 802 Model type: Excavators Brand of engine: 103-15 Approved: Yes
      JCB Model: 802 SUPER Model series: 802 SUPER Model type: Excavators Brand of engine: 103-15 Approved: Yes
      JCB Model: 802.4 Model series: 802.4 Model type: Excavators Brand of engine: 103-15 Approved: Yes
      JCB Model: 803 Model series: 803 Model type: Excavators Brand of engine: 103-15 Approved: Yes
      JCB Model: 803 PLUS Model series: 803 PLUS Model type: Excavators Brand of engine: 103-15 Approved: Yes
      JCB Model: 803PLUS & SUPER Model series: 803PLUS & SUPER Model type: Excavators Brand of engine: 103-15 Approved: Yes
      JCB Model: 804 Model series: 804 Model type: Excavators Brand of engine: 103-15 Approved: Yes
      JCB Model: 804 PLUS Model series: 804 PLUS Model type: Excavators Brand of engine: 103-15 Approved: Yes
      JCB Model: 804 SUPER Model series: 804 SUPER Model type: Excavators Brand of engine: 103-15 Approved: Yes
      JCB Model: 8052 Model series: 8052 Model type: Excavators Brand of engine: 103-15 Approved: Yes
      Terex Model: 128 Model series: 128 Model type: Excavators Brand of engine: 103-15 Approved: Yes
      Terex Model: 130 Model series: 130 Model type: Excavators Brand of engine: 103-15 Approved: Yes
      Terex Model: 135 Model series: 135 Model type: Excavators Brand of engine: 103-15 Approved: Yes
      Terex Model: 3715 Model series: 3715 Model type: Aerial Lifts Brand of engine: 103-15 Approved: Yes
      Terex Model: 4612 Model series: 4612 Model type: Aerial Lifts Brand of engine: 103-15 Approved: Yes
      Thwaites Model: ALLDRIVE 4000H Model series: ALLDRIVE 4000H Model type: Dumpers/Tenders Brand of engine: 103-15 Approved: Yes
      Thwaites Model: ALLDRIVE 5000 Model series: ALLDRIVE 5000 Model type: Dumpers/Tenders Brand of engine: 103-15 Approved: Yes
      Thwaites Model: ALLDRIVE 5000H Model series: ALLDRIVE 5000H Model type: Dumpers/Tenders Brand of engine: 103-15 Approved: Yes
      Thwaites Model: ALLDRIVE 6000P Model series: ALLDRIVE 6000P Model type: Dumpers/Tenders Brand of engine: 103-15 Approved: Yes
      Thwaites Model: ALLDRIVE 600P Model series: ALLDRIVE 600P Model type: Dumpers/Tenders Brand of engine: 103-15 Approved: Yes
      Thwaites Model: ALLDRIVE 6500 Model series: ALLDRIVE 6500 Model type: Dumpers/Tenders Brand of engine: 103-15 Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
      Various Industrial applications Model: Various Industrial applications Approved: Yes
      Volvo Penta Model: MD2040 Model series: MD2040 Model type: Engine Brand of engine: 103-15 Approved: Yes
      Volvo Penta Model: MD2040 Model series: MD2040 Model type: MD2040 Brand of engine: 103-15 Approved: Yes
      Volvo Penta Model: SMALL COMMERCIA Model series: SMALL COMMERCIA Model type: Engine Brand of engine: 103-15 Approved: Yes
