HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115389

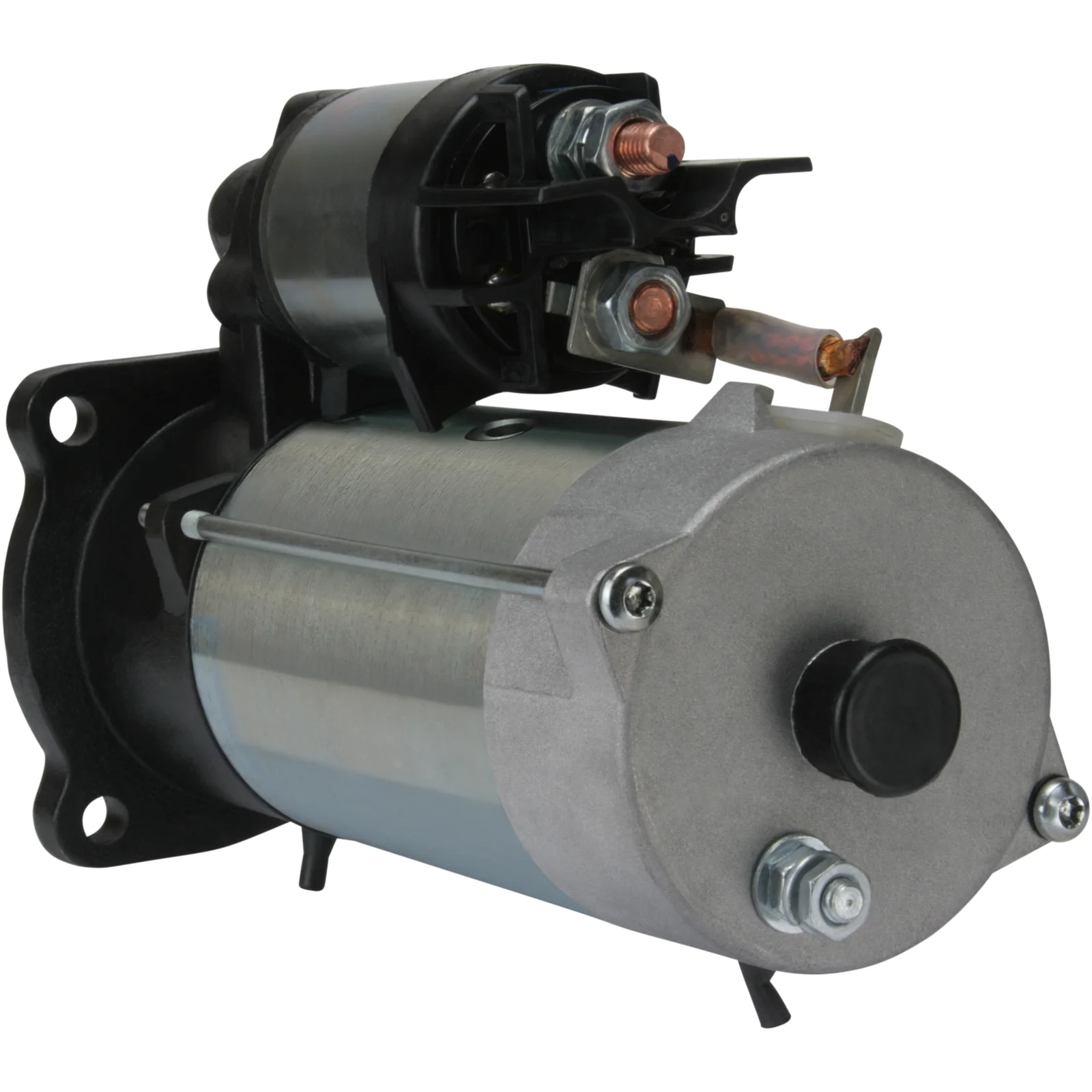

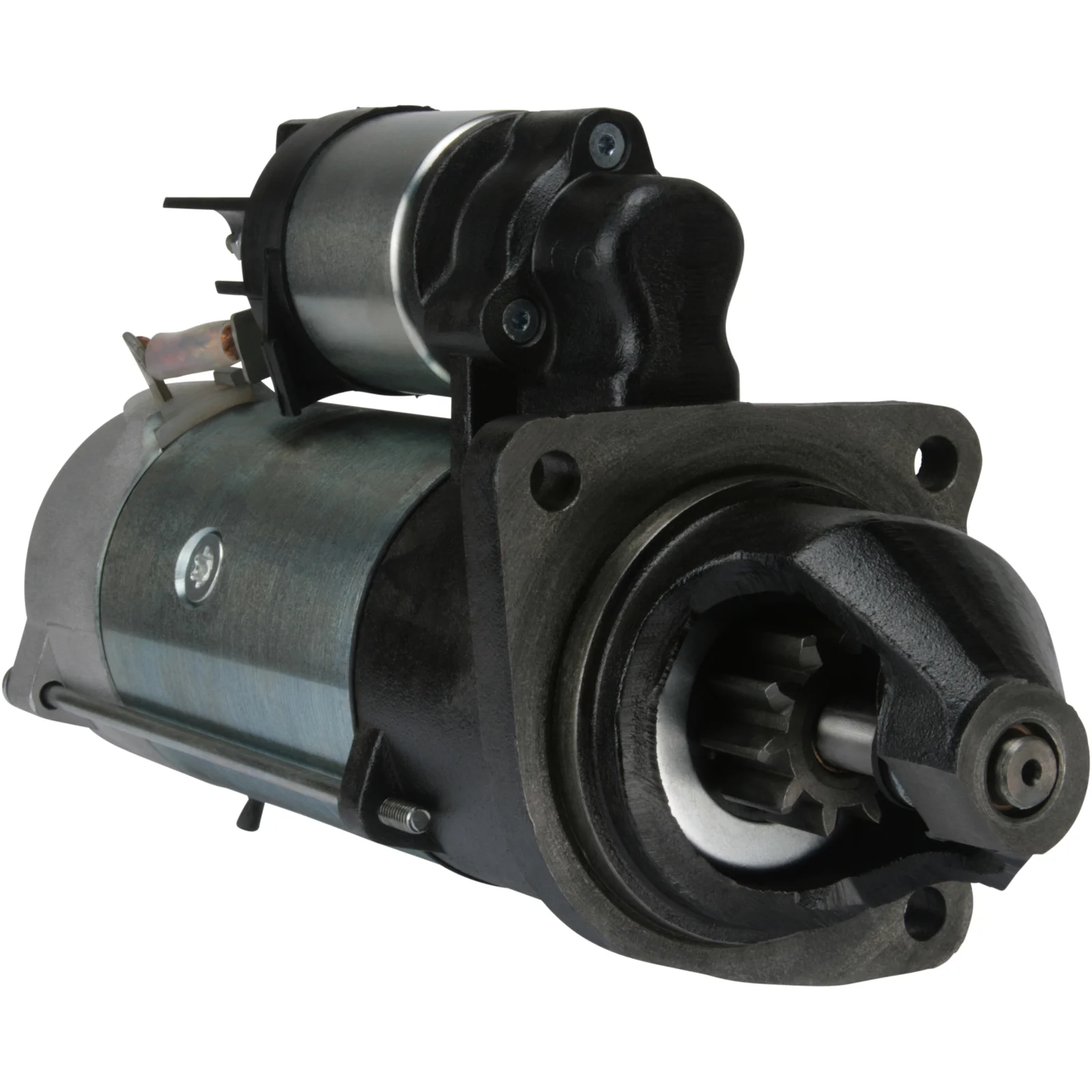

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 4.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 4.2
Mount. flange: 89.00
Drive dist.: 29.50
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 238.00
Dist./front: 79.00
No./teeth: 10
B+: M10
Position/B+: 60
Thread length mm: 10.00
Position/50: 15
Terminal 50: M5
Gear type: GR
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Position/b-: 35
B-: M8
Total length mm: 327.00
Prod. info: BN
Remarks: 4.2 kW version = HC-CARGO 113654.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M8
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 15
Position/b- 35
Position/B+ 60
Prod. info BN
Dist. 2 127.00
Remarks 4.2 kW version = HC-CARGO 113654.
Dist. 3 90.00
Rotation CW
Dist./back 238.00
Dist./front 79.00
Drive dist. 29.50
Gear type GR
kW 4.2
Terminal 50 M5
Voltage 12
Total length 327.00 mm
Dist. 90.00 mm
Thread length 10.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZF4129, AZF4202, AZF4204, AZF4258, AZF4260, AZF4275, F032115389, T410861, 11.131.488, 11.131.782, 11.131.945, 11.131.965, 11.132.034, 312-7576, 2873K601, 2873K631, 3127536, 3575204, 5300551

  • Konkurrentreferens
    CST21189, DRS0272, IS1193, MS400, S9253, S9287S, 25-4462, 668.014.102, 700.523.103, 705.016.095, 255168

  • Normaliserat artikelnummer
    azf4129, azf4202, azf4204, azf4258, azf4260, azf4275, cst21189, drs0272, f032115389, is1193, ms400, s9253, s9287s, t410861, 2873k601, 2873k631, 254462, 255168, 3127536, 3127576, 3575204, 5300551, 11131488, 11131782, 11131945, 11131965, 11132034, 668014102, 700523103, 705016095

  • Passar modeller
    Linde Model: H40D Model series: H40D Model type: Model 352 Approved: Yes
    Perkins Model: 1006-TAG Model series: 1006-TAG Brand of engine: 1006-TAG Approved: Yes
    Perkins Model: 1006C-E66TAG2 Model series: 1006C-E66TAG2 Brand of engine: 1006C-E66TAG2 Approved: Yes
    Perkins Model: 1006C-E66TAG3 Model series: 1006C-E66TAG3 Brand of engine: 1006C-E66TAG3 Approved: Yes
    Perkins Model: 1006C-E66TAG4 Model series: 1006C-E66TAG4 Brand of engine: 1006C-E66TAG4 Approved: Yes
    Teksan Model: Generator Model series: TJ145PE5A Brand of engine: 1006-TAG Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 4.2
    Mount. flange: 89.00
    Drive dist.: 29.50
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 238.00
    Dist./front: 79.00
    No./teeth: 10
    B+: M10
    Position/B+: 60
    Thread length mm: 10.00
    Position/50: 15
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Position/b-: 35
    B-: M8
    Total length mm: 327.00
    Prod. info: BN
    Remarks: 4.2 kW version = HC-CARGO 113654.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M8
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 15
    Position/b- 35
    Position/B+ 60
    Prod. info BN
    Dist. 2 127.00
    Remarks 4.2 kW version = HC-CARGO 113654.
    Dist. 3 90.00
    Rotation CW
    Dist./back 238.00
    Dist./front 79.00
    Drive dist. 29.50
    Gear type GR
    kW 4.2
    Terminal 50 M5
    Voltage 12
    Total length 327.00 mm
    Dist. 90.00 mm
    Thread length 10.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      AZF4129, AZF4202, AZF4204, AZF4258, AZF4260, AZF4275, F032115389, T410861, 11.131.488, 11.131.782, 11.131.945, 11.131.965, 11.132.034, 312-7576, 2873K601, 2873K631, 3127536, 3575204, 5300551

    • Konkurrentreferens
      CST21189, DRS0272, IS1193, MS400, S9253, S9287S, 25-4462, 668.014.102, 700.523.103, 705.016.095, 255168

    • Normaliserat artikelnummer
      azf4129, azf4202, azf4204, azf4258, azf4260, azf4275, cst21189, drs0272, f032115389, is1193, ms400, s9253, s9287s, t410861, 2873k601, 2873k631, 254462, 255168, 3127536, 3127576, 3575204, 5300551, 11131488, 11131782, 11131945, 11131965, 11132034, 668014102, 700523103, 705016095

    • Passar modeller
      Linde Model: H40D Model series: H40D Model type: Model 352 Approved: Yes
      Perkins Model: 1006-TAG Model series: 1006-TAG Brand of engine: 1006-TAG Approved: Yes
      Perkins Model: 1006C-E66TAG2 Model series: 1006C-E66TAG2 Brand of engine: 1006C-E66TAG2 Approved: Yes
      Perkins Model: 1006C-E66TAG3 Model series: 1006C-E66TAG3 Brand of engine: 1006C-E66TAG3 Approved: Yes
      Perkins Model: 1006C-E66TAG4 Model series: 1006C-E66TAG4 Brand of engine: 1006C-E66TAG4 Approved: Yes
      Teksan Model: Generator Model series: TJ145PE5A Brand of engine: 1006-TAG Approved: Yes
