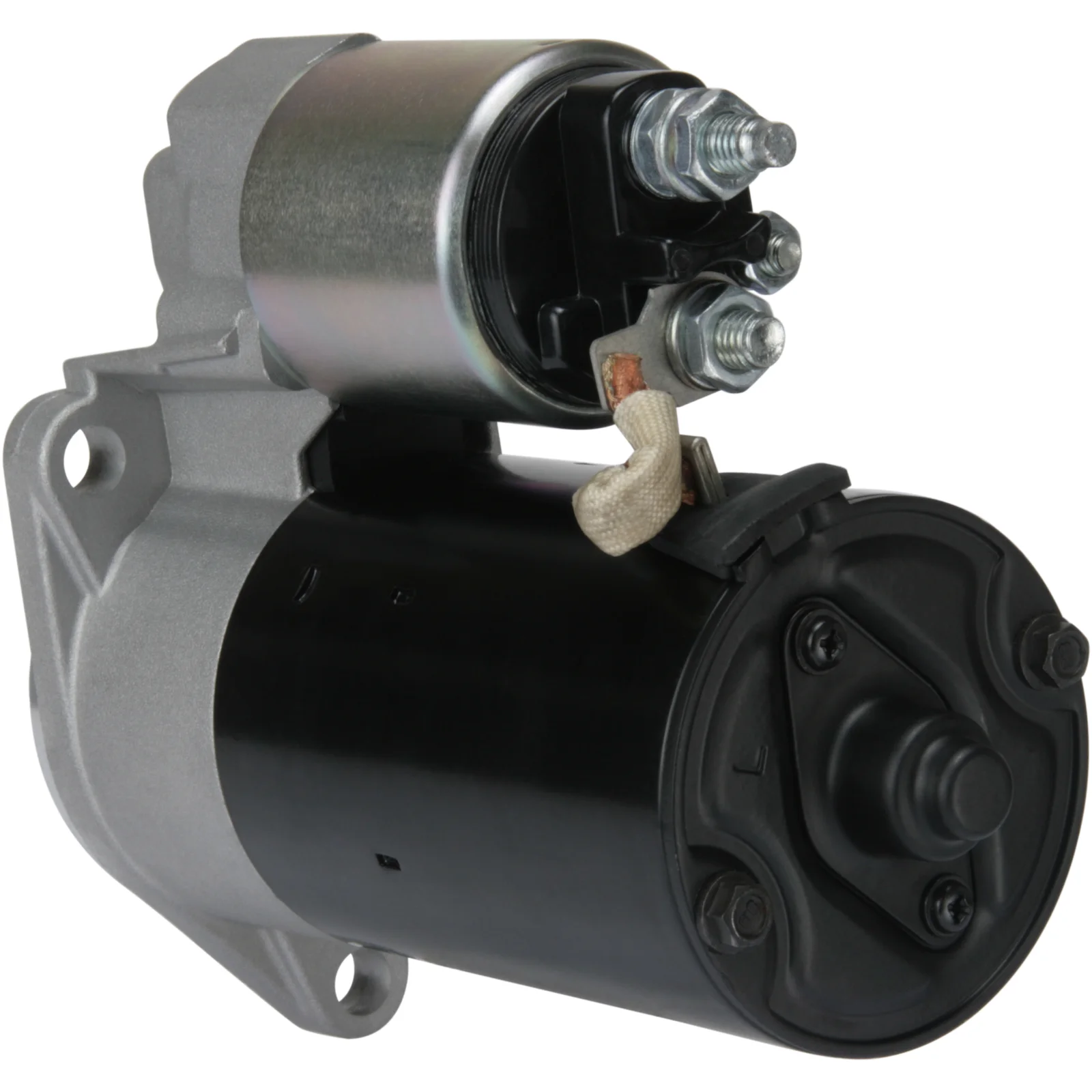

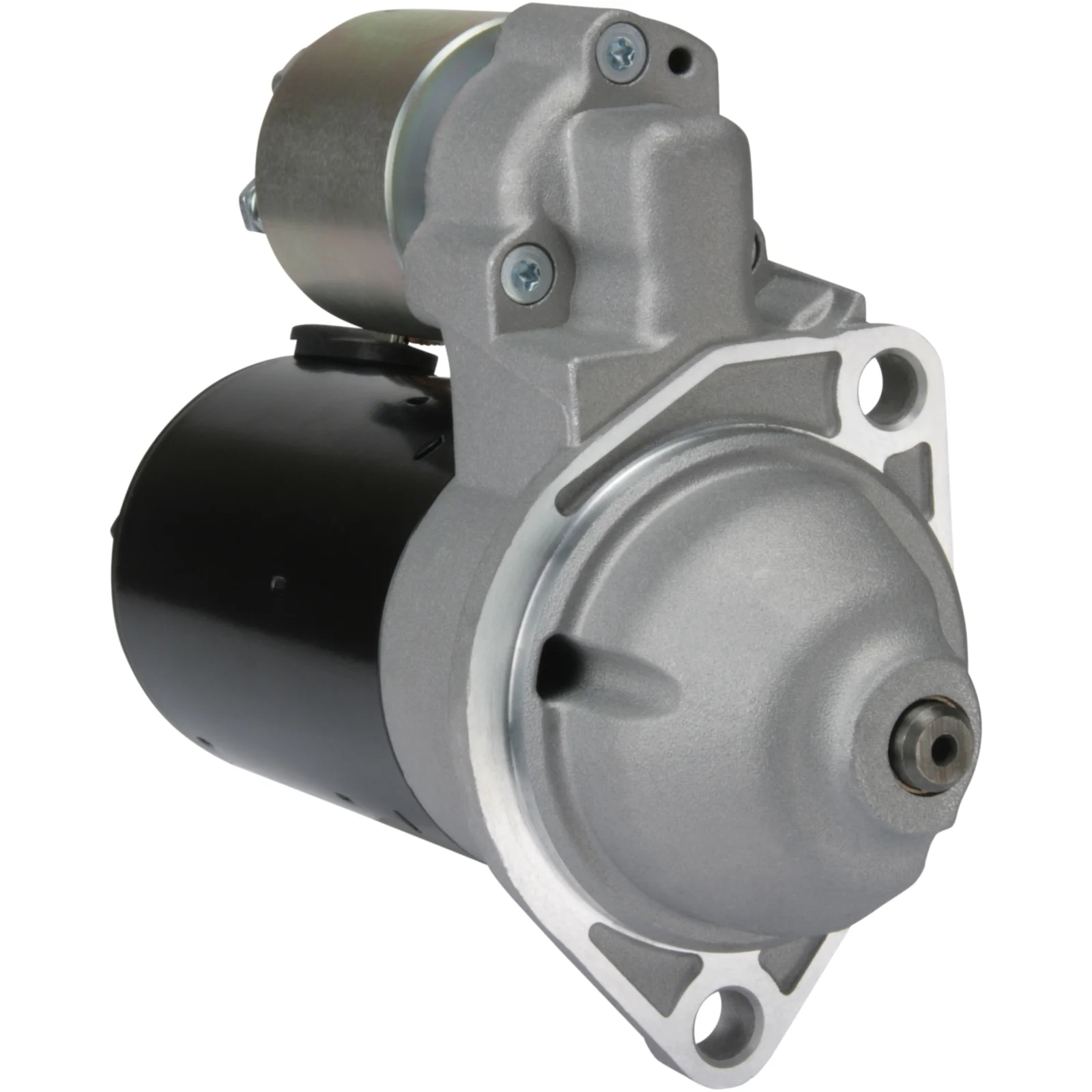

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115329

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 11, Rotation: CCW

Beskrivning

Voltage: 12
kW: 1.2
Mount. flange: 76.20
Drive dist.: 16.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 148.00
Dist./front: 52.00
No./teeth: 11
B+: M8
Position/50: 17
Terminal 50: M6
Gear type: GR
Dist. mm: 96.50
Rotation: CCW
Total length mm: 212.00
Prod. info: BN
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 76.20
No./mount. holes 2 (0)
Position/50 17
Prod. info BN
Rotation CCW
Dist./back 148.00
Dist./front 52.00
Drive dist. 16.00
Gear type GR
kW 1.2
Terminal 50 M6
Voltage 12
Total length 212.00 mm
Dist. 96.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    AZE2649, CST10170, CST21129, DRS0369, ED0058402150, F032115329, is1104, IS1104, MS116, S0838S, 11.131.299, 11.131.729, 25-3313, 25-4396, 600.242.112, 690.507.112, 1986S00654, 1986S00906, 32747, 32747N, 56308, 56356, 56514R, 220775, 220775A, 293762, 0001107040, 0001107046, 0001107551, 5840176, 5840215, 5840218, 11090223, 58401760, 0058402150, 58402150, 0058402180, 58402180, 58402440, 58402600, 1142510552, 51262017210, 063521070460

  • Konkurrentreferens
    CST10170, CST21129, DRS0369, is1104, MS116, S0838S, 25-3313, 25-4396, 600.242.112, 690.507.112, 32747, 32747N, 220775, 220775A, 11090223, 063521070460

  • Bilmärken
    LAMBORGHINI, PIAGGIO

  • Normaliserat artikelnummer
    aze2649, cst10170, cst21129, drs0369, ed0058402150, f032115329, is1104, ms116, s0838s, 1986s00654, 1986s00906, 32747, 32747n, 56308, 56356, 56514r, 220775, 220775a, 253313, 254396, 293762, 0001107040, 0001107046, 0001107551, 5840176, 5840215, 5840218, 11090223, 11131299, 11131729, 58401760, 0058402150, 58402150, 0058402180, 58402180, 58402440, 58402600, 600242112, 690507112, 1142510552, 51262017210, 063521070460

  • Passar modeller
    LAMBORGHINI ESPADA 400 GT Engine volume: 4.0 Engine type: LP407 Year: 01.68-12.81
    LAMBORGHINI JARAMA 400 GTS Engine volume: 4.0 Engine type: LP455 Year: 10.72-12.76
    PIAGGIO PORTER Flak/chassi 1.2 D Engine volume: 1.2 Engine type: LDW1204 Year: 05.95-
    PIAGGIO PORTER Flak/chassi 1.4 D Engine volume: 1.4 Engine type: LDW1404 Year: 04.98-
    PIAGGIO PORTER Skåp 1.4 D Engine volume: 1.4 Engine type: LDW1404 Year: 04.98-
  • Beskrivning
    Voltage: 12
    kW: 1.2
    Mount. flange: 76.20
    Drive dist.: 16.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 148.00
    Dist./front: 52.00
    No./teeth: 11
    B+: M8
    Position/50: 17
    Terminal 50: M6
    Gear type: GR
    Dist. mm: 96.50
    Rotation: CCW
    Total length mm: 212.00
    Prod. info: BN
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 76.20
    No./mount. holes 2 (0)
    Position/50 17
    Prod. info BN
    Rotation CCW
    Dist./back 148.00
    Dist./front 52.00
    Drive dist. 16.00
    Gear type GR
    kW 1.2
    Terminal 50 M6
    Voltage 12
    Total length 212.00 mm
    Dist. 96.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      AZE2649, CST10170, CST21129, DRS0369, ED0058402150, F032115329, is1104, IS1104, MS116, S0838S, 11.131.299, 11.131.729, 25-3313, 25-4396, 600.242.112, 690.507.112, 1986S00654, 1986S00906, 32747, 32747N, 56308, 56356, 56514R, 220775, 220775A, 293762, 0001107040, 0001107046, 0001107551, 5840176, 5840215, 5840218, 11090223, 58401760, 0058402150, 58402150, 0058402180, 58402180, 58402440, 58402600, 1142510552, 51262017210, 063521070460

    • Konkurrentreferens
      CST10170, CST21129, DRS0369, is1104, MS116, S0838S, 25-3313, 25-4396, 600.242.112, 690.507.112, 32747, 32747N, 220775, 220775A, 11090223, 063521070460

    • Bilmärken
      LAMBORGHINI, PIAGGIO

    • Normaliserat artikelnummer
      aze2649, cst10170, cst21129, drs0369, ed0058402150, f032115329, is1104, ms116, s0838s, 1986s00654, 1986s00906, 32747, 32747n, 56308, 56356, 56514r, 220775, 220775a, 253313, 254396, 293762, 0001107040, 0001107046, 0001107551, 5840176, 5840215, 5840218, 11090223, 11131299, 11131729, 58401760, 0058402150, 58402150, 0058402180, 58402180, 58402440, 58402600, 600242112, 690507112, 1142510552, 51262017210, 063521070460

    • Passar modeller
      LAMBORGHINI ESPADA 400 GT Engine volume: 4.0 Engine type: LP407 Year: 01.68-12.81
      LAMBORGHINI JARAMA 400 GTS Engine volume: 4.0 Engine type: LP455 Year: 10.72-12.76
      PIAGGIO PORTER Flak/chassi 1.2 D Engine volume: 1.2 Engine type: LDW1204 Year: 05.95-
      PIAGGIO PORTER Flak/chassi 1.4 D Engine volume: 1.4 Engine type: LDW1404 Year: 04.98-
      PIAGGIO PORTER Skåp 1.4 D Engine volume: 1.4 Engine type: LDW1404 Year: 04.98-
