HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115314

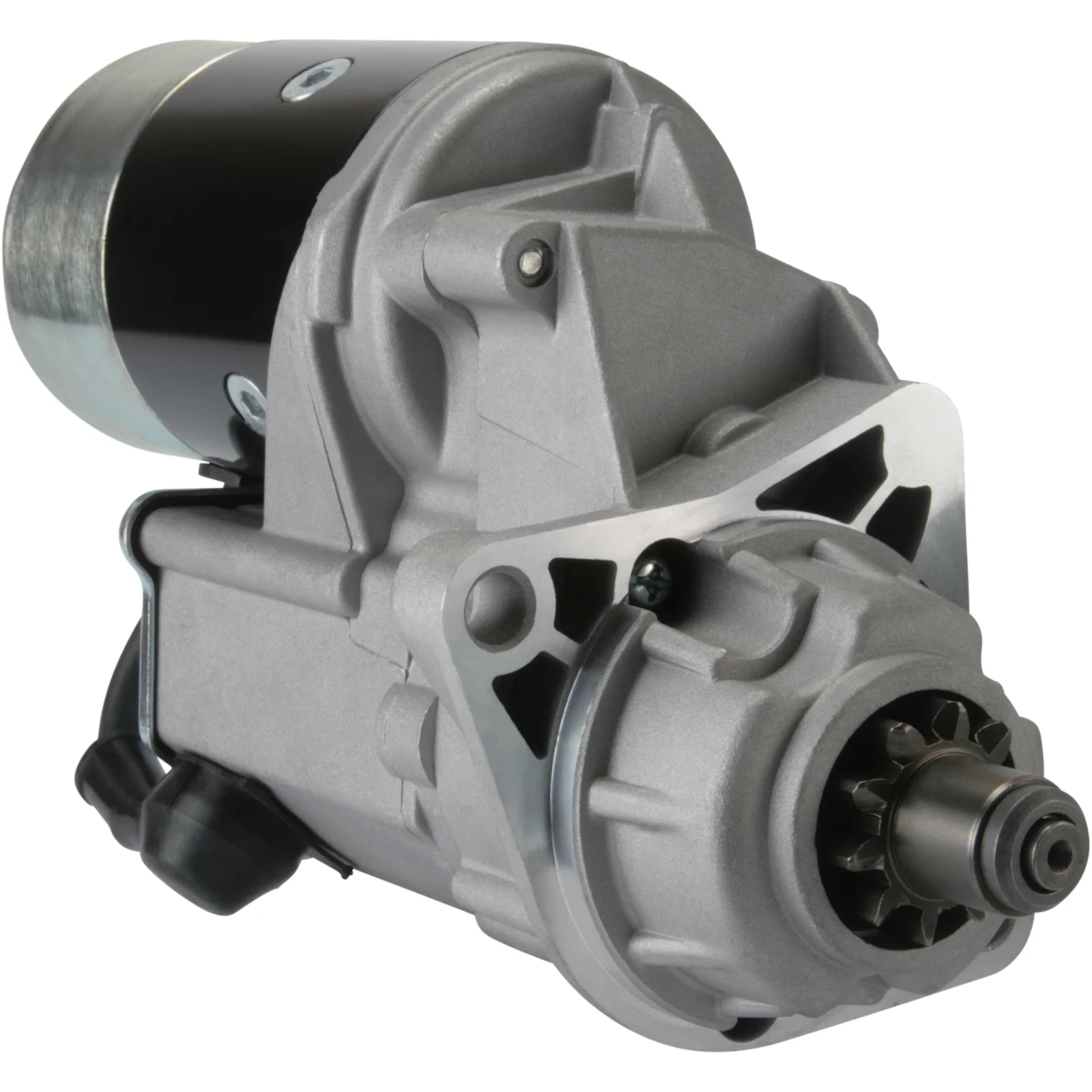

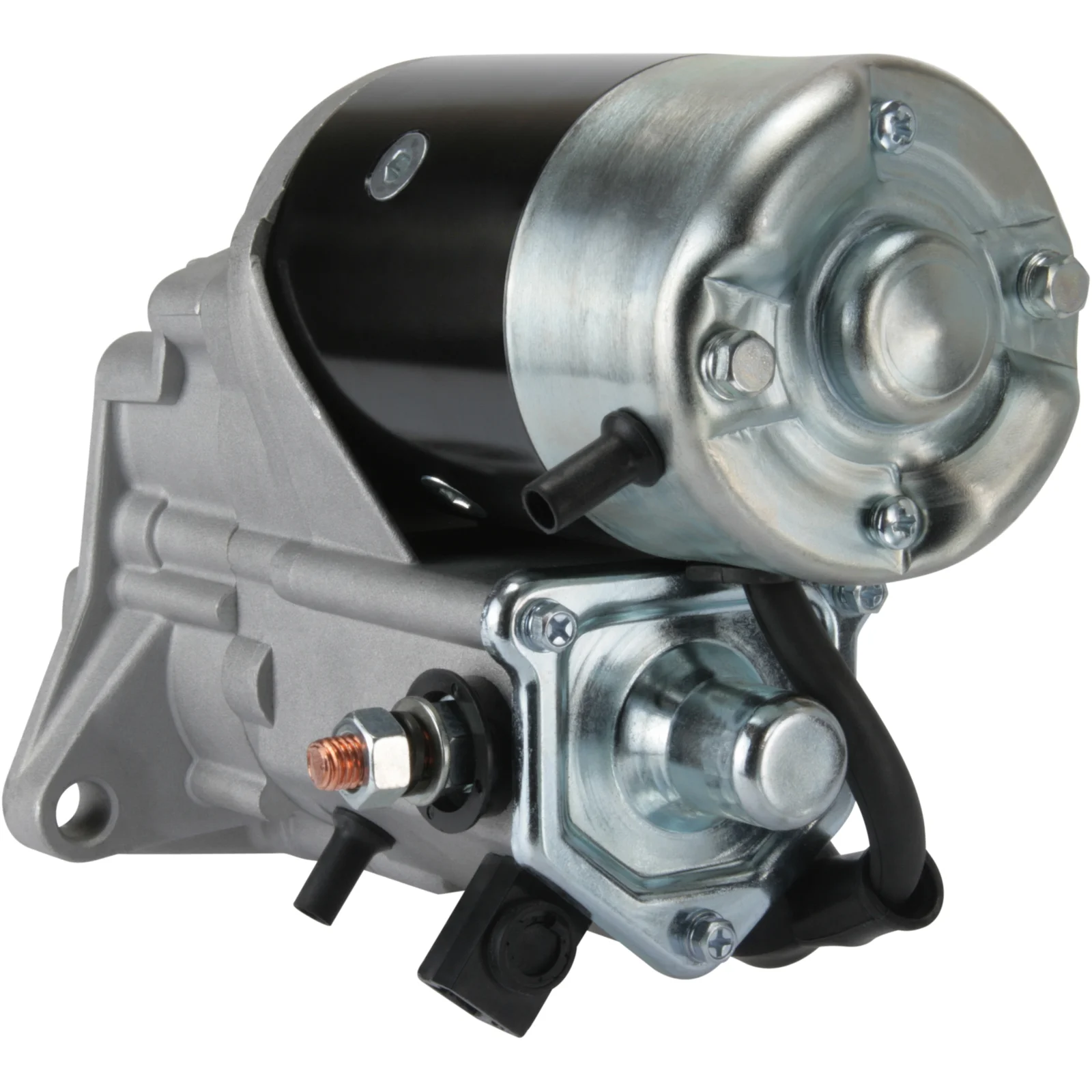

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 89.00
Drive dist.: 47.50
Mount. hole 2 mm: 12.00
Mount. hole 1 mm: 12.00
Dist./back: 162.50
Dist./front: 74.00
No./teeth: 10
B+: M10
Position/50: 7
Terminal 50: M5
Gear type: GR
Dist. mm: 126.50
Rotation: CW
Total length mm: 294.00
Position/30h: 15
Prod. info: BN
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 2 (0)
Position/30h 15
Position/50 7
Prod. info BN
Rotation CW
Dist./back 162.50
Dist./front 74.00
Drive dist. 47.50
Gear type GR
kW 2.5
Terminal 50 M5
Voltage 12
Total length 294.00 mm
Dist. 126.50 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    F032115314, RE50165, RE540301, RE54091, RE59588, TY24436, 228000-0840, 228000-0841, 228000-0842, 228000-0844, 501401

  • Konkurrentreferens
    CST40448, DSN2060, S6444S, 410-52285, 630.525.102, 18456, 18456N, 254628

  • Normaliserat artikelnummer
    cst40448, dsn2060, f032115314, re50165, re540301, re54091, re59588, s6444s, ty24436, 18456, 18456n, 254628, 501401, 41052285, 630525102, 2280000840, 2280000841, 2280000842, 2280000844

  • Passar modeller
    DAF Model: CF Model series: CF 85.360 Size of motor: 12.6 Brand of engine: MX265 Body: Dump Truck From date: 01-10-2006 Fuel: Diesel Approved: Yes
    John Deere Model: 4039 Model series: 4039 Approved: Yes
    John Deere Model: 4045 Model series: 4045 Approved: Yes
    John Deere Model: Utility Tractor Model series: 6100D Fuel: Diesel Approved: Yes
    John Deere Model: Utility Tractor Model series: 6125D Fuel: Diesel Approved: Yes
    John Deere Model: Utility Tractor Model series: 6140D Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 2.5
    Mount. flange: 89.00
    Drive dist.: 47.50
    Mount. hole 2 mm: 12.00
    Mount. hole 1 mm: 12.00
    Dist./back: 162.50
    Dist./front: 74.00
    No./teeth: 10
    B+: M10
    Position/50: 7
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 126.50
    Rotation: CW
    Total length mm: 294.00
    Position/30h: 15
    Prod. info: BN
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/30h 15
    Position/50 7
    Prod. info BN
    Rotation CW
    Dist./back 162.50
    Dist./front 74.00
    Drive dist. 47.50
    Gear type GR
    kW 2.5
    Terminal 50 M5
    Voltage 12
    Total length 294.00 mm
    Dist. 126.50 mm
    Mount. hole 2 12.00 mm
    Mount. hole 1 12.00 mm
  • Fordonsmatchning

    • OEM
      F032115314, RE50165, RE540301, RE54091, RE59588, TY24436, 228000-0840, 228000-0841, 228000-0842, 228000-0844, 501401

    • Konkurrentreferens
      CST40448, DSN2060, S6444S, 410-52285, 630.525.102, 18456, 18456N, 254628

    • Normaliserat artikelnummer
      cst40448, dsn2060, f032115314, re50165, re540301, re54091, re59588, s6444s, ty24436, 18456, 18456n, 254628, 501401, 41052285, 630525102, 2280000840, 2280000841, 2280000842, 2280000844

    • Passar modeller
      DAF Model: CF Model series: CF 85.360 Size of motor: 12.6 Brand of engine: MX265 Body: Dump Truck From date: 01-10-2006 Fuel: Diesel Approved: Yes
      John Deere Model: 4039 Model series: 4039 Approved: Yes
      John Deere Model: 4045 Model series: 4045 Approved: Yes
      John Deere Model: Utility Tractor Model series: 6100D Fuel: Diesel Approved: Yes
      John Deere Model: Utility Tractor Model series: 6125D Fuel: Diesel Approved: Yes
      John Deere Model: Utility Tractor Model series: 6140D Fuel: Diesel Approved: Yes
