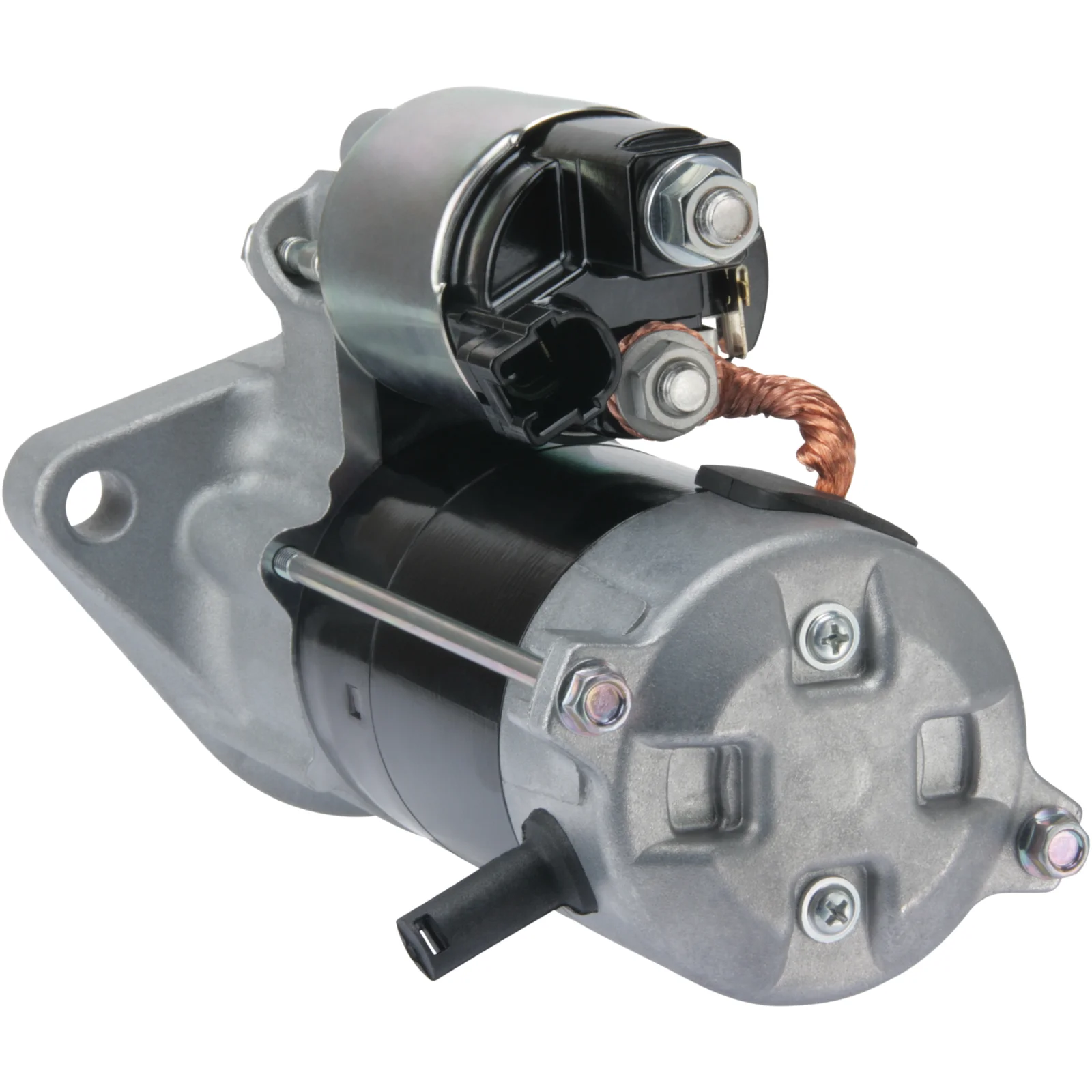

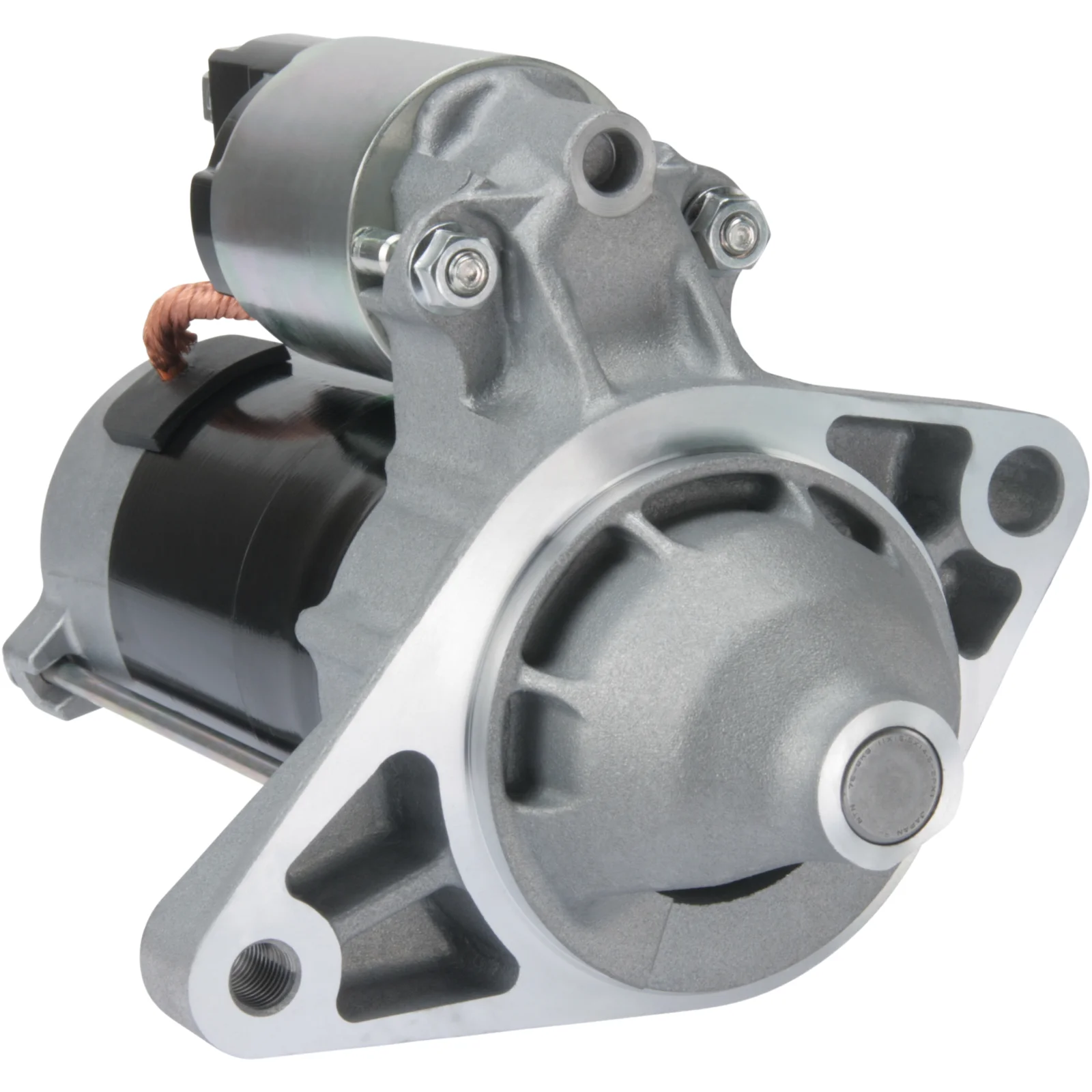

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114889

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.0
Mount. flange: 74.00
Drive dist.: 12.00
Mount. hole 1 mm: 11.00
Dist./back: 166.00
Dist./front: 45.00
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 40
Terminal 50: Plug
Gear type: GR
Dist. mm: 130.00
Rotation: CW
Total length mm: 211.50
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 40
Position/B+ 60
Rotation CW
Dist./back 166.00
Dist./front 45.00
Drive dist. 12.00
Gear type GR
kW 1.0
Terminal 50 Plug
Voltage 12
Total length 211.50 mm
Dist. 130.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114889, js1223, 1986S00953, 28100-23030, 28100-23040, 228000-8360, 228000-9170, 428000-7840

  • Konkurrentreferens
    CST44103, DENDSN931, DRS3865, DSN931, J5212108, LRT00215, S6035(DENSO), 8EA011610-681, 25-2442, 190.561.092, 335.060.092, 31215N, 201223, 220759, 220759A, 8080145, 063280054, 0986020571, 063280054010, 944280801450

  • Normaliserat artikelnummer
    cst44103, dendsn931, drs3865, dsn931, f032114889, j5212108, js1223, lrt00215, s6035denso, 8ea011610681, 1986s00953, 31215n, 201223, 220759, 220759a, 252442, 8080145, 063280054, 190561092, 335060092, 0986020571, 2280008360, 2280009170, 2810023030, 2810023040, 4280007840, 063280054010, 944280801450

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.0
    Mount. flange: 74.00
    Drive dist.: 12.00
    Mount. hole 1 mm: 11.00
    Dist./back: 166.00
    Dist./front: 45.00
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 40
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 130.00
    Rotation: CW
    Total length mm: 211.50
    No./mount. holes: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 40
    Position/B+ 60
    Rotation CW
    Dist./back 166.00
    Dist./front 45.00
    Drive dist. 12.00
    Gear type GR
    kW 1.0
    Terminal 50 Plug
    Voltage 12
    Total length 211.50 mm
    Dist. 130.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032114889, js1223, 1986S00953, 28100-23030, 28100-23040, 228000-8360, 228000-9170, 428000-7840

    • Konkurrentreferens
      CST44103, DENDSN931, DRS3865, DSN931, J5212108, LRT00215, S6035(DENSO), 8EA011610-681, 25-2442, 190.561.092, 335.060.092, 31215N, 201223, 220759, 220759A, 8080145, 063280054, 0986020571, 063280054010, 944280801450

    • Normaliserat artikelnummer
      cst44103, dendsn931, drs3865, dsn931, f032114889, j5212108, js1223, lrt00215, s6035denso, 8ea011610681, 1986s00953, 31215n, 201223, 220759, 220759a, 252442, 8080145, 063280054, 190561092, 335060092, 0986020571, 2280008360, 2280009170, 2810023030, 2810023040, 4280007840, 063280054010, 944280801450

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
