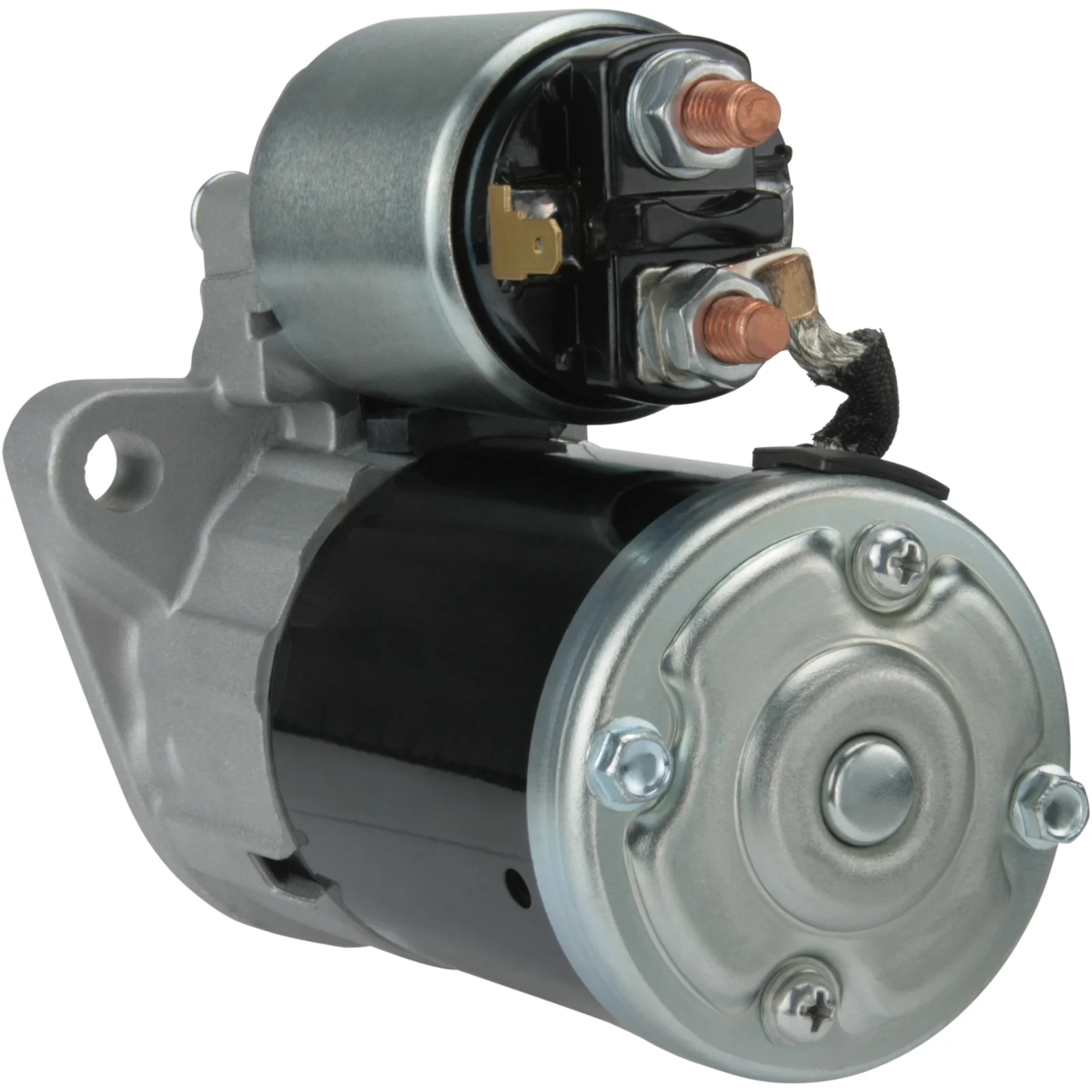

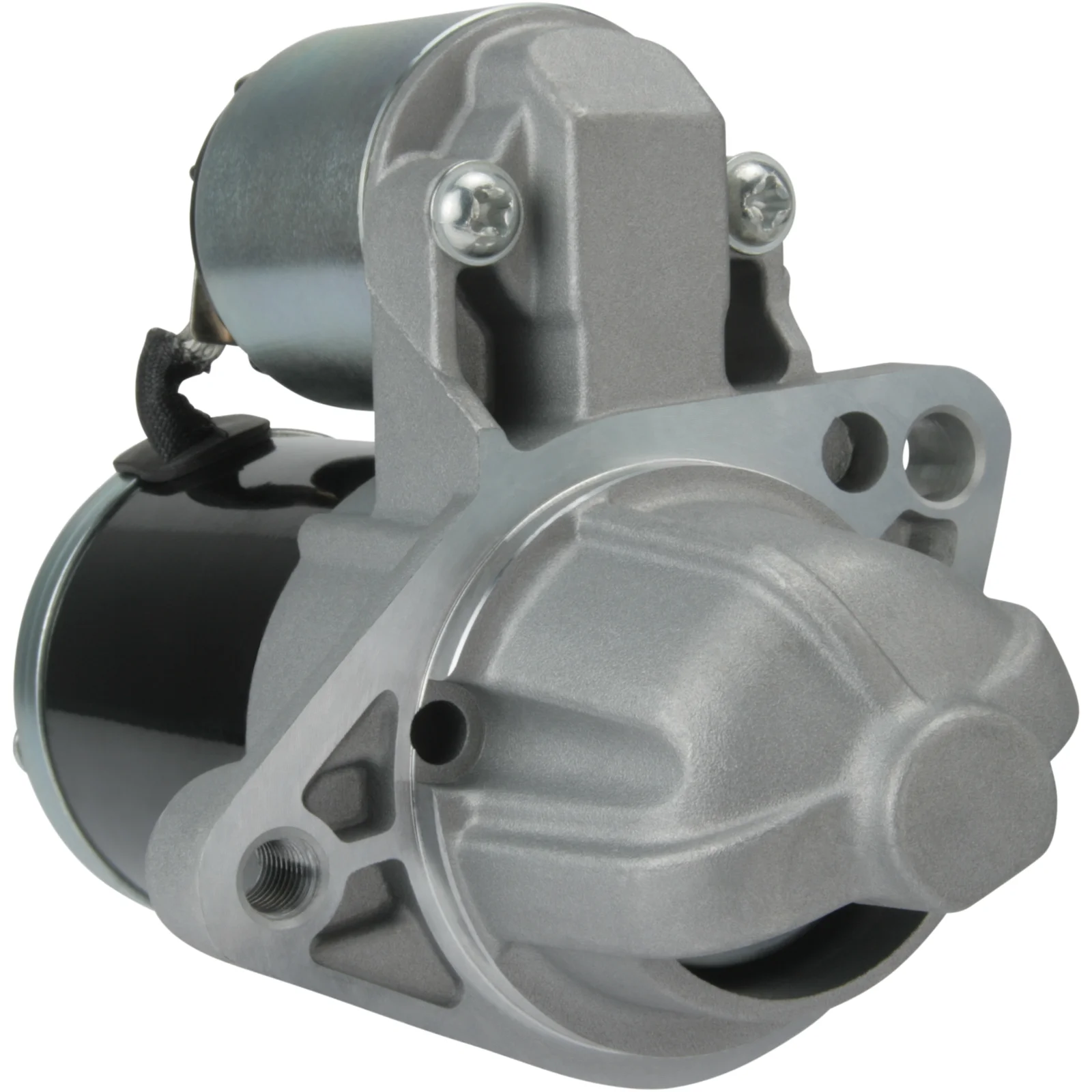

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114871

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.1, No./teeth: 8, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.1
Mount. flange: 70.00
Drive dist.: 28.00
Mount. hole 1 mm: 11.00
Dist./back: 123.00
Dist./front: 59.50
No./teeth: 8
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 101.50
Rotation: CW
Total length mm: 182.50
Prod. info: BN
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 70.00
No./mount. holes 2 (1)
Position/50 45
Prod. info BN
Rotation CW
Dist./back 123.00
Dist./front 59.50
Drive dist. 28.00
Gear type GR
kW 1.1
Terminal 50 6.30
Voltage 12
Total length 182.50 mm
Dist. 101.50 mm
Mount. hole 1 11.00 mm

  • OEM
    cs1528, F032114871, M000T36971, M000T36971ZE, M0T36971, m0t36971ze, M2T46981, 31100-51K00, 31100-51K21, 31100-73K00, 4709919, 93134147, 93194147, 95514185

  • Konkurrentreferens
    CST35242, DRS0642, DRS0642N, LRS02582, S5184, 8EA011611-621, 25-4254, 130.570.082, 130.588.082, 345.031.082, 31243N, 438389, 446511, 458902, 8080358, 11090259, 0986025760

  • Normaliserat artikelnummer
    cs1528, cst35242, drs0642, drs0642n, f032114871, lrs02582, m000t36971, m000t36971ze, m0t36971, m0t36971ze, m2t46981, s5184, 8ea011611621, 31243n, 254254, 438389, 446511, 458902, 3110051k00, 3110051k21, 3110073k00, 4709919, 8080358, 11090259, 93134147, 93194147, 95514185, 130570082, 130588082, 345031082, 0986025760

  • Passar modeller
    Opel Model: Agila Model series: Agila Size of motor: 1.0 Brand of engine: K10B Body: Estate From date: 01-04-2008 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
    Opel Model: Agila Model series: Agila Size of motor: 1.2 Brand of engine: K12B Body: Estate From date: 01-04-2008 To date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Suzuki Model: Splash Model series: Splash Size of motor: 1.0 Brand of engine: K10B Body: Hatchback From date: 01-01-2008 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Agila Model series: Agila Mk II Type of engine: i Size of motor: 1.0 Brand of engine: K10B Type description: B Body: Hatchback From date: 01-08-2011 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Agila Model series: Agila Size of motor: 1.0 Brand of engine: K10B Body: MPV From date: 01-01-2008 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Agila Model series: Agila Size of motor: 1.2 Brand of engine: K12B Body: MPV From date: 01-01-2008 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 1.1
    Mount. flange: 70.00
    Drive dist.: 28.00
    Mount. hole 1 mm: 11.00
    Dist./back: 123.00
    Dist./front: 59.50
    No./teeth: 8
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 101.50
    Rotation: CW
    Total length mm: 182.50
    Prod. info: BN
    No./mount. holes: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 70.00
    No./mount. holes 2 (1)
    Position/50 45
    Prod. info BN
    Rotation CW
    Dist./back 123.00
    Dist./front 59.50
    Drive dist. 28.00
    Gear type GR
    kW 1.1
    Terminal 50 6.30
    Voltage 12
    Total length 182.50 mm
    Dist. 101.50 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      cs1528, F032114871, M000T36971, M000T36971ZE, M0T36971, m0t36971ze, M2T46981, 31100-51K00, 31100-51K21, 31100-73K00, 4709919, 93134147, 93194147, 95514185

    • Konkurrentreferens
      CST35242, DRS0642, DRS0642N, LRS02582, S5184, 8EA011611-621, 25-4254, 130.570.082, 130.588.082, 345.031.082, 31243N, 438389, 446511, 458902, 8080358, 11090259, 0986025760

    • Normaliserat artikelnummer
      cs1528, cst35242, drs0642, drs0642n, f032114871, lrs02582, m000t36971, m000t36971ze, m0t36971, m0t36971ze, m2t46981, s5184, 8ea011611621, 31243n, 254254, 438389, 446511, 458902, 3110051k00, 3110051k21, 3110073k00, 4709919, 8080358, 11090259, 93134147, 93194147, 95514185, 130570082, 130588082, 345031082, 0986025760

    • Passar modeller
      Opel Model: Agila Model series: Agila Size of motor: 1.0 Brand of engine: K10B Body: Estate From date: 01-04-2008 To date: 01-06-2011 Fuel: Gasoline Approved: Yes
      Opel Model: Agila Model series: Agila Size of motor: 1.2 Brand of engine: K12B Body: Estate From date: 01-04-2008 To date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Suzuki Model: Splash Model series: Splash Size of motor: 1.0 Brand of engine: K10B Body: Hatchback From date: 01-01-2008 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Agila Model series: Agila Mk II Type of engine: i Size of motor: 1.0 Brand of engine: K10B Type description: B Body: Hatchback From date: 01-08-2011 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Agila Model series: Agila Size of motor: 1.0 Brand of engine: K10B Body: MPV From date: 01-01-2008 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
      Vauxhall Model: Agila Model series: Agila Size of motor: 1.2 Brand of engine: K12B Body: MPV From date: 01-01-2008 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
