  • Välkommen till Yourex - Din Grossist på bilelektriska reservdelar.

Artikelnr: F032114870

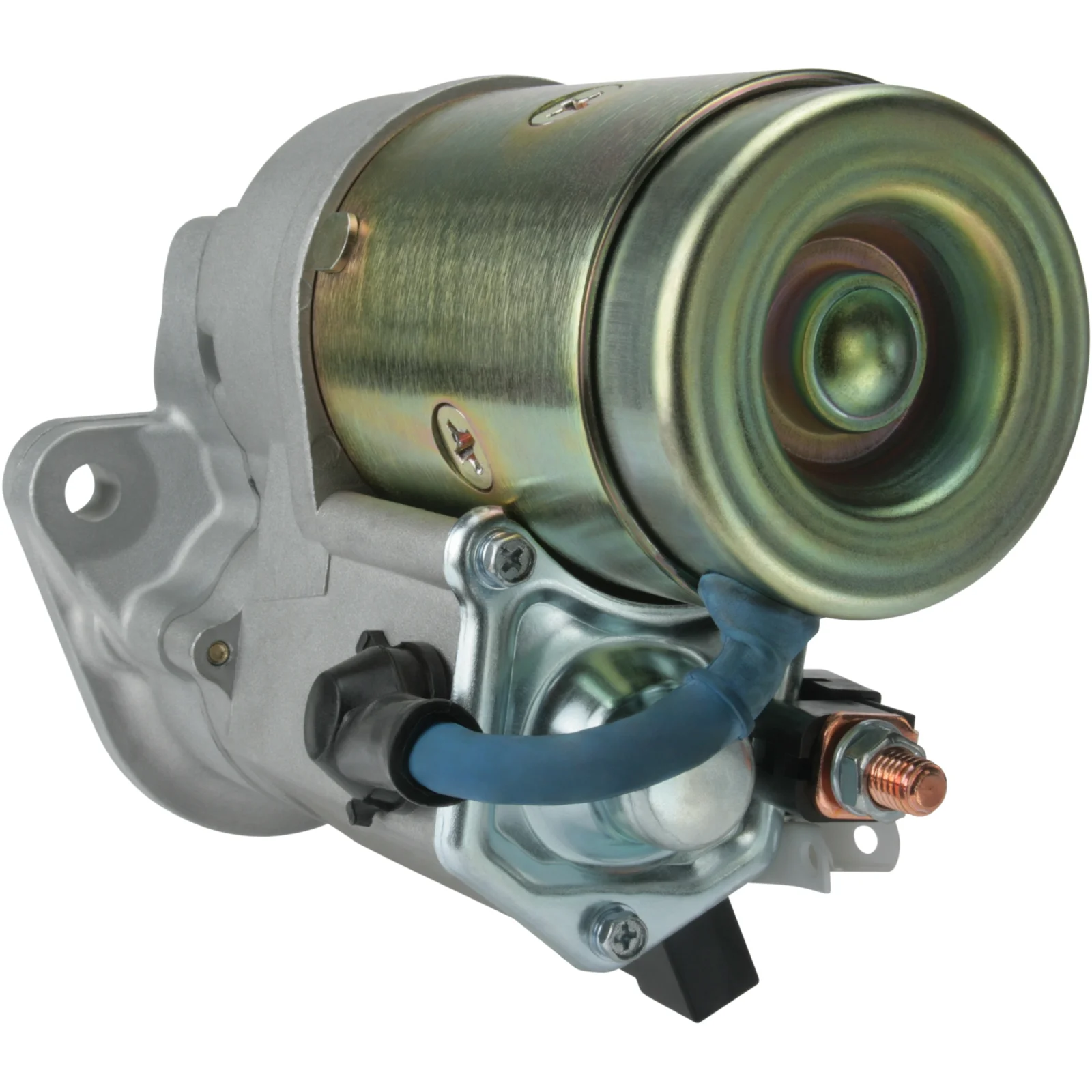

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.2
Mount. flange: 74.00
Drive dist.: 19.50
Mount. hole 2 mm: 11.50
Mount. hole 1 mm: 11.50
Dist./back: 152.00
Dist./front: 34.00
No./teeth: 11
B+: 3/8" UNC
Position/50: 25
Terminal 50: M5
Gear type: GR
Dist. mm: 110.50
Rotation: CW
Total length mm: 235.00
Prod. info: BN
No./mount. holes: 2 (0)

Specifikation

B+ 3/8" UNC
No./teeth 11
Mount. flange 74.00
No./mount. holes 2 (0)
Position/50 25
Prod. info BN
Rotation CW
Dist./back 152.00
Dist./front 34.00
Drive dist. 19.50
Gear type GR
kW 2.2
Terminal 50 M5
Voltage 12
Total length 235.00 mm
Dist. 110.50 mm
Mount. hole 2 11.50 mm
Mount. hole 1 11.50 mm
  • OEM

    0R9704, F032114870, OR9704, 155-9849, 228000-8450, 428000-6170, 428000-6171, 185086750
  • Konkurrentreferens

    CST40523, DRS0342, 640.525.112, 19908N
  • Normaliserat artikelnummer

    0r9704, cst40523, drs0342, f032114870, or9704, 19908n, 1559849, 185086750, 640525112, 2280008450, 4280006170, 4280006171
  • Passar modeller

    Caterpillar Model: Various Industrial applications Model series: Various Industrial applications Approved: Yes
    Perkins Model: 104-22 Model series: 104-22 Size of motor: 2.2 Brand of engine: 104-22 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.2
    Mount. flange: 74.00
    Drive dist.: 19.50
    Mount. hole 2 mm: 11.50
    Mount. hole 1 mm: 11.50
    Dist./back: 152.00
    Dist./front: 34.00
    No./teeth: 11
    B+: 3/8" UNC
    Position/50: 25
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 110.50
    Rotation: CW
    Total length mm: 235.00
    Prod. info: BN
    No./mount. holes: 2 (0)
  • Specifikation
    B+ 3/8" UNC
    No./teeth 11
    Mount. flange 74.00
    No./mount. holes 2 (0)
    Position/50 25
    Prod. info BN
    Rotation CW
    Dist./back 152.00
    Dist./front 34.00
    Drive dist. 19.50
    Gear type GR
    kW 2.2
    Terminal 50 M5
    Voltage 12
    Total length 235.00 mm
    Dist. 110.50 mm
    Mount. hole 2 11.50 mm
    Mount. hole 1 11.50 mm
  • Fordonsmatchning
    • OEM

      0R9704, F032114870, OR9704, 155-9849, 228000-8450, 428000-6170, 428000-6171, 185086750
    • Konkurrentreferens

      CST40523, DRS0342, 640.525.112, 19908N
    • Normaliserat artikelnummer

      0r9704, cst40523, drs0342, f032114870, or9704, 19908n, 1559849, 185086750, 640525112, 2280008450, 4280006170, 4280006171
    • Passar modeller

      Caterpillar Model: Various Industrial applications Model series: Various Industrial applications Approved: Yes
      Perkins Model: 104-22 Model series: 104-22 Size of motor: 2.2 Brand of engine: 104-22 Fuel: Diesel Approved: Yes
