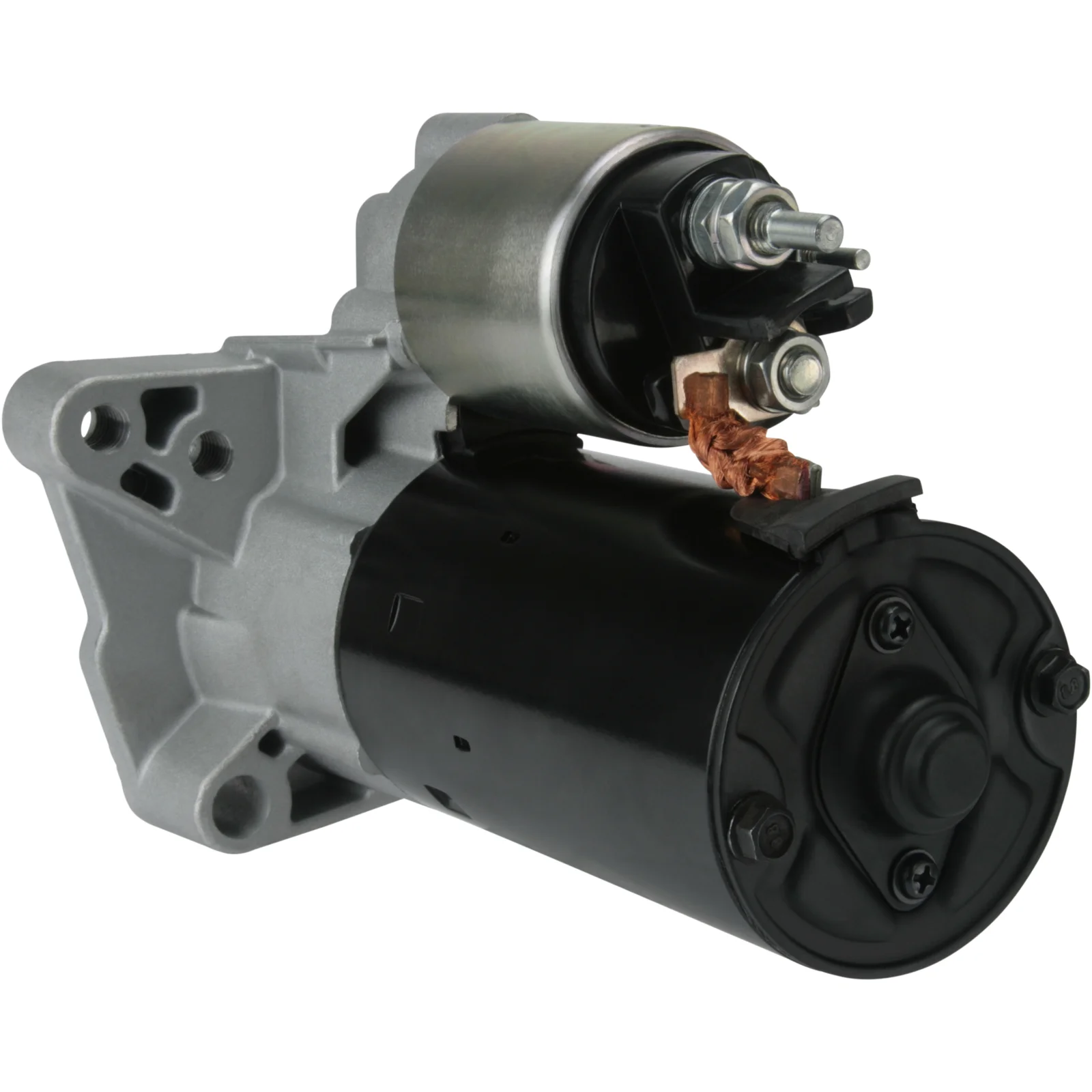

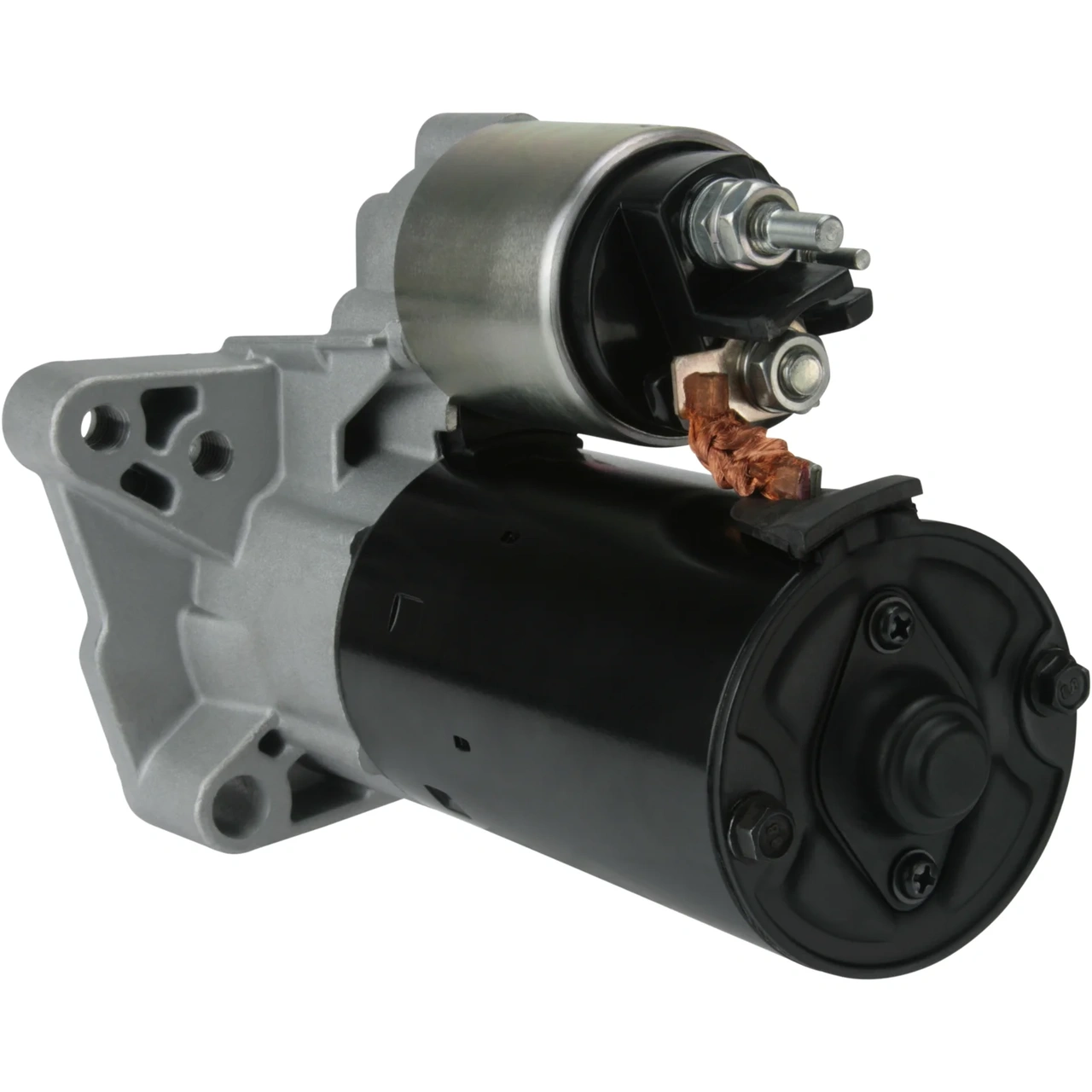

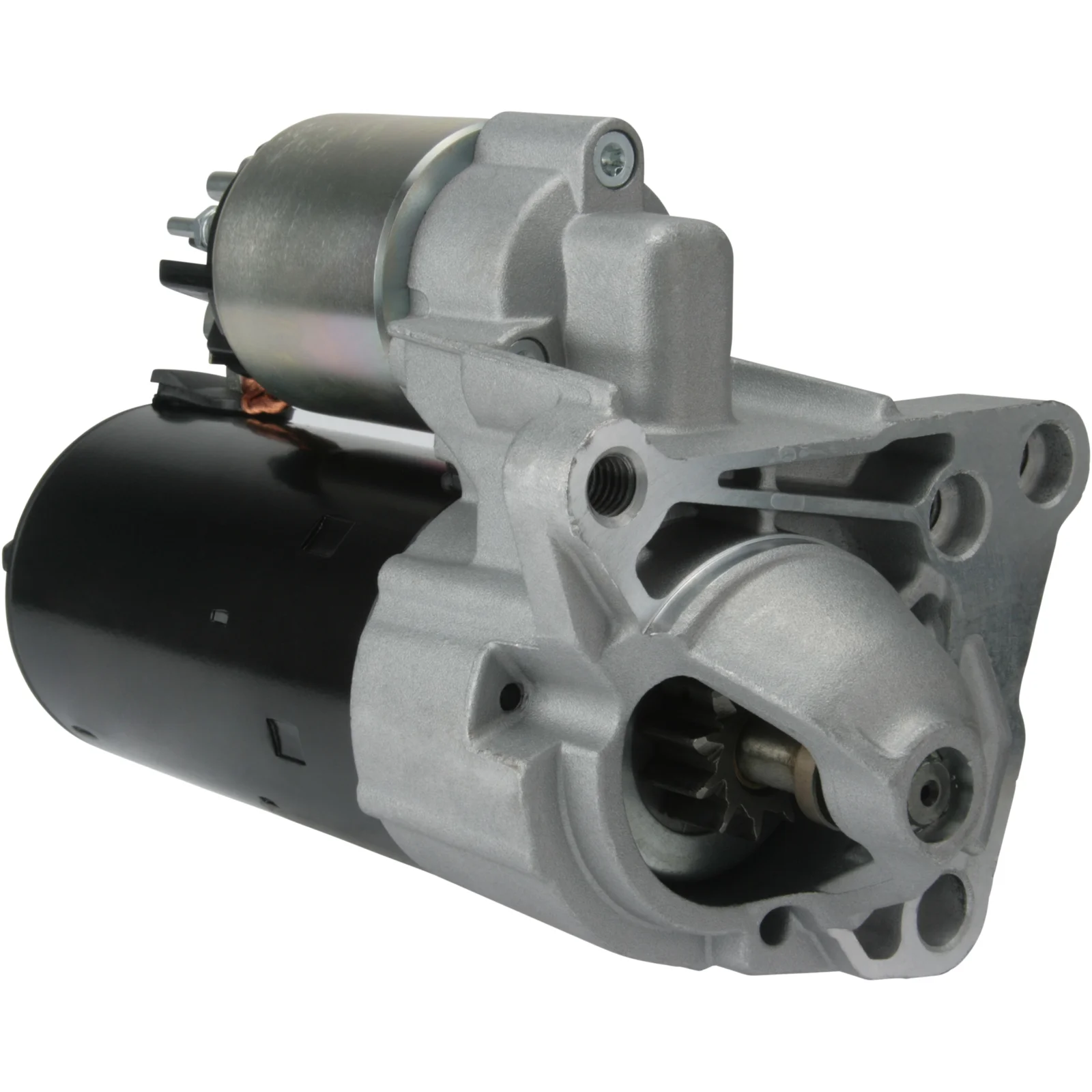

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114869

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 66.00
Drive dist.: 0.50
Mount. hole 4 mm: M10
Mount. hole 3 mm: 12.00
Mount. hole 2 mm: M10
Mount. hole 1 mm: M10
Dist./back: 174.00
Dist./front: 33.50
No./teeth: 11
B+: M8
Position/50: 10
Terminal 50: M5
Gear type: GR
Dist. 2: 74.00
Dist. 3: 104.50
Dist. 4: 72.50
Dist. mm: 22.00
Rotation: CW
Total length mm: 214.00
Prod. info: BN
No./mount. holes: 4 (3)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 66.00
No./mount. holes 4 (3)
Position/50 10
Prod. info BN
Dist. 2 74.00
Dist. 3 104.50
Dist. 4 72.50
Rotation CW
Dist./back 174.00
Dist./front 33.50
Drive dist. 0.50
Gear type GR
kW 1.4
Terminal 50 M5
Voltage 12
Total length 214.00 mm
Dist. 22.00 mm
Mount. hole 4 M10 mm
Mount. hole 3 12.00 mm
Mount. hole 2 M10 mm
Mount. hole 1 M10 mm

  • OEM
    CST10442, DRS0232, F032114869, LRS02404, S0497, 25-4076, 330.056.112, 1986S00707, 3087, 30364N, 220882, 220882A, 458815, 0001108428, 0001108429, 11024130, 0986024130, 7711497369, 8200741476, 8200741476B

  • Konkurrentreferens
    CST10442, DRS0232, LRS02404, S0497, 25-4076, 330.056.112, 3087, 30364N, 220882, 220882A, 458815, 11024130, 0986024130

  • Bilmärken
    RENAULT

  • Normaliserat artikelnummer
    cst10442, drs0232, f032114869, lrs02404, s0497, 1986s00707, 3087, 30364n, 220882, 220882a, 254076, 458815, 0001108428, 0001108429, 11024130, 330056112, 0986024130, 7711497369, 8200741476, 8200741476b

  • Passar modeller
    RENAULT GRAND SCÉNIC III (JZ0/1_) 1.9 dCi (JZ0J, JZ0N, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 02.09-09.16
    RENAULT MEGANE CC (EZ0/1_) 1.9 dCi (EZ0J, EZ1S) Engine volume: 1.9 Engine type: F9Q 870 Year: 06.10-08.15
    RENAULT MEGANE III Coupé (DZ0/1_) 1.9 dCi (DZ0N, DZ0J, DZ1J, DZ1K) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 11.08-08.15
    RENAULT MEGANE III Grandtour (KZ0/1) 1.9 dCi (KZ0J, KZ0N, KZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 05.09-08.15
    RENAULT MEGANE III Halvkombi (BZ0/1_, B3_) 1.9 dCi (BZ0N, BZ0J) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 11.08-01.16
    RENAULT SCÉNIC III (JZ0/1_) 1.9 dCi (JZ0J, JZ1J, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 02.09-09.16
    RENAULT SCÉNIC III VAN (JZ0/1_) 1.9 dCi (JZ0J, JZ1J, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 01.13-09.16
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 66.00
    Drive dist.: 0.50
    Mount. hole 4 mm: M10
    Mount. hole 3 mm: 12.00
    Mount. hole 2 mm: M10
    Mount. hole 1 mm: M10
    Dist./back: 174.00
    Dist./front: 33.50
    No./teeth: 11
    B+: M8
    Position/50: 10
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 74.00
    Dist. 3: 104.50
    Dist. 4: 72.50
    Dist. mm: 22.00
    Rotation: CW
    Total length mm: 214.00
    Prod. info: BN
    No./mount. holes: 4 (3)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 66.00
    No./mount. holes 4 (3)
    Position/50 10
    Prod. info BN
    Dist. 2 74.00
    Dist. 3 104.50
    Dist. 4 72.50
    Rotation CW
    Dist./back 174.00
    Dist./front 33.50
    Drive dist. 0.50
    Gear type GR
    kW 1.4
    Terminal 50 M5
    Voltage 12
    Total length 214.00 mm
    Dist. 22.00 mm
    Mount. hole 4 M10 mm
    Mount. hole 3 12.00 mm
    Mount. hole 2 M10 mm
    Mount. hole 1 M10 mm
  • Fordonsmatchning

    • OEM
      CST10442, DRS0232, F032114869, LRS02404, S0497, 25-4076, 330.056.112, 1986S00707, 3087, 30364N, 220882, 220882A, 458815, 0001108428, 0001108429, 11024130, 0986024130, 7711497369, 8200741476, 8200741476B

    • Konkurrentreferens
      CST10442, DRS0232, LRS02404, S0497, 25-4076, 330.056.112, 3087, 30364N, 220882, 220882A, 458815, 11024130, 0986024130

    • Bilmärken
      RENAULT

    • Normaliserat artikelnummer
      cst10442, drs0232, f032114869, lrs02404, s0497, 1986s00707, 3087, 30364n, 220882, 220882a, 254076, 458815, 0001108428, 0001108429, 11024130, 330056112, 0986024130, 7711497369, 8200741476, 8200741476b

    • Passar modeller
      RENAULT GRAND SCÉNIC III (JZ0/1_) 1.9 dCi (JZ0J, JZ0N, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 02.09-09.16
      RENAULT MEGANE CC (EZ0/1_) 1.9 dCi (EZ0J, EZ1S) Engine volume: 1.9 Engine type: F9Q 870 Year: 06.10-08.15
      RENAULT MEGANE III Coupé (DZ0/1_) 1.9 dCi (DZ0N, DZ0J, DZ1J, DZ1K) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 11.08-08.15
      RENAULT MEGANE III Grandtour (KZ0/1) 1.9 dCi (KZ0J, KZ0N, KZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 05.09-08.15
      RENAULT MEGANE III Halvkombi (BZ0/1_, B3_) 1.9 dCi (BZ0N, BZ0J) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 11.08-01.16
      RENAULT SCÉNIC III (JZ0/1_) 1.9 dCi (JZ0J, JZ1J, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 02.09-09.16
      RENAULT SCÉNIC III VAN (JZ0/1_) 1.9 dCi (JZ0J, JZ1J, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 01.13-09.16
