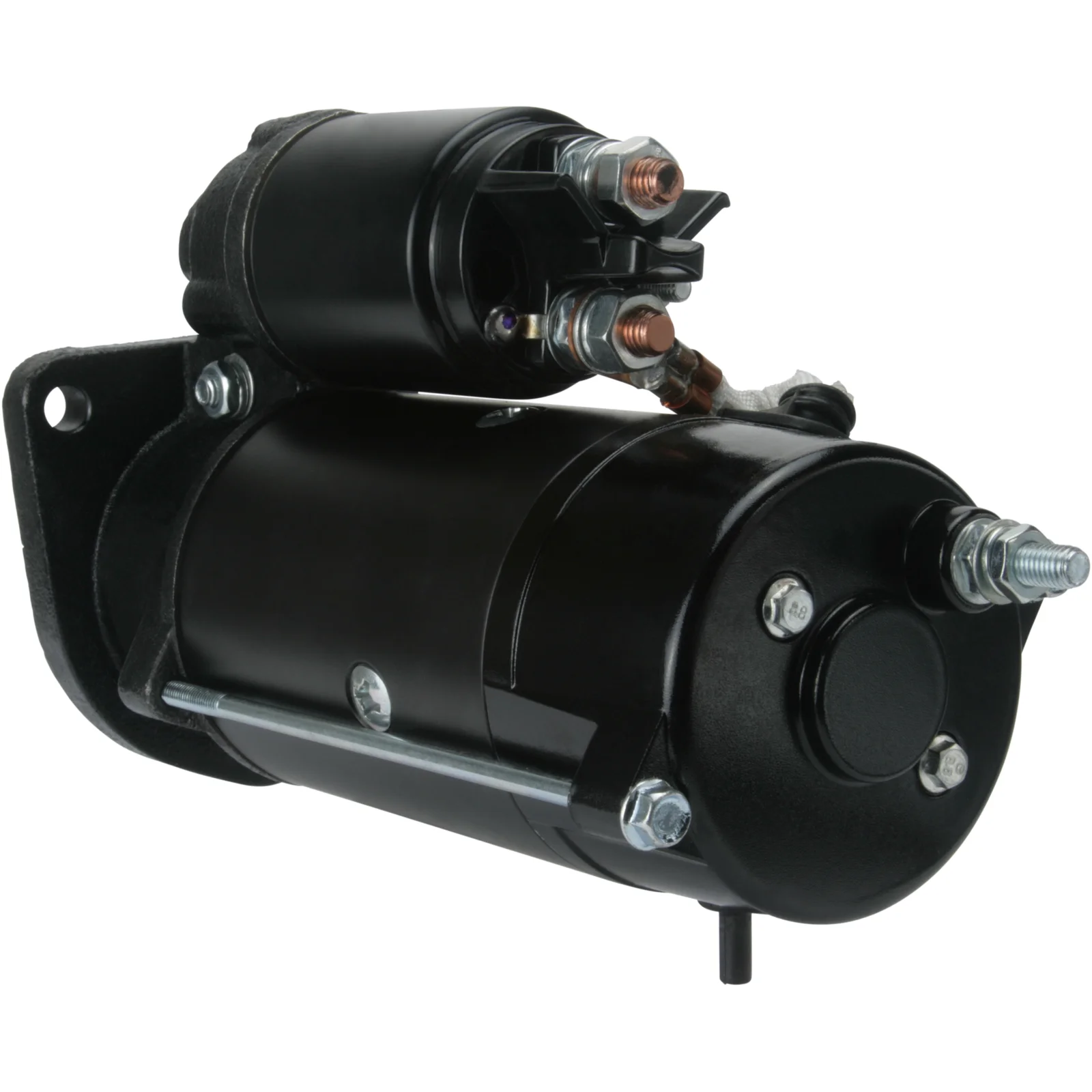

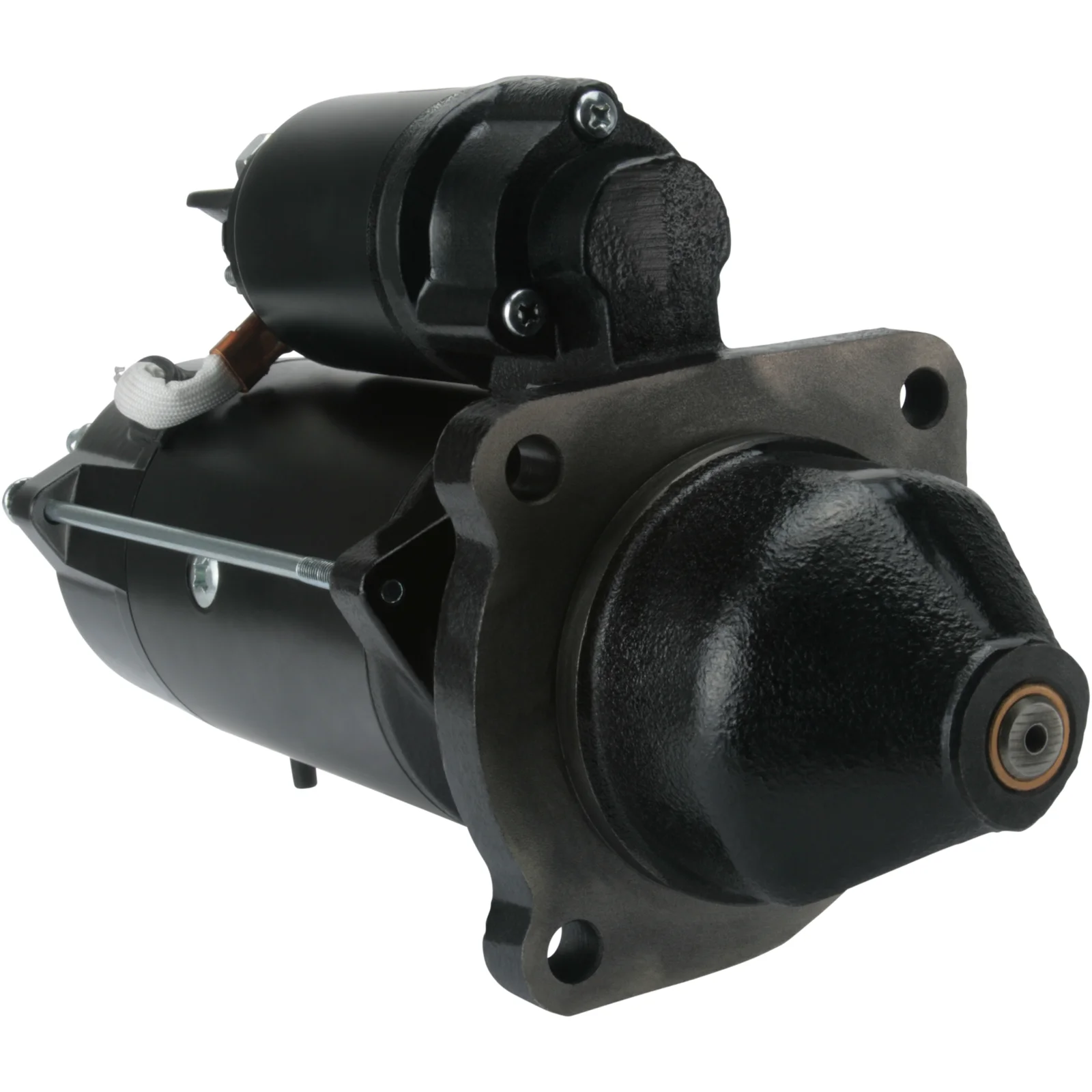

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114852

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 4.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 4.2
Mount. flange: 89.00
Drive dist.: 29.50
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 241.00
Dist./front: 77.50
No./teeth: 10
B+: M10
Thread length mm: 18.00
Position/50: 17
Terminal 50: M6
Gear type: GR
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Position/b-: 10
B-: M10
Total length mm: 350.00
Prod. info: BN
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 17
Position/b- 10
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 241.00
Dist./front 77.50
Drive dist. 29.50
Gear type GR
kW 4.2
Terminal 50 M6
Voltage 12
Total length 350.00 mm
Dist. 127.00 mm
Thread length 18.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZF4164, AZF4196, AZF4206, AZF4208, AZF4248, AZF4269, F032114852, M100R2015SE, T406154, 11.131.640, 11.131.763, 11.131.784, 11.131.792, 11.131.900, 11.132.008, 2873K604, 2873K605, 2873K606, 2873K635, 788116, 3317010, 7169479, 7220938

  • Konkurrentreferens
    CST21155, CST21215, DRS0277, IS1202, LRS02551, MS226, MS403, S9235, S9235(LETRIKA), S9362S, 700.531.103, 700.533.103, 16058N

  • Normaliserat artikelnummer
    azf4164, azf4196, azf4206, azf4208, azf4248, azf4269, cst21155, cst21215, drs0277, f032114852, is1202, lrs02551, m100r2015se, ms226, ms403, s9235, s9235letrika, s9362s, t406154, 2873k604, 2873k605, 2873k606, 2873k635, 16058n, 788116, 3317010, 7169479, 7220938, 11131640, 11131763, 11131784, 11131792, 11131900, 11132008, 700531103, 700533103

  • Passar modeller
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
    Various Industrial applications Model: Various Industrial applications Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 4.2
    Mount. flange: 89.00
    Drive dist.: 29.50
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 241.00
    Dist./front: 77.50
    No./teeth: 10
    B+: M10
    Thread length mm: 18.00
    Position/50: 17
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 127.00
    Rotation: CW
    Position/b-: 10
    B-: M10
    Total length mm: 350.00
    Prod. info: BN
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M10
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 17
    Position/b- 10
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 241.00
    Dist./front 77.50
    Drive dist. 29.50
    Gear type GR
    kW 4.2
    Terminal 50 M6
    Voltage 12
    Total length 350.00 mm
    Dist. 127.00 mm
    Thread length 18.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      AZF4164, AZF4196, AZF4206, AZF4208, AZF4248, AZF4269, F032114852, M100R2015SE, T406154, 11.131.640, 11.131.763, 11.131.784, 11.131.792, 11.131.900, 11.132.008, 2873K604, 2873K605, 2873K606, 2873K635, 788116, 3317010, 7169479, 7220938

    • Konkurrentreferens
      CST21155, CST21215, DRS0277, IS1202, LRS02551, MS226, MS403, S9235, S9235(LETRIKA), S9362S, 700.531.103, 700.533.103, 16058N

    • Normaliserat artikelnummer
      azf4164, azf4196, azf4206, azf4208, azf4248, azf4269, cst21155, cst21215, drs0277, f032114852, is1202, lrs02551, m100r2015se, ms226, ms403, s9235, s9235letrika, s9362s, t406154, 2873k604, 2873k605, 2873k606, 2873k635, 16058n, 788116, 3317010, 7169479, 7220938, 11131640, 11131763, 11131784, 11131792, 11131900, 11132008, 700531103, 700533103

    • Passar modeller
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
      Various Industrial applications Model: Various Industrial applications Approved: Yes
